Yunshis

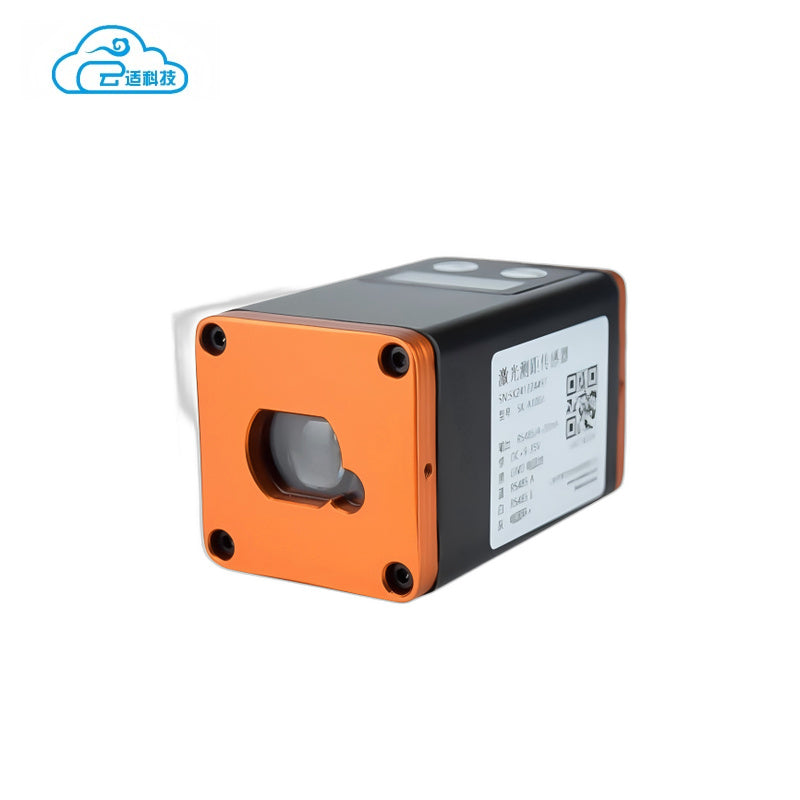

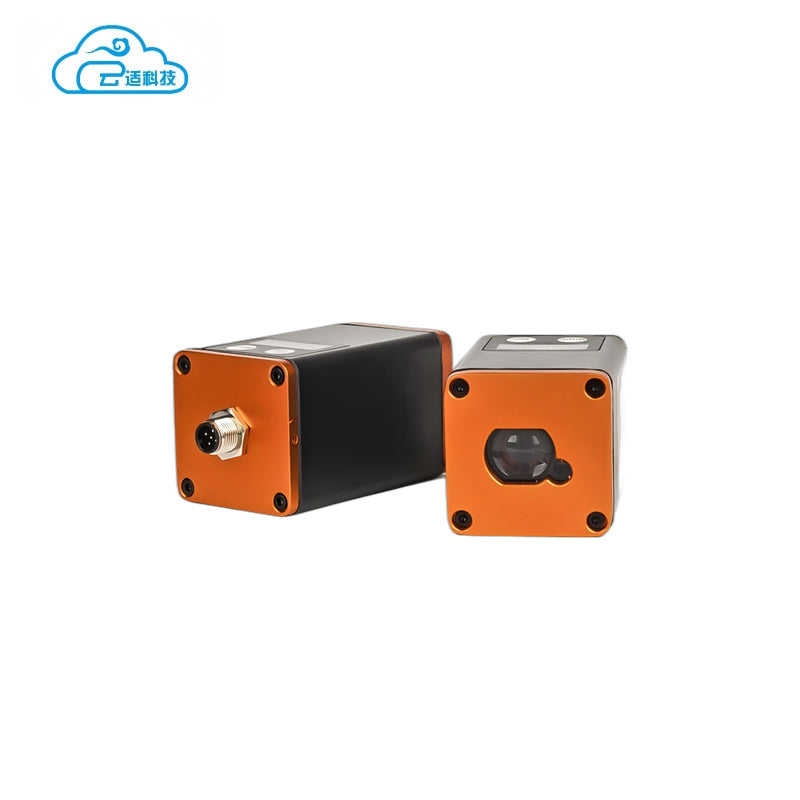

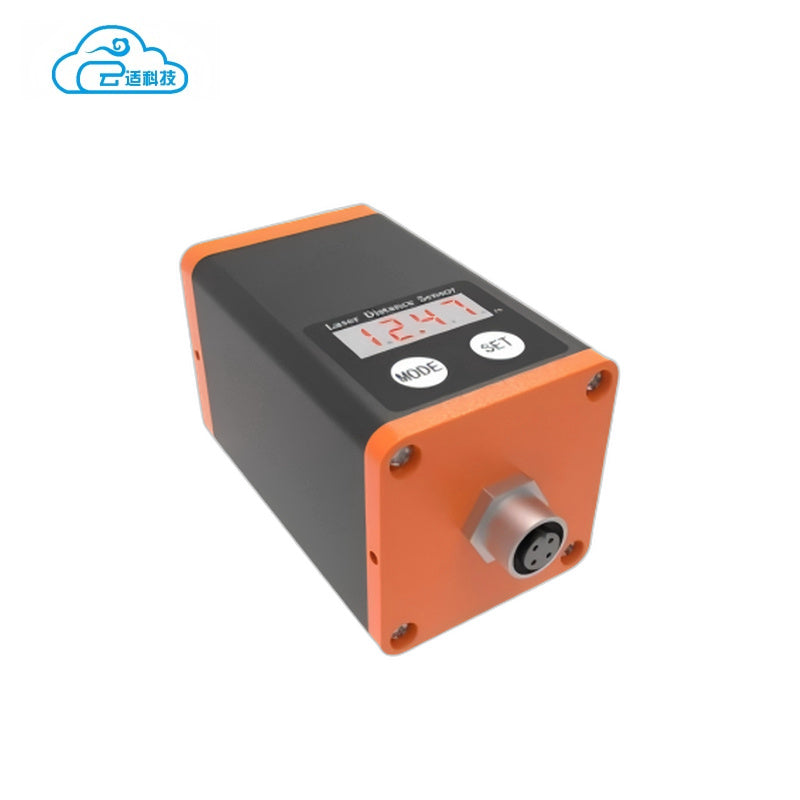

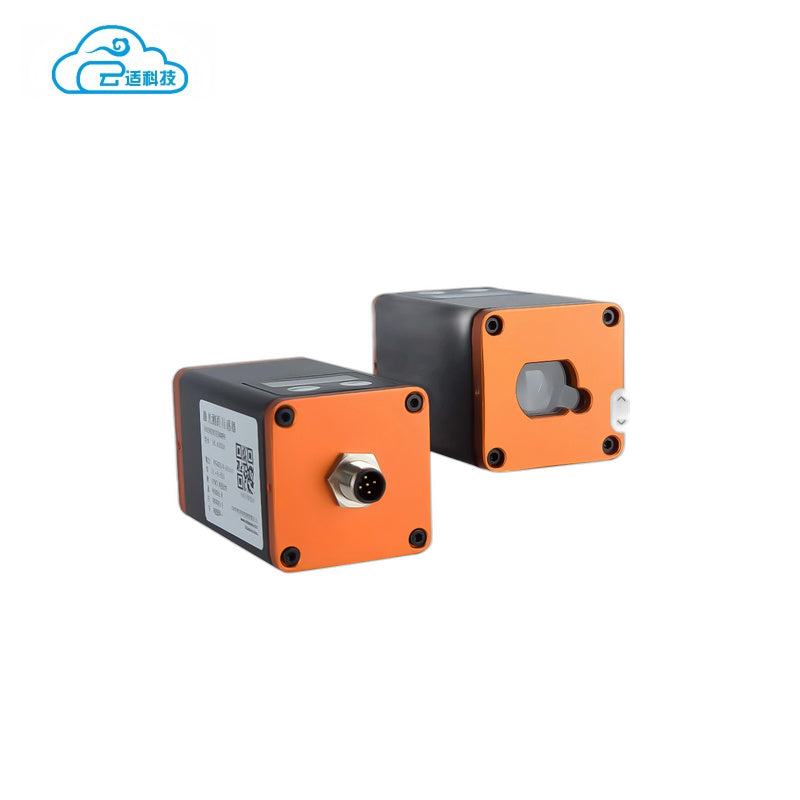

Yunshis SK-A100 Laser Distance Sensor

$190.00
Version
Communication method

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value Value Value
Model SK-A100 SK-A100A SK-A100B SK-A100C
Variant Description Standard Version High Frequency Optimized for Black Targets Long Range
Measurement Range 100 m 100 m 100 m 150 m
Frequency 3 Hz 20 Hz 1-20 Hz 1-20 Hz
Repeatability 2 mm 2 mm 2 mm 2 mm
Accuracy ±3 mm ±3 mm ±3 mm ±3 mm
Target Object Natural surface of static/dynamic targets or dedicated reflector
Light Source Red visible laser, wavelength 635 nm
Laser Safety Class Class 2 (IEC 60825-1:2014, EN 60825-1:2014)
Typical Spot Size (Elliptical) 5x3mm @ 10m; 10x6mm @ 25m; 15x10mm @ 50m; 30x20mm @ 100m
Laser Lifespan Over 10000 hours
Mechanical & Electrical Parameters
Operating Voltage DC 9~35 V
Power Consumption <1.5 W
Housing Material Aluminum
Dust Lens Material High-transparency Quartz Glass
Dimension (L*W*H) 52 × 52 × 86 mm
IP Rating IP67
Weight 230 g
Operating Temperature -20 ~ 60 °C

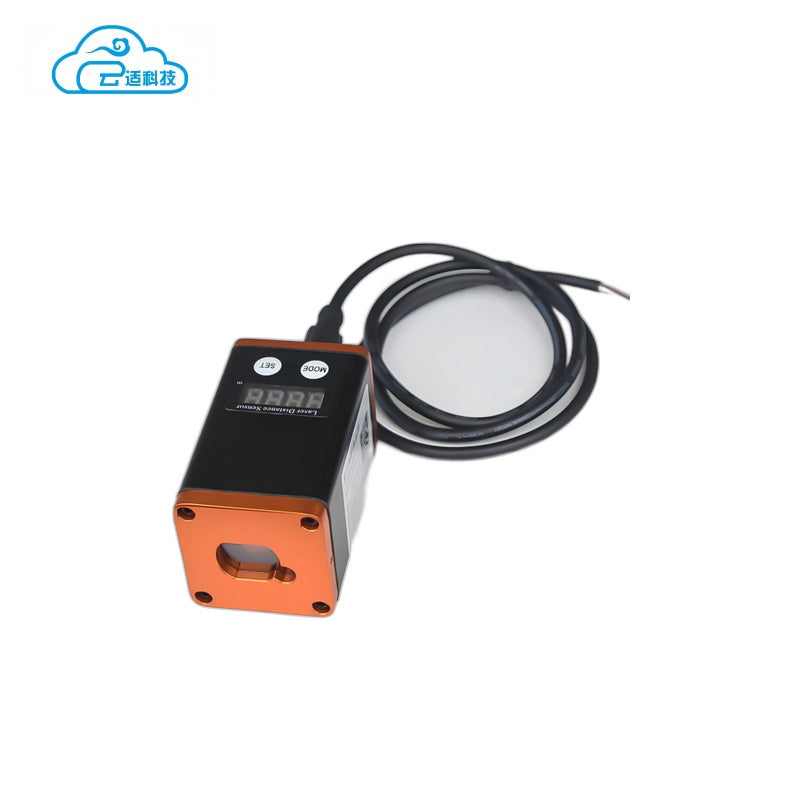

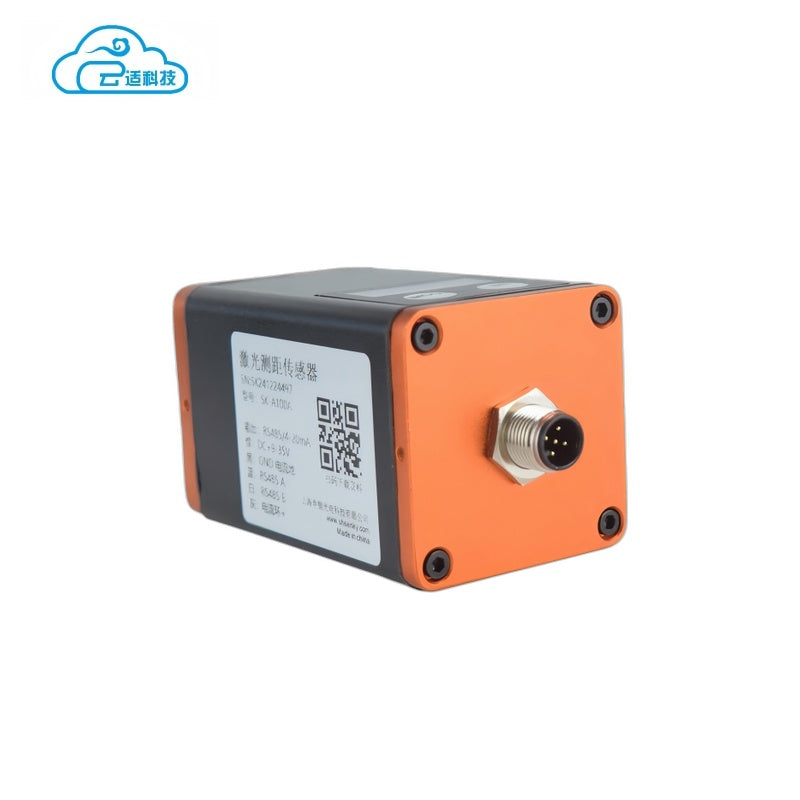

Connector & Cable M12*5 aviation plug with 1m cable
Data Interface
Supported Protocols RS485-Modbus RTU / 4-20mA / Digital Display / UART
