Yunshis

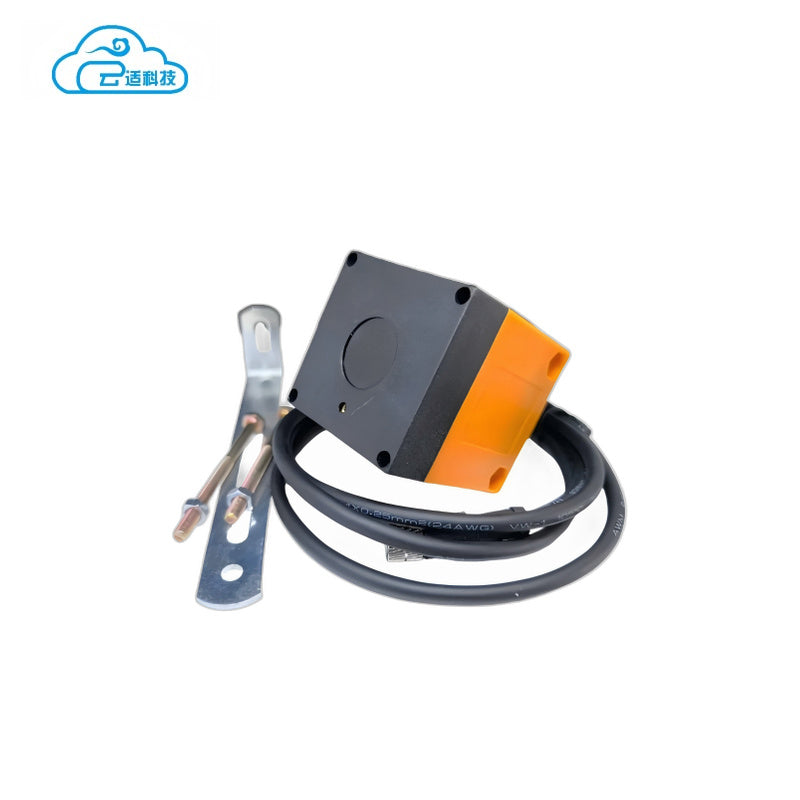

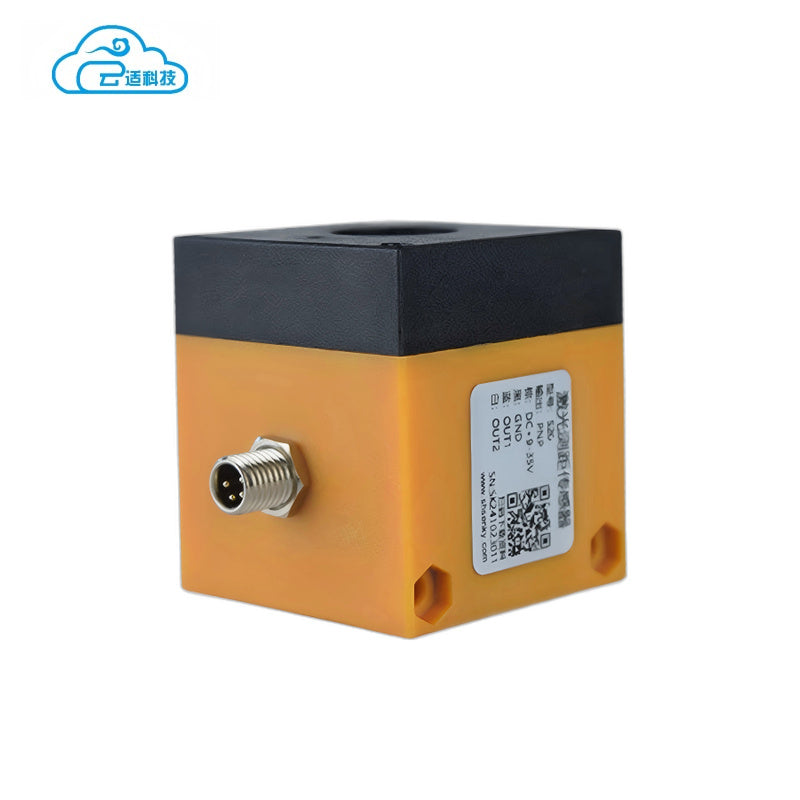

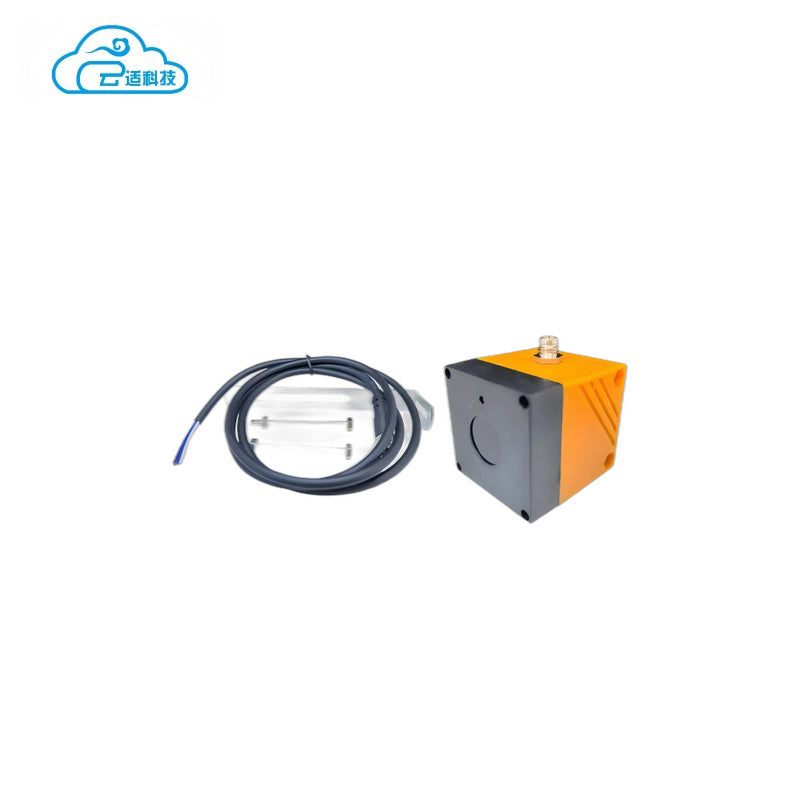

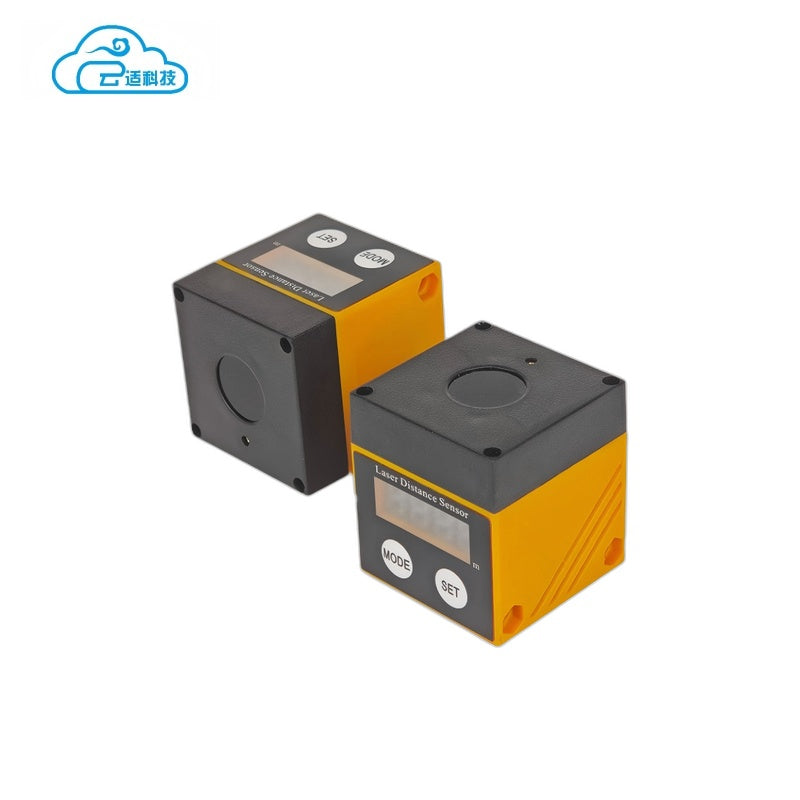

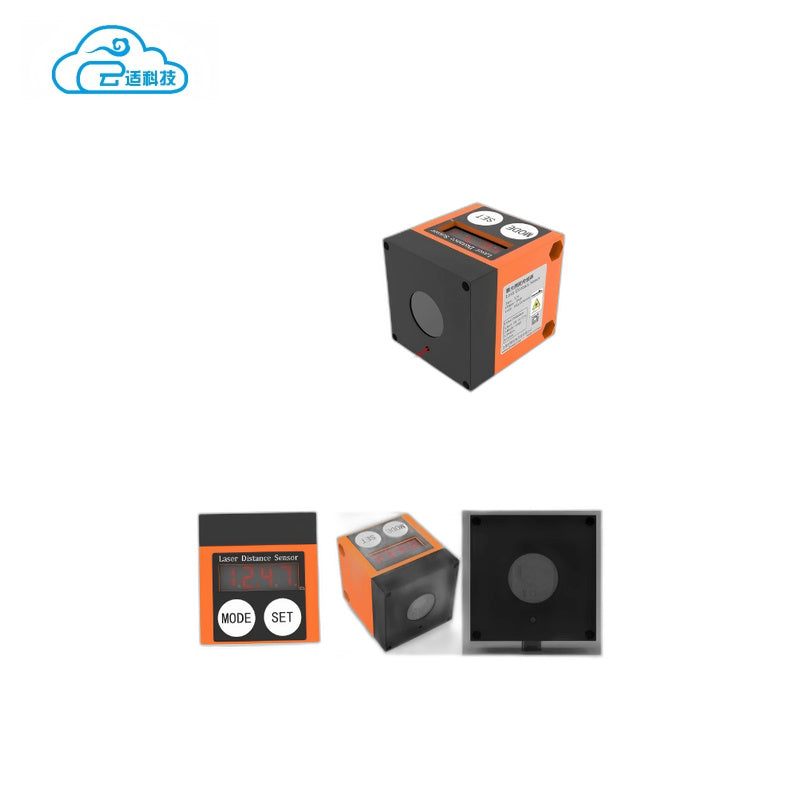

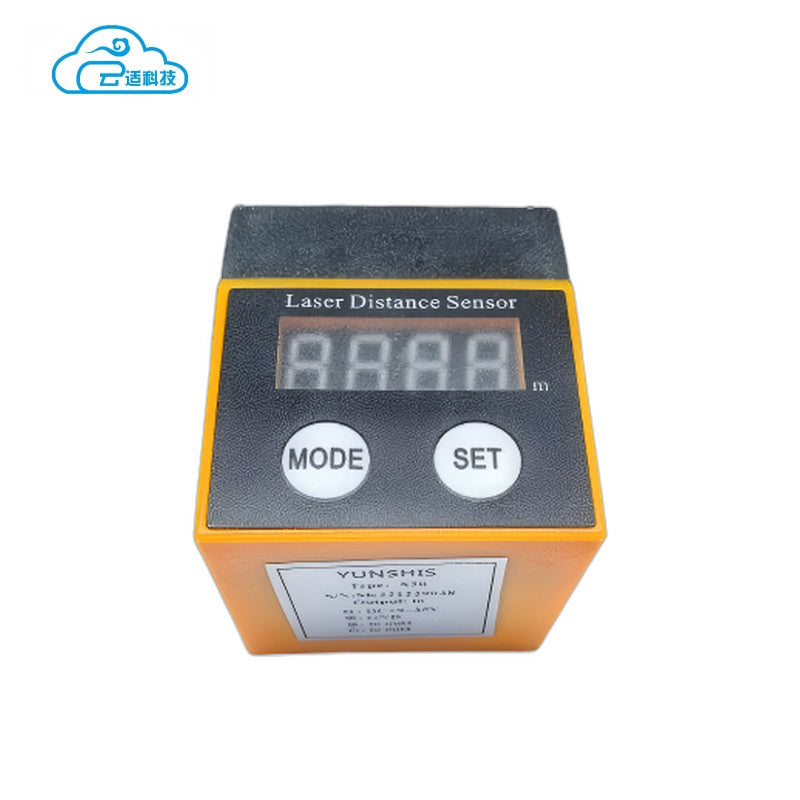

Yunshis S20 Laser Distance Sensor

$60.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Measurement Range Max. Measurement Distance: 22 m
@ 160KLux strong light: 15 m
10% reflectivity of black target: 20 m
Measurement Frequency 1~1000Hz (Default 100Hz)
Repeatability ±8.0 mm @ 50~2000 mm
±20.0 mm @ 2000~6000 mm
±30.0 mm @ 6000~20000 mm
Absolute Accuracy ±20.0 mm @ 200~2000 mm; Blind zone 20~200 mm with large error
±30.0 mm @ 2000~6000 mm
<1% @ 6000~20000 mm
Multi-Target Detection Double Peak
Temperature Compensation Yes
Reflectivity Calibration Yes, deviation < 5 mm for different color targets
Blind Zone 0.03 m
Light Source
Working Laser 905 nm, Class 1
FOV <2°
Spot Size Φ3.5cm@1m; Φ11.5cm@5m; Φ23cm@10m; Φ50cm@20m
Indicator Laser 635 nm, Class 2
Operating Environment
Operating Temperature -20 ~ 50 °C
Storage Temperature -40 ~ 85 °C
IP Rating IP65
Electrical Parameters
Operating Voltage DC +9~35 V
Operating Current 107 mA @ 12 V (Indicator Laser On)
103 mA @ 12 V (Indicator Laser Off)
Reverse Polarity Protection Yes
Isolation Yes
