Yunshis | SKU:

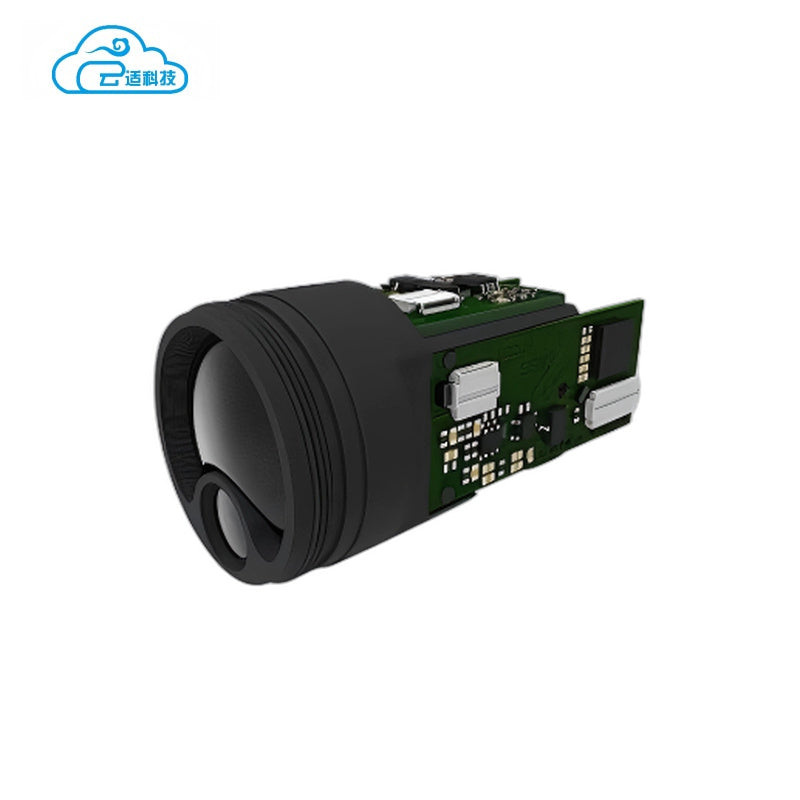

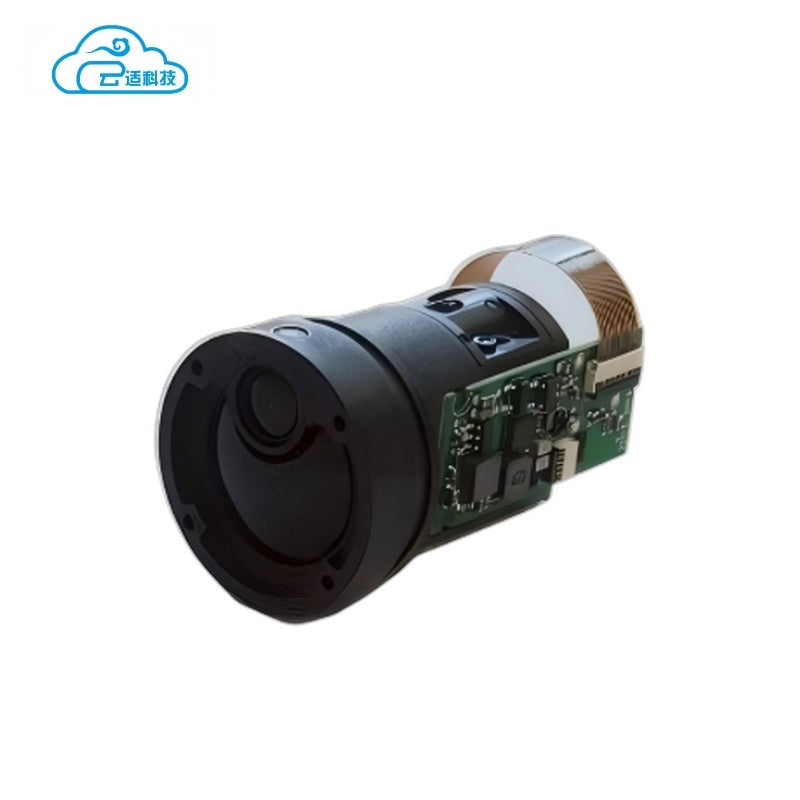

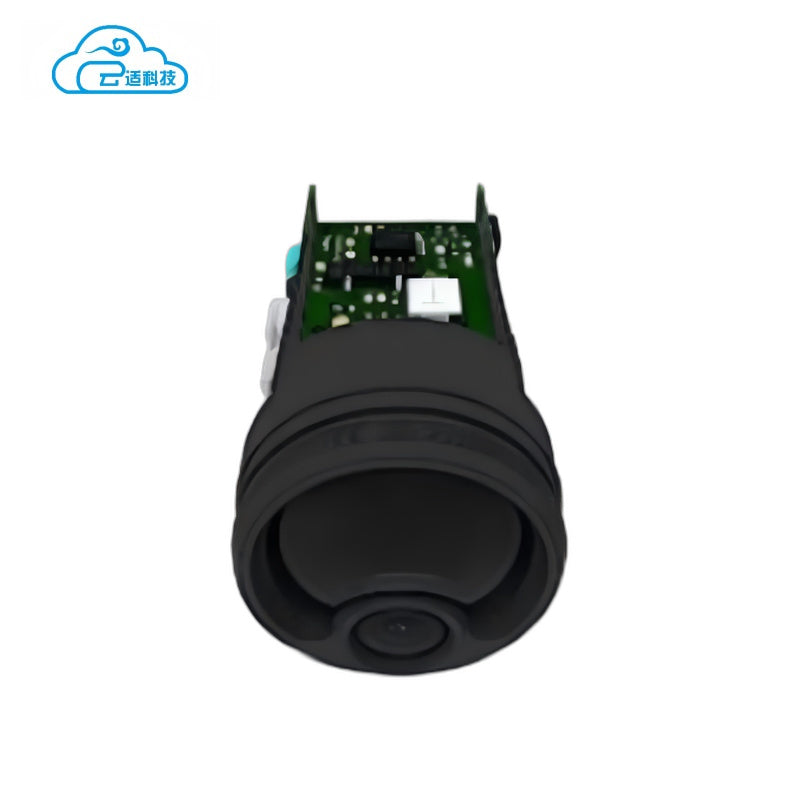

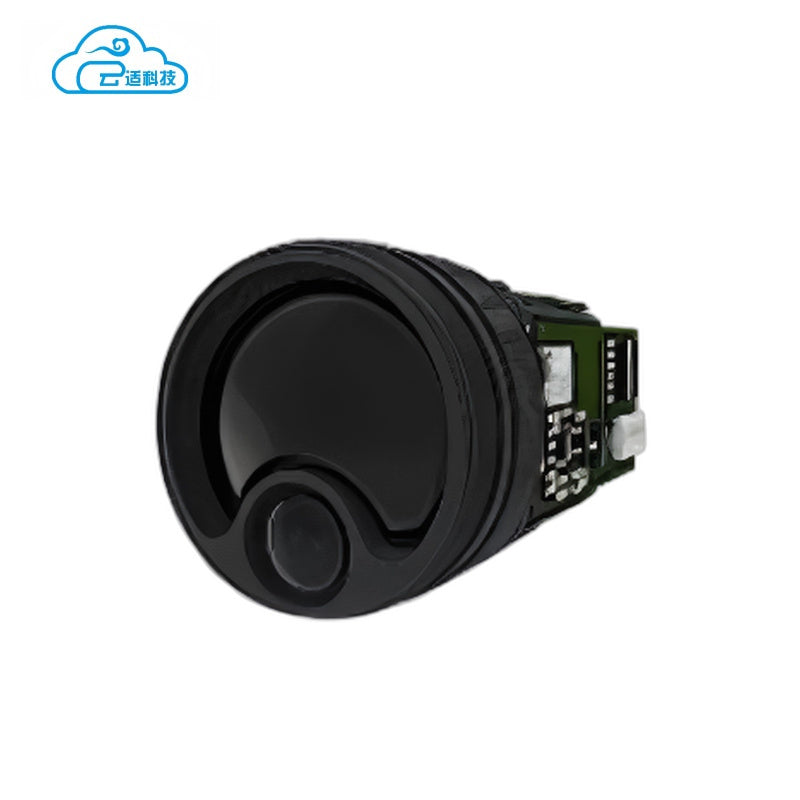

Yunshis PLS-K1500 Laser Ranging Module
Regular price
$110.00
Unit price
Yunshis PLS-K1500 Laser Ranging Module - 600m / With USB Board is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis PLS-K1500 Laser Ranging Module
Regular priceFrom
$110.00
Unit price
Yunshis PLS-K1500 Laser Ranging Module - 600m / With USB Board is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PLS-K1500 |
| Measurement Range | 3 ~ 1500 m @ 70% reflectivity |
| Supply Voltage | Typical DC +3.3 V, Operating range (+2.5 V ~ +3.5 V) |
| Resolution | 0.1 m |
| Power Consumption | 330 mW @ 3.3 V |
| Absolute Accuracy | ±1 m |
| Dimension | Φ25 mm × 43 mm |
| Max Single Measurement Time | ~1 s |
| Weight | ~18 g |
| Operating Temperature | -20 ~ 50 °C |
| Light Source | 905 nm Laser, Class 1 |
| Serial Port Logic Level | TTL 3.3 V, compatible with TTL 5 V |
| Operating Current | 100 mA |
| Laser Lifespan | > 1000000 hours |
| Communication Interface | UART |
| Default Baud Rate: 115200 bps |
