Yunshis | SKU:

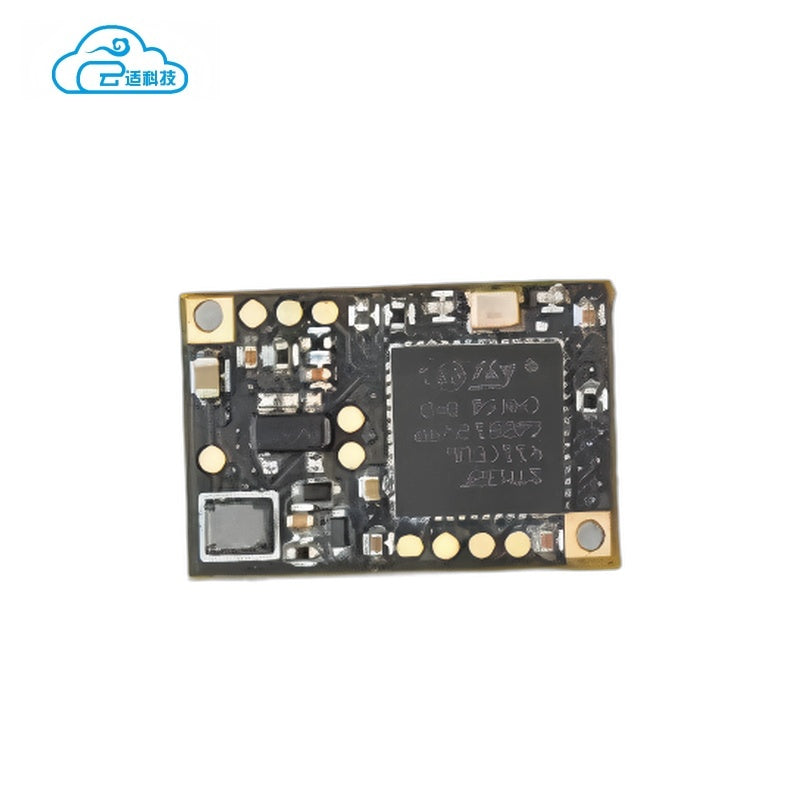

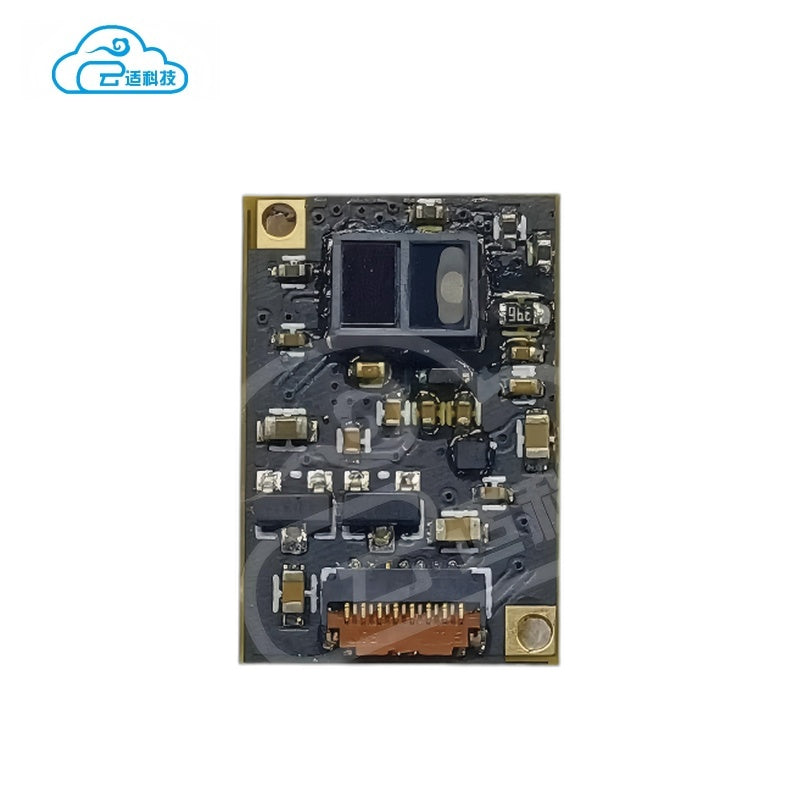

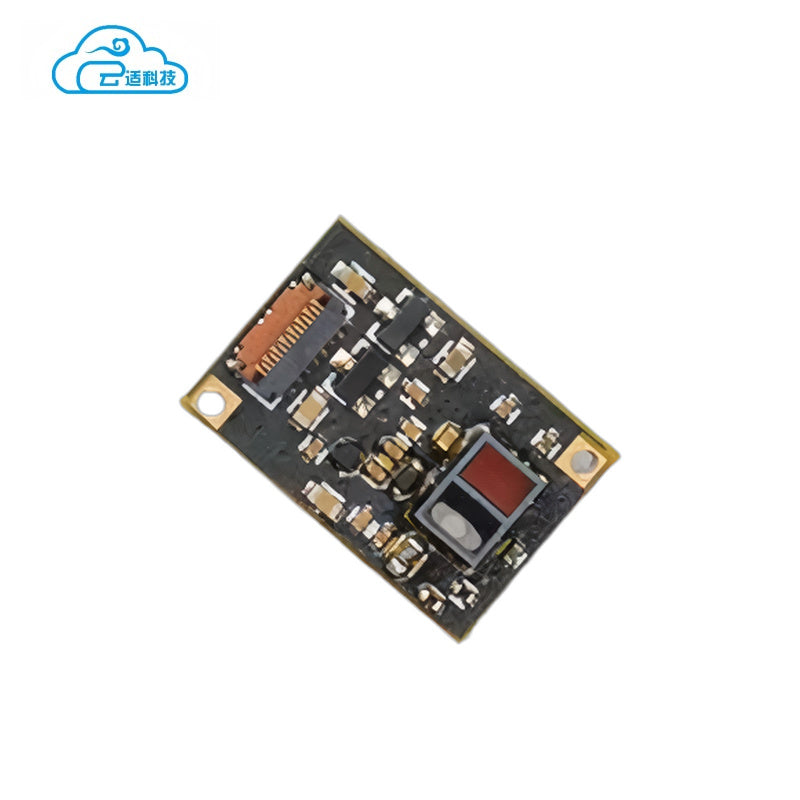

Yunshis P8864 3D TOF Miniature Sensor
Regular price
$105.00
Unit price
Yunshis P8864 3D TOF Miniature Sensor - P8864 Area array module / 8×8 resolution is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis P8864 3D TOF Miniature Sensor
Regular priceFrom
$80.00
Unit price
Yunshis P8864 3D TOF Miniature Sensor - P8864 Area array module / 8×8 resolution is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Ranging Principle | TOF (Time of Flight) | |
| Resolution | 8×8 | 4×4 |
| Ranging Range | 0.1-1.5m @ 90% Reflectance | 0.1-4m @ 90% Reflectance |
| Field of View (FOV) | 30° | 16° |
| Distance Accuracy |
0.1-1m:4cm >1m:4% |
0.1-1m:4cm >1m:4% |
| Distance Repeatability |
0.1-0.5m:1cm >0.5m:2% |
0.1-0.5m:1cm >0.5m:2% |
| Ambient Light Immunity | 70Klux | |
| Communication Output | UART TTL | |
| Light Source | 940nm VCSEL | |
| Supply Voltage | 5V | |
| Power Consumption | 360mW | |
| Operating Temperature | -10~60°C | |
| Storage Temperature | -20~80°C | |
| Eye Safety | IEC60825-1 Class 1 | |
| Module Dimensions | 18mm L × 12mm W × 4.49mm H | |
| Module Weight | <3g | |
| Product Documentation | Please contact customer service for detailed product information, thank you. | |
