Yunshis | SKU:

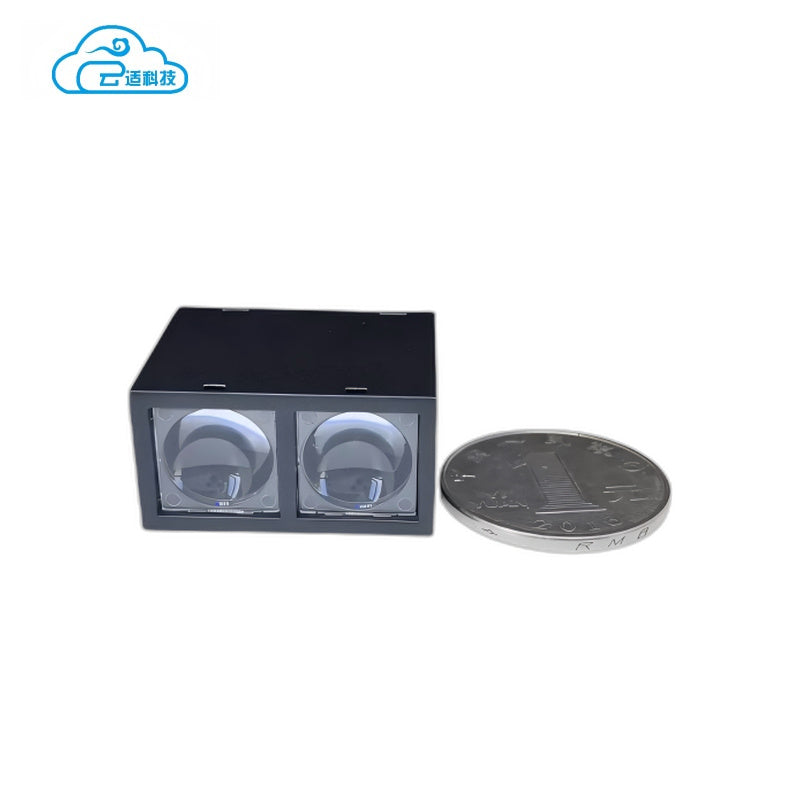

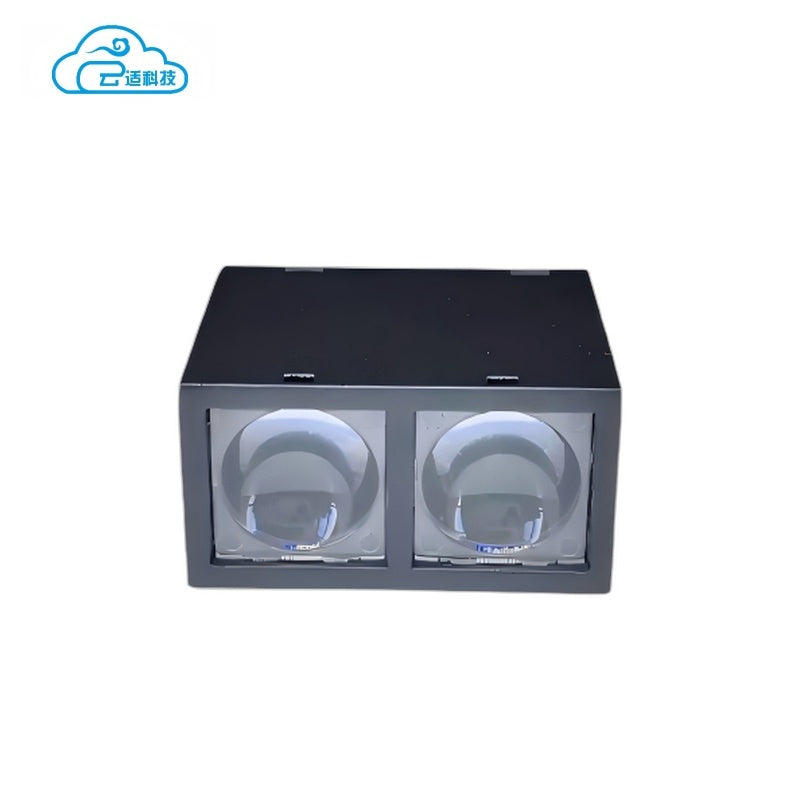

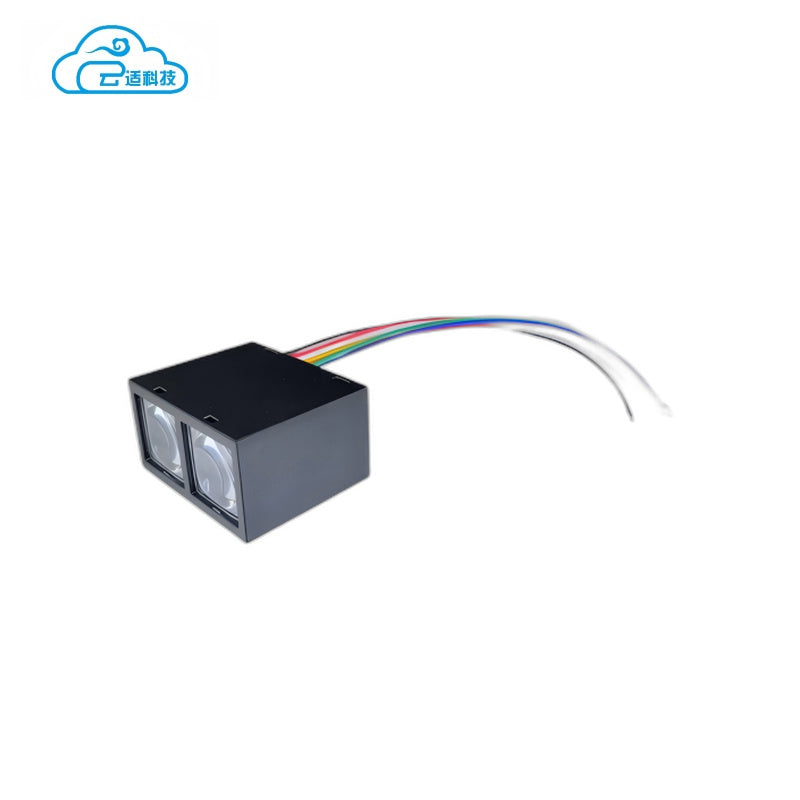

Yunshis MVR2TB Laser Ranging Module
Regular price
$30.00
Unit price

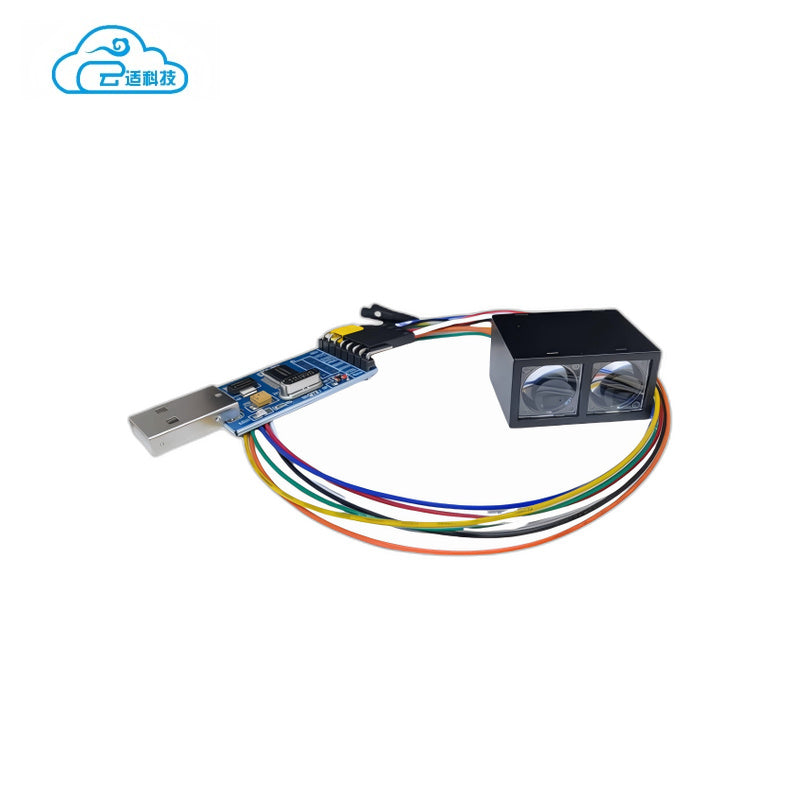

Yunshis MVR2TB Laser Ranging Module - MVR2TB+7pin cable / TTL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis MVR2TB Laser Ranging Module
Regular priceFrom
$30.00
Unit price
Yunshis MVR2TB Laser Ranging Module - MVR2TB+7pin cable / TTL is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Description | Min. | Typical | Max. | Unit | Remarks |
|---|---|---|---|---|---|---|
| VDD | Operating Voltage | 3.8 | 5 | 5.25 | V | |
| IDD | Operating Current | 30 | 40 | 80 | mA | Continuous measurement mode |
| ISTB | Standby Current | 0.5 | 0.6 | 0.7 | mA | Standby sleep mode |
| WL | Operating Wavelength | 940 | nm | IR VCSEL laser | ||
| D | Measurement Range | 0.1 | 14 | m | Max range in indoor environment, 90% reflective whiteboard | |
| dSPOT | Measurement Spot Size (D = 4.0m) | 4 | 5 | 7 | cm | Measurement accuracy will be affected if target object is smaller than this spot size. Refer to Note 7. |
| F | Measurement Frequency | 10 | 50 | 100 | Hz | |
| FOV | Field of View | 2 | 3 | ° | ||
| Acc | Accuracy (0.2~7.0m) | ±6 | cm | |||
| Accuracy (7.0~14.0m) | ±3 | % | ||||
| R | Resolution | 10 | mm | |||
| ESD | ESD Protection Level | 2 | kV | Human body model | ||
| TA | Operating Temperature Range | -10 | 60 | °C | ||
| TSTO | Storage Temperature | -20 | 65 | °C | ||
| RH | Relative Humidity | 15 | 90 | % | Non-condensing environment | |
| W | Weight | 9 | g |
