Yunshis | SKU:

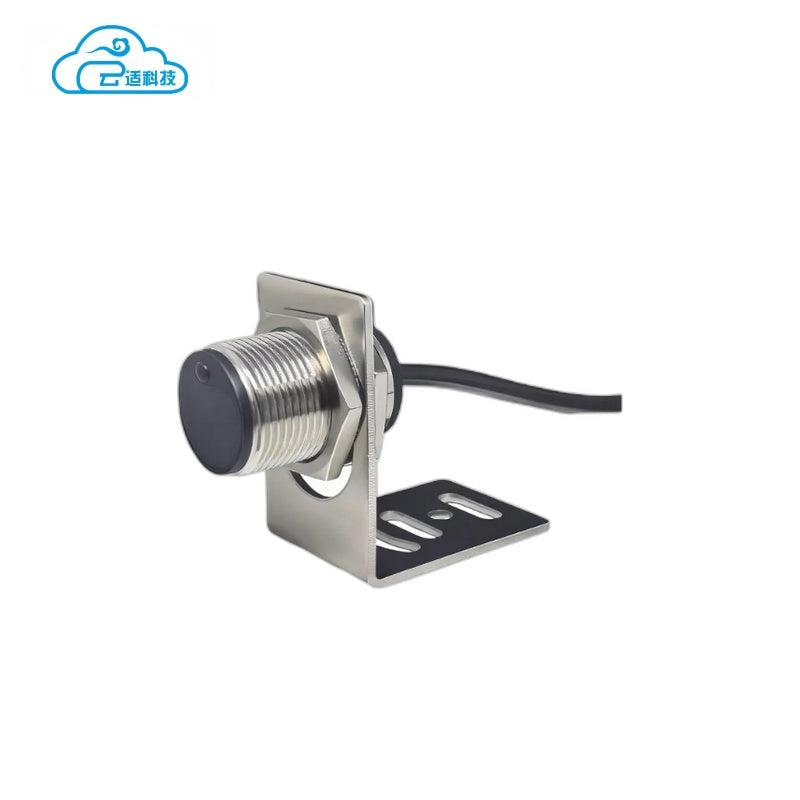

Yunshis MVI2 LiDAR
Regular price
$55.00
Unit price
Yunshis MVI2 LiDAR - UART serial port is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis MVI2 LiDAR
Regular priceFrom
$55.00
Unit price
Yunshis MVI2 LiDAR - UART serial port is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Symbol | Min. | Typical | Max. | Unit | Remarks |
|---|---|---|---|---|---|---|
| Measurement Range | D | 0.1 | — | 10 | m | Indoor environment, 90% reflective whiteboard |
| Measurement Spot Size | dSPOT | 4 | 5 | 7 | cm | @ D=4.0m |
| Measurement Frequency | F | 10 | 50 | 100 | Hz | |
| Field of View | FOV | 2 | — | 3 | ° | |
| Accuracy (0.1~6.0m) | Acc | — | — | ±6 | cm | |
| Accuracy (6.0~10.0m) | Acc | — | — | ±3 | % | |
| Resolution | R | — | 10 | — | mm | |
| ESD Protection | ESD | — | — | 2 | kV | Human Body Model (HBM) |
| Operating Temperature | TA | -10 | — | 60 | °C | |
| Storage Temperature | TSTO | -20 | — | 65 | °C | |
| Relative Humidity | RH | 15 | — | 90 | % | Non-condensing environment |
