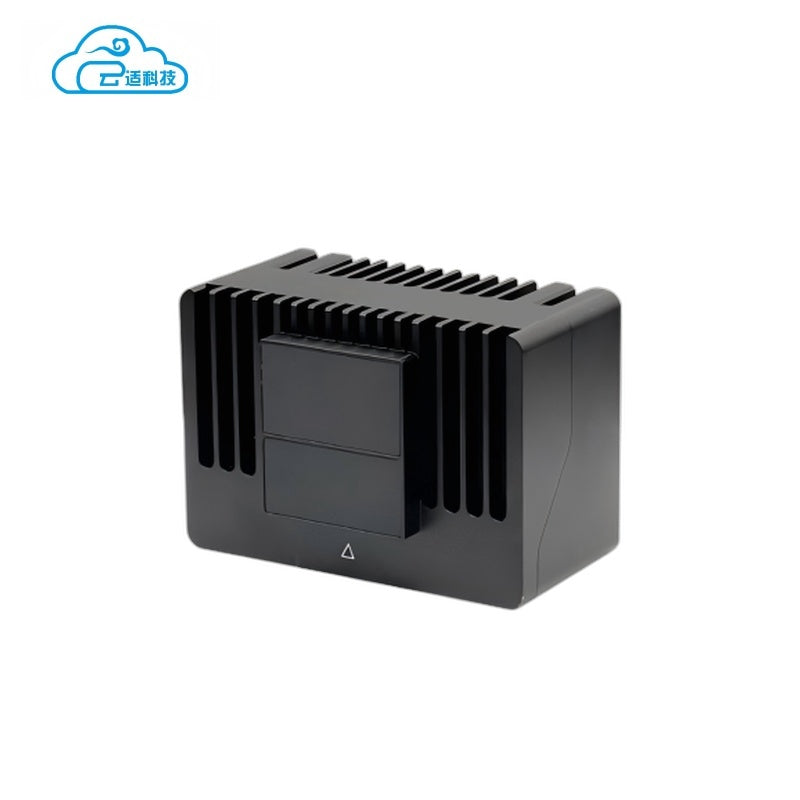

Yunshis D445 LiDAR

$1,090.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
 Model D445
Ranging Principle dToF
Scanning Principle Flash Scanning
Laser Wavelength 905 nm
Laser Safety Class Class 1, Eye-safe
Ranging Capability 30 m @ 10%
Ambient Light Immunity 100 klux
Blind Zone 0.2 m
Ranging Accuracy ±5 cm
Horizontal FOV 120°
Vertical FOV 50°
Angular Resolution (H*V) 0.33° * 0.33°
Frame Rate 10 Hz
Point Rate (Single Echo Mode) 540,000 pts/s @ 10 Hz
Data Interface Gigabit Ethernet
Built-in IMU Model LSM6DS3TR-C
Power Supply DC 12 V - 24 V
Operating Temperature -20 ~ 55 °C
Weight 700 g
Main Body Dimension (L*W*H) 108 × 76.4 × 75 mm
