XGRIDS

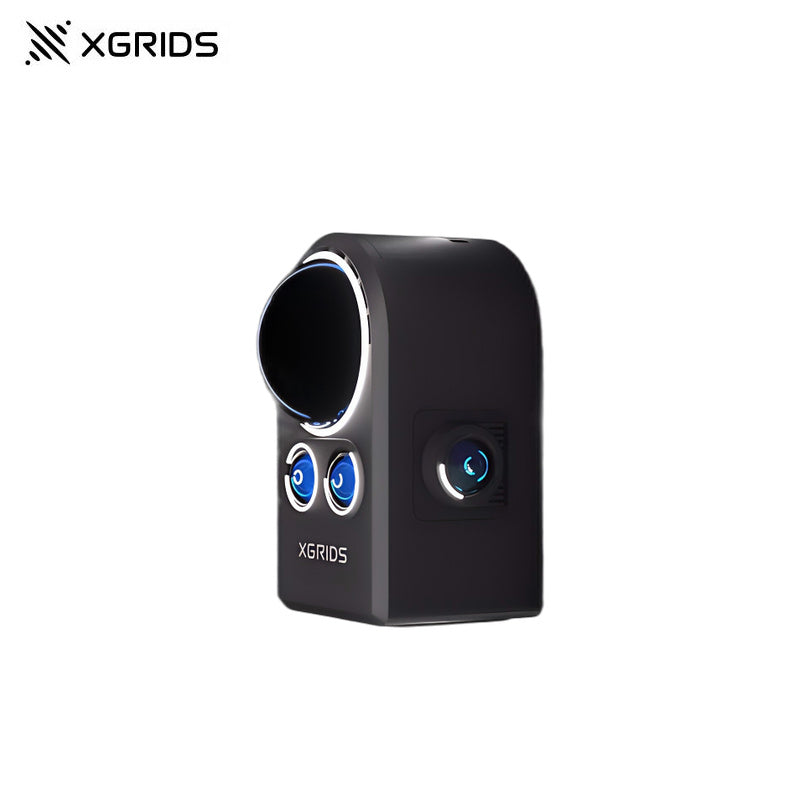

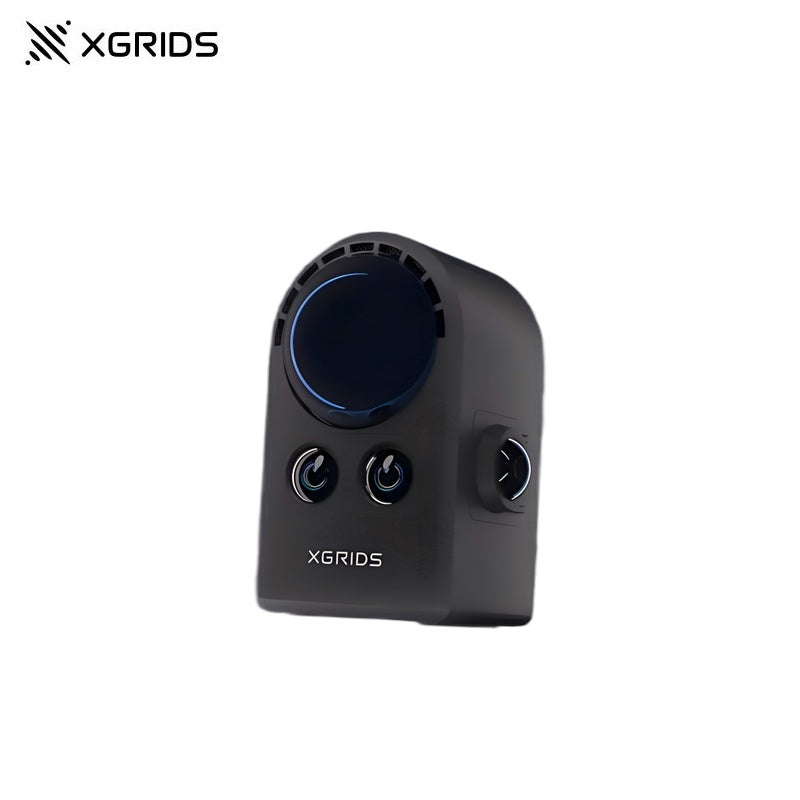

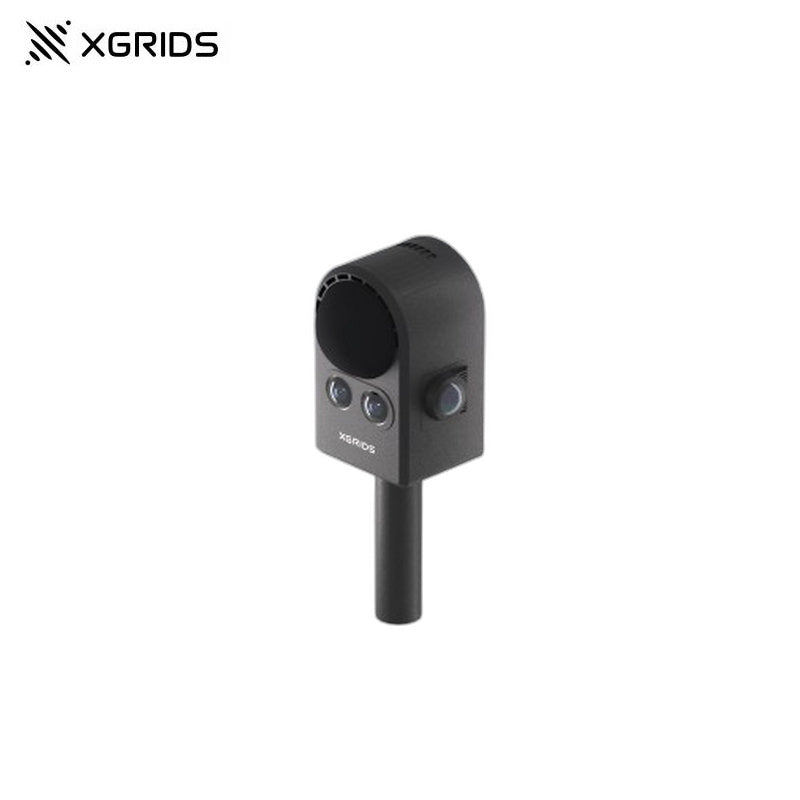

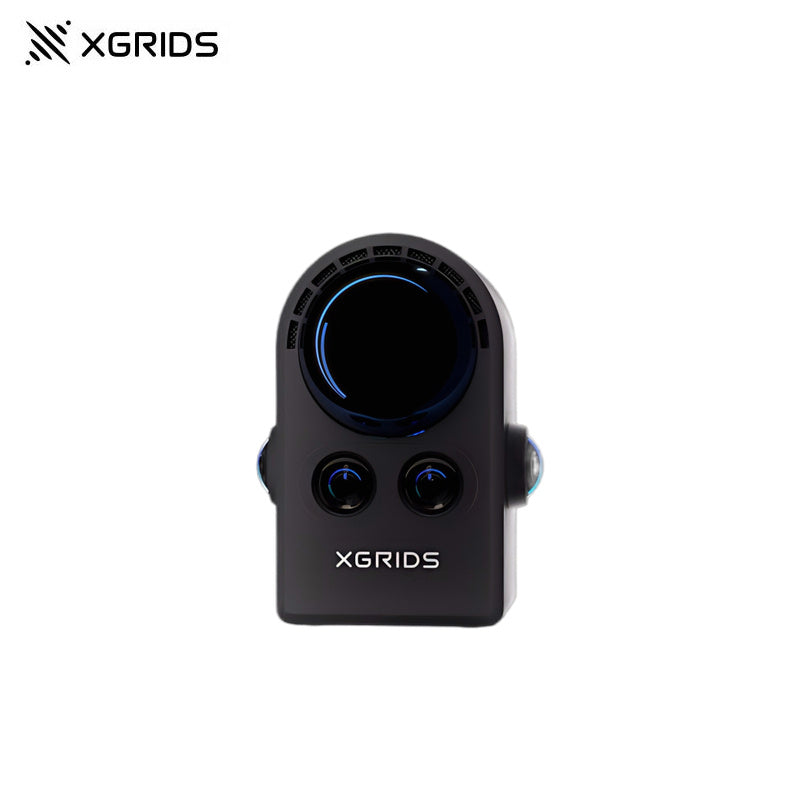

XGRIDS PortalCam Camera

$10,850.00

Version

PortalCam

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Parameter	Value
Power Consumption	<19W
Body Weight	870g (1.9 lbs) without tripod
Dimensions	130mm × 90mm × 77mm (5.1×3.5×3.0 in)
Housing Material	Aerospace-grade Aluminum Alloy
Data Interface	USB 3.0
Internal Storage	512GB
GPS Module	Supported
WiFi	802.11 a/b/g/n/ac/ax 2.4GHz: 2412-2472MHz 5GHz: 5180-5240MHz 5GHz: 5745-5825MHz
Bluetooth	5.2
Wireless Range	20m (65.6 ft)
Battery Type	Removable Li-ion
Battery Capacity	23.04Wh
Operating Time	60 minutes (continuous scanning)
Charging Time (25°C/77°F)	0-90%: 70 minutes 0-100%: 90 minutes
Operating Temperature	-20°C to 45°C (-4°F to 113°F) (indirect sunlight only)
Charging Temperature	5-30°C (41-86°F)
Laser Classification	Class 1 / 940nm
Scanning Range	0.1m-30m (4 in-98 ft) @ 10% reflectivity 60m (197 ft) @ 90% reflectivity
Field of View	180° azimuth × 180° elevation
Point Rate	856,000 points/second
Camera Configuration	4-camera array 2× Fisheye, 2× Front
Image Resolution	4000 × 3000 px
Sensor Size	1/2" CMOS
Shutter Type	Rolling Shutter
Fisheye Camera FOV	200° × 200°
Front Camera FOV	100° × 85°
Input	100-240V, 50-60Hz, 1.5A, 80VA
Output	20V, 2.0A
Rated Power	PD Protocol, >25W Standard: USB-C 45W single port Dual port: 25W + 20W
Backpack with Protective Insert	Included
Extension Pole (2m / 6.6 ft)	Optional
External Storage (512GB/1TB SSD)	Optional
