XGRIDS | SKU:

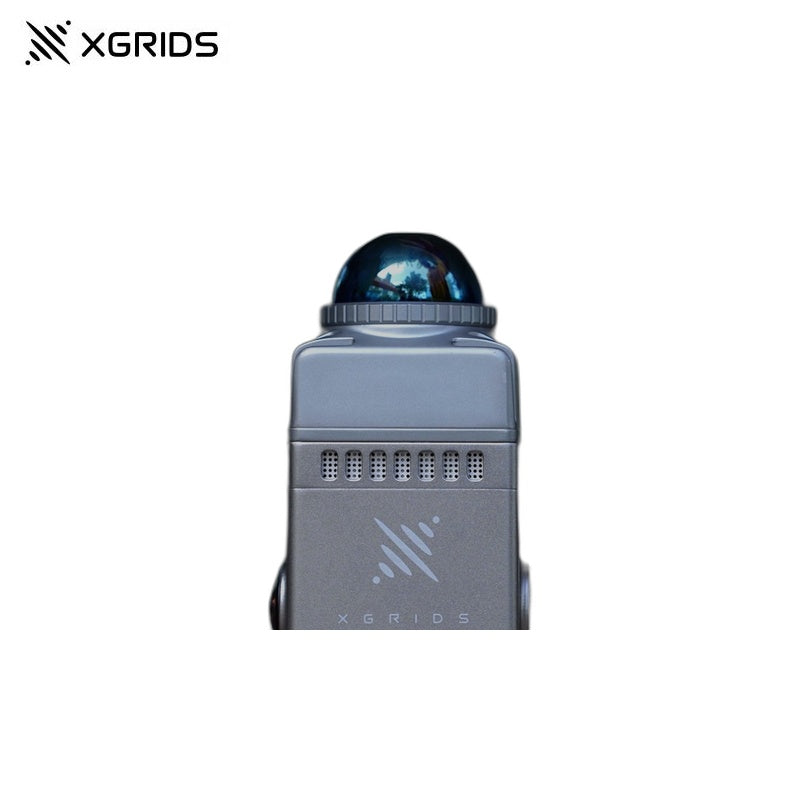

XGRIDS Lixel K1 LiDAR
Regular price
$13,700.00
Unit price
XGRIDS Lixel K1 LiDAR - Lixel K1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
XGRIDS Lixel K1 LiDAR
Regular price
$13,700.00
Unit price
XGRIDS Lixel K1 LiDAR - Lixel K1 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Device Performance | |
| Power Input | 14.4V |
| Weight | 1kg |
| Storage Capacity | TF card 256G |
| OperatingTemperature | -20°C~50°C |
| Product Shell | Navigational Aluminum |
| Operating Time | 1.5h |
| Number of Cameras | 4 |
| APP WiFi Distance | 20m |
| Power Consumption | <20W |
| Data Interface | USB3.1 Gen2 |
| Connection Mode |
Wifi/Bluetooth |
| Protection Level | IP54 |
| Product Shell | Navigational Aluminum |
| Power Supply | Fast-lock battery/external power |
| Battery Capacity | 28.8wh |
| Visual-Aided Positioning | Supported |
| RTK Module | Supported |
| LiDAR | |
| Relative Accuracy | 1.2cm |
| Repeat Accuracy | 2cm |
| Working Range | 0.1m~40m@10%, 70m@80% |
| Scan Mode | Mobile |
| Scan Speed | 200,000 points/s |
| Laser Class | Class1/905nm |
| Absolute Accuracy | 3cm |
| Horizontal Accuracy |
0.015° |
| LiDAR FOV | 360°*-7~+52° |
| Vision Module | |
| Camera FOV | Color panorama HDV 360°*360° |
| Panoramic Image Resolution | Max 56MP |
| Camera Resolution | 48 MP x2 |
| Data and Storage | |
| Calculating Mode | Real-time calculating/Mixed calculating |
| Point Cloud Format | .las |
| Calculating Software | Lixel Studio post-processing software for Win |
| Color Point Cloud | Supported |
