WitMotion

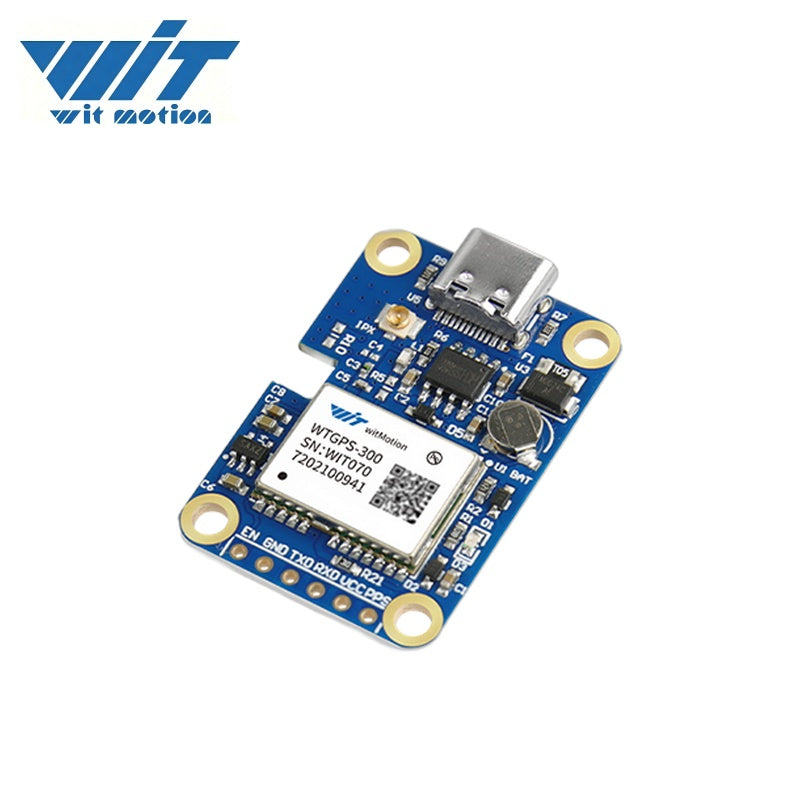

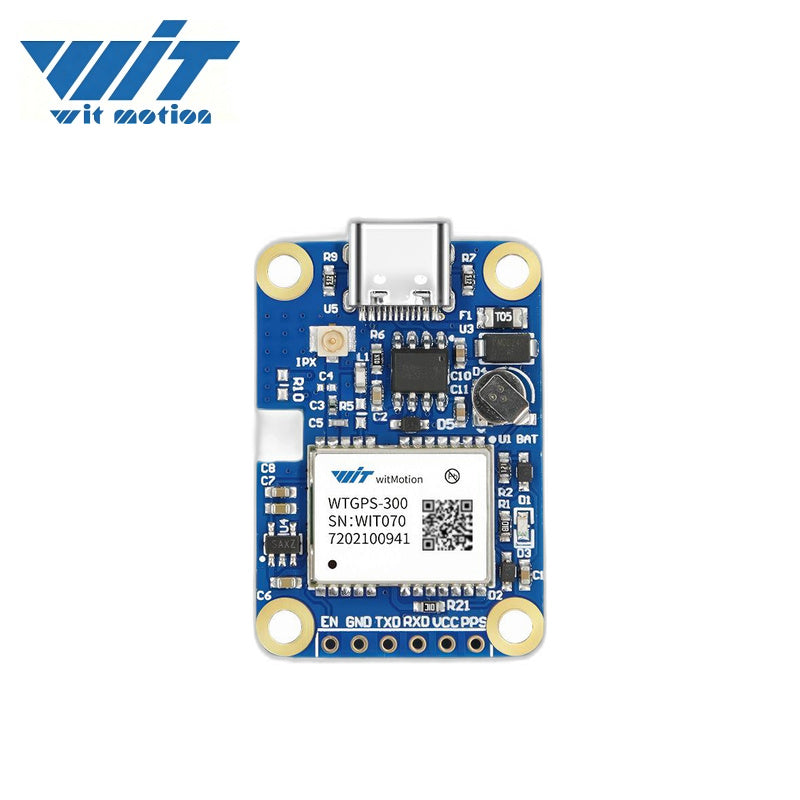

WitMotion WTGPS Sensor

$45.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Temperature -45°C ~ +80°C
Storage Temperature -45°C ~ +145°C
Dimensions 39.9 × 32.9 × 15.9 mm
Weight 50g
Supply Voltage 5V (or 3.3V~5V)
Operating Current 45mA @ 5V
Power Consumption 225mW (5V * 45mA)
Time to First Valid Data after Power‑on < 30s
Communication Interface UART, 115200bps, 8 data bits, no parity, 1 stop bit
Protocol NMEA0183
Update Rate 10Hz
TTFF Cold Start ≤ 32s
TTFF Hot Start ≤ 1s
TTFF Reacquisition ≤ 2s
Sensitivity – Tracking -168dBm
Sensitivity – Reacquisition -160dBm
Sensitivity – Cold Start -148dBm
Positioning Accuracy < 1.5m (CEP50)
Velocity Accuracy < 0.1m/s
Max Altitude 18000m
Max Velocity 515m/s
Max Acceleration 2g
GNSS Signal Reception BDS/GPS/GLONASS/GALILEO/QZSS/SBAS
INS Positioning Accuracy 3% of distance (dead‑reckoning)
