WitMotion

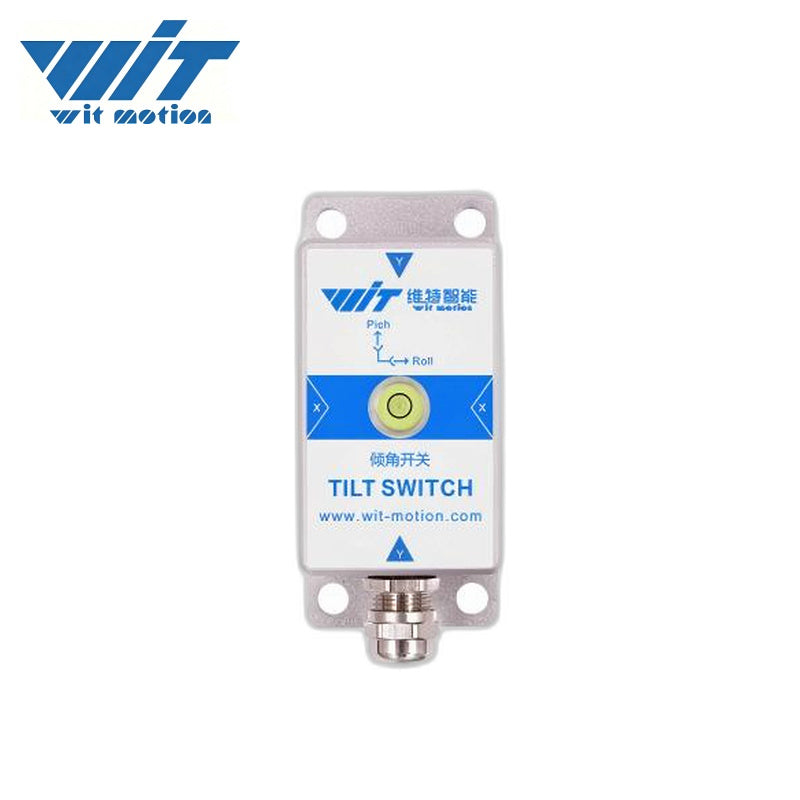

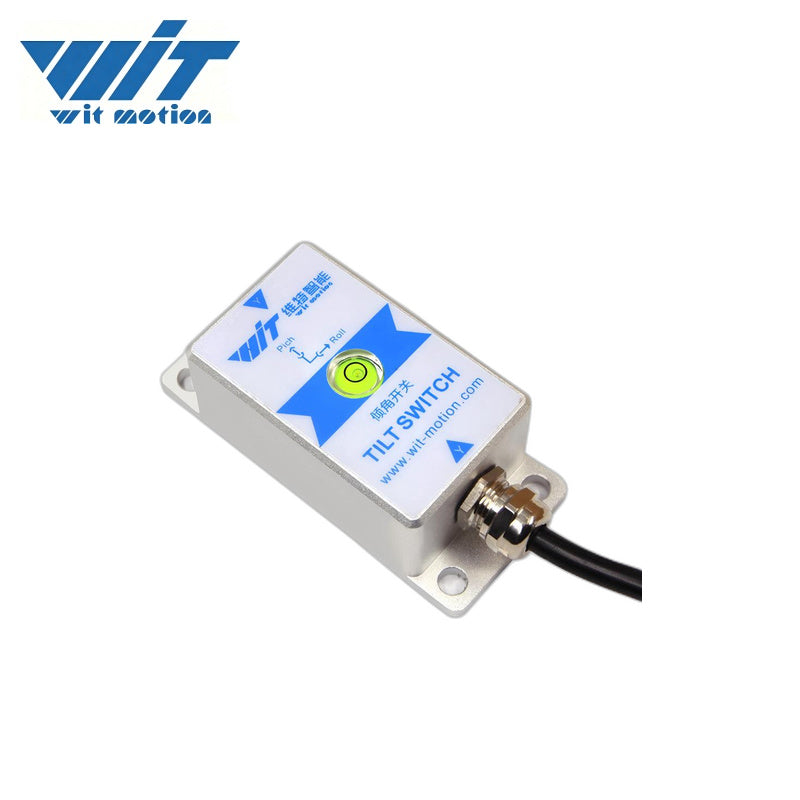

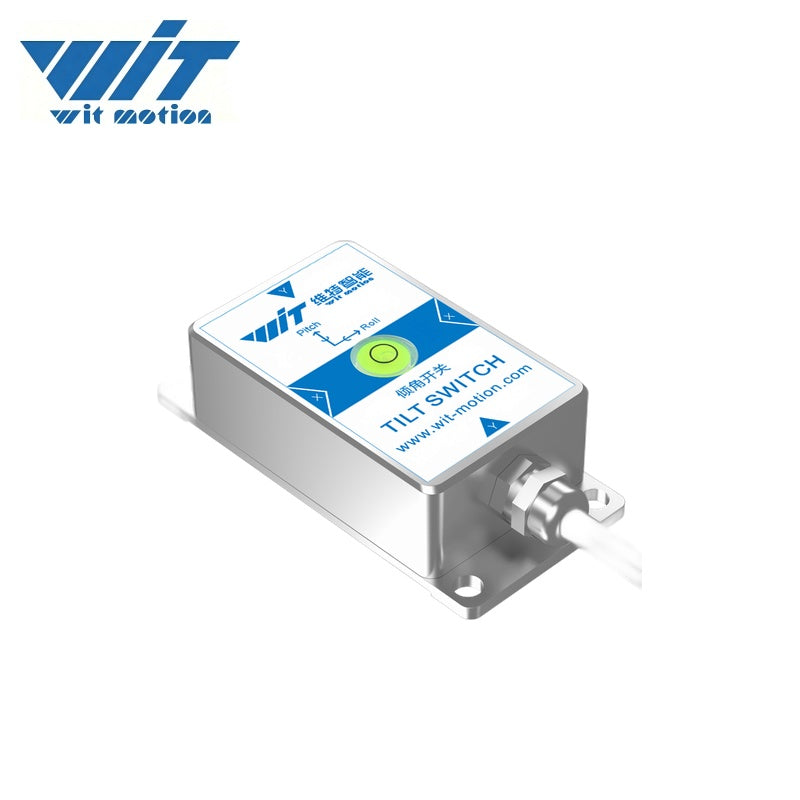

WitMotion SINRT Sensor

$90.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +85°C
Shock Resistance 20000g
Protection Class IP67
Weight 260.2g
Supply Voltage 9V ~ 36V (default 12V)
Operating Current (Active, 12V) 54mA
Power Consumption 648mW
Communication Interface RS485, 4800~230400bps (default 9600)
Output Content On‑chip time, 3‑axis Accel, 3‑axis Gyro, 3‑axis Angle, Quaternion
Switch Output (Relay) Normally open / Normally closed
Range (Accelerometer) ±16g
Resolution (Accelerometer) 0.0005 (g/LSB)
Sampling Rate (Accelerometer) 1kHz
RMS Noise (Accelerometer, BW=100Hz) 0.75 ~ 1 mg‑rms
Static Zero Drift (Accelerometer, horizontal) ±20 ~ 40mg
Temp. Drift (Accelerometer) ±0.15 mg/°C
Bandwidth (Accelerometer) 5 ~ 256Hz
Range (Gyroscope) ±2000°/s
Resolution (Gyroscope) 0.061 (°/s)/LSB
Sampling Rate (Gyroscope) 1kHz
RMS Noise (Gyroscope, BW=100Hz) 0.028 ~ 0.07 (°/s)‑rms
Static Zero Drift (Gyroscope, horizontal) ±0.5 ~ 1°/s
Temp. Drift (Gyroscope) ±0.005 ~ 0.015 (°/s)/°C
Bandwidth (Gyroscope) 5 ~ 256Hz
Range (Pitch/Roll) X/Y: ±90°
Inclination Accuracy (static) 0.1°
Inclination Accuracy (dynamic) 0.5°
Resolution (horizontal) 0.0055°
Temp. Drift (Inclination) ±0.1°
