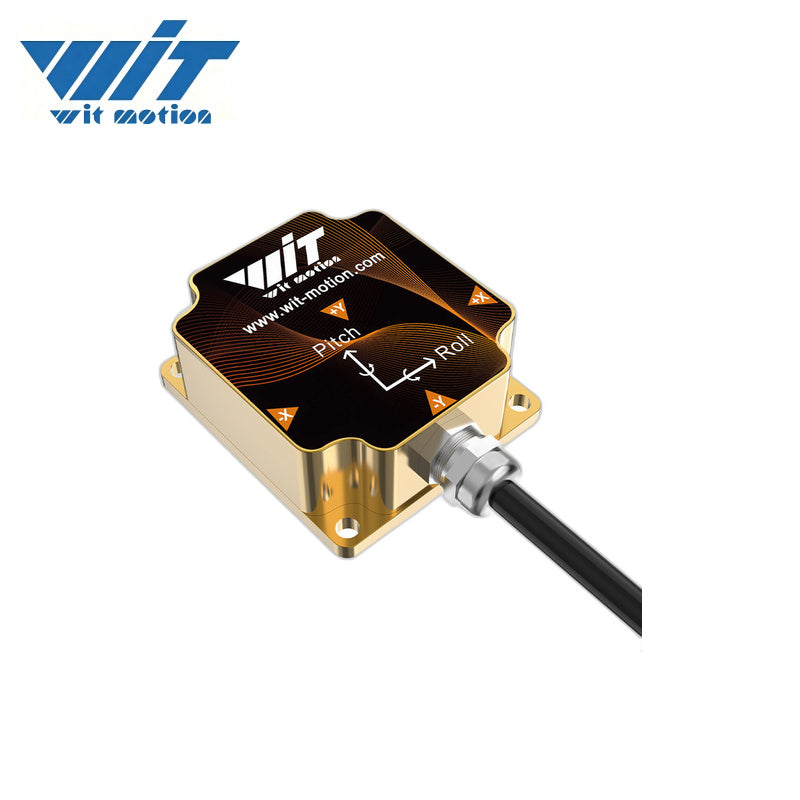

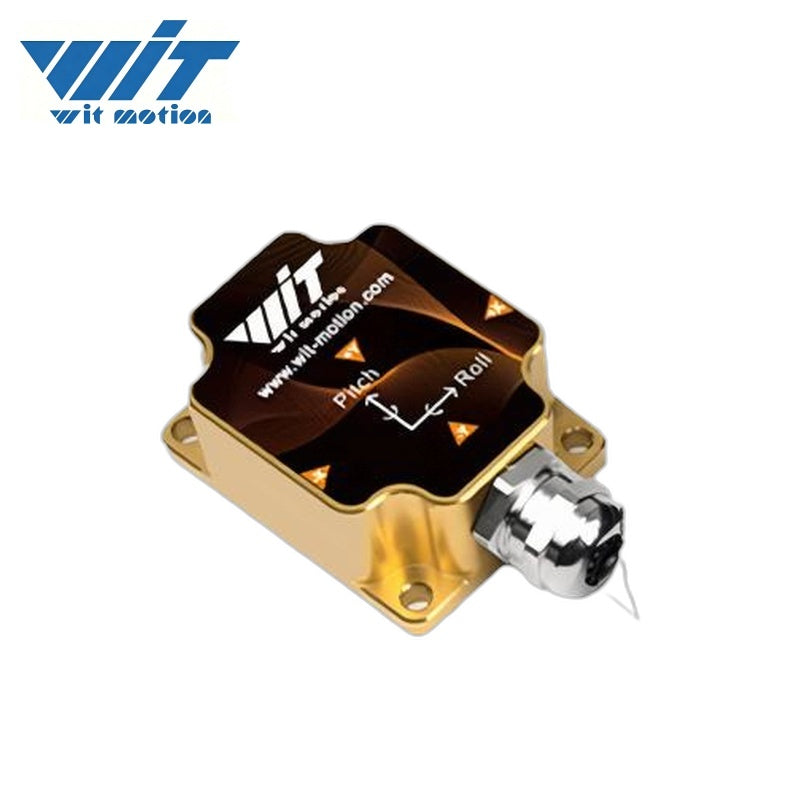

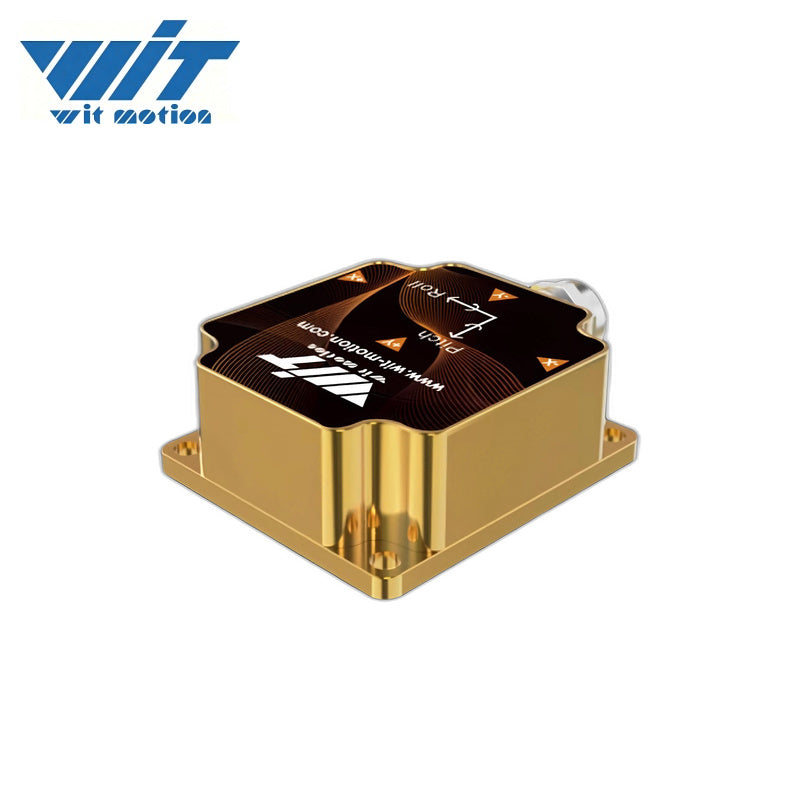

WitMotion HWT9073 Sensor

$865.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +100°C
Shock Resistance 20000g
Protection Class IP68
Weight 121g
Supply Voltage 9V ~ 36V (default 12V)
Operating Current (Active, 12V) 12mA
Power Consumption 144mW
Communication Interface RS485, 4800~230400bps (default 9600)
Output Content On-chip time, 3-axis Accel, 3-axis Gyro, 3-axis Magnetometer, 3-axis Angle
Startup Time ≤ 1000ms
Range (Accelerometer) ±2g
Resolution (Accelerometer) 0.0005 (g/LSB)
Sampling Rate (Accelerometer) 2kHz
Static Zero Drift (Accelerometer) ±25 mg
Temp. Drift (Accelerometer) ±0.1 mg/°C
Bandwidth (Accelerometer) 5 ~ 256Hz
Bias Stability (Accelerometer, 10s smoothing) XY:3.5ug; Z:5ug
Bias Instability (Accelerometer, Allan) XY:1.5ug; Z:3ug
Range (Gyroscope) ±400°/s
Resolution (Gyroscope) 0.061°/s/(LSB)
Sampling Rate (Gyroscope) 50kHz
Static Zero Drift (Gyroscope) ±1°/s
Bias Stability (Gyroscope, 10s smoothing) 3.5°/h
Bias Instability (Gyroscope, Allan) 2°/h
Measurement Range (Magnetometer) ±400 µT
Linearity (±200µT) 0.6%
Resolution (Magnetometer) 13 nT/LSB
Range (Pitch/Roll) X: ±180°, Y: ±90°
Inclination Accuracy 0.001°
Resolution (Angle) 0.001°
Temp. Drift (Inclination) ±0.05°
Range (Yaw) Z: ±180°
Heading Accuracy (9-axis, magnetometer calibrated) 1°
Heading Accuracy (6-axis, static) 0.1°
Resolution (Yaw) 0.001°
