WitMotion

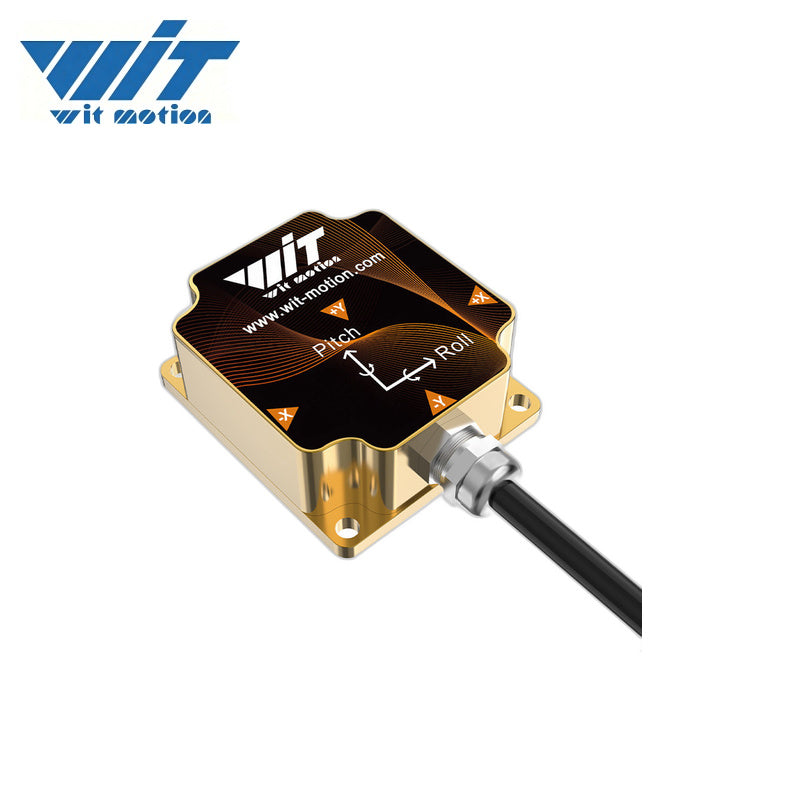

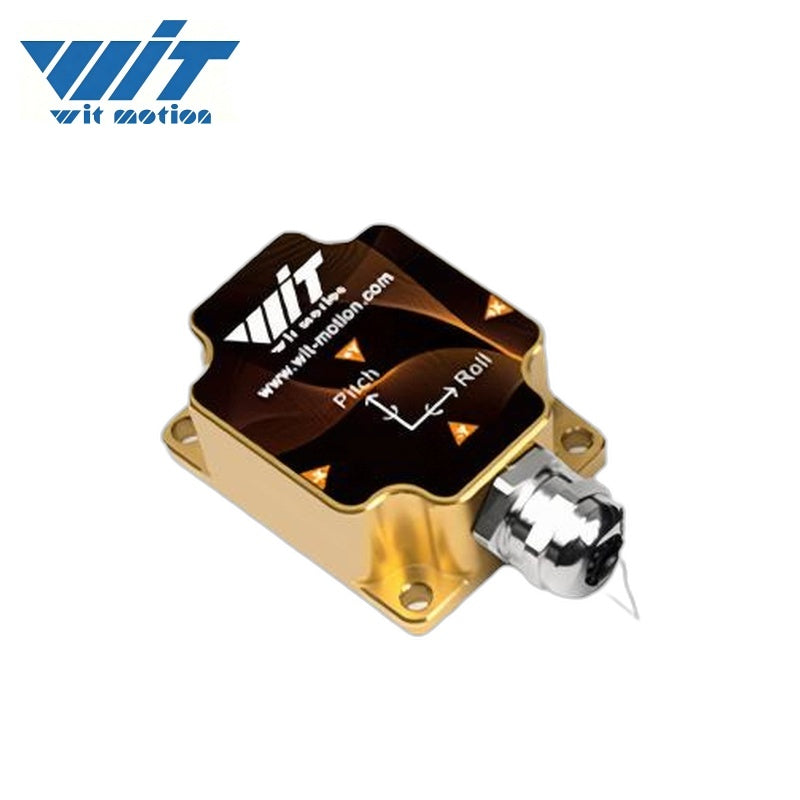

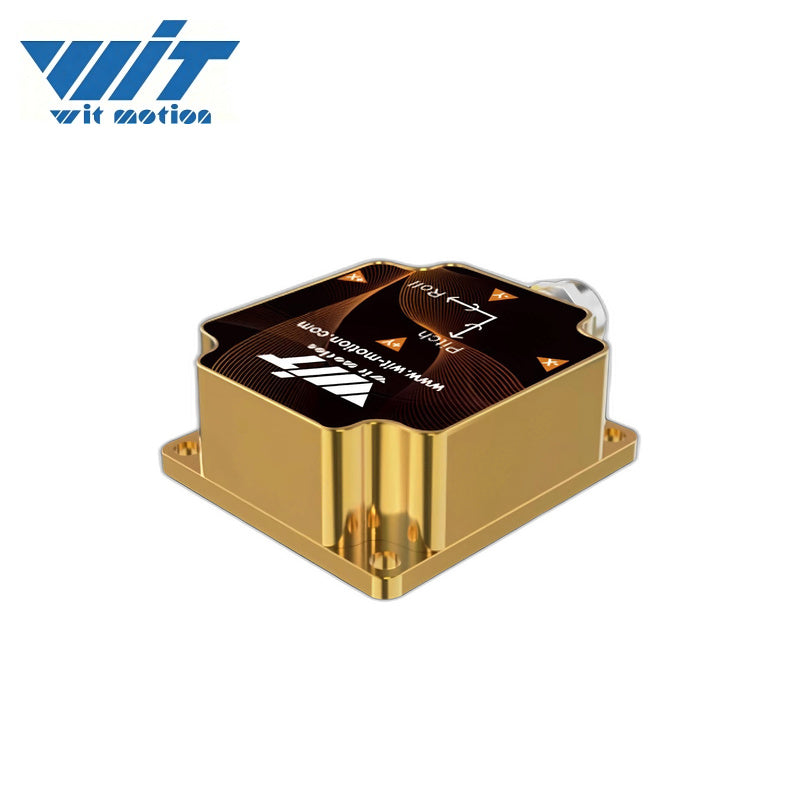

WitMotion HWT6053 Sensor

$625.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +100°C
Shock Resistance 20000g
Protection Class IP68
Weight 120g
Supply Voltage 9V ~ 36V (default 12V)
Operating Current (Active, 12V) 7mA
Power Consumption 84mW
Communication Interface RS485, 4800~230400bps (default 9600)
Output Content On‑chip time, 3‑axis Accel, 3‑axis Gyro, 3‑axis Angle, Quaternion
Startup Time ≤ 1000ms
Range (Accelerometer) ±2g
Resolution (Accelerometer) 0.0005 (g/LSB)
Sampling Rate (Accelerometer) 2kHz
Static Zero Drift (Accelerometer) ±25 mg
Temp. Drift (Accelerometer) ±0.1 mg/°C
Bandwidth (Accelerometer) 5 ~ 256Hz
Bias Stability (Accelerometer, 10s smoothing) XY:3.5ug; Z:5ug
Bias Instability (Accelerometer, Allan) XY:1.5ug; Z:3ug
Range (Gyroscope) ±2000°/s
Resolution (Gyroscope) 0.061°/s/(LSB)
Sampling Rate (Gyroscope) 1kHz
RMS Noise (Gyroscope) 0.028 ~ 0.07°/s·rms
Static Zero Drift (Gyroscope) ±0.5 ~ 1°/s
Bandwidth (Gyroscope) 5 ~ 256Hz
Bias Stability (Gyroscope, 10s smoothing) 8°/h
Bias Instability (Gyroscope, Allan) 5°/h
Range (Pitch/Roll) X: ±180°, Y: ±90°
Inclination Accuracy 0.001°
Resolution (Angle) 0.001°
Temp. Drift (Inclination) ±0.05°
Range (Yaw) Z: ±180°
Heading Accuracy (6‑axis, static) 0.5° (dynamic integration error possible)
Resolution (Yaw) 0.0055°
