TLIBOT | SKU:

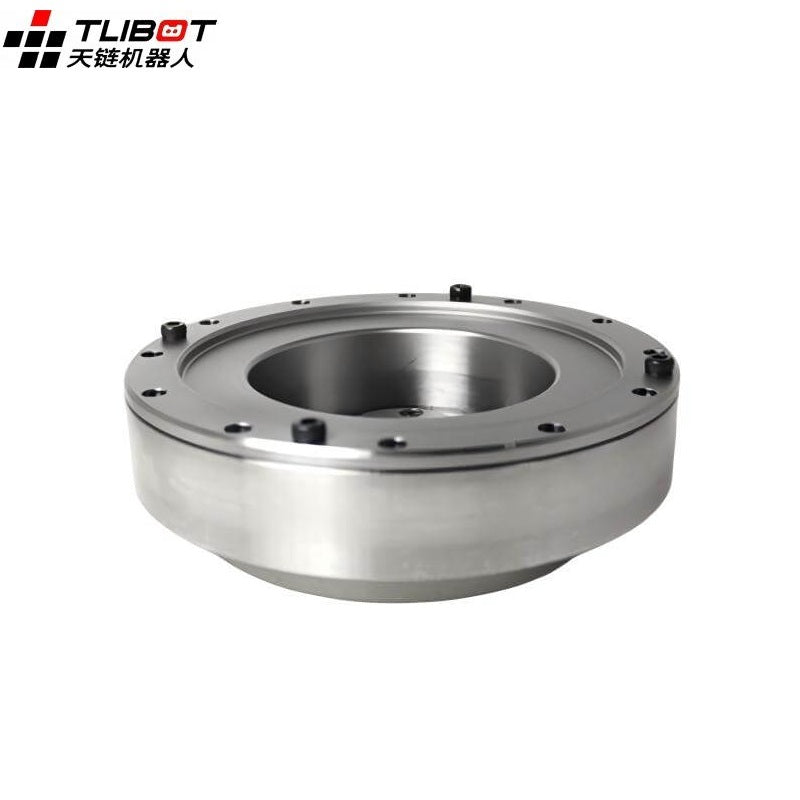

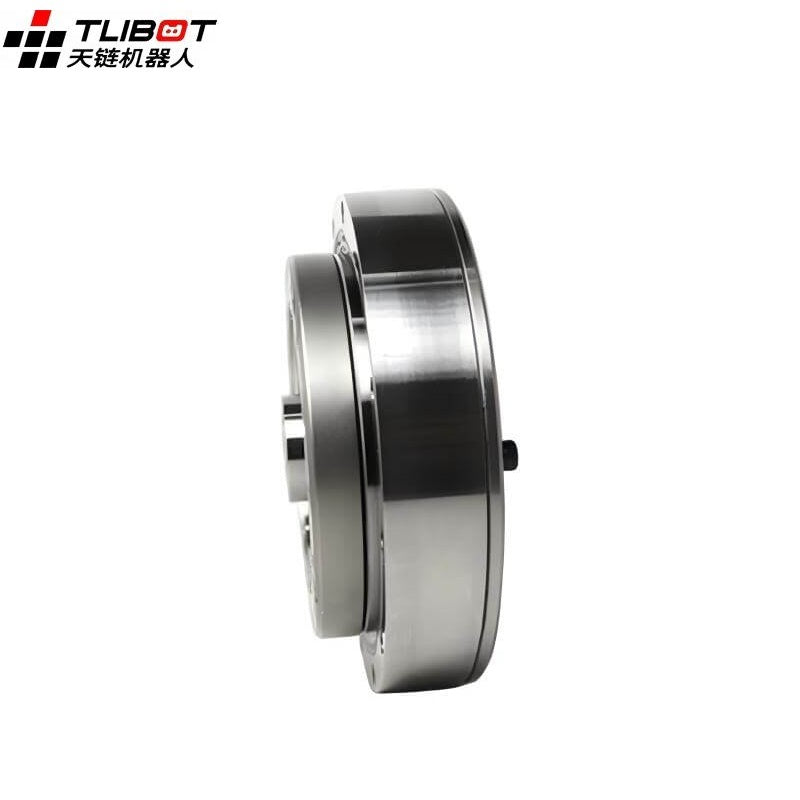

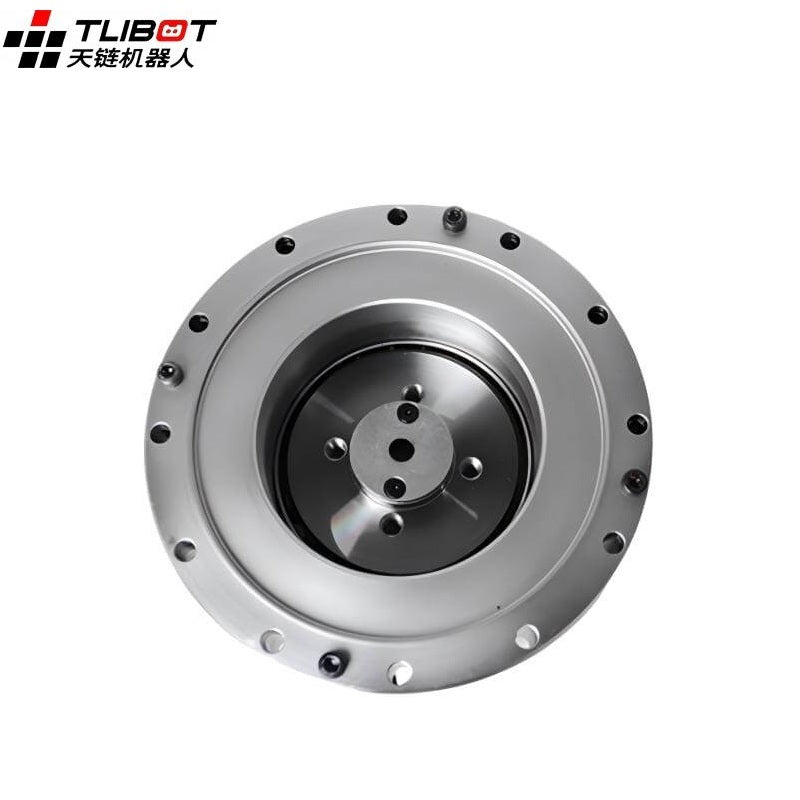

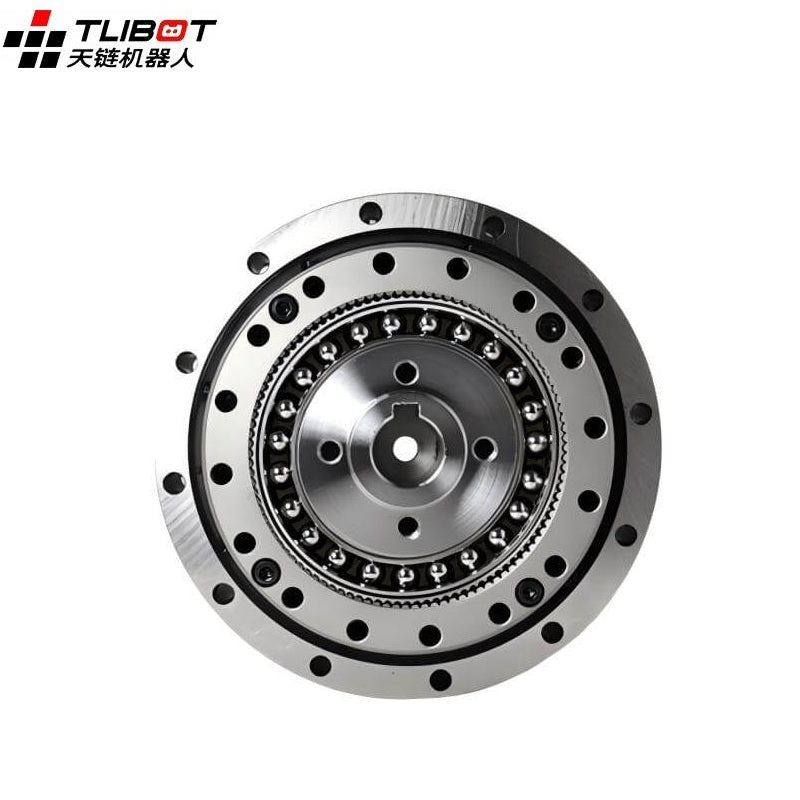

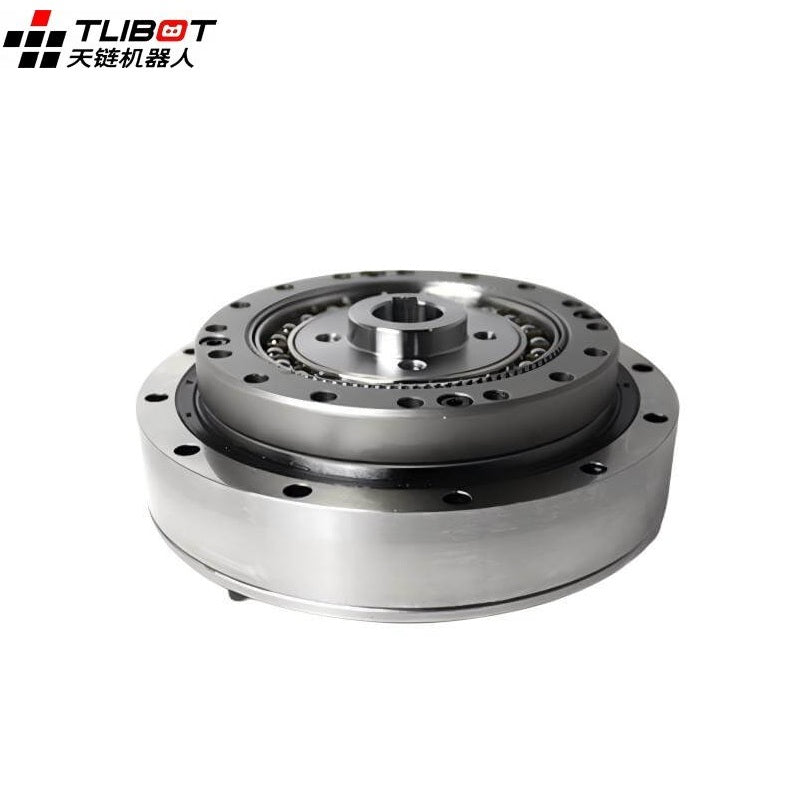

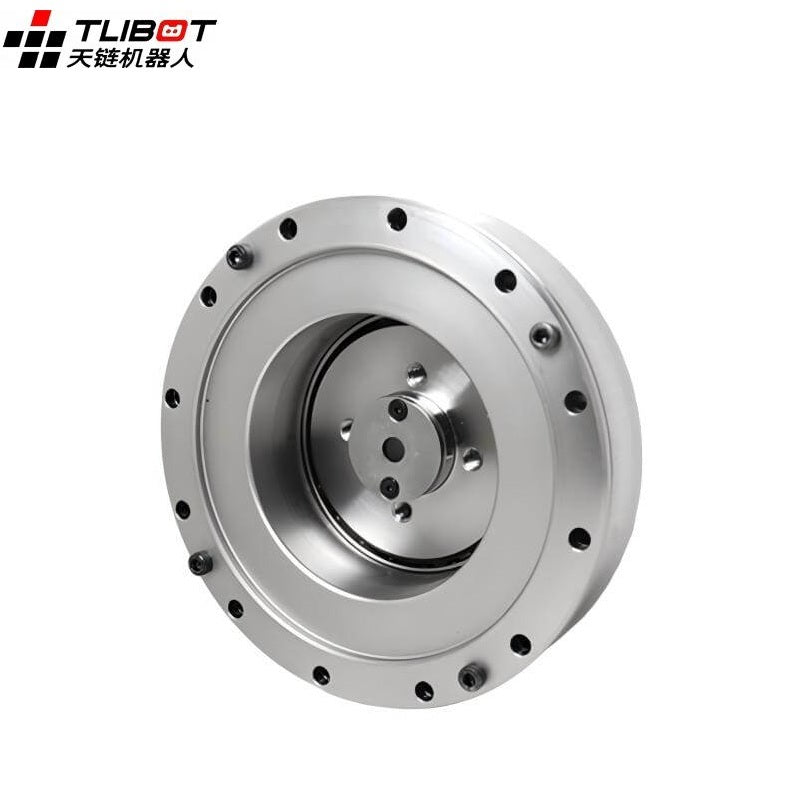

TLIBOT FHS-SJ Motor
Regular price
$160.00
Unit price
TLIBOT FHS-SJ Motor - FHS-14-XXX-SJ / 50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
TLIBOT FHS-SJ Motor
Regular priceFrom
$160.00
Unit price
TLIBOT FHS-SJ Motor - FHS-14-XXX-SJ / 50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | 14 | 14 | 14 |
| Reduction Ratio | 50 | 80 | 100 |
| Rated Torque at 2000r/min Input (Nm) | 5.7 | 8.2 | 8.2 |
| Rated Torque at 2000r/min Input (kgfm) | 0.58 | 0.84 | 0.84 |
| Allowable Peak Torque at Start and Stop (Nm) | 19 | 24 | 29 |
| Allowable Peak Torque at Start and Stop (kgfm) | 1.9 | 2.4 | 3.0 |
| Allowable Maximum Value of Average Load Torque (Nm) | 7.2 | 11.6 | 11.6 |
| Allowable Maximum Value of Average Load Torque (kgfm) | 0.74 | 1.2 | 1.2 |
| Instantaneous Maximum Allowable Torque (Nm) | 36 | 49 | 56 |
| Instantaneous Maximum Allowable Torque (kgfm) | 3.7 | 5.0 | 5.7 |
| Maximum Allowable Input Speed（r/min） | 8500 | 8500 | 8500 |
| Allowable Average Input Speed（r/min） | 3500 | 3500 | 3500 |
