SteadyWin | SKU:

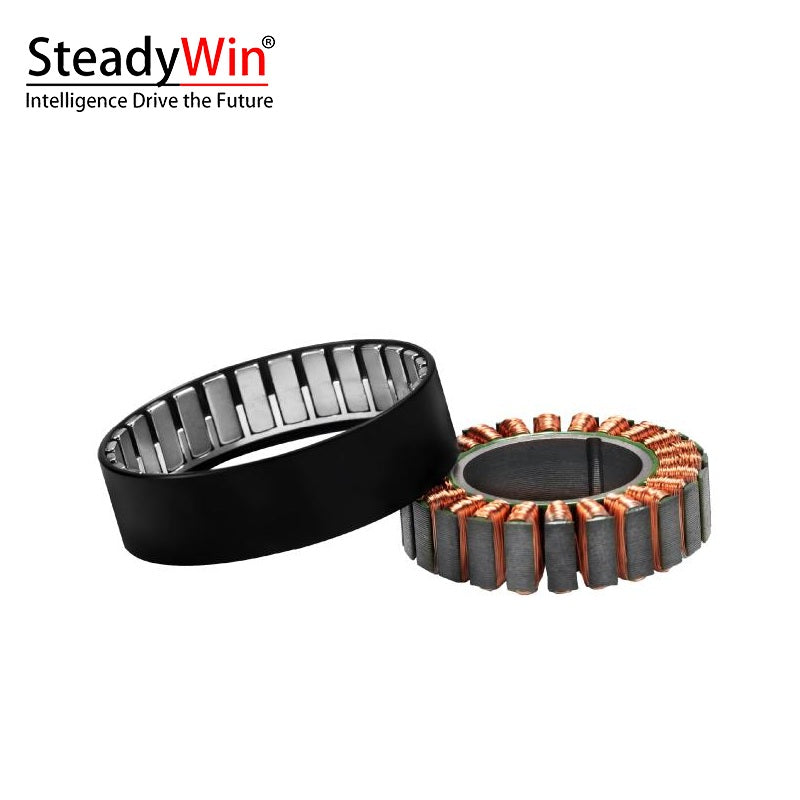

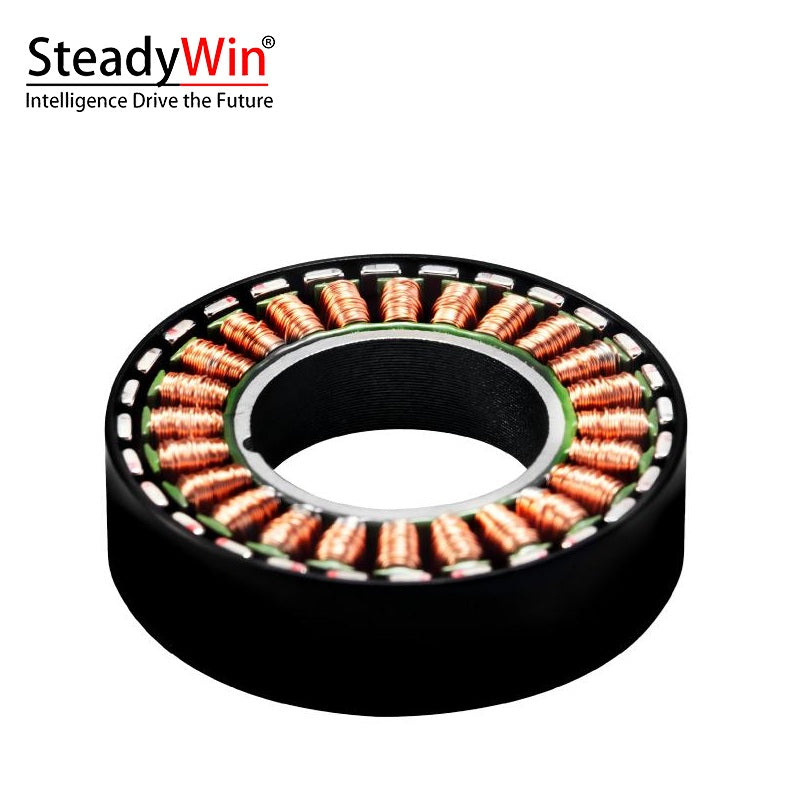

SteadyWin WK4310 Motor
Regular price
$35.00
Unit price

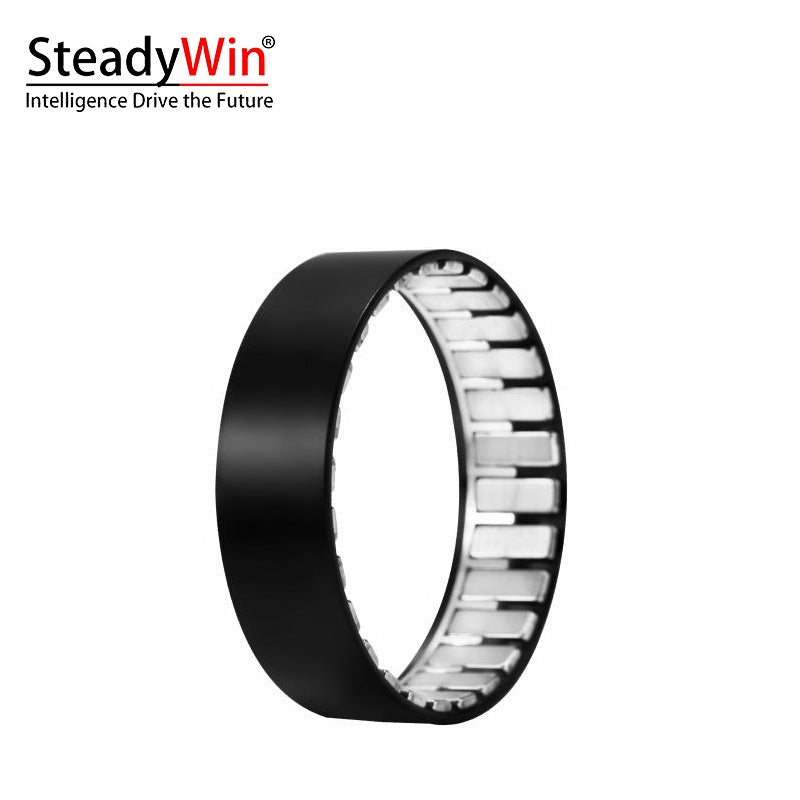

SteadyWin WK4310 Motor - WK4310 Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin WK4310 Motor
Regular priceFrom
$25.00
Unit price
SteadyWin WK4310 Motor - WK4310 Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value（WK4310） |
|---|---|
| Nominal voltage | 24V |
| Nominal current | 0.9A |
| Nominal torque | 0.2N.M |
| Nominal speed | 504rpm |
| Max speed |
1028rpm |
| Stall torque | 0.49N.M |
| Stall current | 1.9A |
| Winding turns of motor | 60T |
| Interphase resistance | 10.32Ω |
| Interphase inductance |
4.76Mh |
| Speed constant | 43rpm/v |
| Torque constant | 0.23N.M/A |
| Rotor inertia | 161gcm^2 |
| Number of pole pairs | 14Pairs |
| Working temperature | -20~80℃ |
| Max demagnetize tempersture |
120℃ |

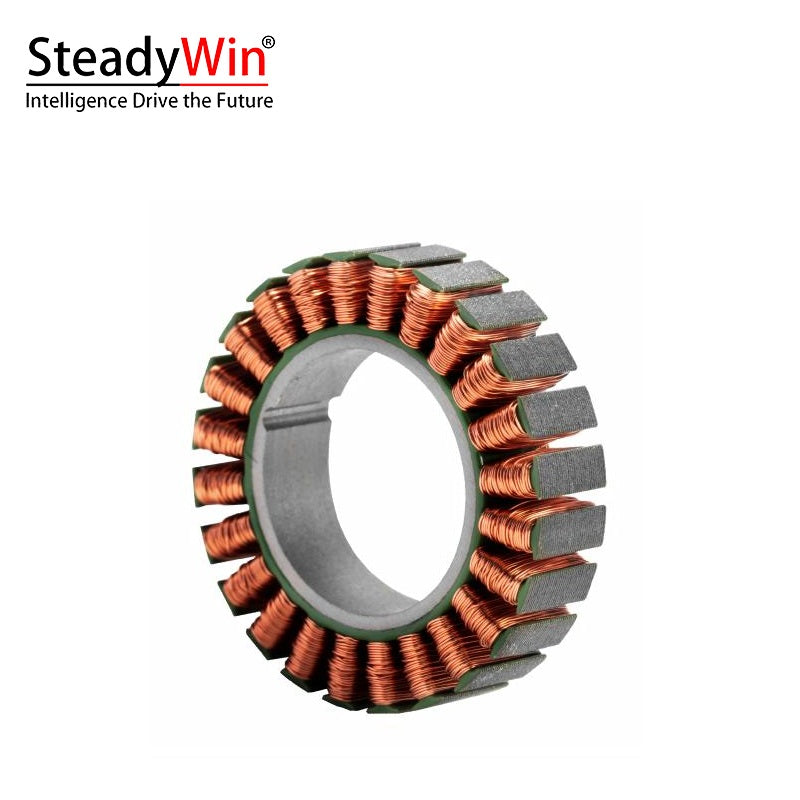

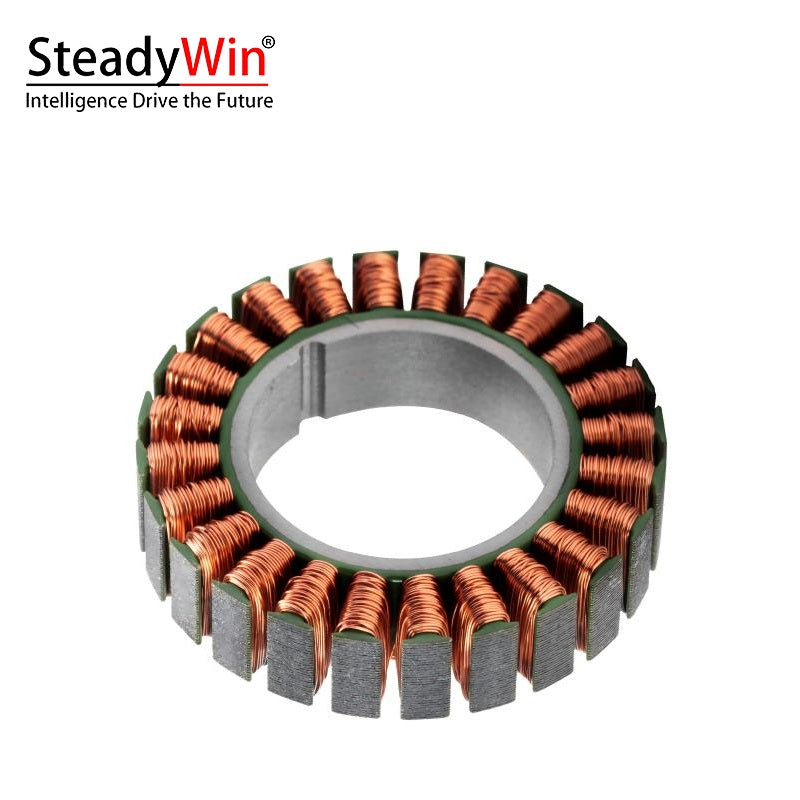

| Inner diameter of the stator | 25mm |
| Motor size | Ø49*13.5mm |
| Motor weight | 78g |
