SteadyWin | SKU:

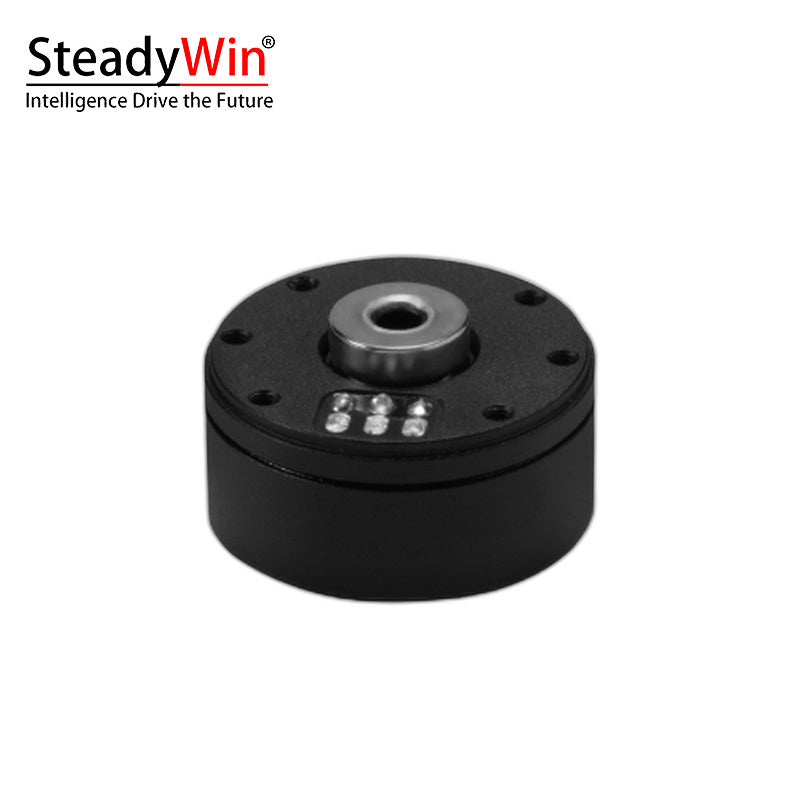

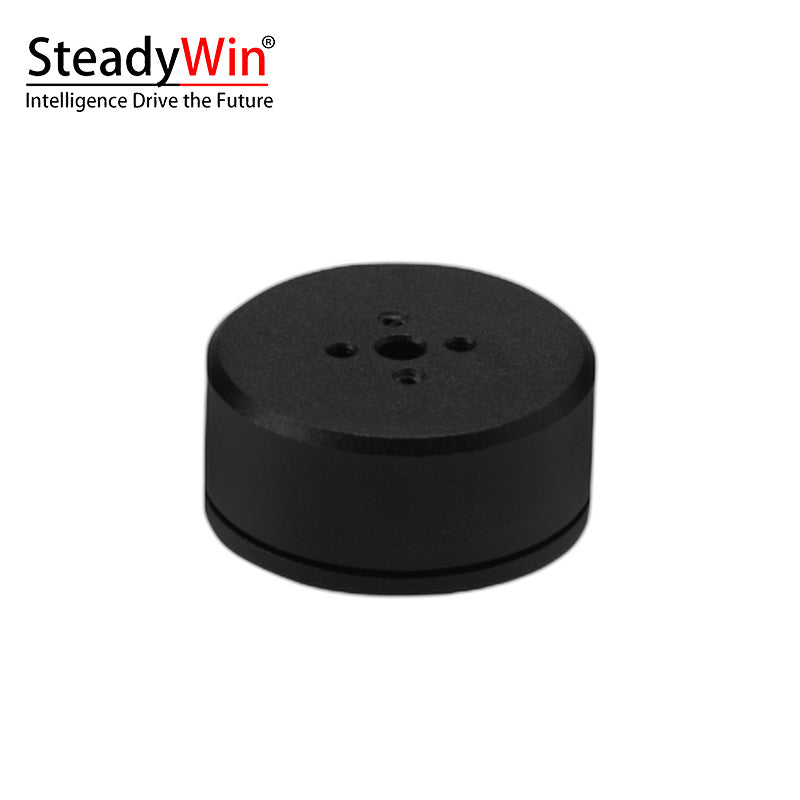

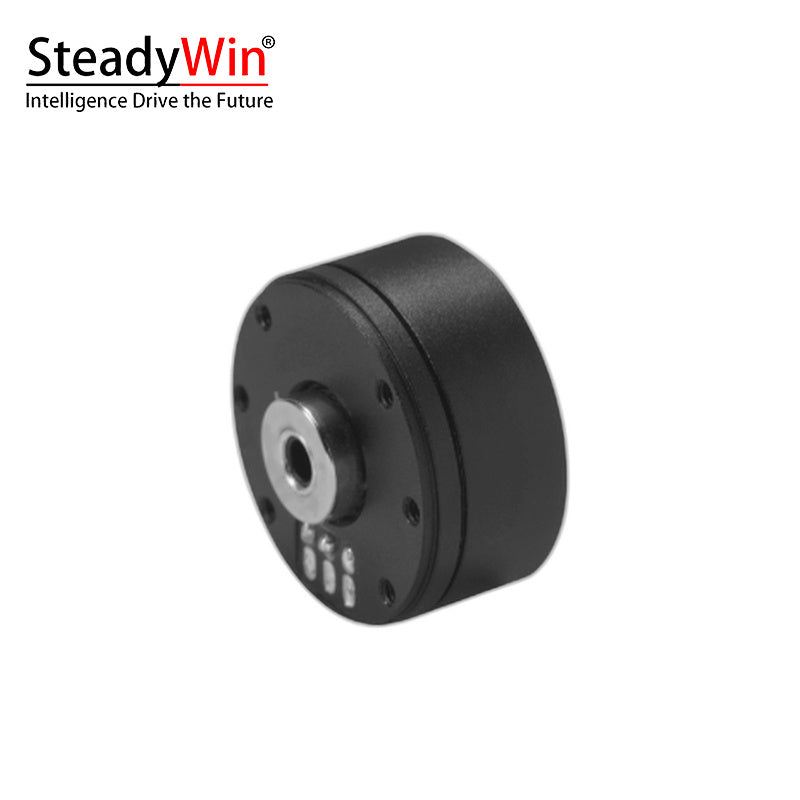

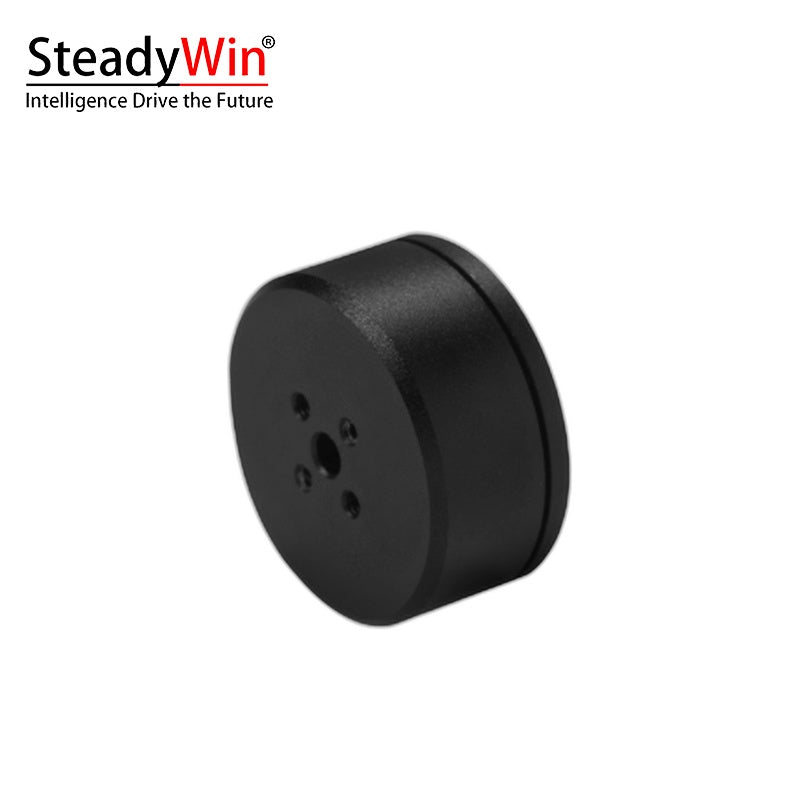

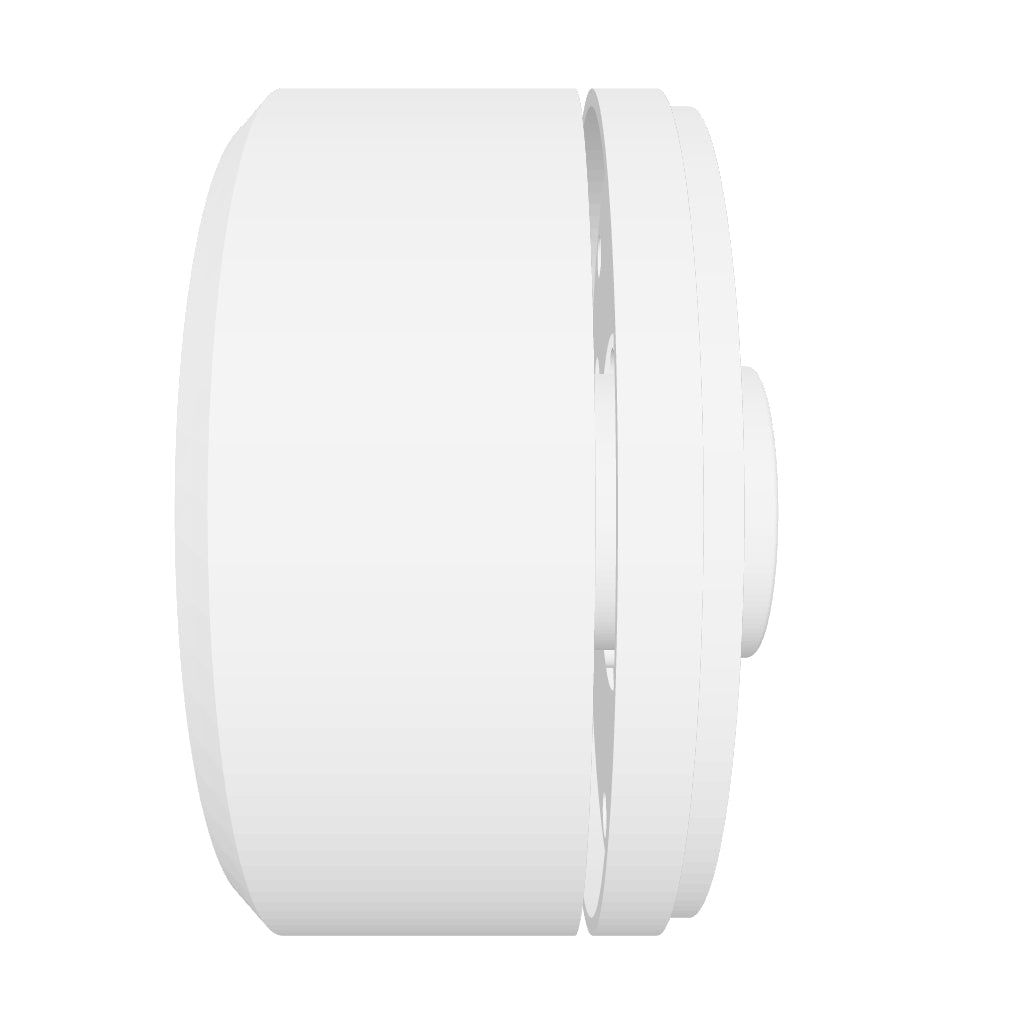

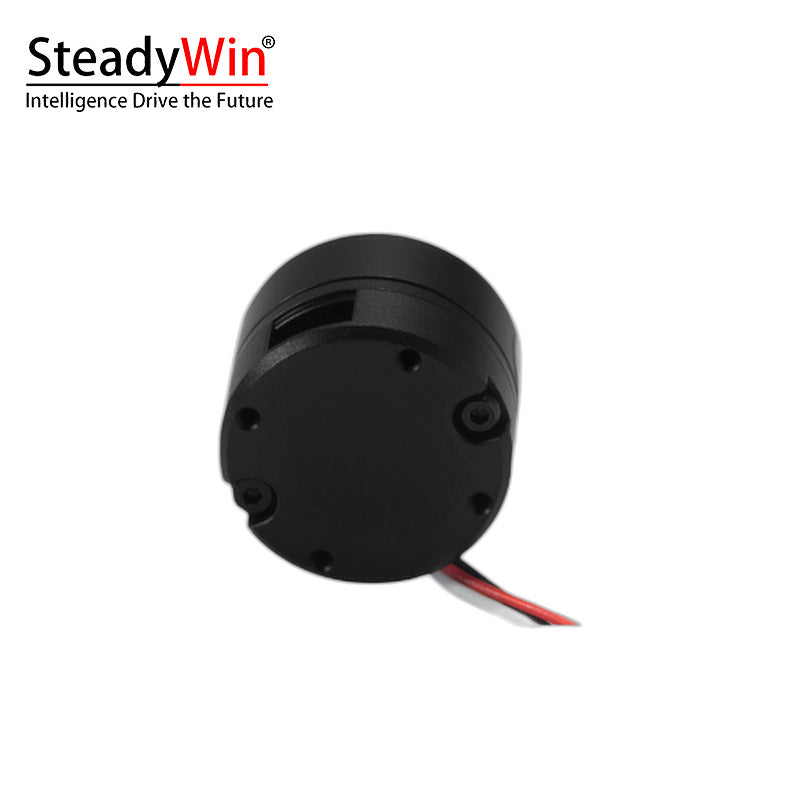

SteadyWin GB2205 Motor
Regular price
$25.00
Unit price
SteadyWin GB2205 Motor - GB2205CH-8 / AS5600(12bit) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin GB2205 Motor
Regular priceFrom
$25.00
Unit price
SteadyWin GB2205 Motor - GB2205CH-8 / AS5600(12bit) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | GB2205 |
| Nominal Voltage | 12V |
| Nominal Torque | 0..04N·m |
| Nominal Speed | 792RPM |
| Max Speed | 5630RPM |
| Nominal Current | 0.66A |
| Stall torque | 0.06N·m |
| Stall current | 1A |
| Winding turns of motor | 65T |
| Phase resistance | 8Ω |
| Phase inductance | 1.45Mh |
| Speed constant | 100rpm/v |
| Torque constant | 0.06N.M/A |
| Rotor inertia | 42gcm^2 |
| Number of pole pairs | 7Pairs |
| Motor weight without encoder | 22g |
| Motor weight with encoder | 29g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |

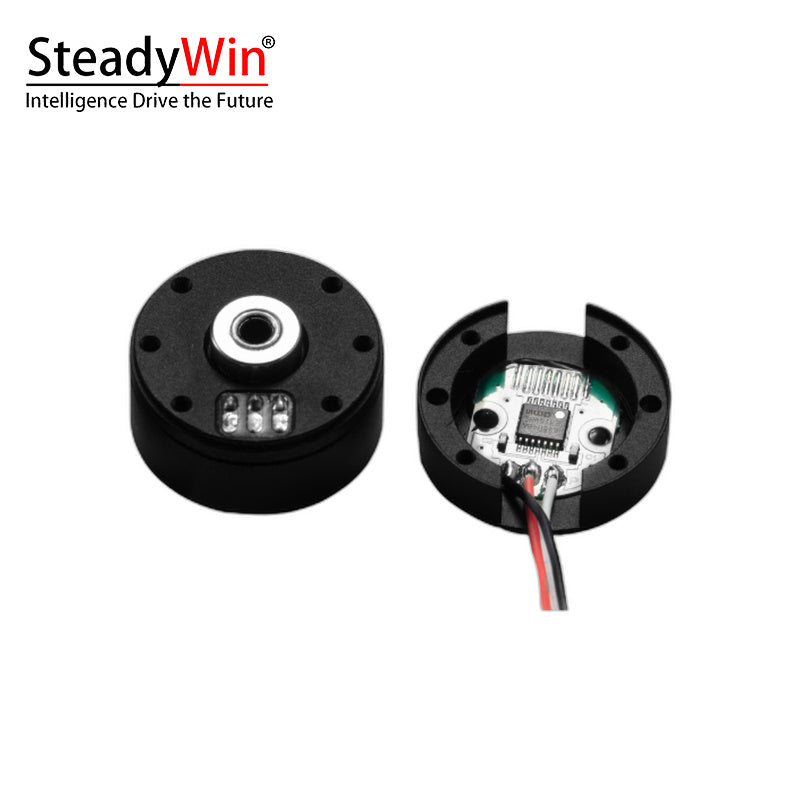

| Encoder type |
AS5048A/AS5600 |
