SteadyWin | SKU:

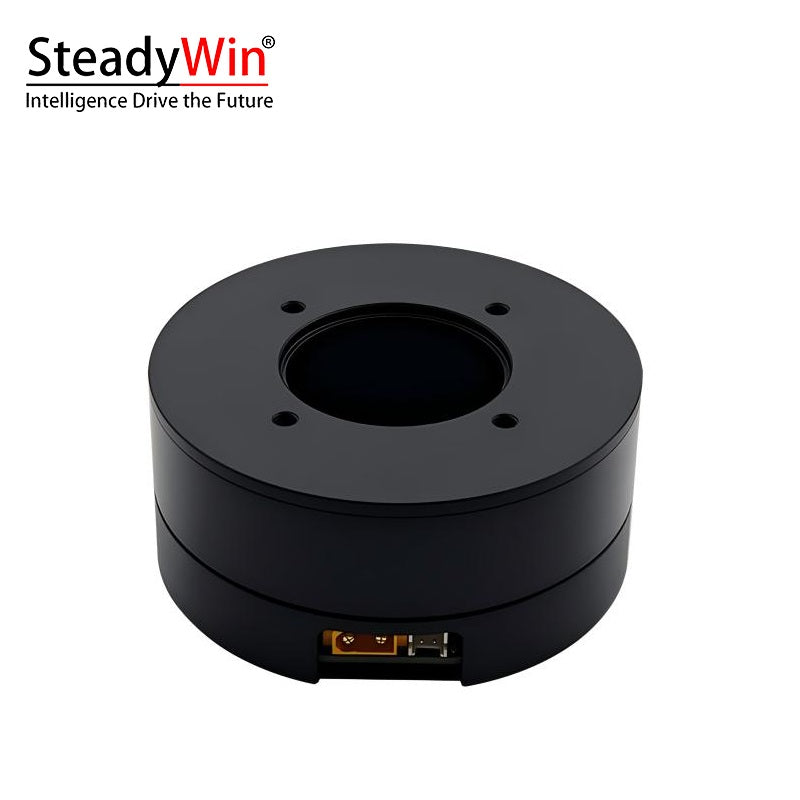

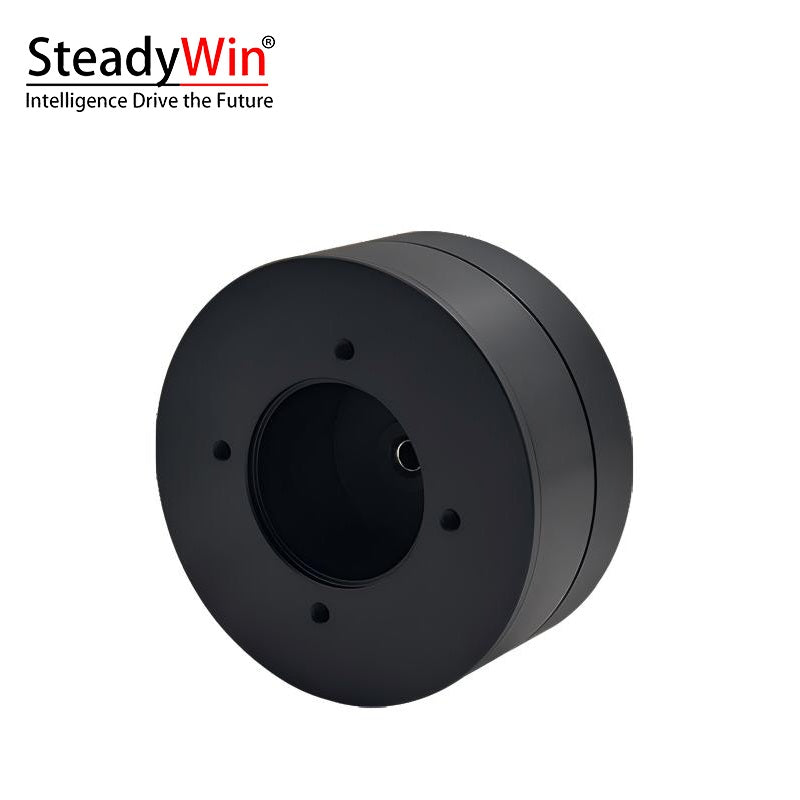

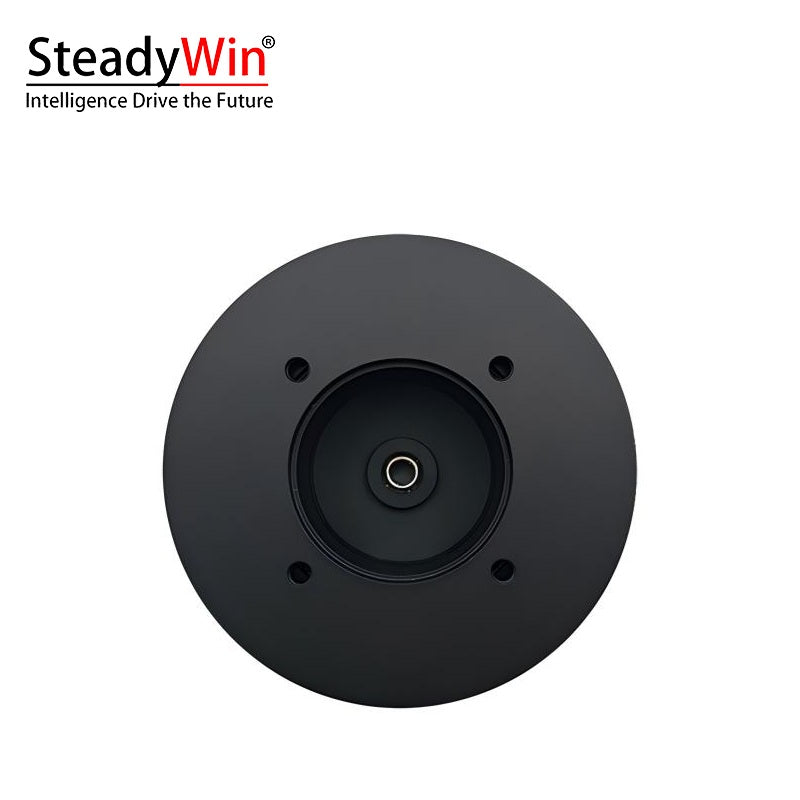

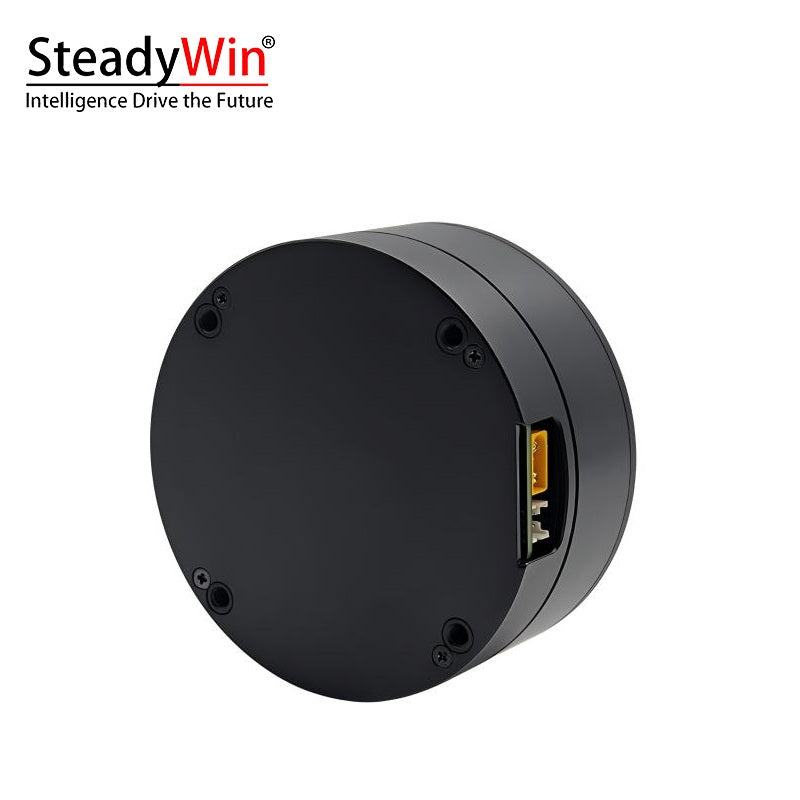

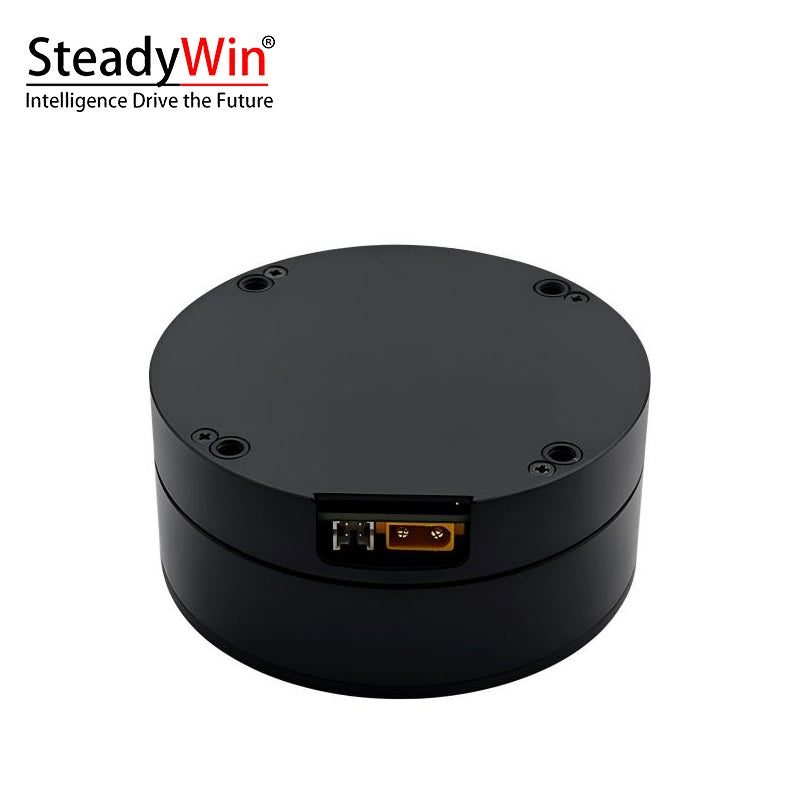

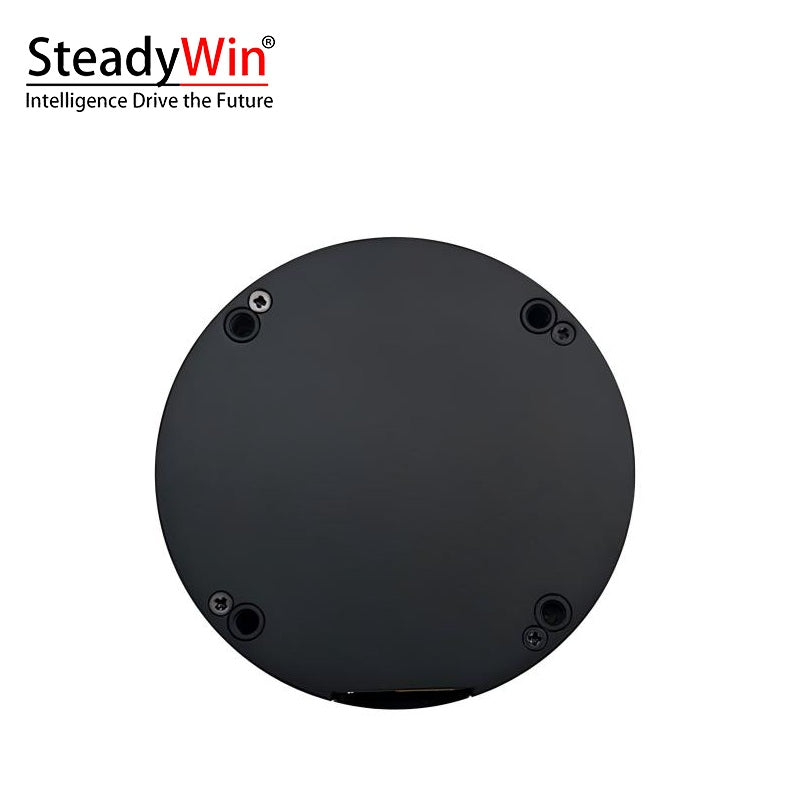

SteadyWin DD8015 Motor
Regular price
$137.00
Unit price
SteadyWin DD8015 Motor - DD8015-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin DD8015 Motor
Regular price
$137.00
Unit price
SteadyWin DD8015 Motor - DD8015-2 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal voltage | 24V |
| Voltage range | 12~40V |
| Nominal current | 2.9A |
| Nominal power | 69.6W |
| Nominal torque | 1.2N.M |
| Nominal speed | 354rpm |
| No-load max speed |
516rpm |
| Peak torque | 3.7N.m |
| Peak current | 16A |
| Speed constant |
21.5rpm/v |
| Torque constant | 0.41N.M/A |
| Number of pole pairs | 21Pairs |
| Phase resistance | 1Ω |
| Phase inductance | 0.63Mh |
| Rotor inertial | 1555gcm^2 |
| Communication | RS485 & CAN |
| Encoder type |
Single-turn absolute |
| Resolution | 14bit |
| Motor weight | 418g |
| Working temperature | -20~80℃ |
DD8015_installation_drawing.pdf

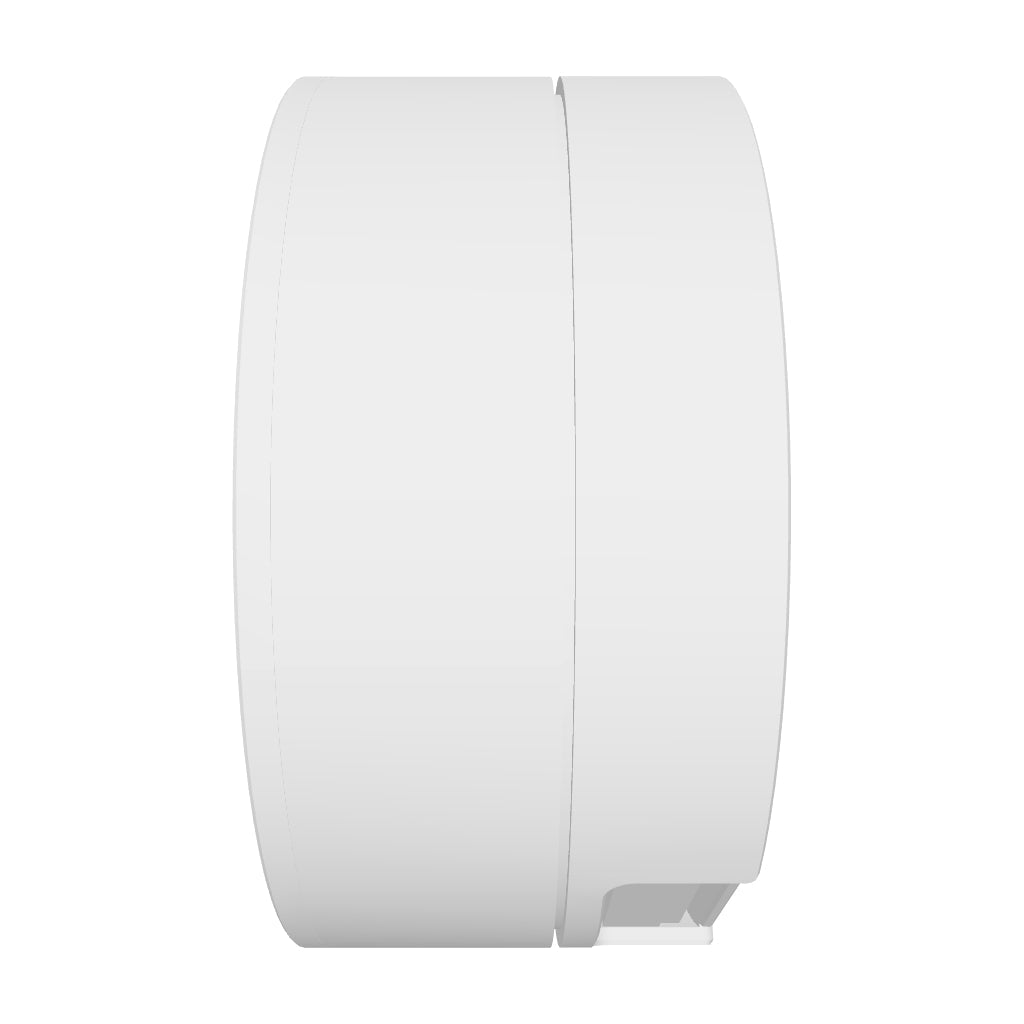

SteadyWin_DD8015_motor.stp
