SITO DRIVE | SKU:

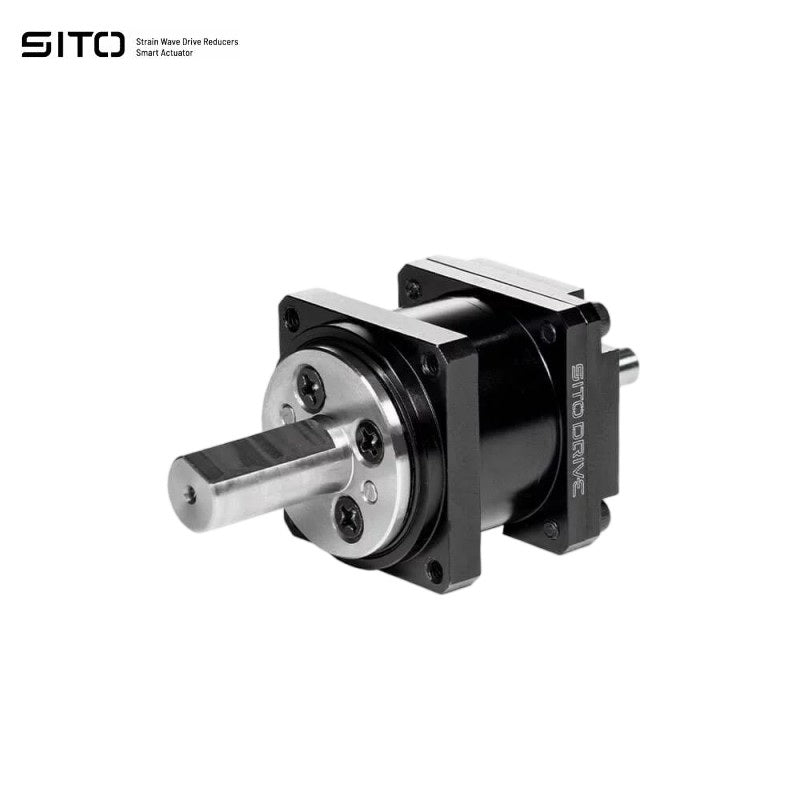

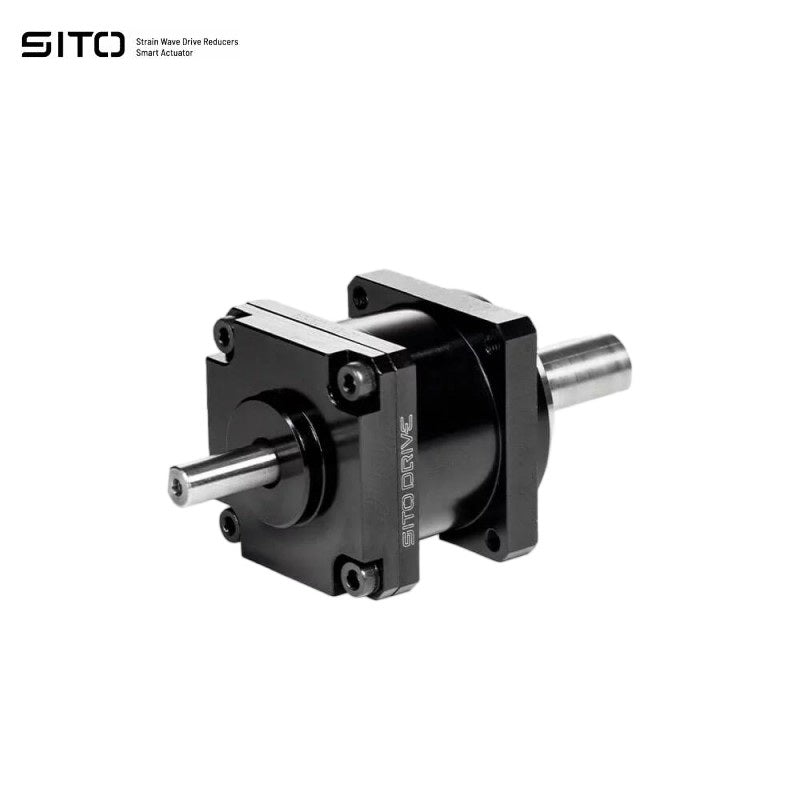

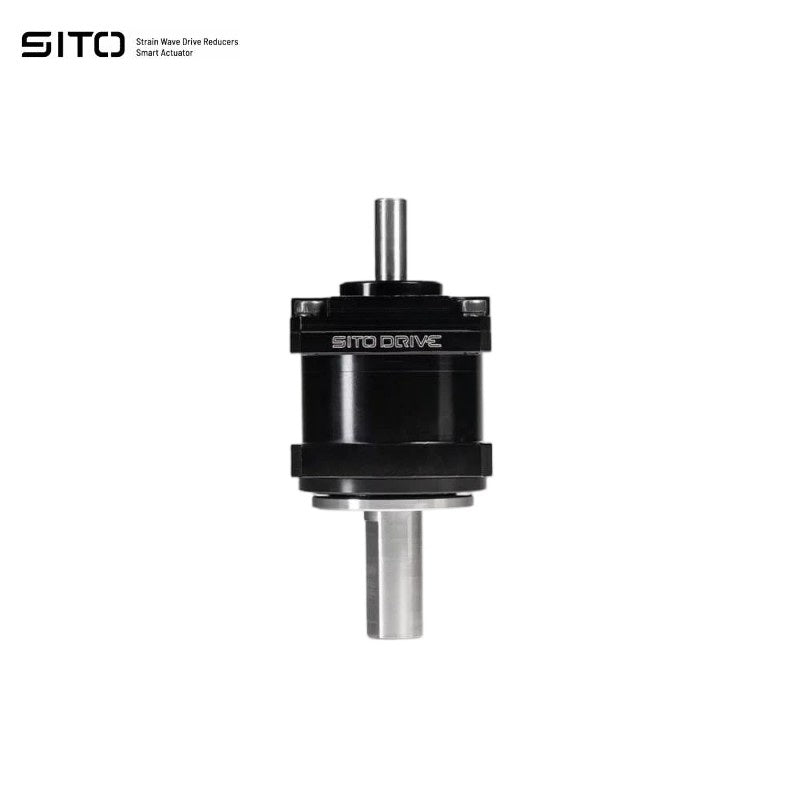

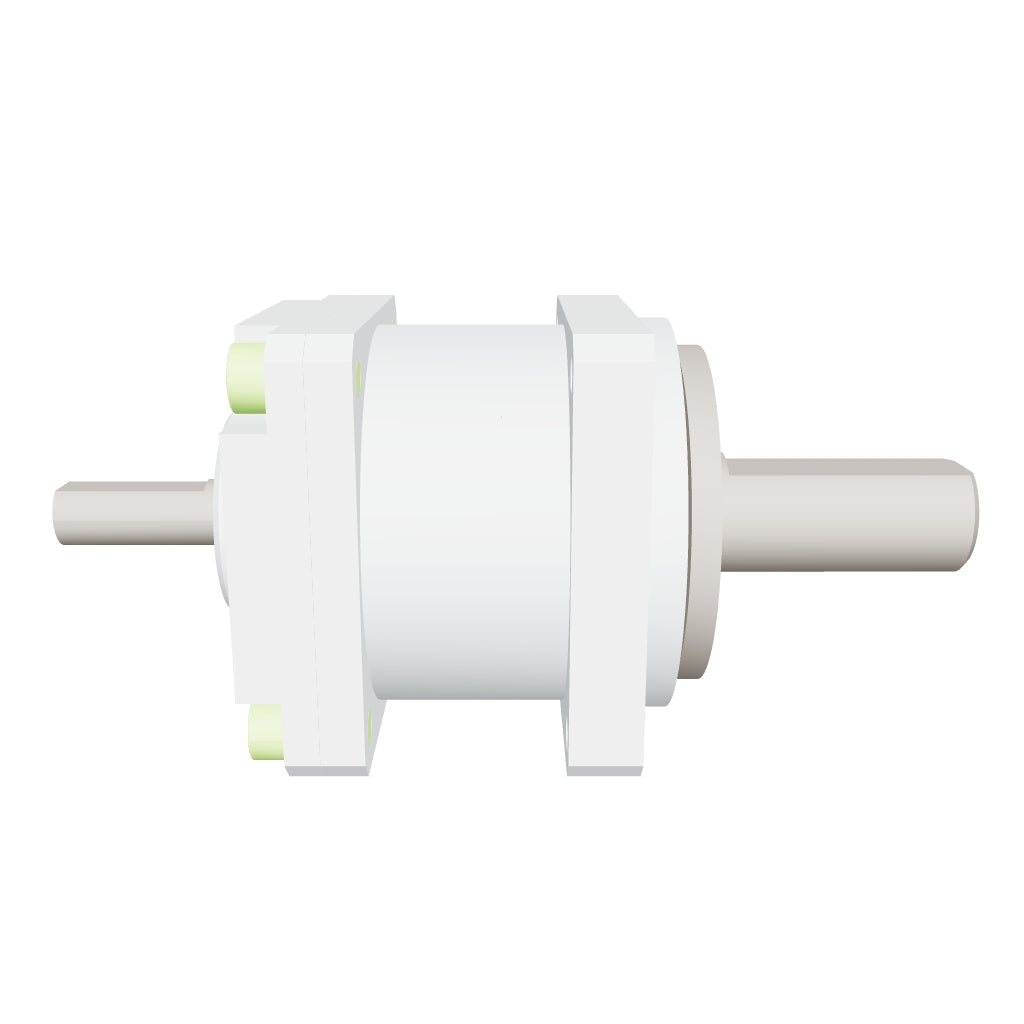

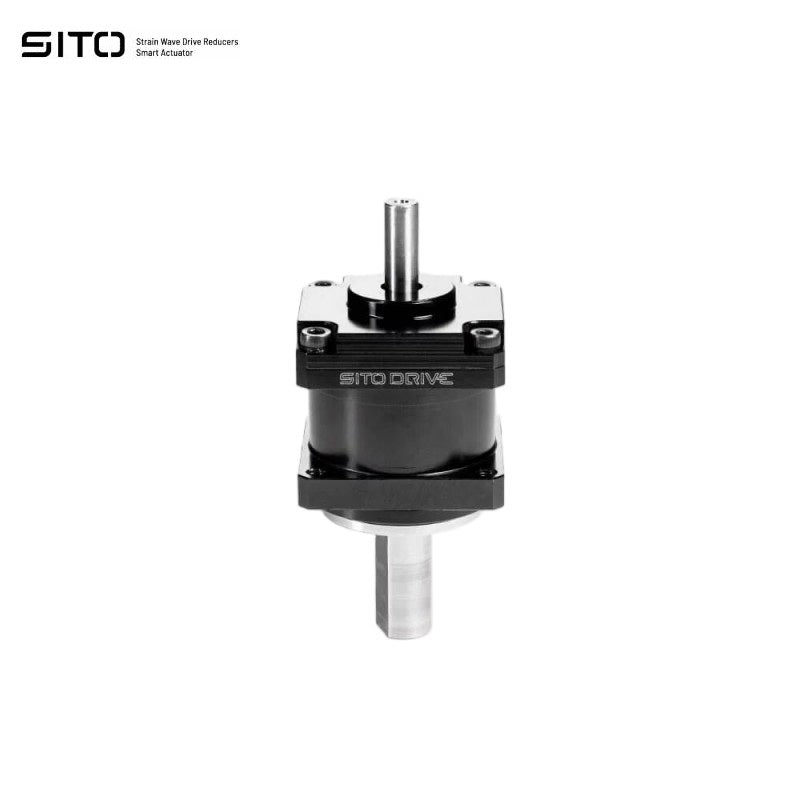

SITO DRIVE CS Mini-08 Reducer
Regular price
$150.00
Unit price
Unavailable
SITO DRIVE CS Mini-08 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE CS Mini-08 Reducer
Regular price
$150.00
Unit price
Unavailable
SITO DRIVE CS Mini-08 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | CS-08-1U-U | CS-08-1U-U | CS-08-1U-U |
| Transmission Ratio | 30 | 50 | 100 |
| Rated Torque at 2000r/min input | 0.9 Nm | 1.8 Nm | 2.4 Nm |
| Peak Torque allowed during start/stop | 1.8 Nm | 3.3 Nm | 4.8 Nm |
| Maximum allowable average load torque | 1.4 Nm | 2.3 Nm | 3.3 Nm |
| Instantaneous Maximum Torque | 3.3 Nm | 6.6 Nm | 9 Nm |
| Maximum allowable input speed | 8500 rpm | 8500 rpm | 8500 rpm |
| Allowable average speed | 3500 rpm | 3500 rpm | 3500 rpm |
| Moment of inertia | 3.2x10³ (×10⁻⁴kg·m²) | 3.2x10³ (×10⁻⁴kg·m²) | 3.2x10³ (×10⁻⁴kg·m²) |
| Backlash | ≤20 arcsec | ≤20 arcsec | ≤20 arcsec |
