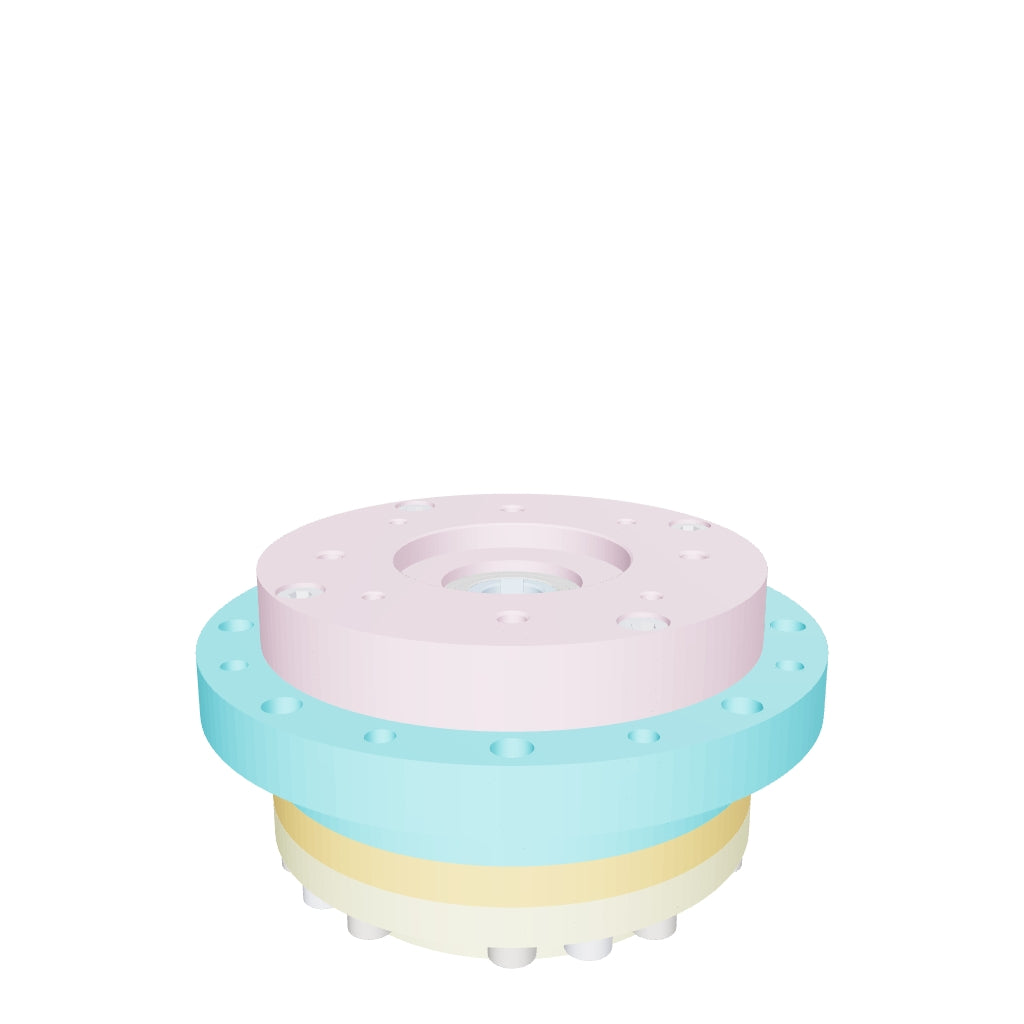

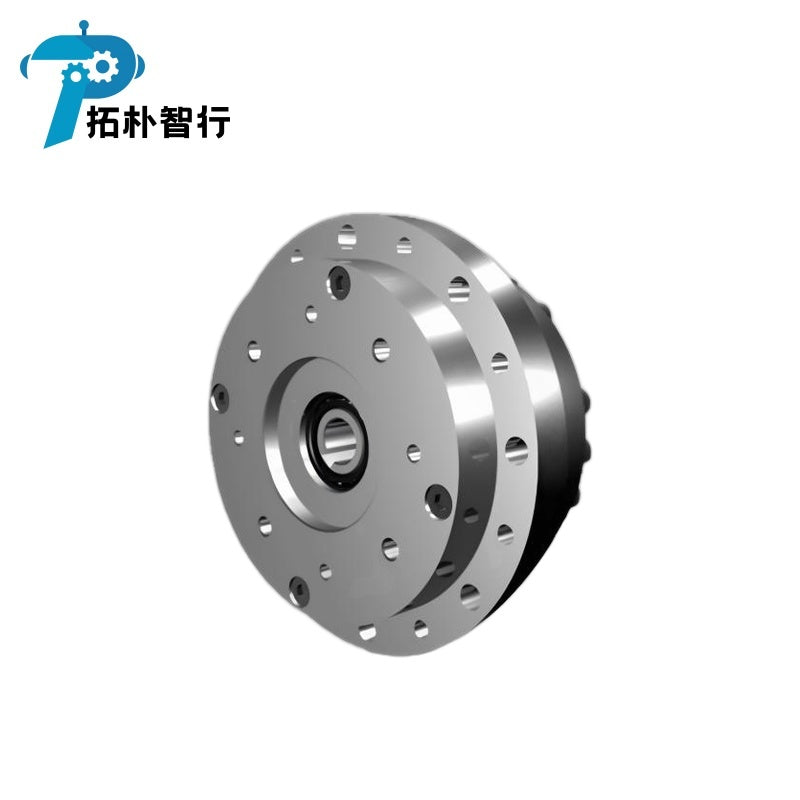

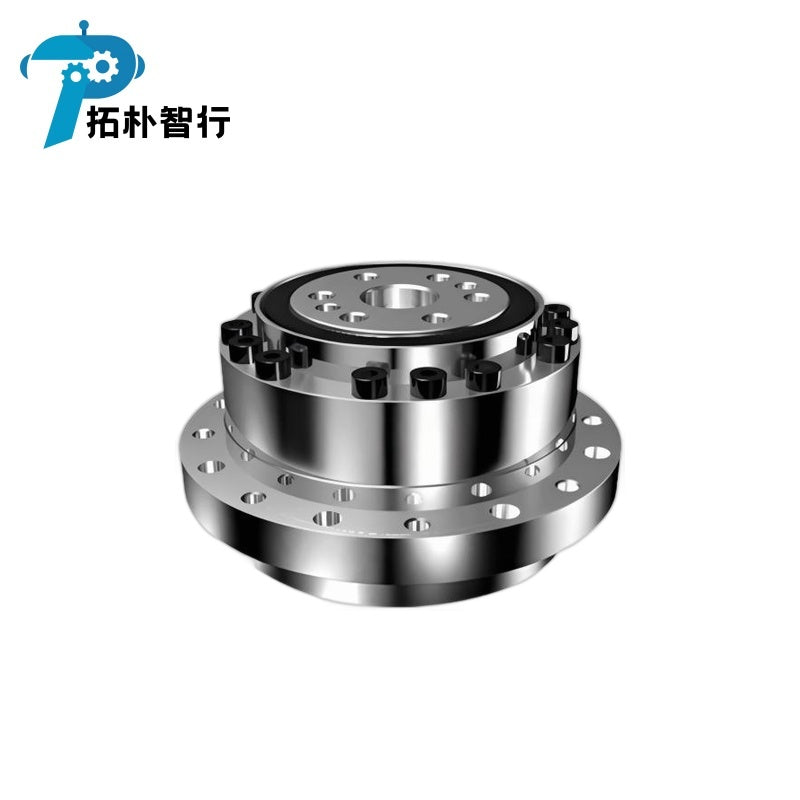

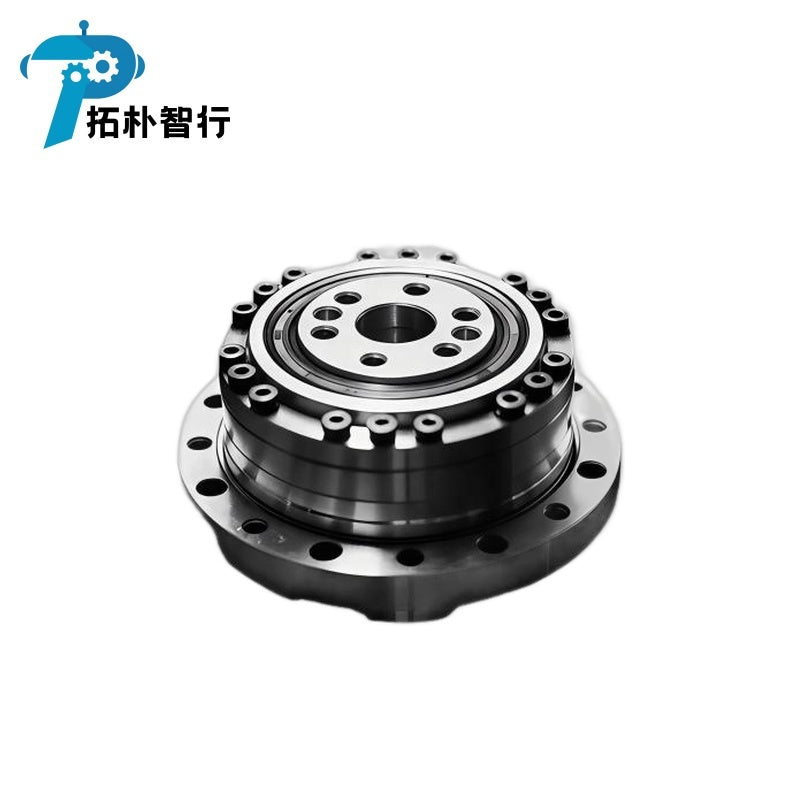

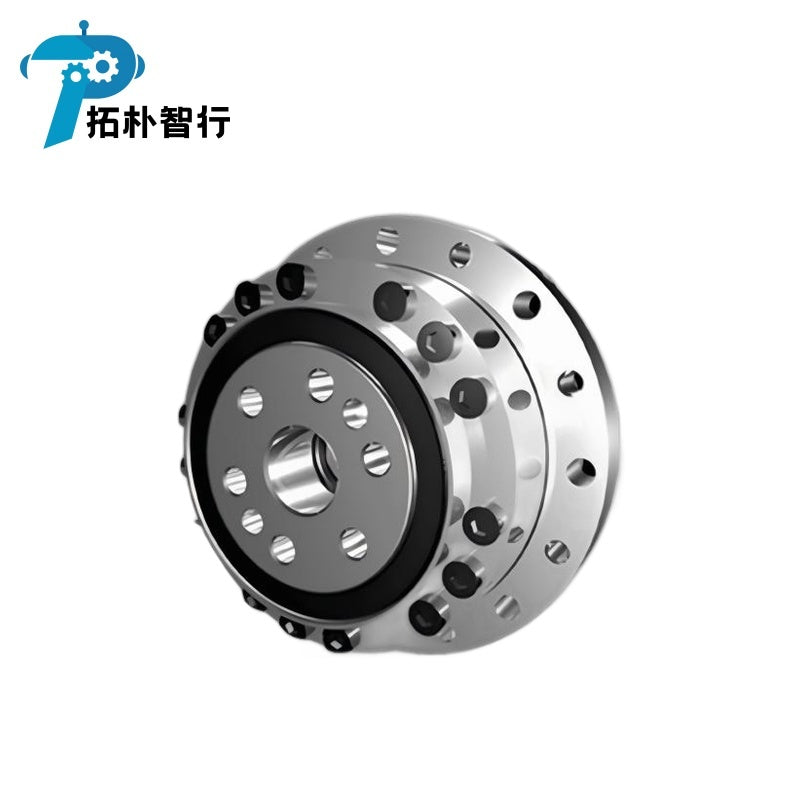

SINOTUP TF63 Reducer
Regular price
$630.00
Unit price
SINOTUP TF63 Reducer - TF63 / 21 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SINOTUP TF63 Reducer
Regular price
$630.00
Unit price
SINOTUP TF63 Reducer - TF63 / 21 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TF63 |
| Reduction ratio |
Axis rotation: 21–81 Shell rotation: 22–82 |
| Rated output torque | 82 Nm |
| Max. acceleration/deceleration torque | 162 Nm |
| Permissible torque at emergency stop | 250 Nm |
| Rated input speed | 1500 rpm |
| Max. input speed | 3000 rpm |
| Tilting stiffness | 65 Nm |
| Torsional stiffness | 10 Nm |
| Max. radial force | 2.5 kN |
| Max. axial force | 3.3 kN |
| Max. no-load starting torque | 0.3 Nm 、0.29 Nm、 0.28 Nm、0.27 Nm |
| Average angular transmission error | ±20 arcsec |
| Backlash accuracy | P0–P2 arcmin |
| Moment of inertia | 5.2 × 10⁻⁶ kg·m² |
| Weight | 0.98 kg |
