SINOTUP | SKU:

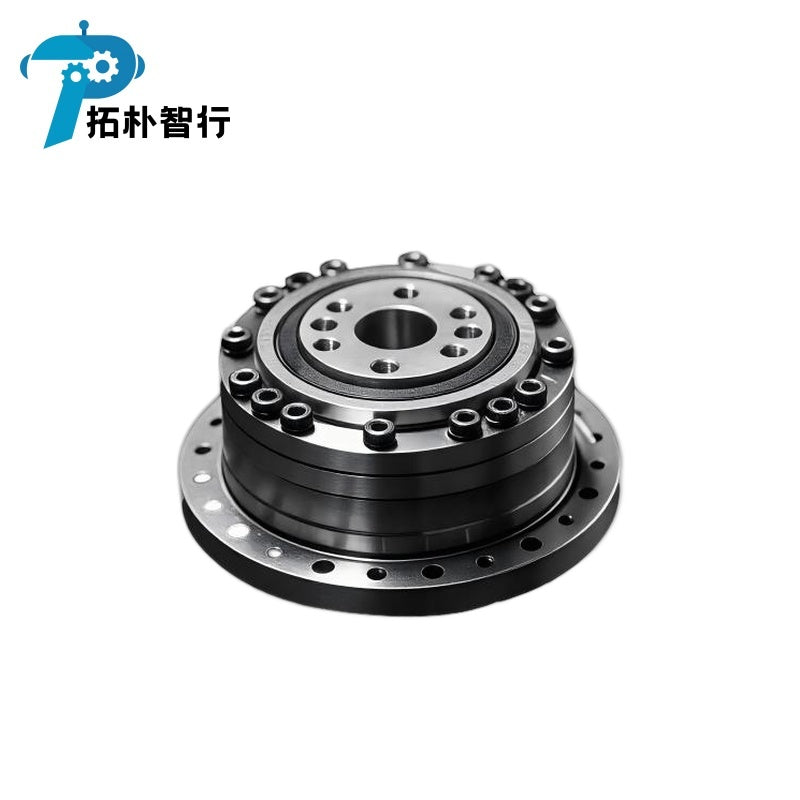

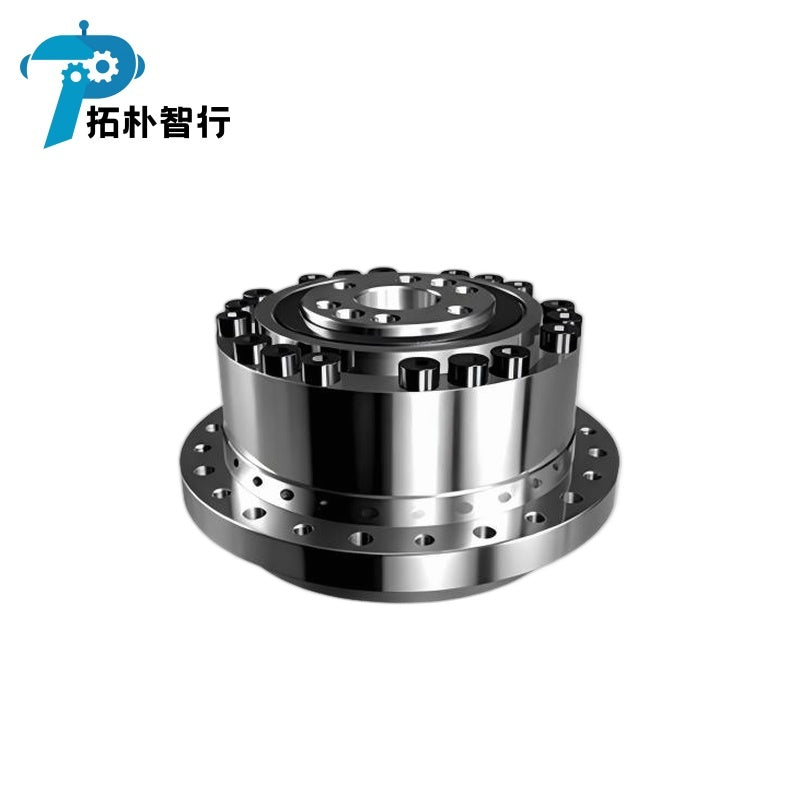

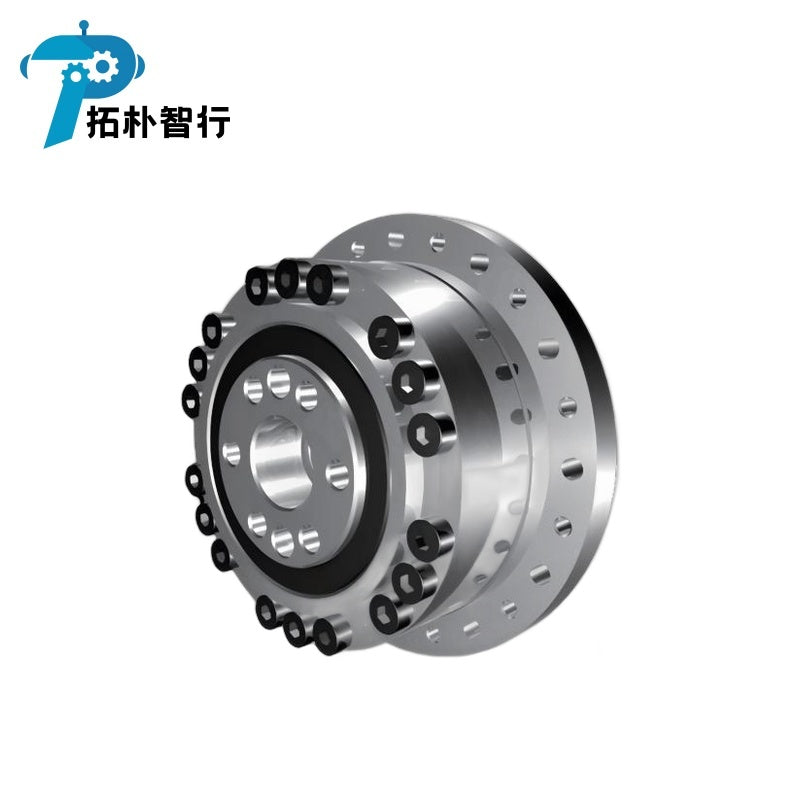

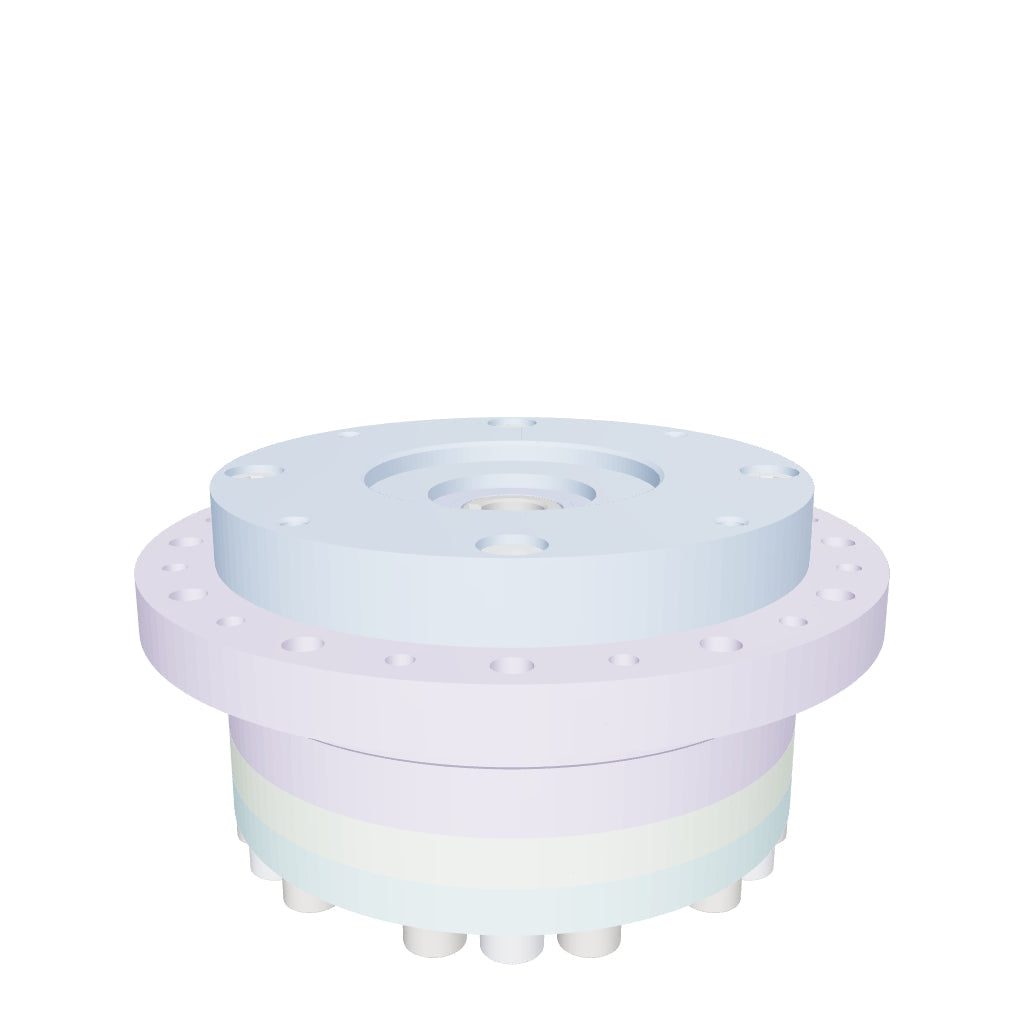

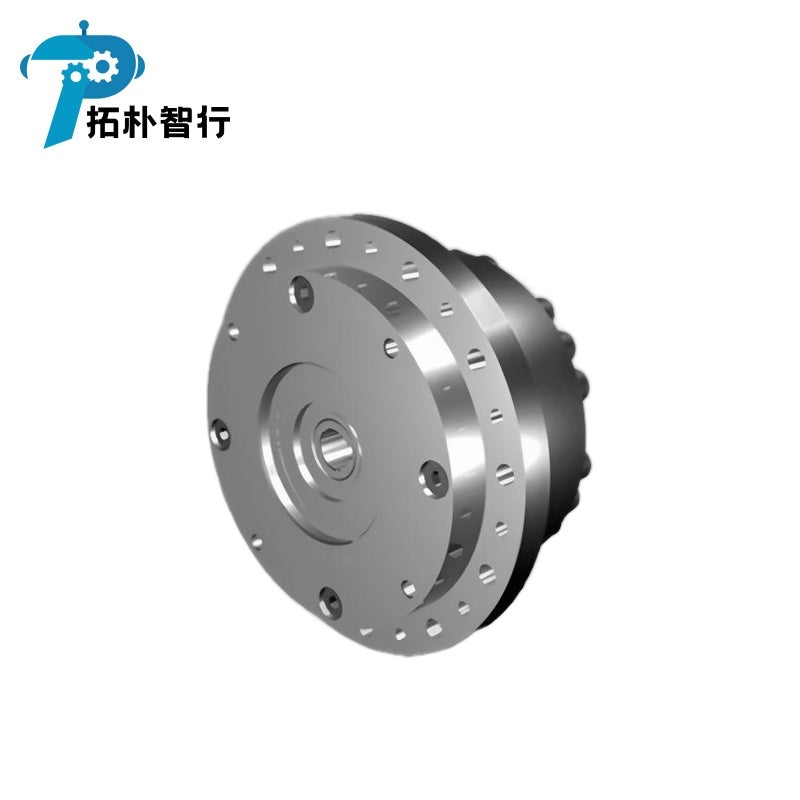

SINOTUP TF40 Reducer
Regular price
$550.00
Unit price
SINOTUP TF40 Reducer - TF40 / 21 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SINOTUP TF40 Reducer
Regular price
$550.00
Unit price
SINOTUP TF40 Reducer - TF40 / 21 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TF40 |
| Reduction ratio |
Axis rotation: 21–41 Shell rotation: 22–42 |
| Rated output torque | 15 Nm |
| Max. acceleration/deceleration torque | 34 Nm |
| Permissible torque at emergency stop | 45 Nm |
| Rated input speed | 1500 rpm |
| Max. input speed | 3000 rpm |
| Tilting stiffness | 13 Nm |
| Torsional stiffness | 2.1 Nm |
| Max. radial force | 0.8 kN |
| Max. axial force | 1.0 kN |
| Max. no-load starting torque | 0.12 Nm 、 0.1 Nm |
| Average angular transmission error | ±30 arcsec |
| Backlash accuracy | P0–P2 arcmin |
| Moment of inertia | 1 × 10⁻⁶ kg·m² |
| Weight | 0.18 kg |
