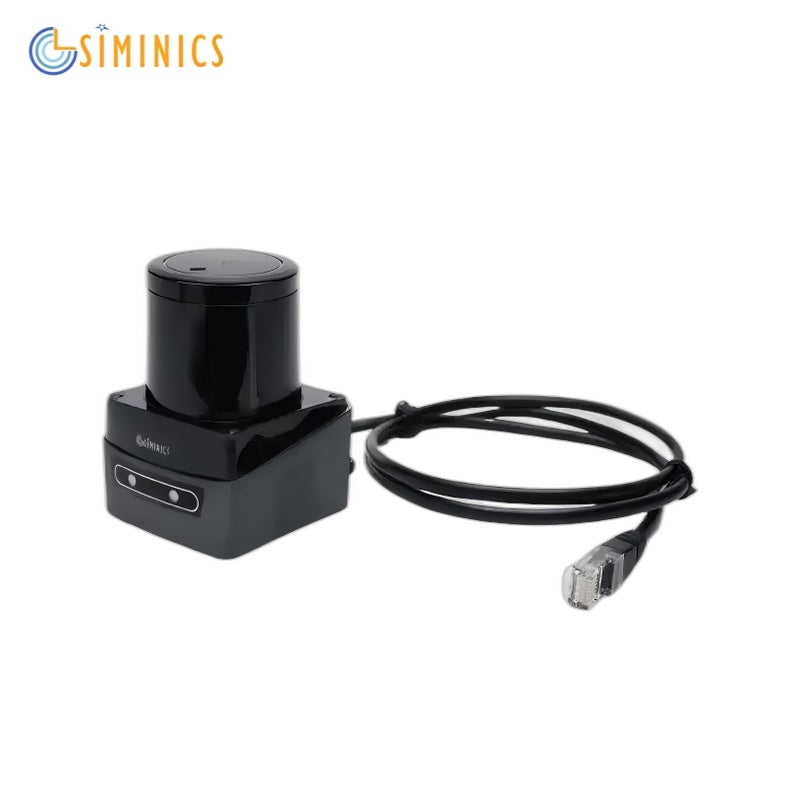

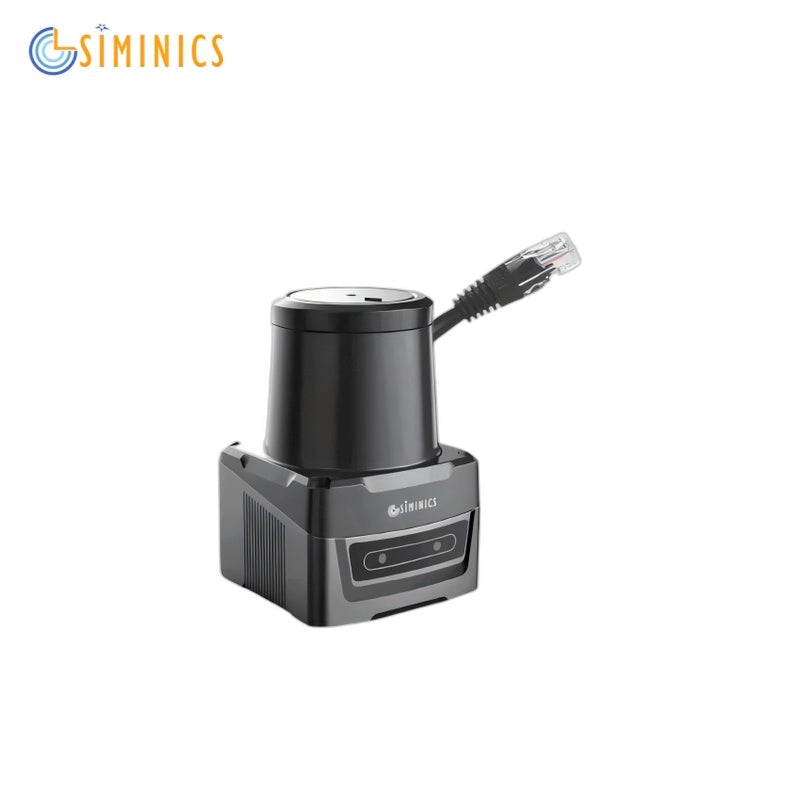

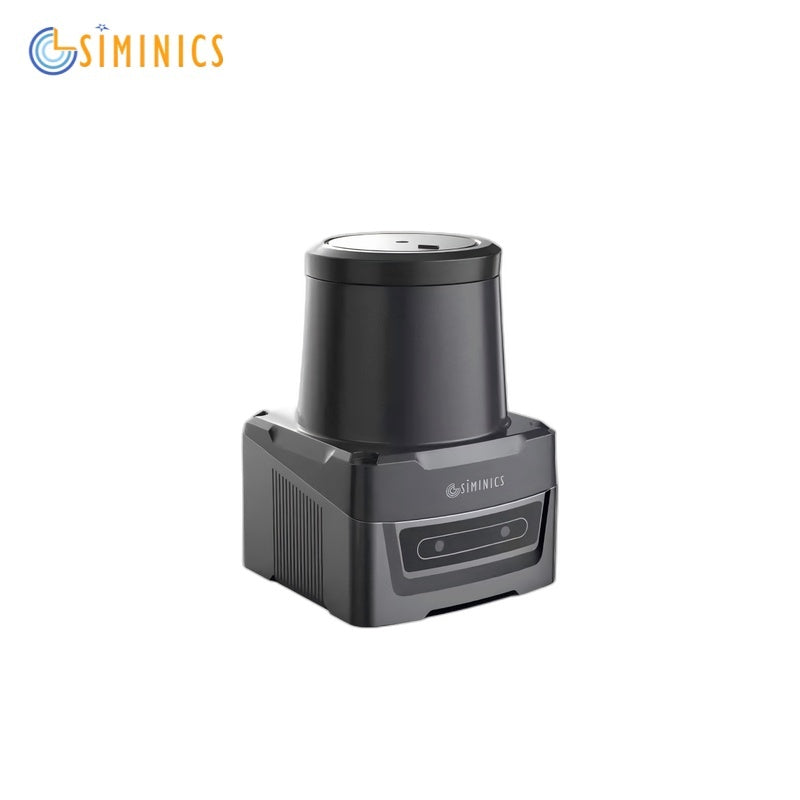

SIMINICS PAVO2E LiDAR

$668.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter PAVO2E-LS-15H PAVO2E-LS-25H
Detection Range 0.1‑15 m @ 90% reflectivity
0.1‑5 m @ 10% reflectivity		 0.1‑15 m @ 90% reflectivity
0.1‑5 m @ 10% reflectivity
Repeatability Accuracy ±30 mm ±30 mm
Scanning Range 280° 280°
Angular Resolution 0.16° 0.16°
Scan Frame Rate 25 Hz 25 Hz
Supply Voltage DC 36‑57 V (standard PoE supply) DC 36‑57 V (standard PoE supply)
Operating Current 0.03 A @ 48 V (typical) 0.03 A @ 48 V (typical)
Laser Source 905 nm, Class I 905 nm, Class I
Power Consumption (typical) 1.5 W 1.5 W
Data Interface Ethernet 100BASE‑TX Ethernet 100BASE‑TX
Startup Time <10 s <10 s
Ambient Light Immunity >80,000 lux >80,000 lux
Operating Temperature ‑10 °C ~ 55 °C ‑10 °C ~ 55 °C
Storage Temperature ‑30 °C ~ 75 °C ‑30 °C ~ 75 °C
Mechanical Shock Test Acceleration: 50 g; Duration: 6 ms;
Directions: X+, X‑, Y+, Y‑, Z+, Z‑; 3 times/direction (g = 10 m/s²)		 Acceleration: 50 g; Duration: 6 ms;
Directions: X+, X‑, Y+, Y‑, Z+, Z‑; 3 times/direction (g = 10 m/s²)
Operating Life 5 years (motor life) 5 years (motor life)
Ingress Protection IP67 IP67
Dimensions 60 × 60 × 80 mm³ 60 × 60 × 80 mm³
Weight 180 g (without cable) 180 g (without cable)
