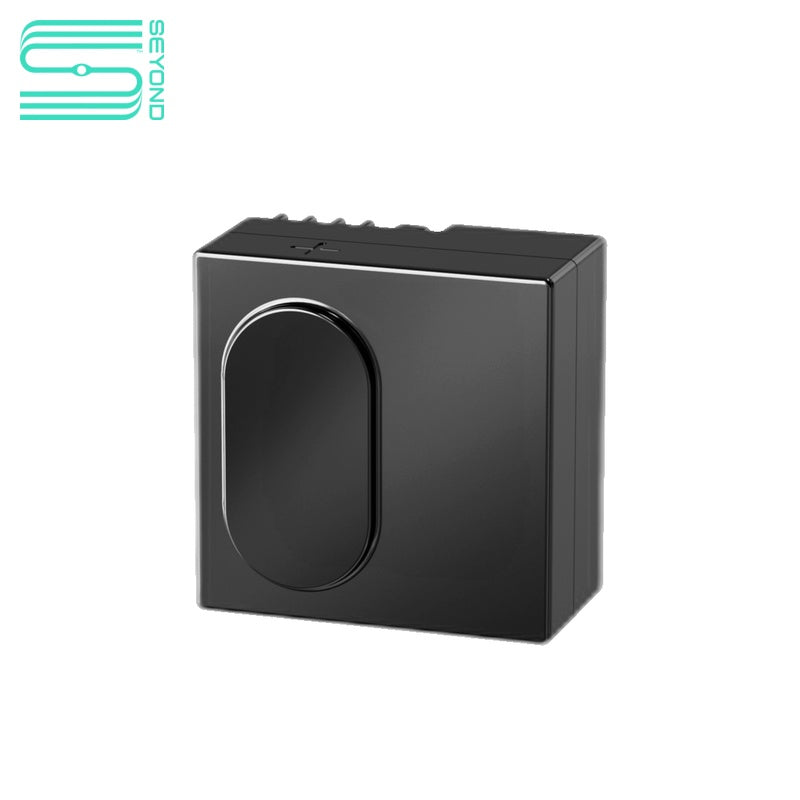

Seyond Hummingbird D1 LiDAR

$1,600.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Hummingbird D1
Product Name Pure solid-state ultra-wide-angle LiDAR
Detection Range 0.1m ~ 50m (30m @10%)
Field of View (H×V) 140° × 100°
Angular Resolution (H×V) 0.55° × 0.52°
Frame Rate 10FPS
Operating Temperature -40°C ~ 85°C
Ingress Protection IP6K7 (body), IP6K9K (window)
Laser Wavelength & Safety 940nm, Class 1 (IEC-60825)
Dimensions (H×W×D) 80mm × 50mm × 45.5mm
Weight 220g
Power Consumption < 8W
Hummingbird D1R
Product Name Pure solid-state ultra-wide-angle LiDAR
Detection Range 0.1m ~ 50m (30m @10%)
Field of View (H×V) 140° × 100°
Angular Resolution (H×V) 0.55° × 0.52°
Frame Rate 10FPS
Operating Temperature -40°C ~ 75°C
Ingress Protection IP67
Laser Wavelength & Safety 940nm, Class 1 (IEC-60825)
Dimensions (H×W×D) 37mm × 92mm × 45mm
Weight 220g
Power Consumption 6W
IMU Integrated
