RUICOM | SKU:

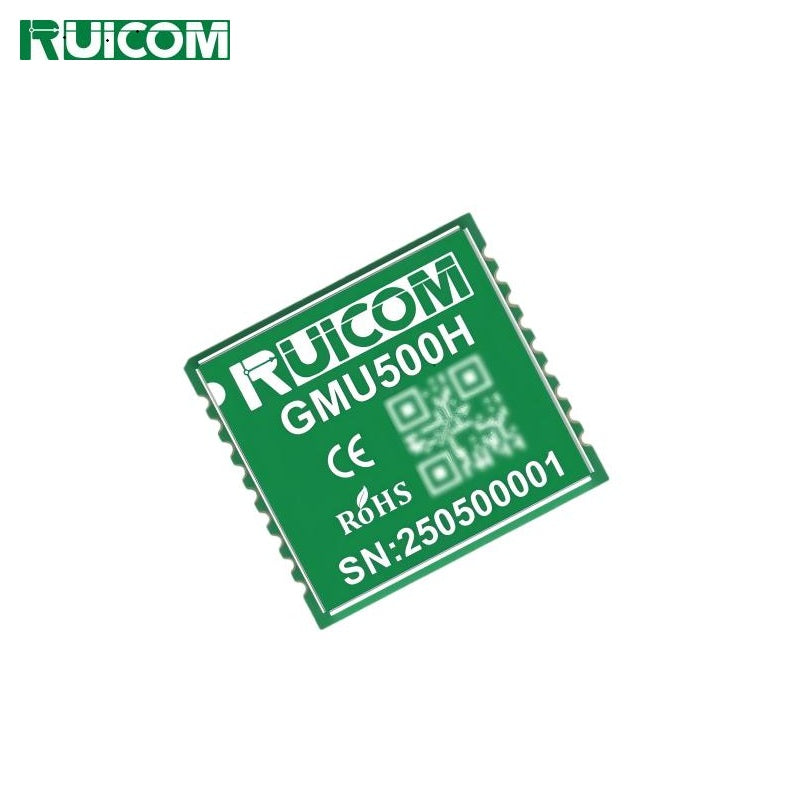

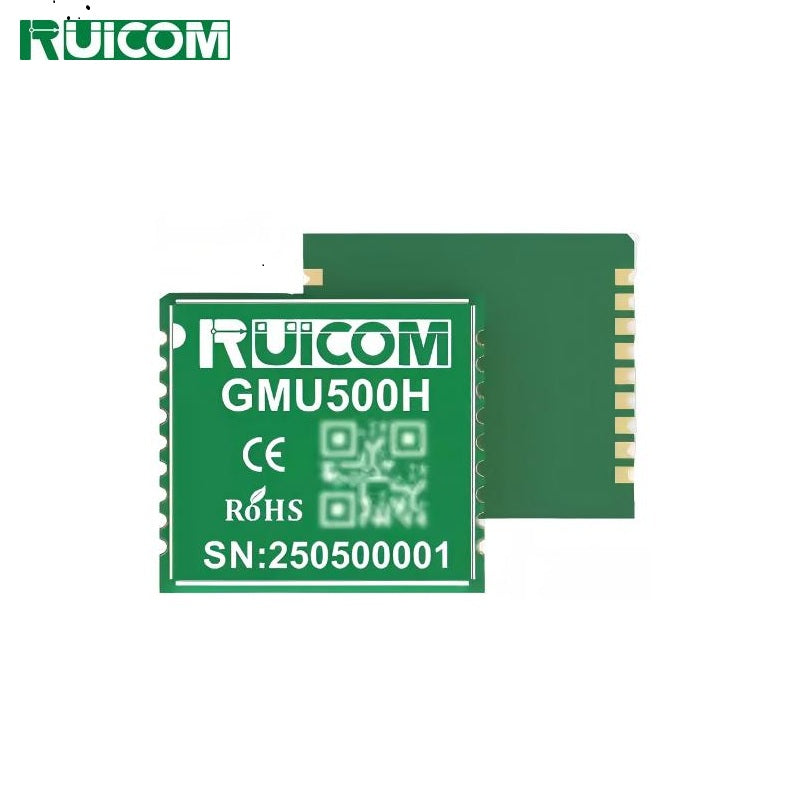

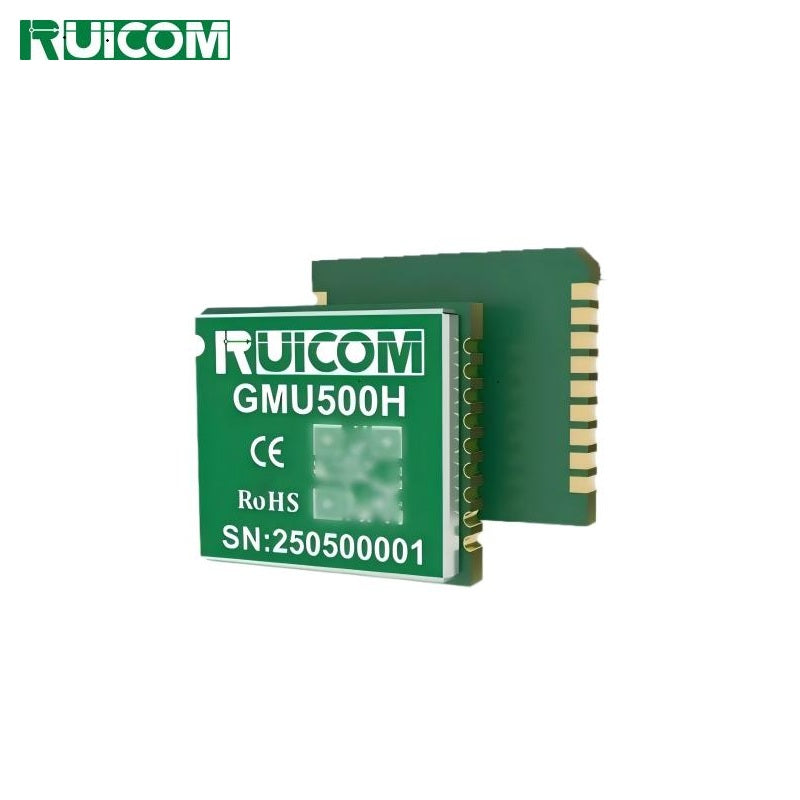

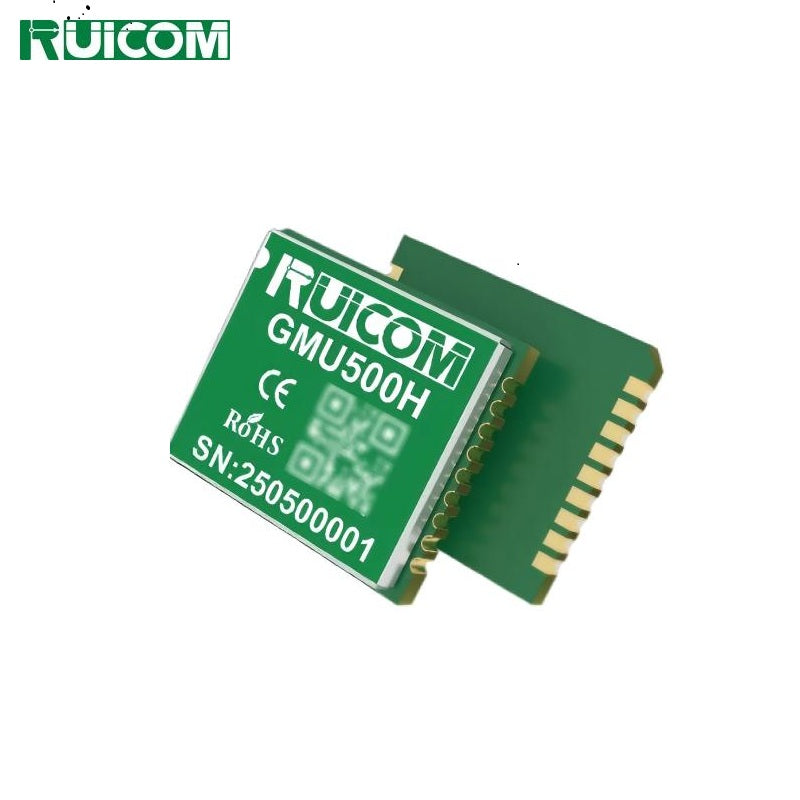

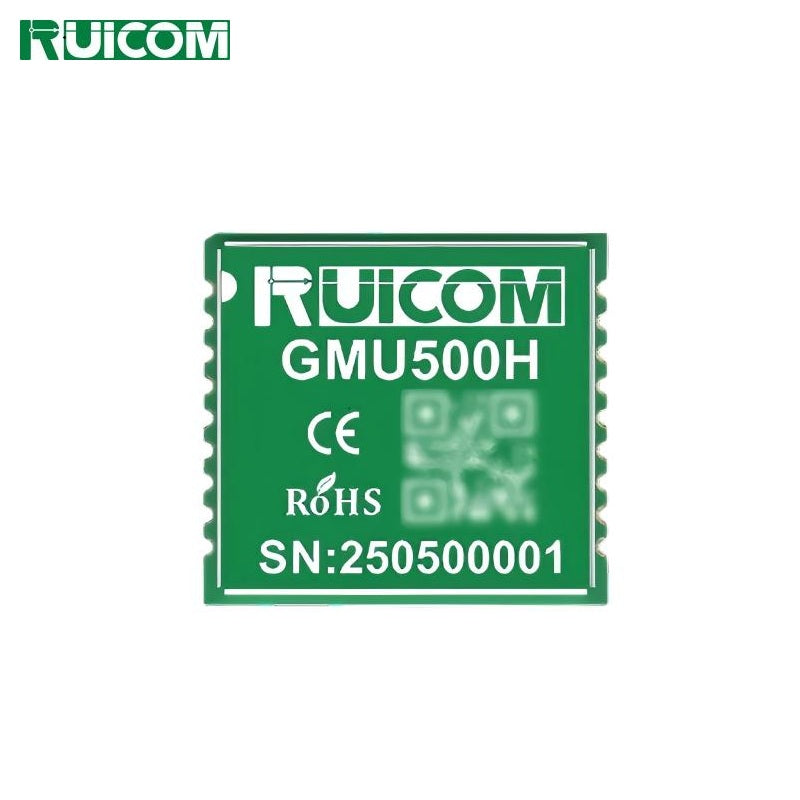

RUICOM GMU500H Sensor
Regular price
$100.00
Unit price
RUICOM GMU500H Sensor - GMU500H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RUICOM GMU500H Sensor
Regular price
$100.00
Unit price
RUICOM GMU500H Sensor - GMU500H is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Attitude Accuracy(For vehicle scenarios with Ackermann steering structure, vehicle speed > 1 km/h) | Roll/Pitch: <0.2° rms, Heading: <0.3° rms |
| Update Rate | 100 Hz |
| Gyroscope Full-Scale Range | ±500°/s |
| Gyroscope Bias Instability | 3 °/h @ 1σ |
| Accelerometer Full-Scale Range | ±8 g |
| Accelerometer Bias Instability | 0.04 mg @ 1σ |
| Mean Time Between Failures (MTBF) | ≥98000 hours |
| Shock Resistance | 100 g @ 11 ms, tri-axial (half-sine wave) |
| Vibration Resistance | 10 g rms, 10 ~ 1000 Hz |
| Weight | ≤10 g |
