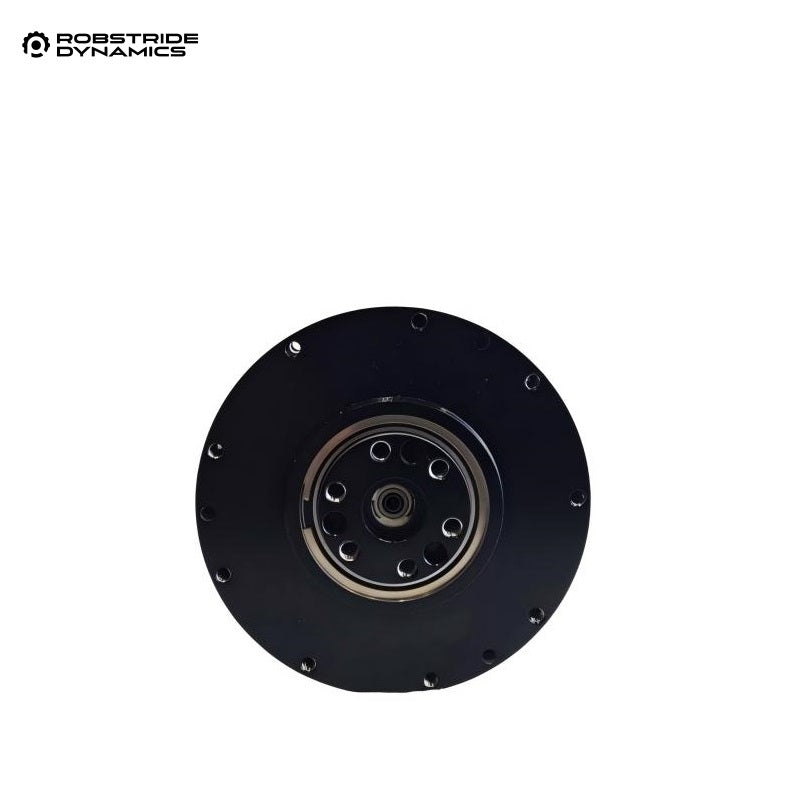

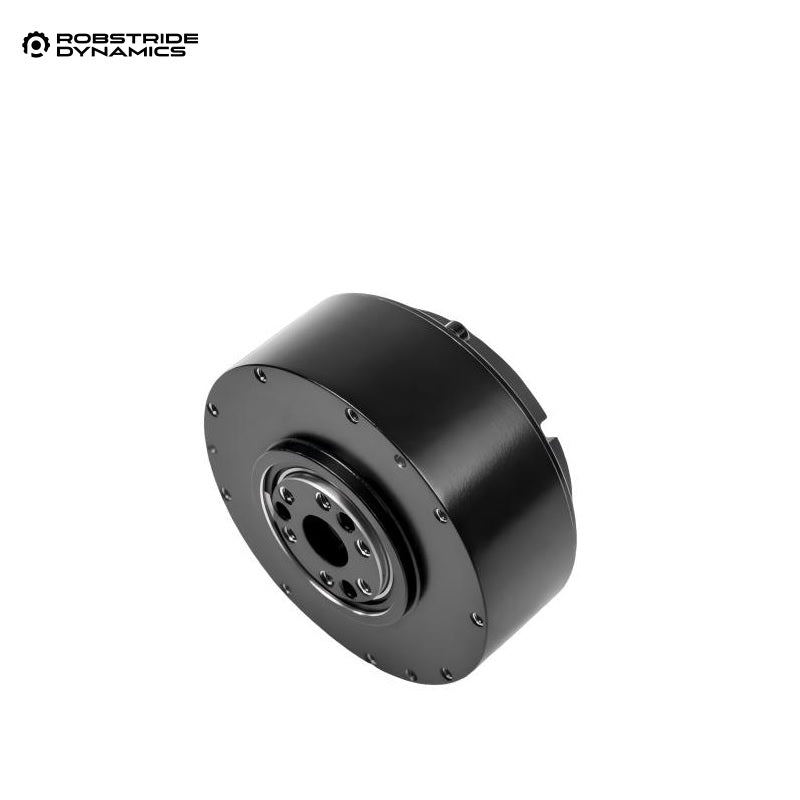

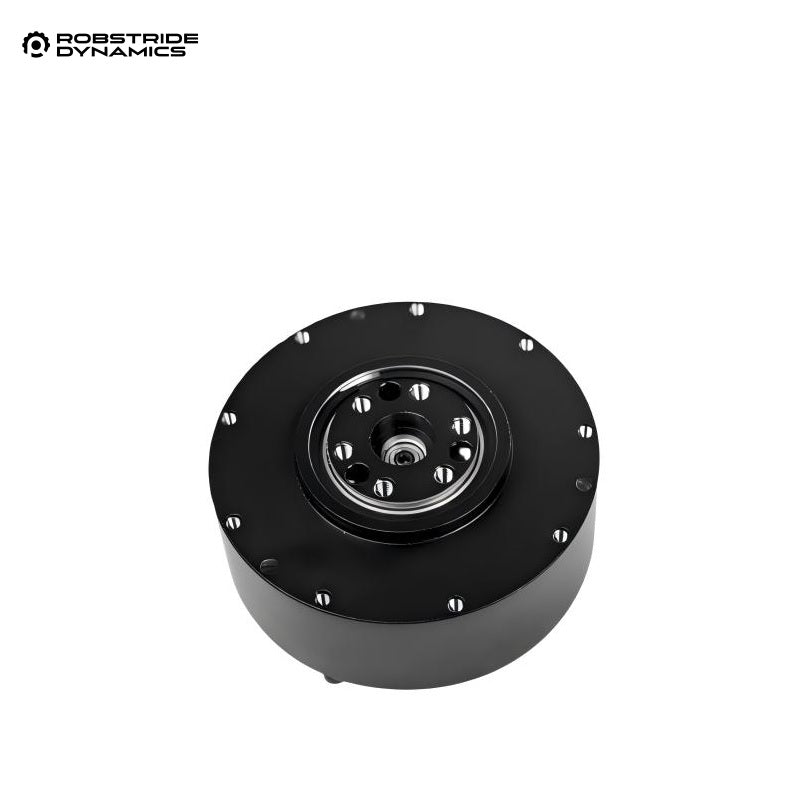

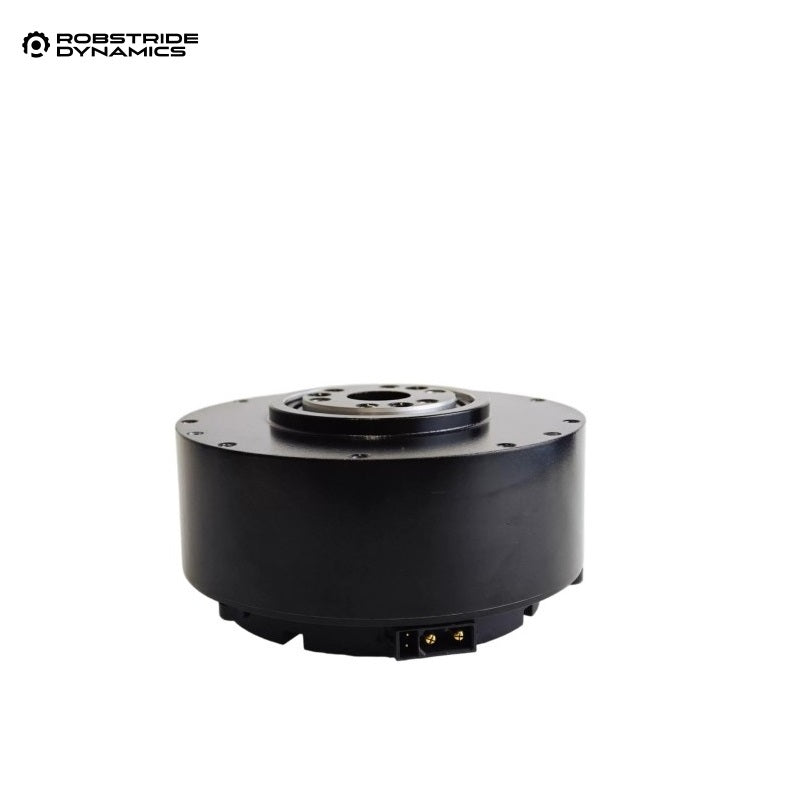

ROBSTRIDE 01 Motor

$140.00

Version

Only Motor Motor + USB-to-CAN Module

Product variants

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	ROBSTRIDE 01
Rated Voltage	36 VDC
Operating Voltage Range	24 – 48 VDC
Rotation Direction	CW / CCW
Dimensions	78.5 x 78.5 x 40 mm
Flange Mounting Hole Pattern	24 x 6 x 9 mm (M4)
Mounting Hole Pattern	73 x 9 x 8 mm (M3)
Weight	380 g ± 3 g
Electrical Connectors	XT30PB
Operating Temperature Range	-20 °C to +50 °C
Operating Humidity Range	5% to 85% RH, non-condensing
Storage Temperature Range	-30 °C to +70 °C
Insulation Class	Class B
No-Load Speed	315 rpm ± 10%
No-Load Current	0.5 A RMS
Rated Torque	6 N·m
Rated Speed (at Rated Torque)	275 rpm ± 10%
Phase Current at Rated Load (Peak)	7 A pk ± 10%
Peak Torque	17 N·m
Maximum Phase Current (Peak)	23 A pk ± 10%
Insulation Resistance (Stator Winding)	DC 500VAC, 100M 0hms
Hi-Pot Test (Stator to Frame)	600VAC, 1s, 2mA
Motor Back-EMF Constant	0.096Vrms/rpm ±10%
Torque Constant	1.22 N·m / A RMS
CAN Bus Bit Rate	1 Mbps
Encoder Resolution	14-bit
Encoder Type	Single-Turn Absolute
Number of Encoders	1
Number of Poles	28
Number of Phases	3
Drive Method	FOC
Gear Ratio	7.75：1
Terminal Resistance	0.58 Ω
Terminal Inductance	187~339μH
