WUJI | SKU:

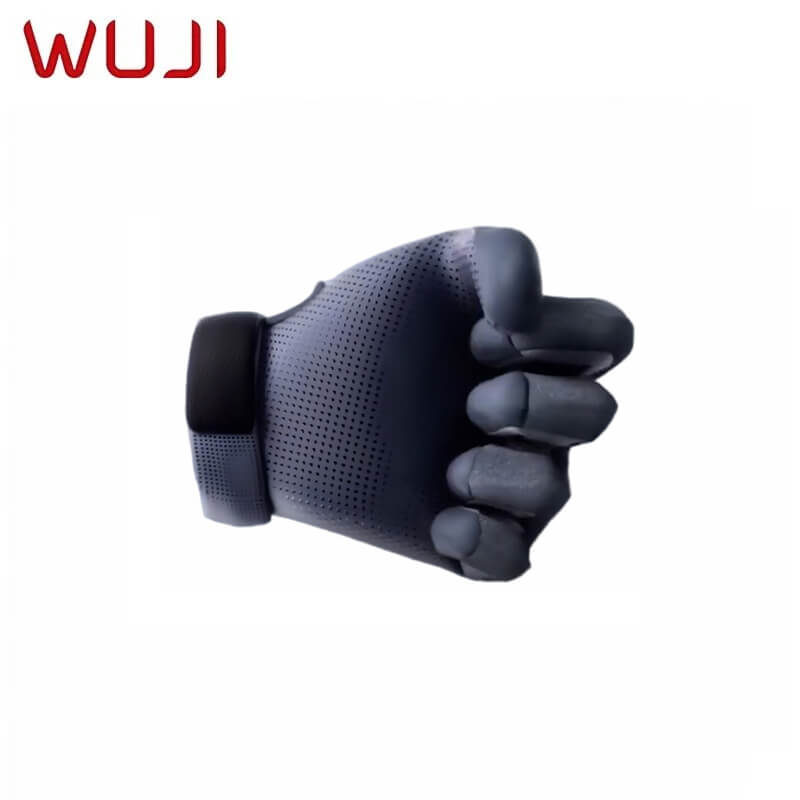

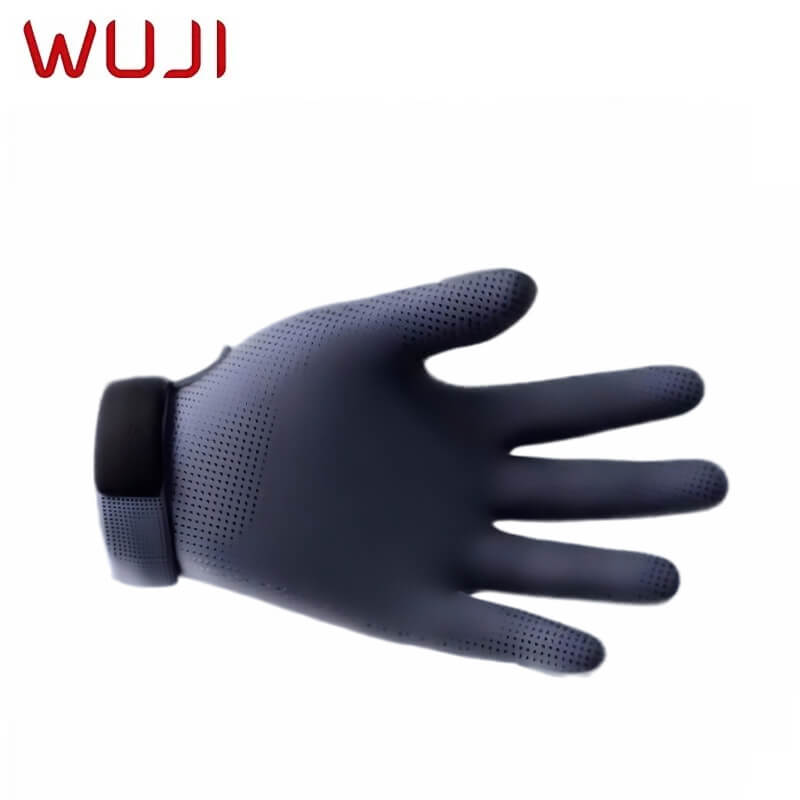

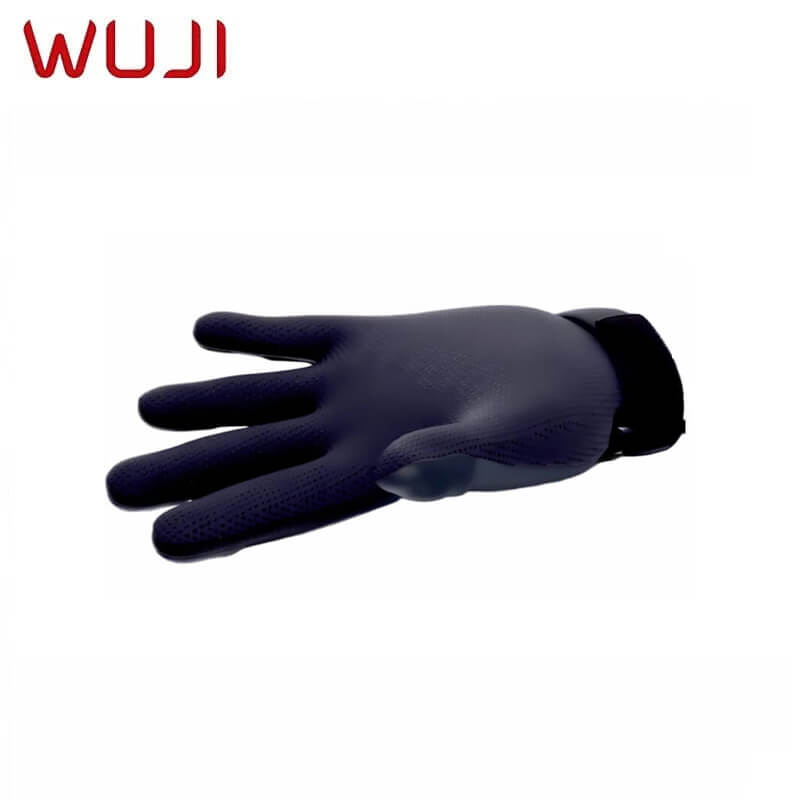

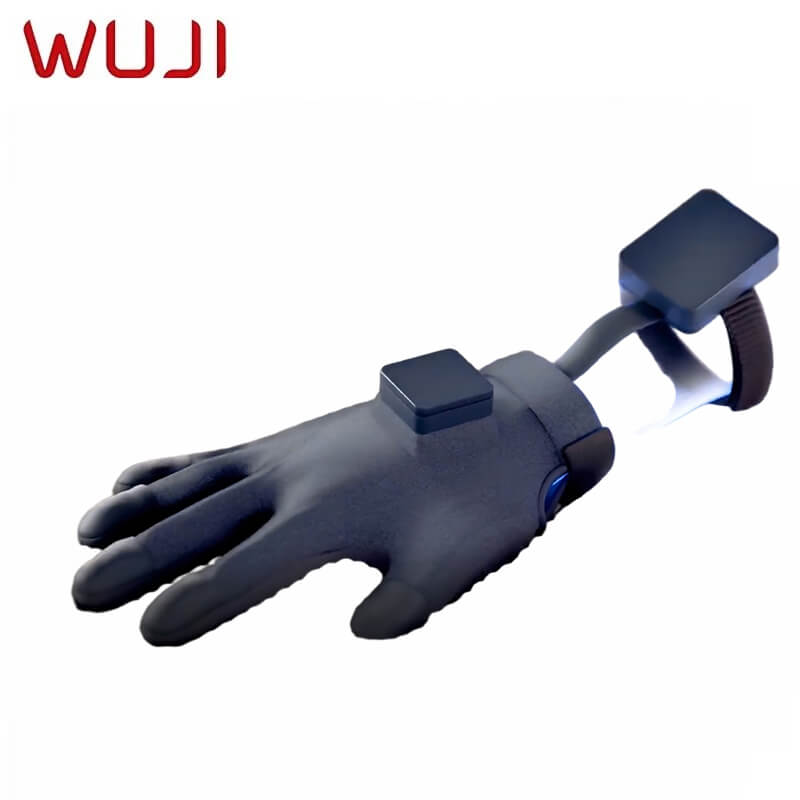

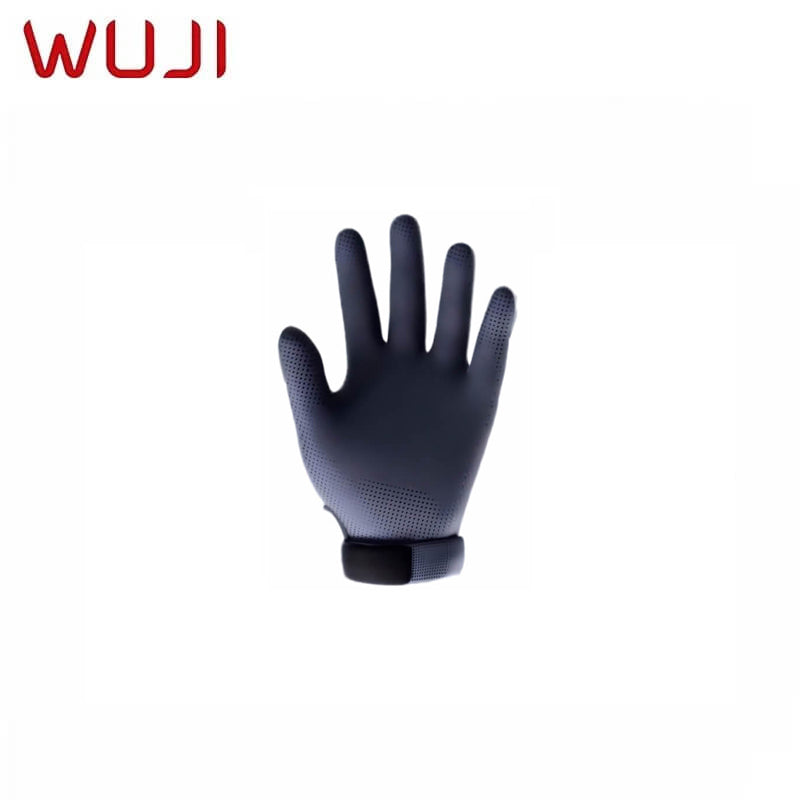

WUJI GLOVE
Regular price
$7,500.00
Unit price
WUJI GLOVE - WUJI GLOVE (Pair) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
WUJI GLOVE
Regular price
$7,500.00
Unit price
WUJI GLOVE - WUJI GLOVE (Pair) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Glove Size (L × W) | 215 × 195 mm |
| Thickness (fabric / structure) | 6.55 mm / 35 mm |
| Total Length (incl. cable) | 340 mm |
| Glove Net Weight | 67.5 g |
| Total Weight (incl. cable) | 192.6 g |
| Power Supply | USB Type-C, 5 V / 1 A |
| Data Interface | RJ45 (via adapter), 100BASE-TX |
| Operating Temperature | -5 ~ 40 °C |
| Sensor Type | Pressure Sensor Matrix |
| Output Rate | 120 FPS |
| Pressure Resolution | 0.1 N |
| Coverage Area | Full palm coverage |
| Press Lifespan | ≥ 100,000 cycles |
| Array Resolution | 24 × 32 Pressure Sensor Matrix (526 active points) |
| Pressure Range | 0 – 20 N |
| Spatial Resolution | 4 mm |
| Repeatability | ±6% |
| Bend Lifespan | ≥ 100,000 cycles |
| EMF Modules | 5 EMF modules, 6 DOF each |
| Position Accuracy | ≤ 2 mm RMS |
| Orientation Accuracy | < 5° RMS |
| Count / Type | 1 × 6-axis IMU (dorsum) |
| Output Rate (IMU) | 800 Hz |
| Accelerometer Range | ±16 g |
| Gyroscope Range | ±2000 °/s |
| Effective Touch Points | 526 |
| Tactile and EMF Frame Rate | 120 FPS |
| Position Accuracy (rms) | <2 mm |
| Pressure Resolution (summary) | ON |
| IMU Sample Rate | 800 Hz |
| Press / Bend Lifespan (summary) | >100K |
