RUIYAN | SKU:

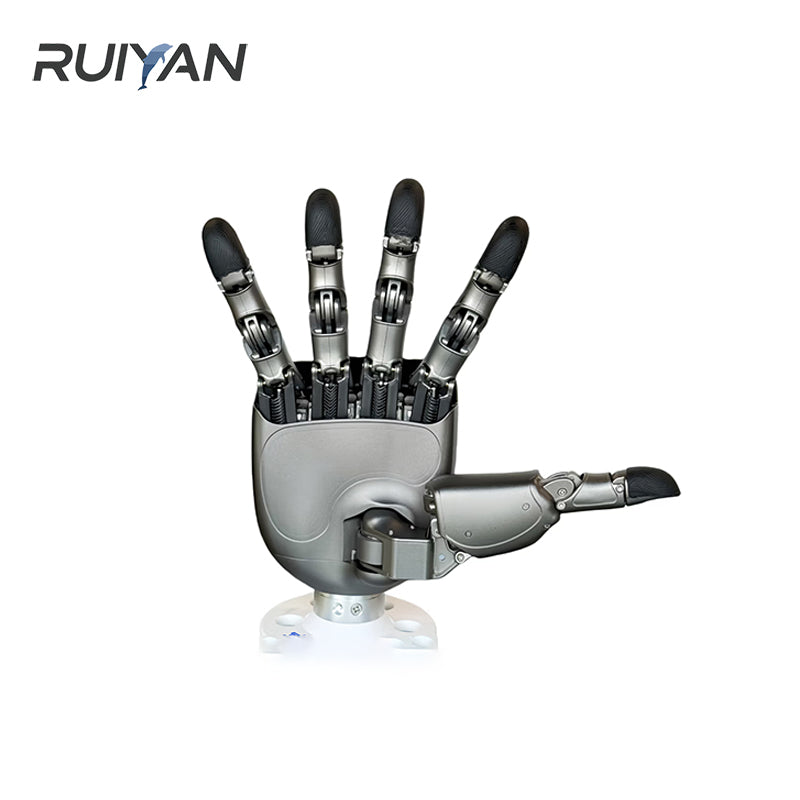

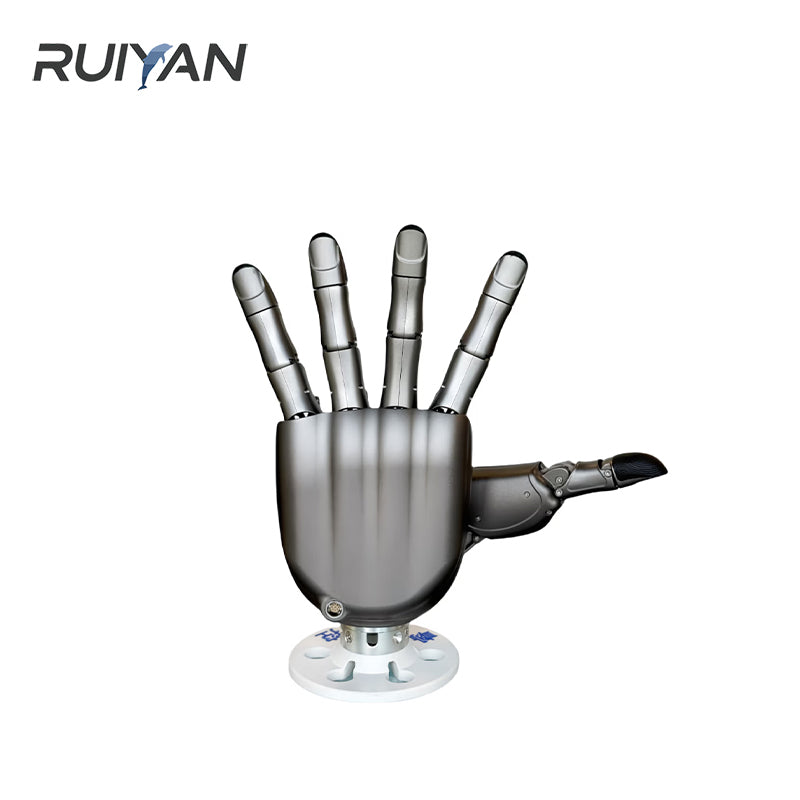

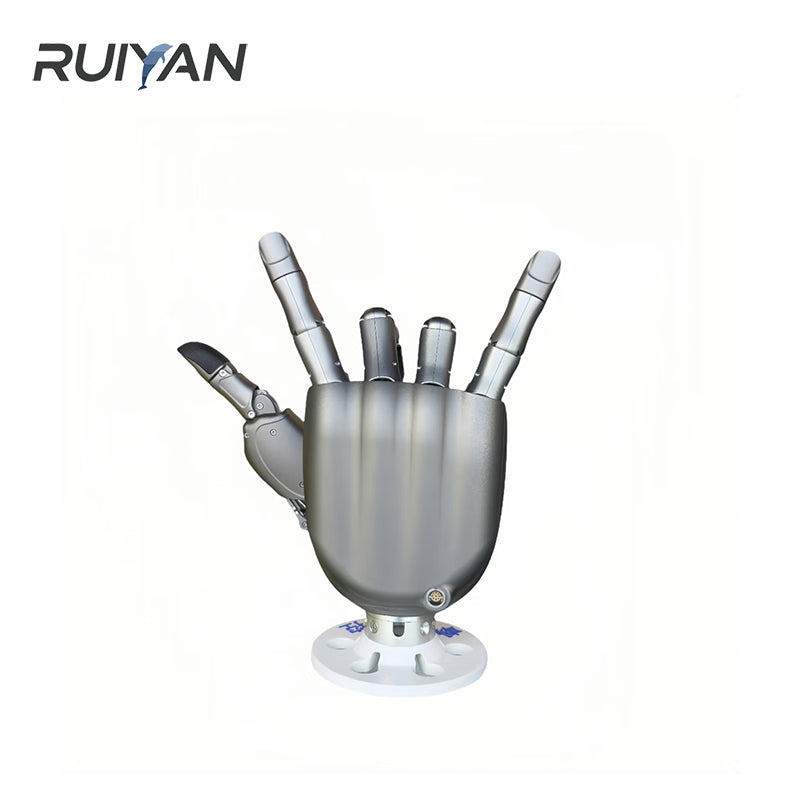

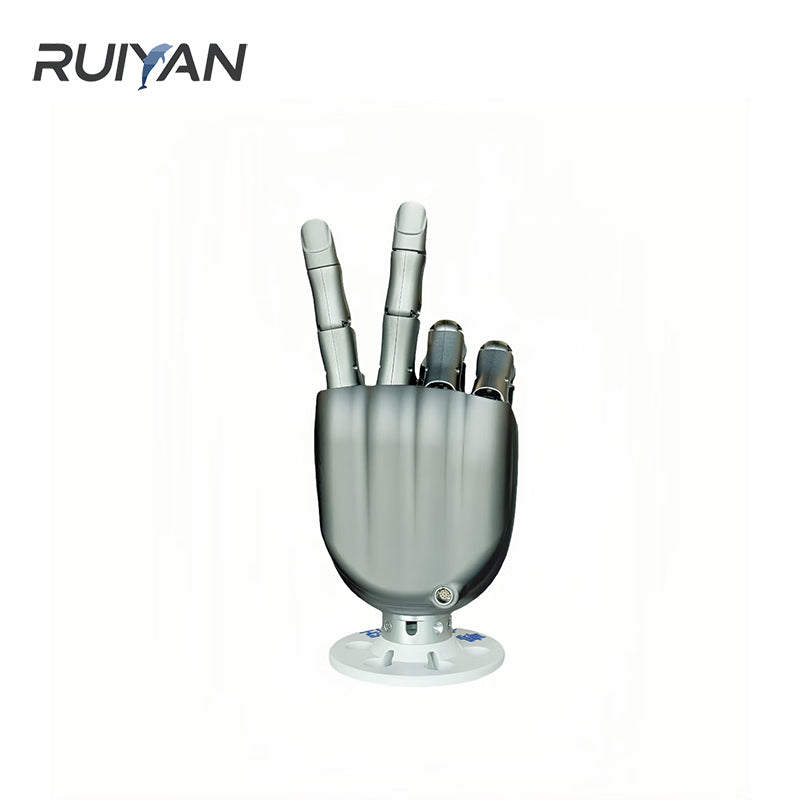

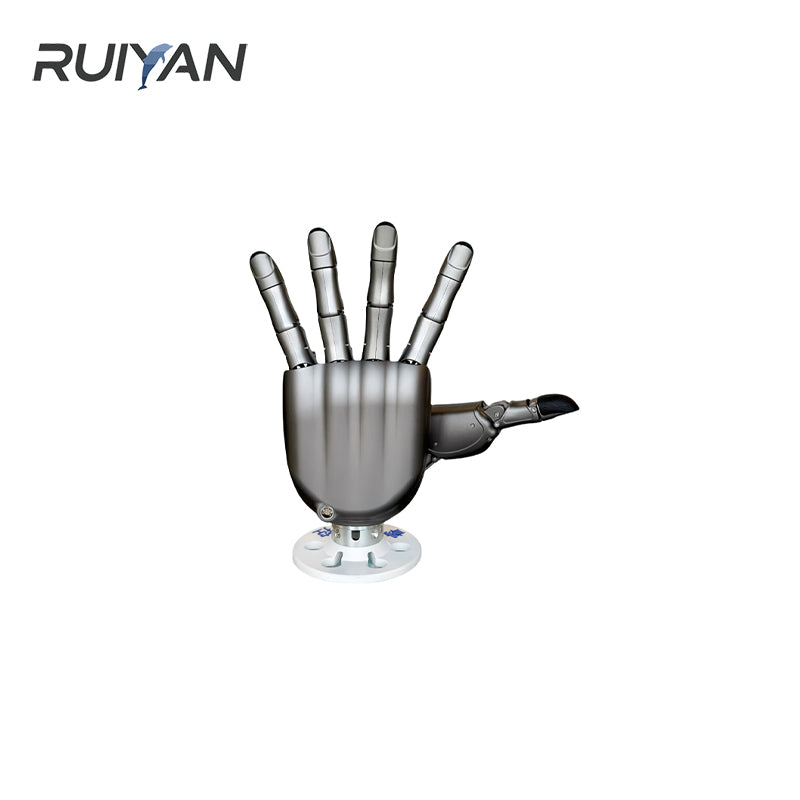

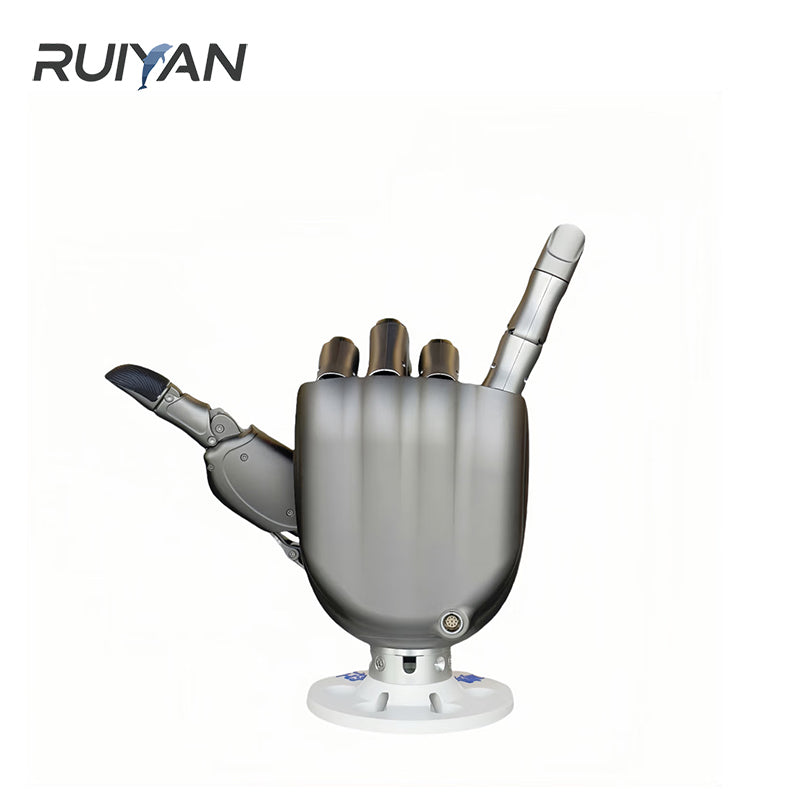

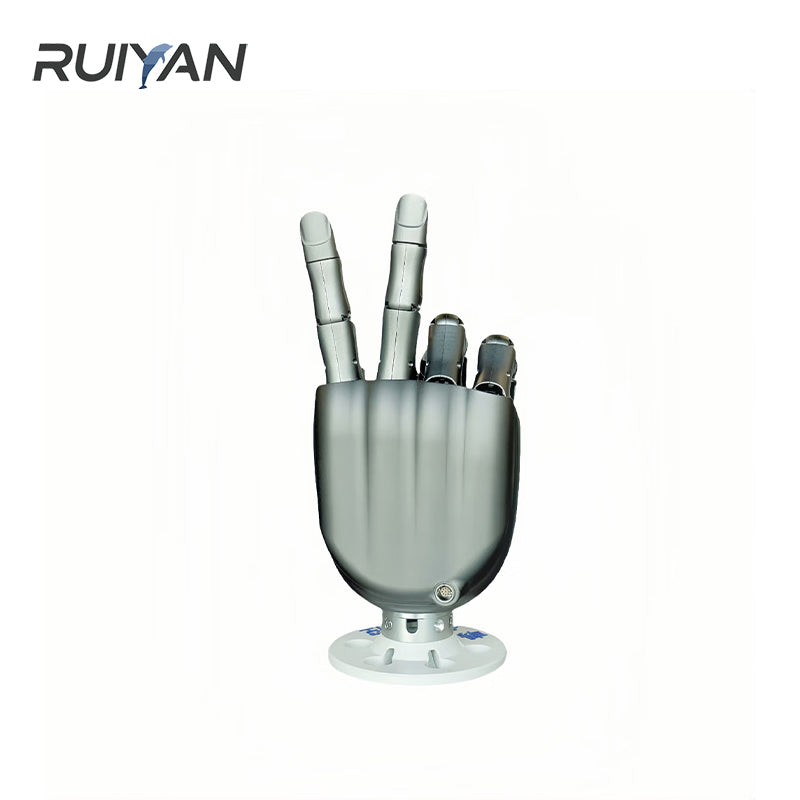

RUIYAN RY-H1 Dexterous Hand
Regular price
$16,000.00
Unit price
RUIYAN RY-H1 Dexterous Hand - RY-H1 / Left / CANFD/CAN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RUIYAN RY-H1 Dexterous Hand
Regular priceFrom
$16,000.00
Unit price
RUIYAN RY-H1 Dexterous Hand - RY-H1 / Left / CANFD/CAN is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Fingers | 5 |
| Degrees of Freedom | 16 (16 Active DOF + 5 Passive DOF) |
| Number of Joints | 21 |
| Overall Weight | 0.87kg |
| Working Voltage | 24~60V |
| Repeated Position Precision | ±0.6mm |
| Maximum Recommended Load | 5kg |
| Maximum Grasping Force | 160N |
| Open/Close Speed | 0.75s |
| Communication Protocol | CANFD (1M+5M) / CAN (1M) / RS485 (5M) |
| Control Interface | CANFD / CAN; RS485 |
