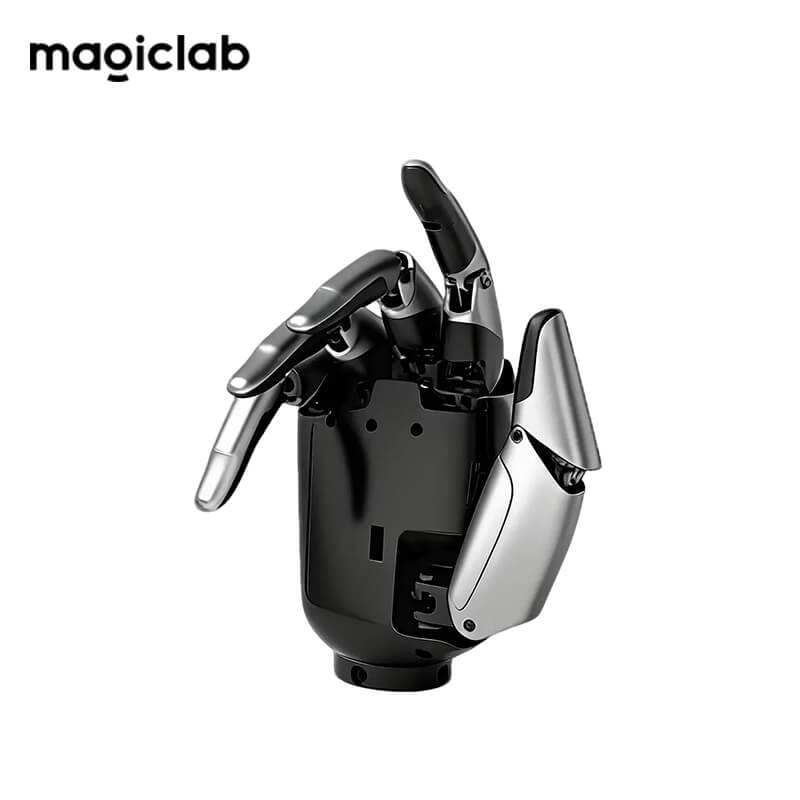

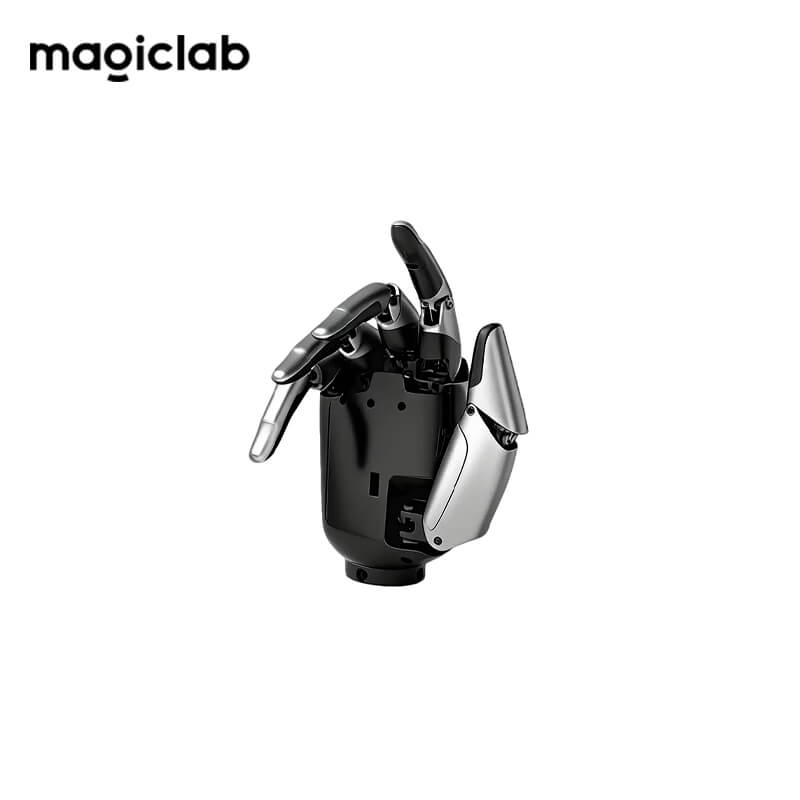

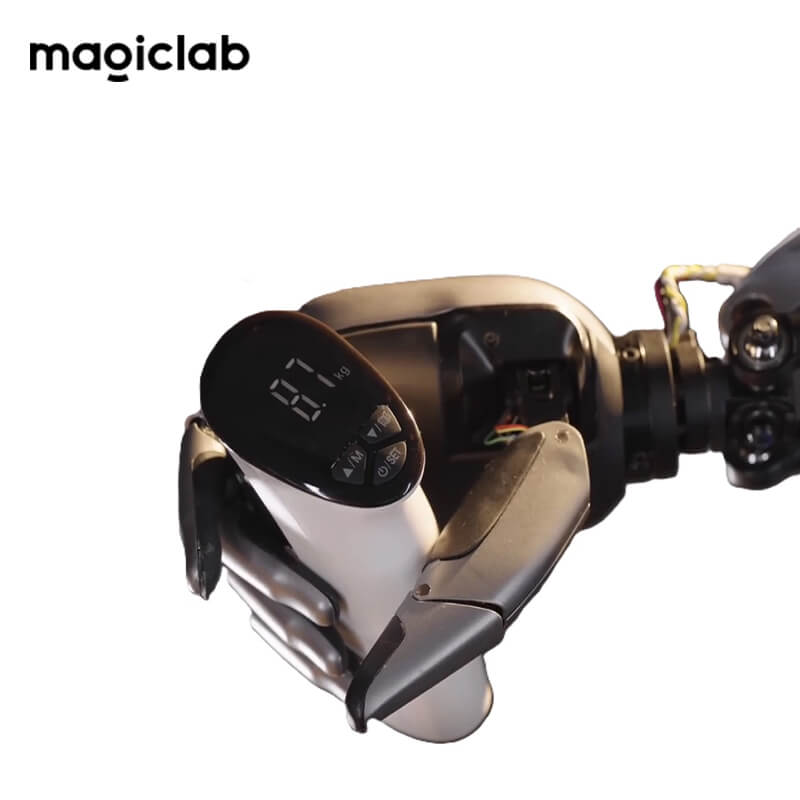

MagicLab MagicHand S01
Regular price
$16,000.00
Unit price
MagicLab MagicHand S01 - MagicHand S01 / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MagicLab MagicHand S01
Regular price
$16,000.00
Unit price
MagicLab MagicHand S01 - MagicHand S01 / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Single hand degrees of freedom | 11 |
| Single hand weight (including pressure sensors) | 580g |
| Operating voltage | 12V |
| Static current | 0.2A |
| Maximum current | 3A |
| Number of tactile sensors | 5 |
| Tactile sensor resolution | 0.1N |
| Thumb abduction speed | 75°/s |
| Thumb flexion speed | 56°/s |
| Four-finger flexion speed | 150°/s |
| Single-finger gripping force | 2.5kg |
| Four-finger gripping force | 9.1kg |
| Maximum payload (whole hand) | 5kg |
| End-position repeatability | 0.2mm |
| Opening/closing time | 1.2s |
