LINKERBOT | SKU:

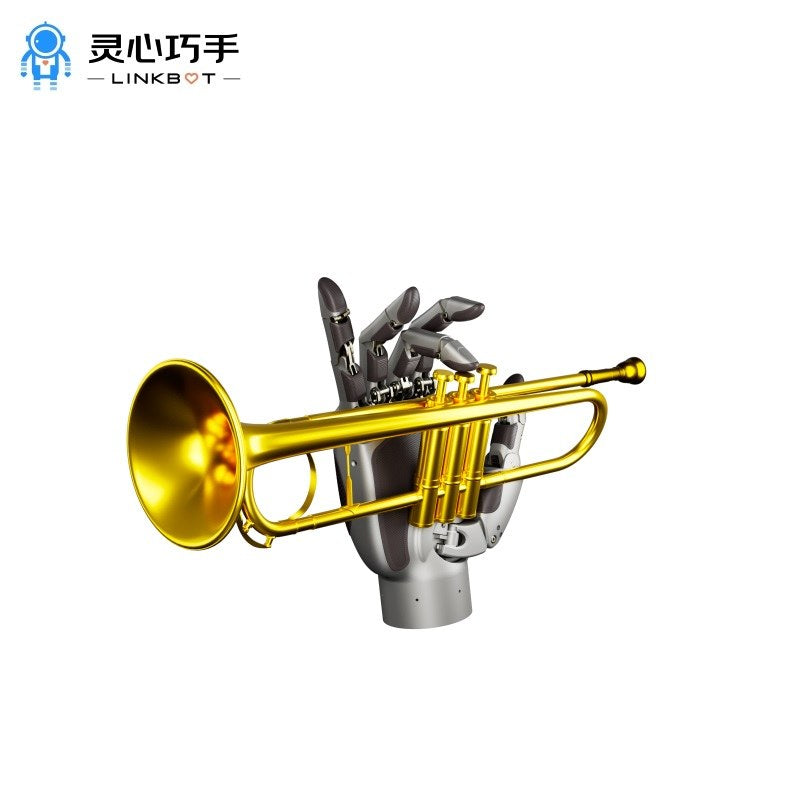

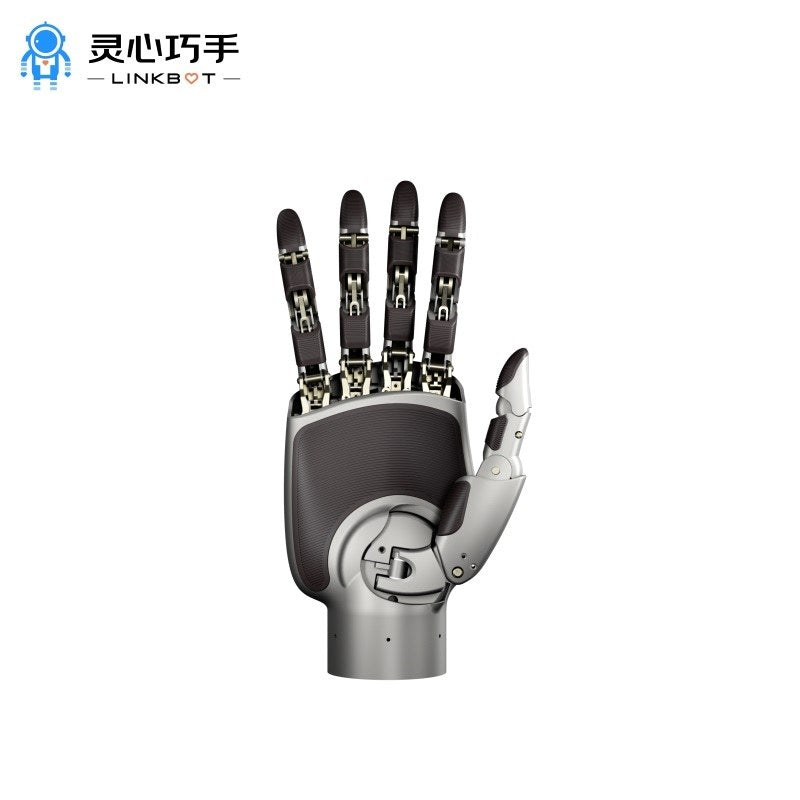

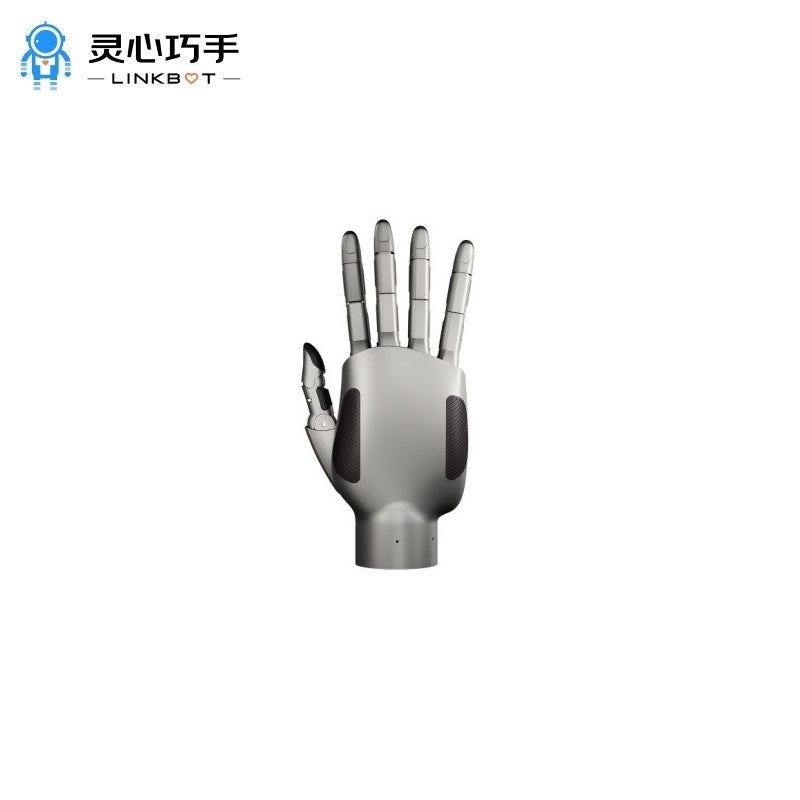

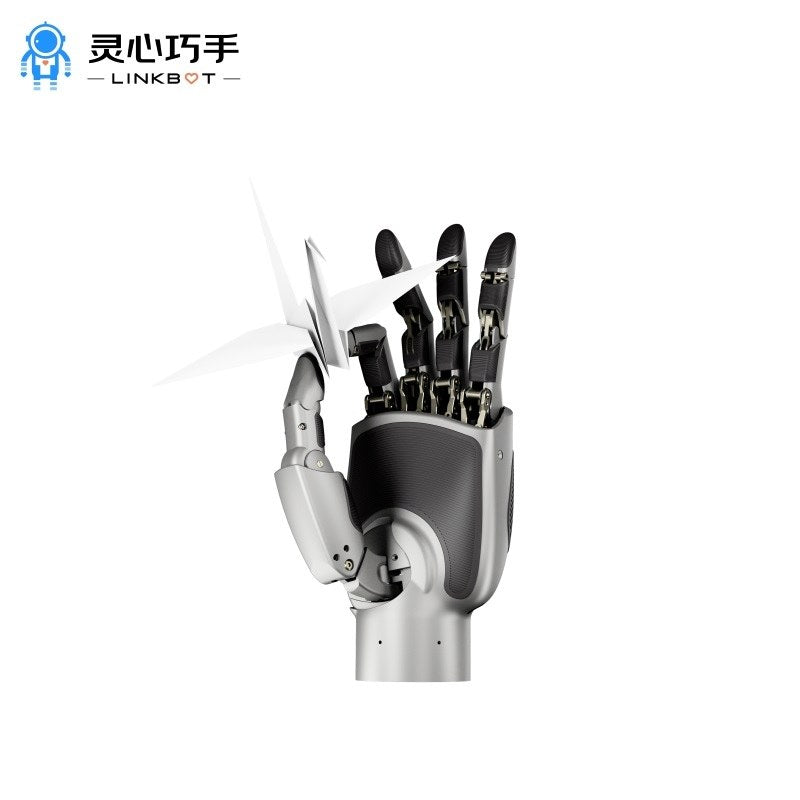

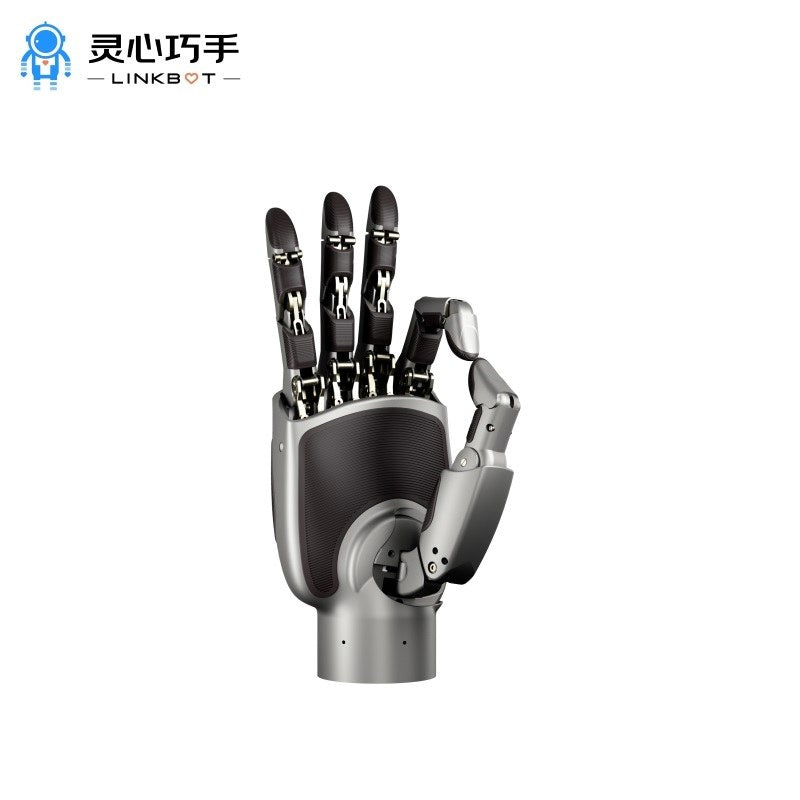

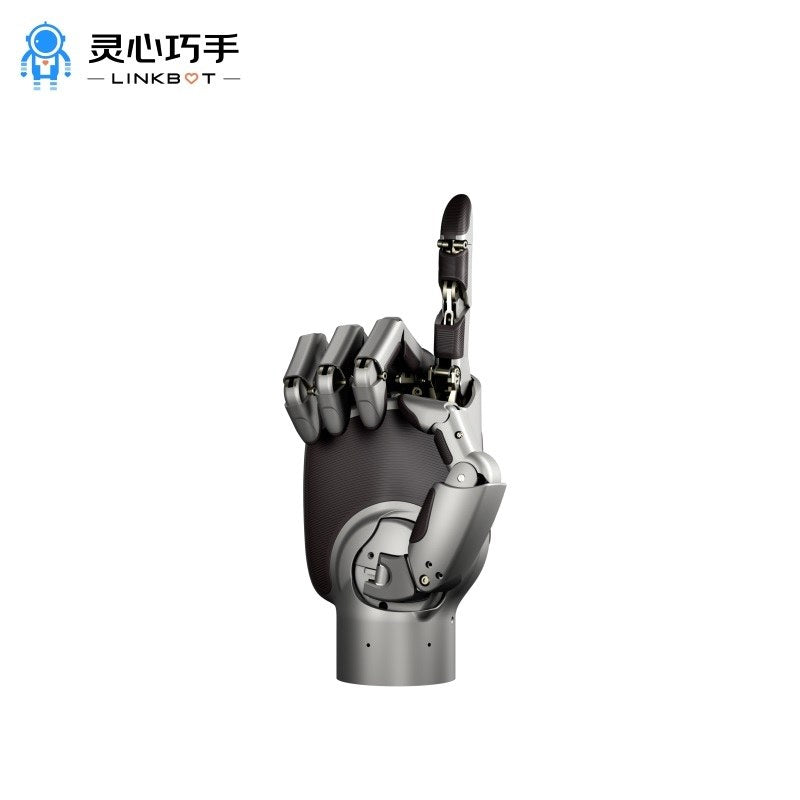

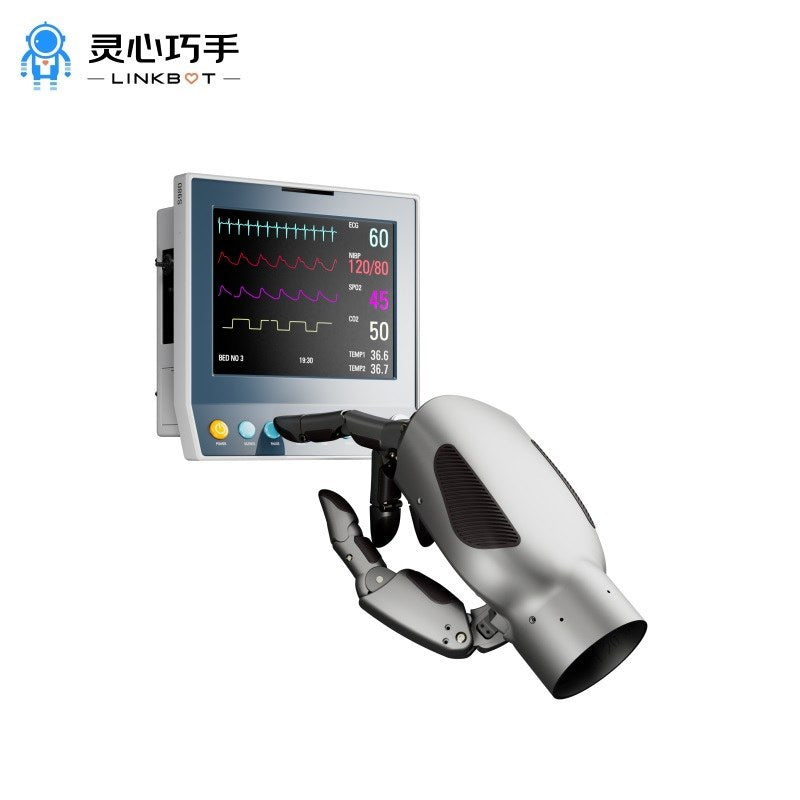

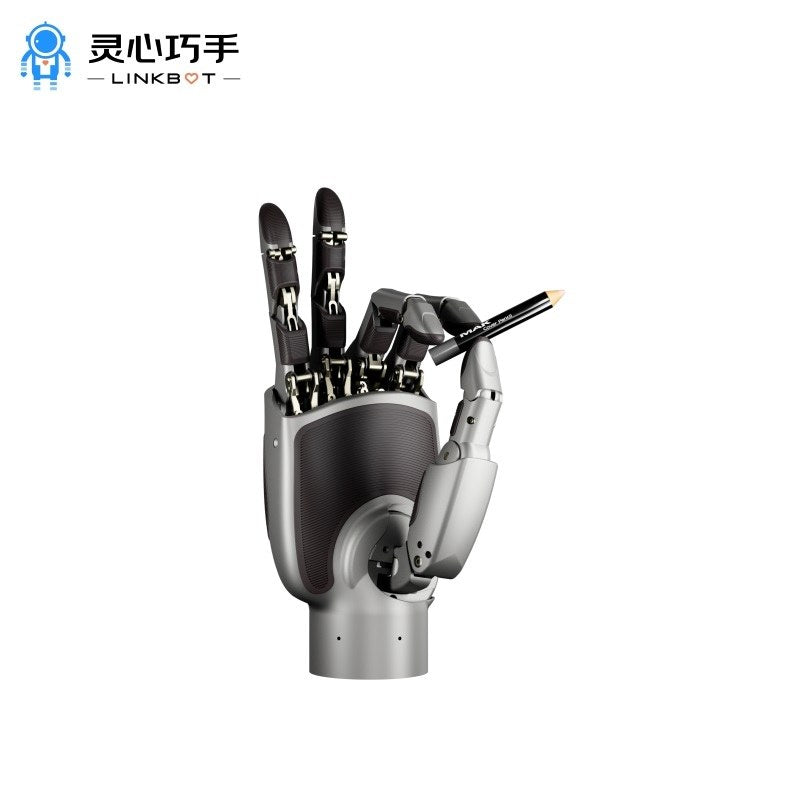

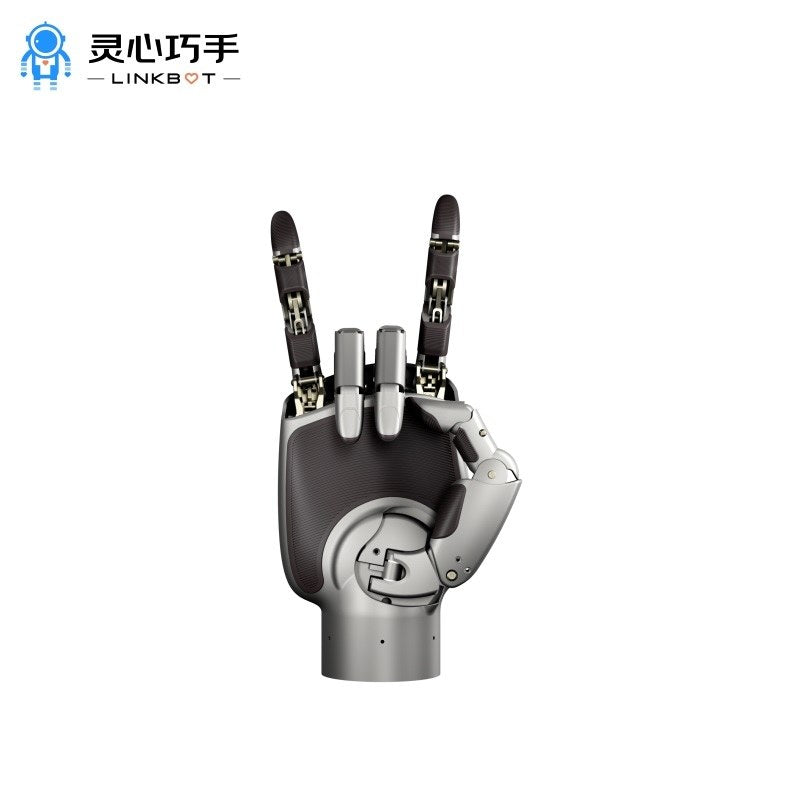

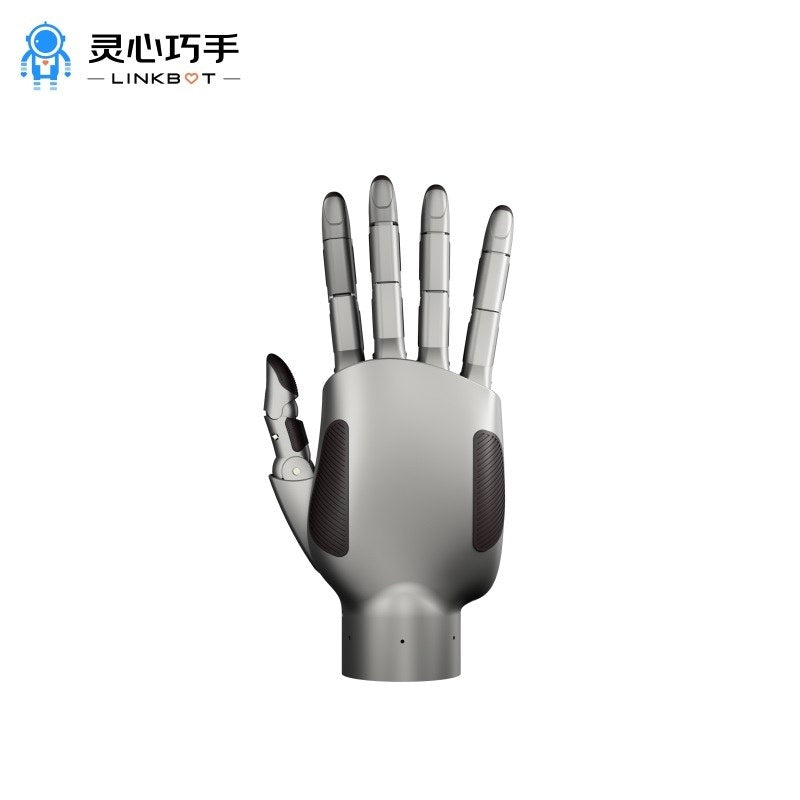

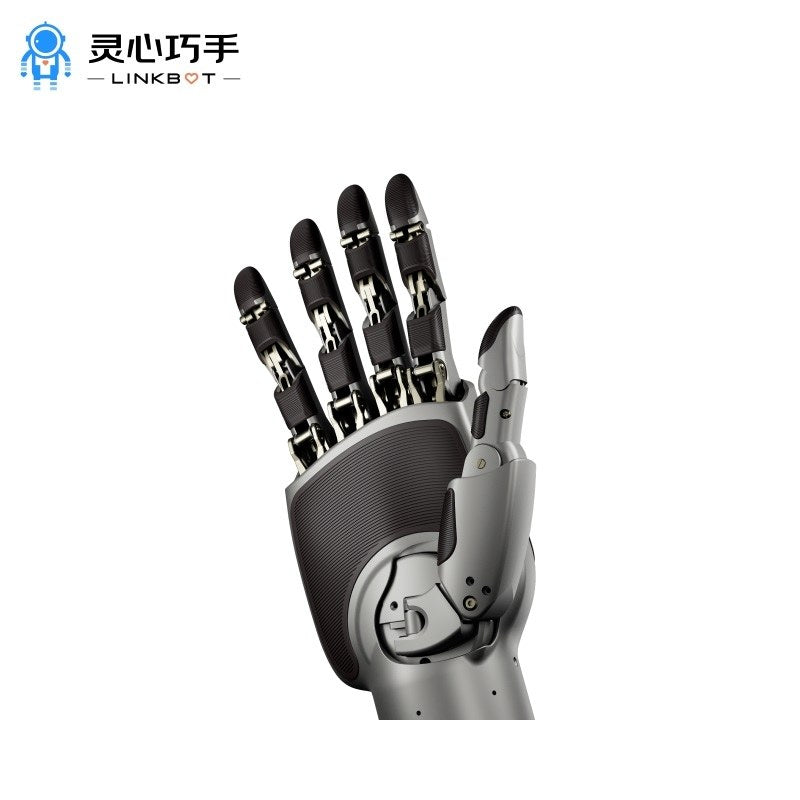

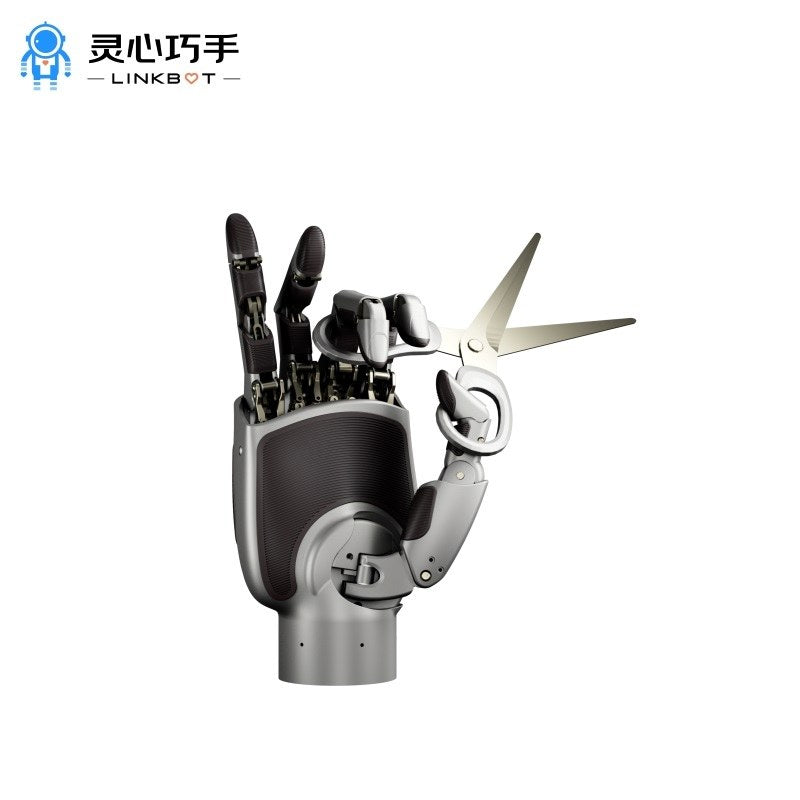

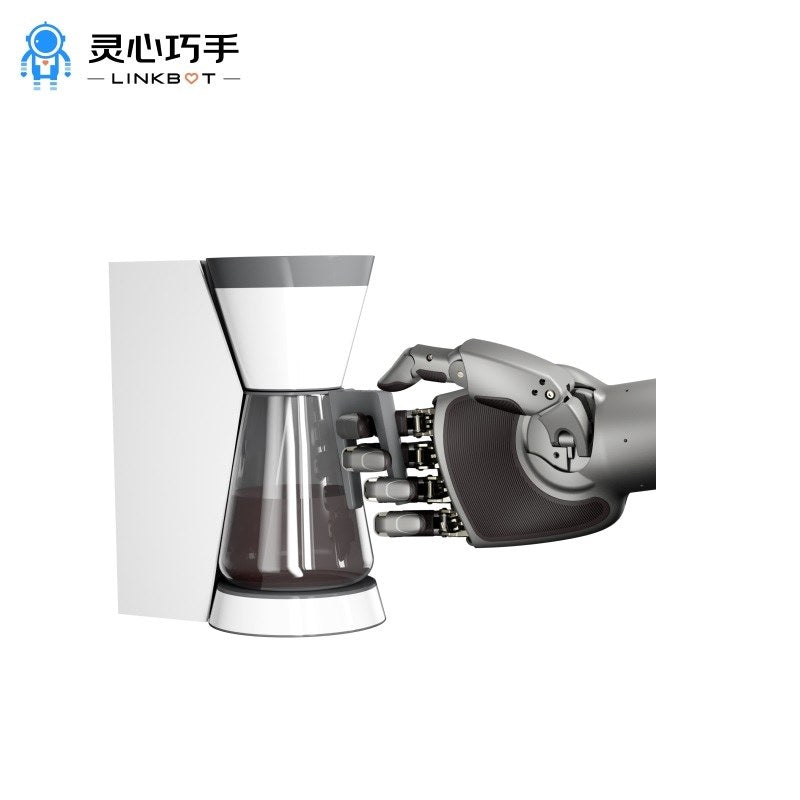

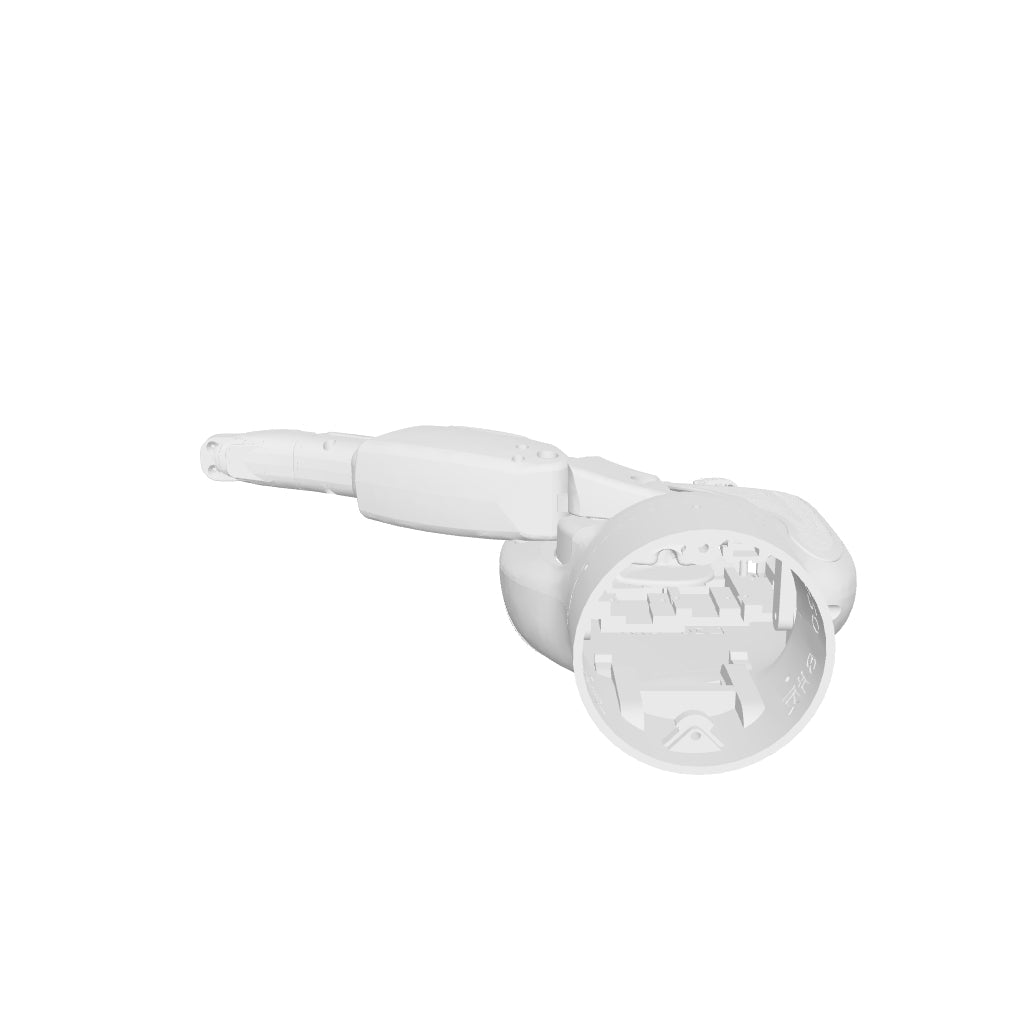

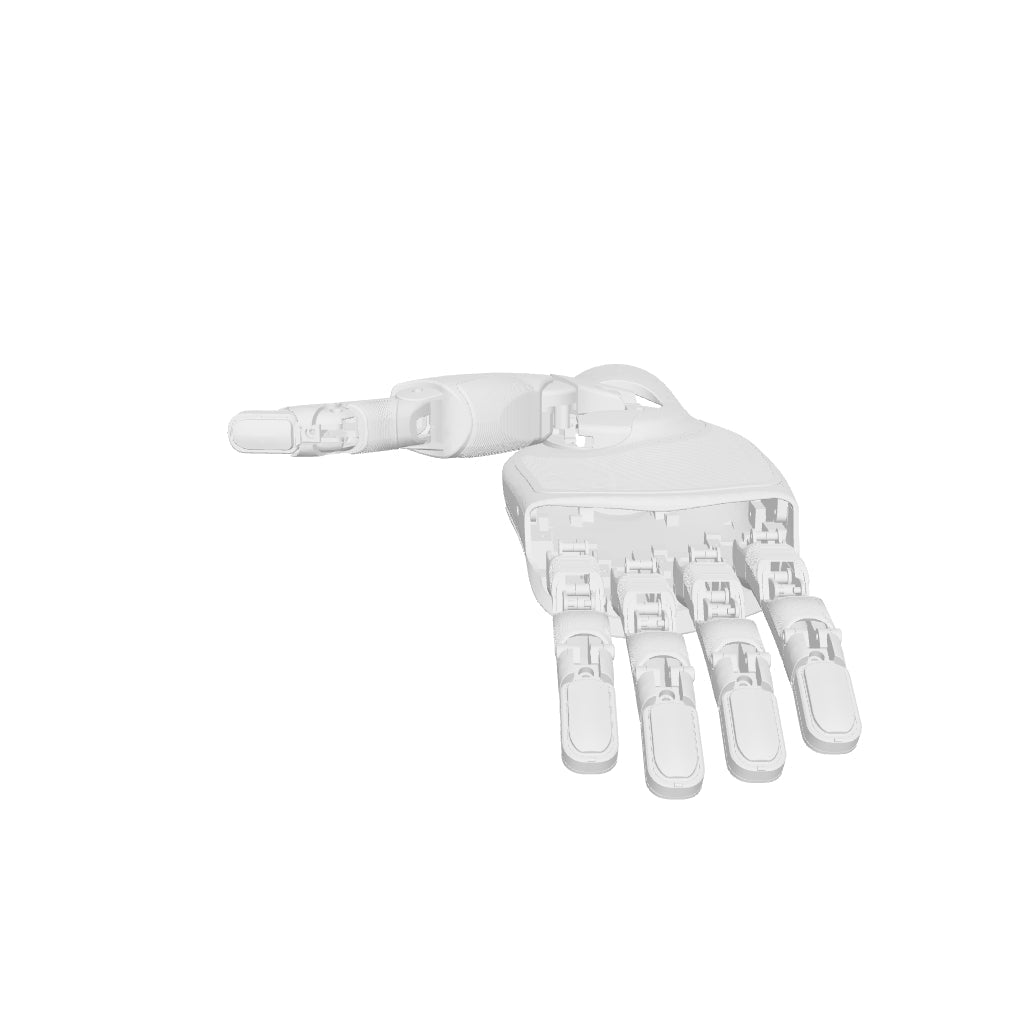

LINKERBOT Linker Hand L20
Regular price
$9,999.00
Unit price
Unavailable
LINKERBOT Linker Hand L20 - Linker Hand L20 (Left) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LINKERBOT Linker Hand L20
Regular price
$9,999.00
Unit price
Unavailable
LINKERBOT Linker Hand L20 - Linker Hand L20 (Left) is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom (DoF) | 16 |
|
Number of Joints
|
21 (16 Active + 5 Passive)
|
| Transmission Mode |
Connecting rod. Drive.
|
|
Control Interface
|
CAN/RS485
|
|
Communication Rate
|
600 kHz
|
|
Weight
|
1100g
|
|
Maximum Load
|
10kg
|
|
Operating Voltage
|
DC24V±10% |
|
Quiescent current
|
0.2A |
|
Average Current (No-Load Movement)
|
1A |
|
Maximum Current
|
3A |
| Repeat Positioning Accuracy | ±0.2mm |
| opening and closing time | 1.2s |
| Maximum Tip Force of Thumb | 18N |
| Maximum Tip Force of Four Fingers | 20N |
|
Maximum Grasping Force of Five Fingers
|
100N
|
