LINKERBOT | SKU:

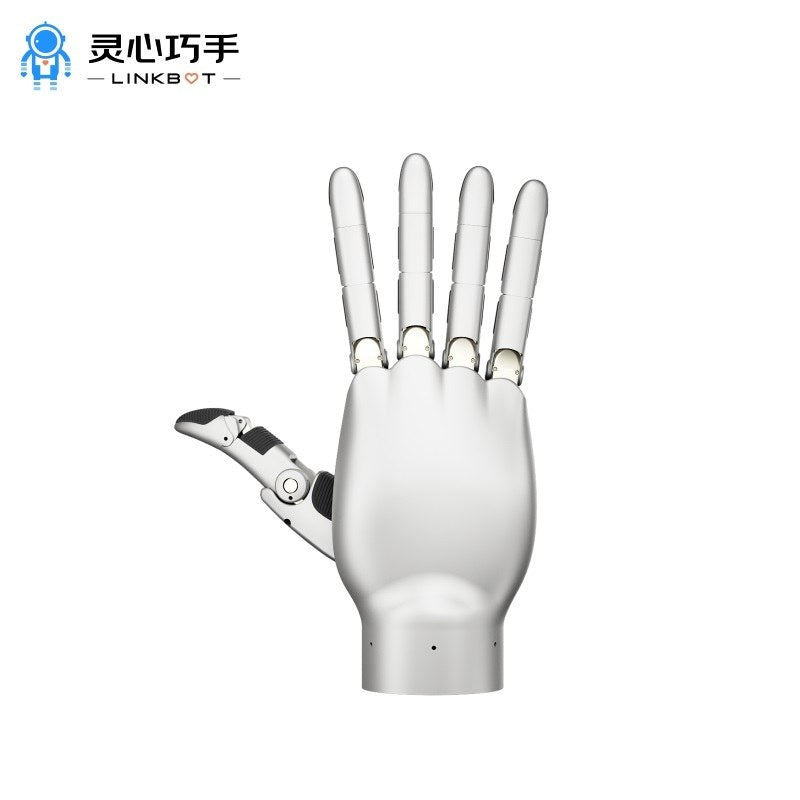

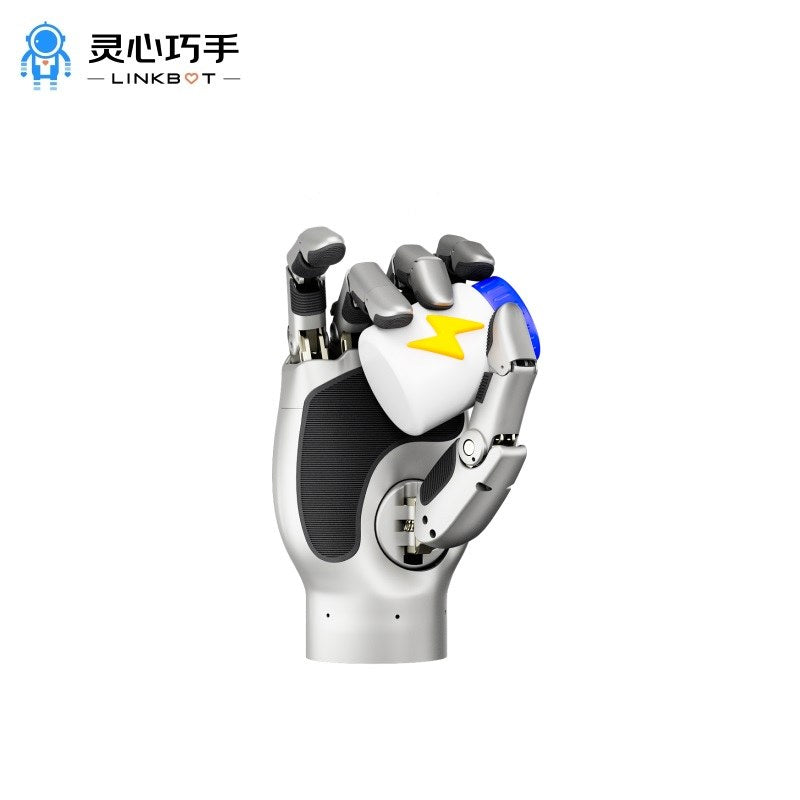

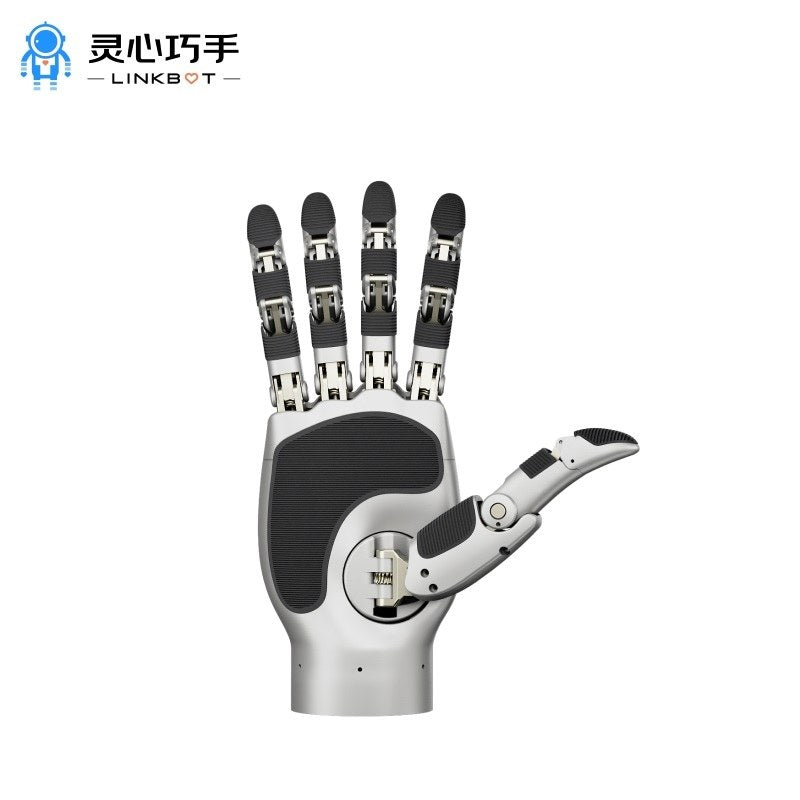

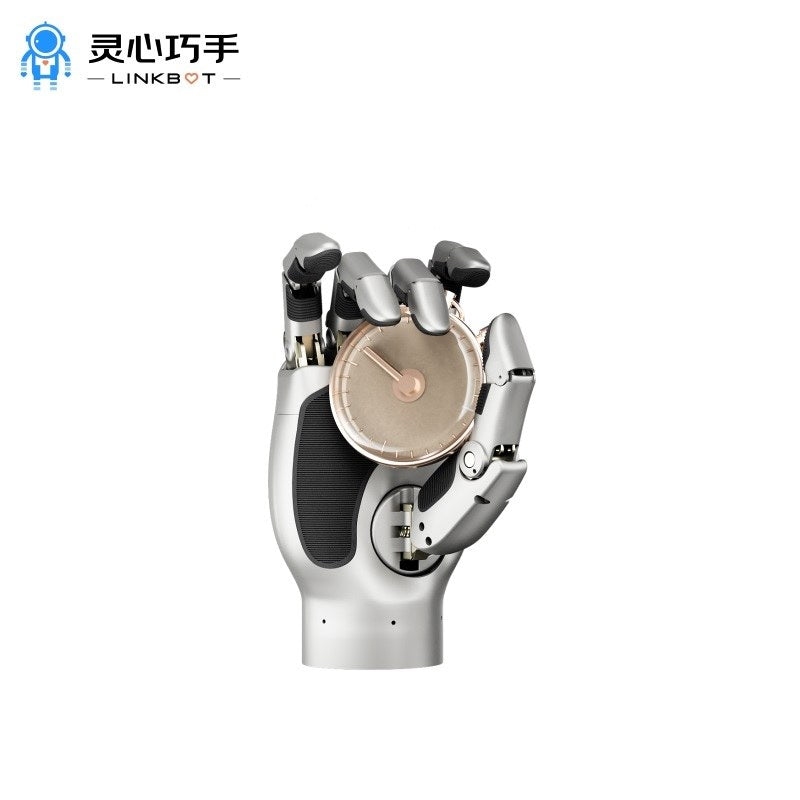

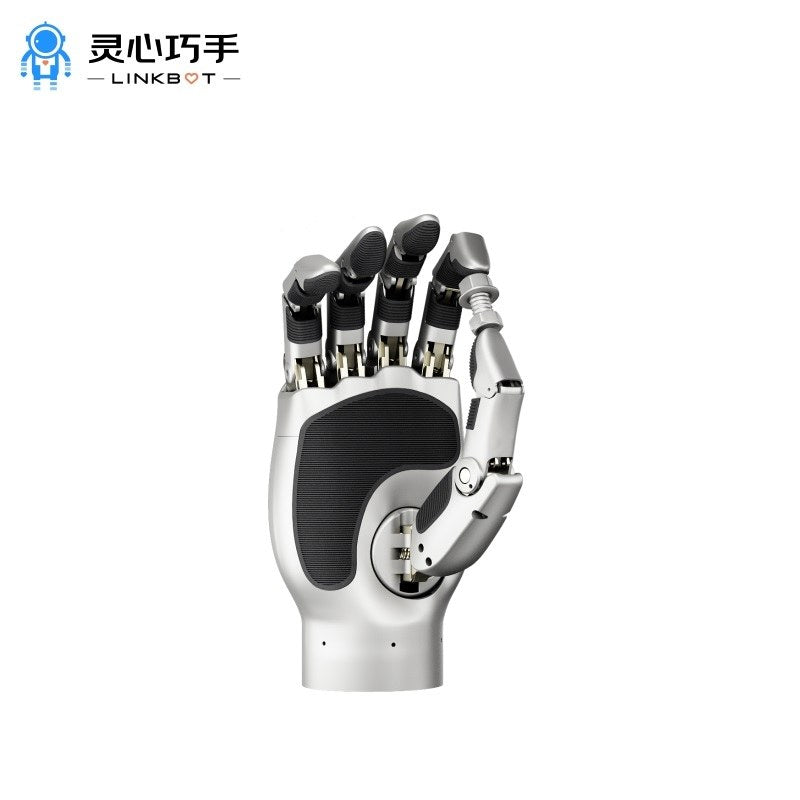

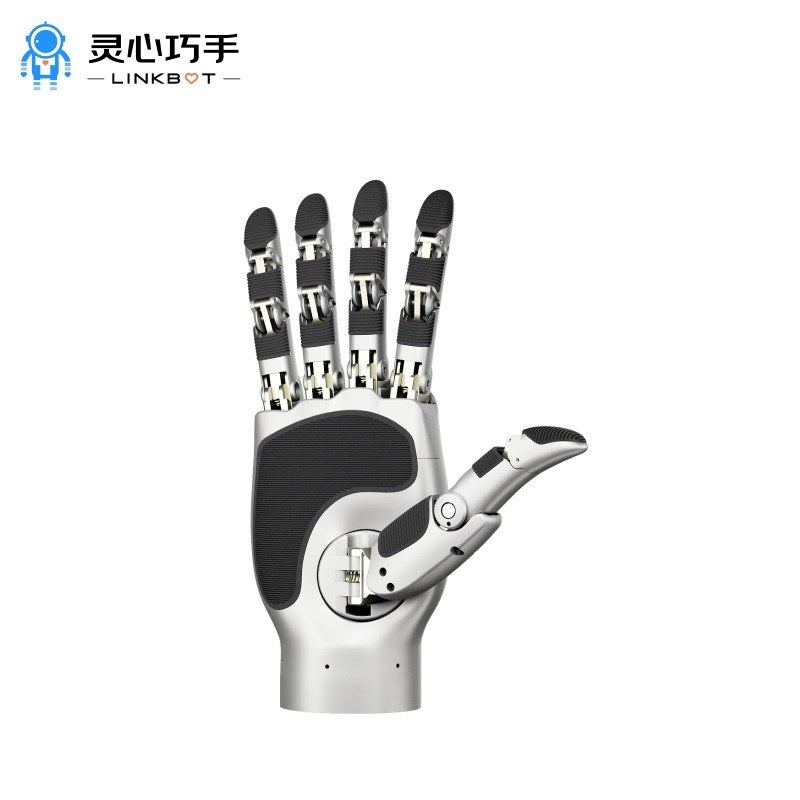

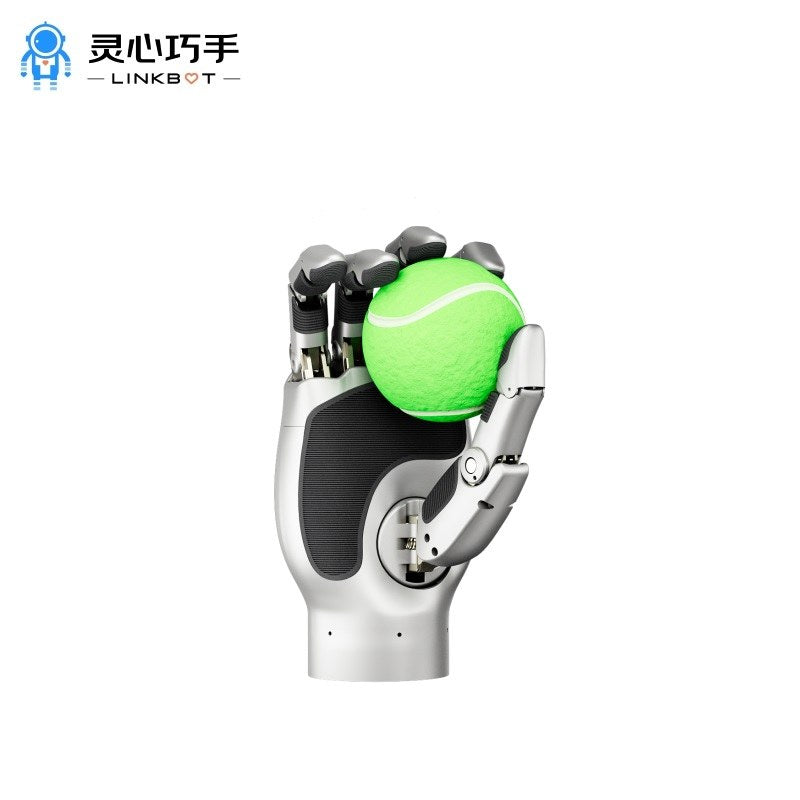

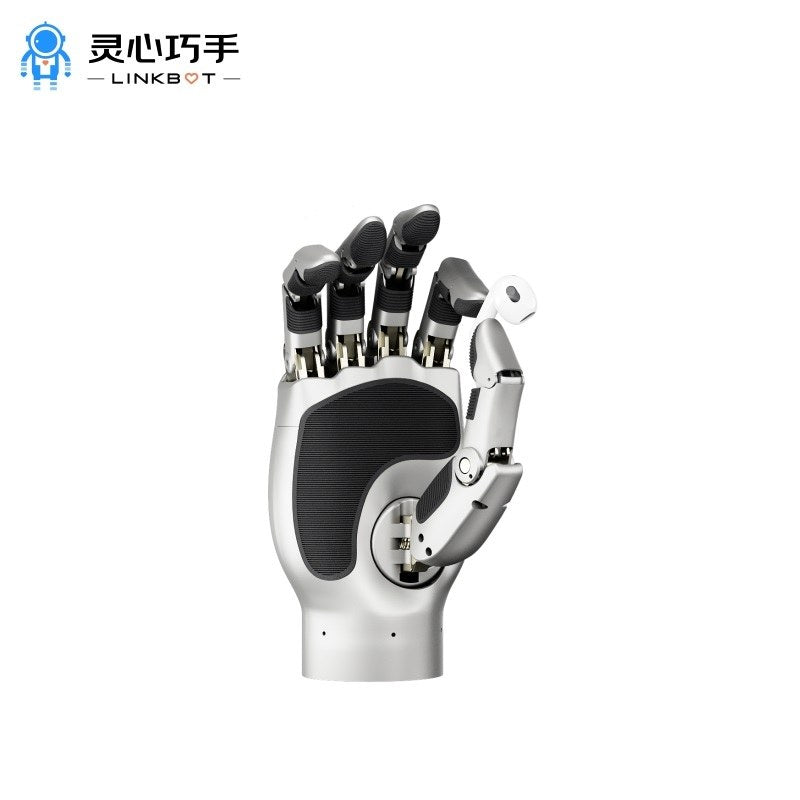

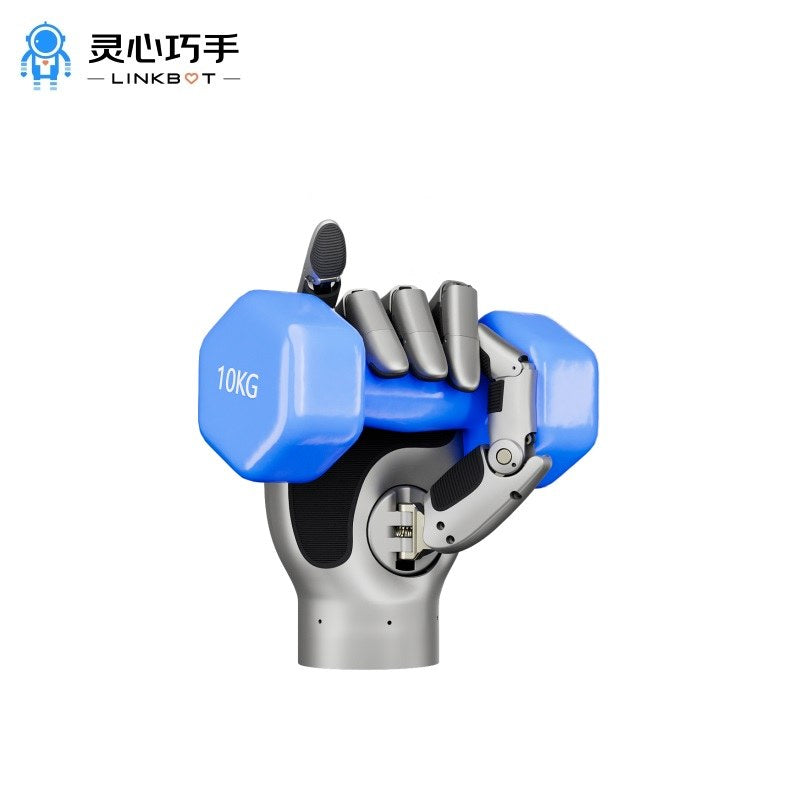

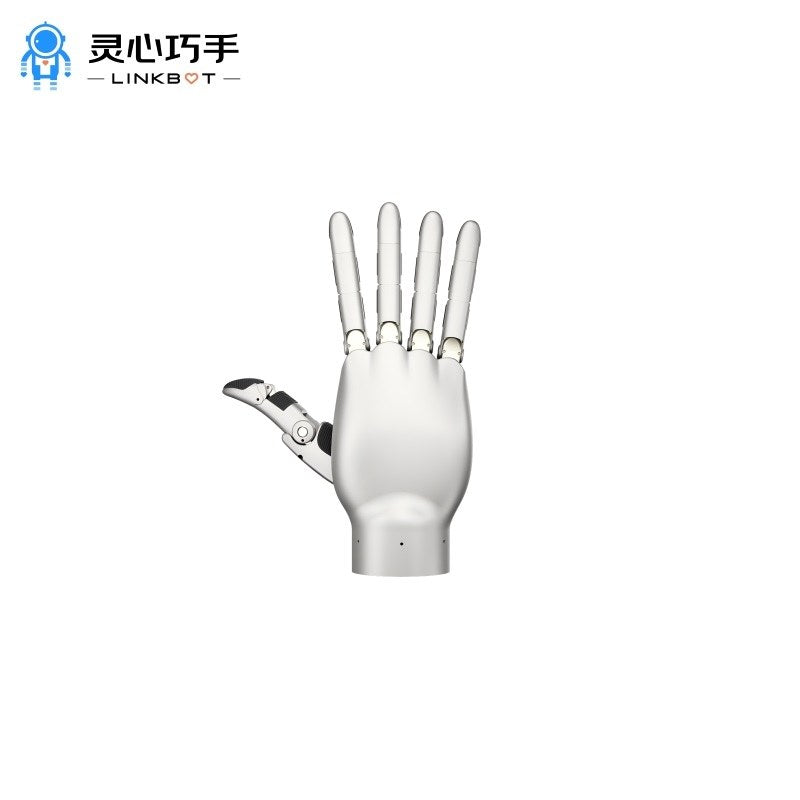

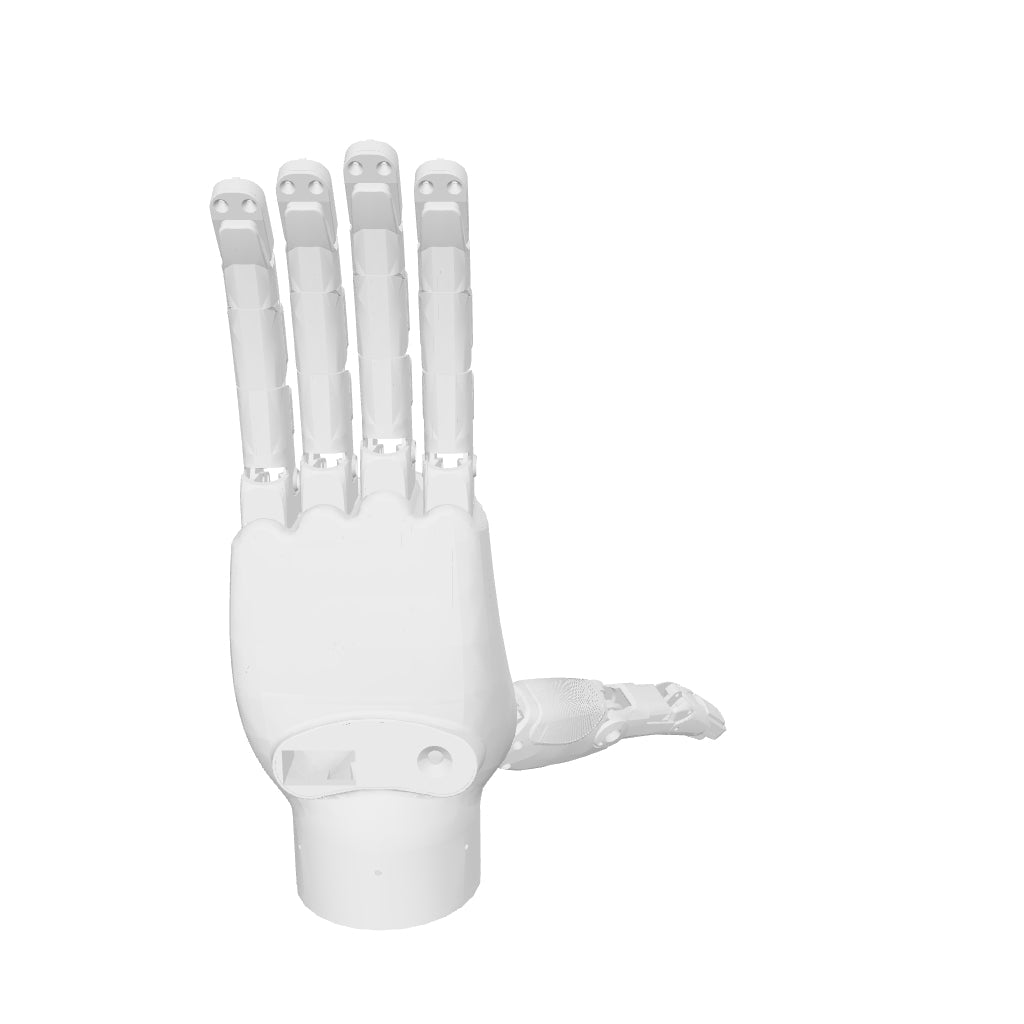

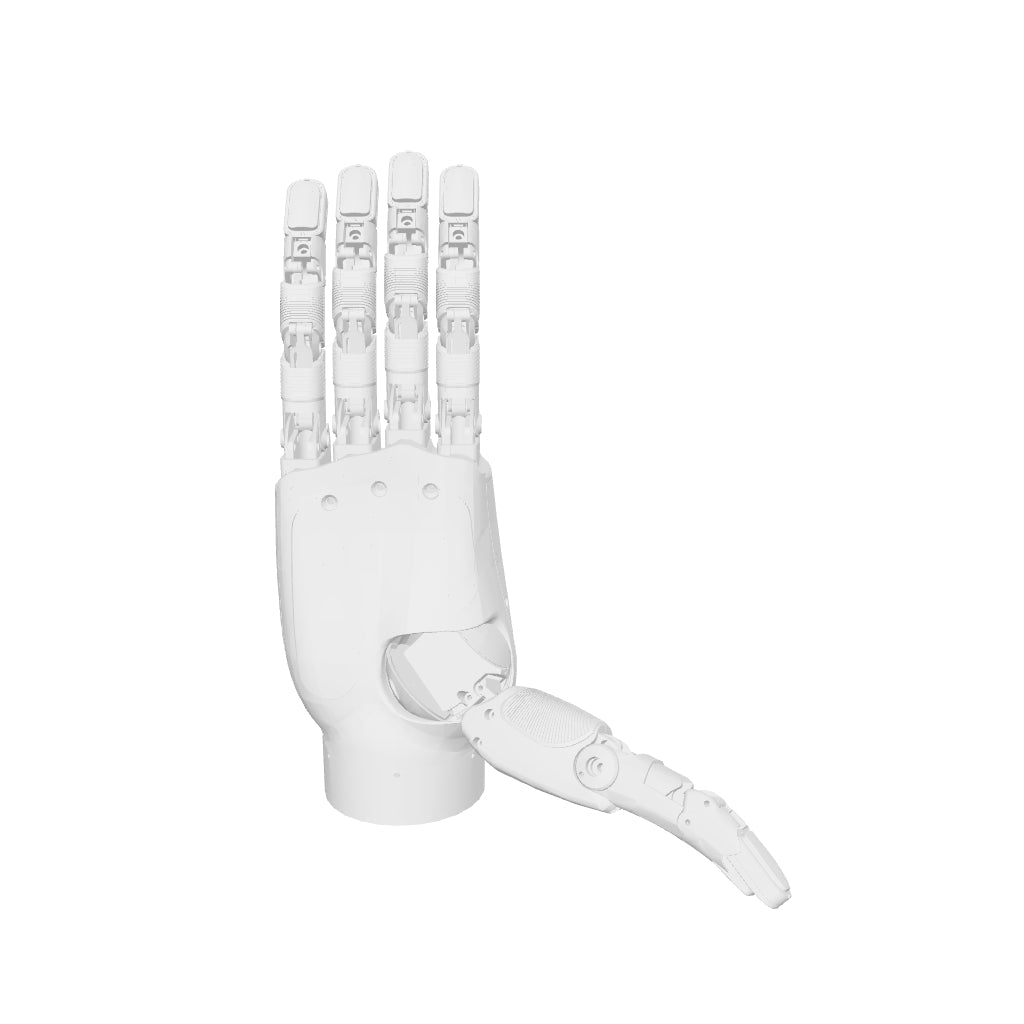

LINKERBOT Linker Hand L10
Regular price
$3,999.00
Unit price
Unavailable
LINKERBOT Linker Hand L10 - Linker Hand L10 (Left) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LINKERBOT Linker Hand L10
Regular price
$3,999.00
Unit price
Unavailable
LINKERBOT Linker Hand L10 - Linker Hand L10 (Left) is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom (DoF) | 10 |
|
Number of Joints
|
20 (10 Active + 10 Passive)
|
| Transmission Mode |
Worm Gear Transmission
|
|
Control Interface
|
CAN/RS485
|
|
Weight
|
800g
|
|
Maximum Load
|
25kg
|
|
Operating Voltage
|
DC24V±10% |
|
Static Current
|
0.2A |
|
Average Current (No-Load Movement)
|
0.5A |
|
Maximum Current
|
3A |
| Repeat Positioning Accuracy | < ±0.2mm |
| Opening/Closing Time | 1.2s |
| Maximum Thumb Fingertip Force | 15N |
| Maximum Four-Finger Fingertip Force | 15N |
|
Maximum Five-Finger Grasping Force
|
80N
|
