HITBOT | SKU:

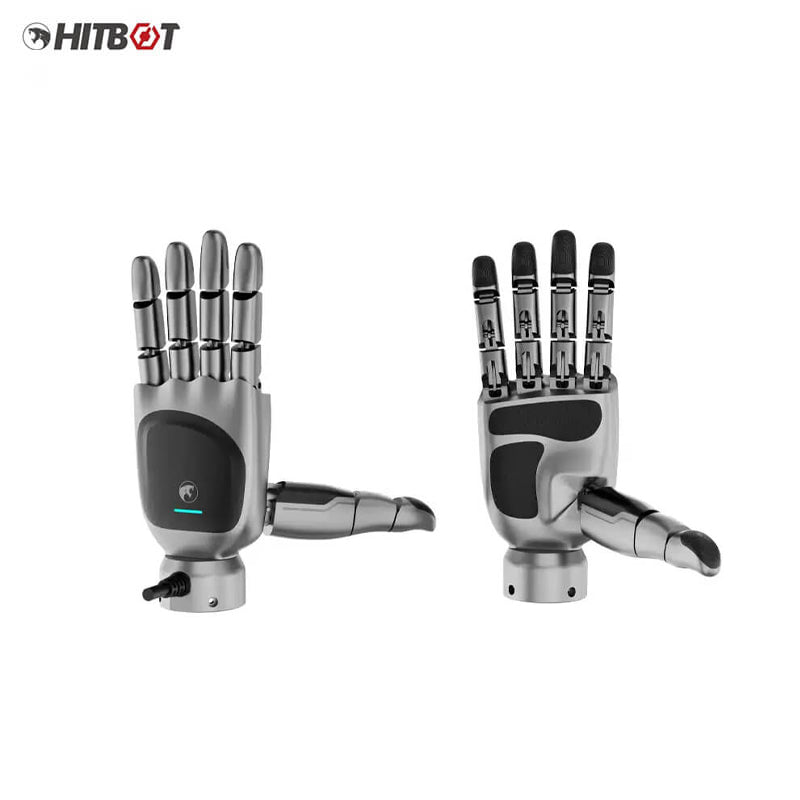

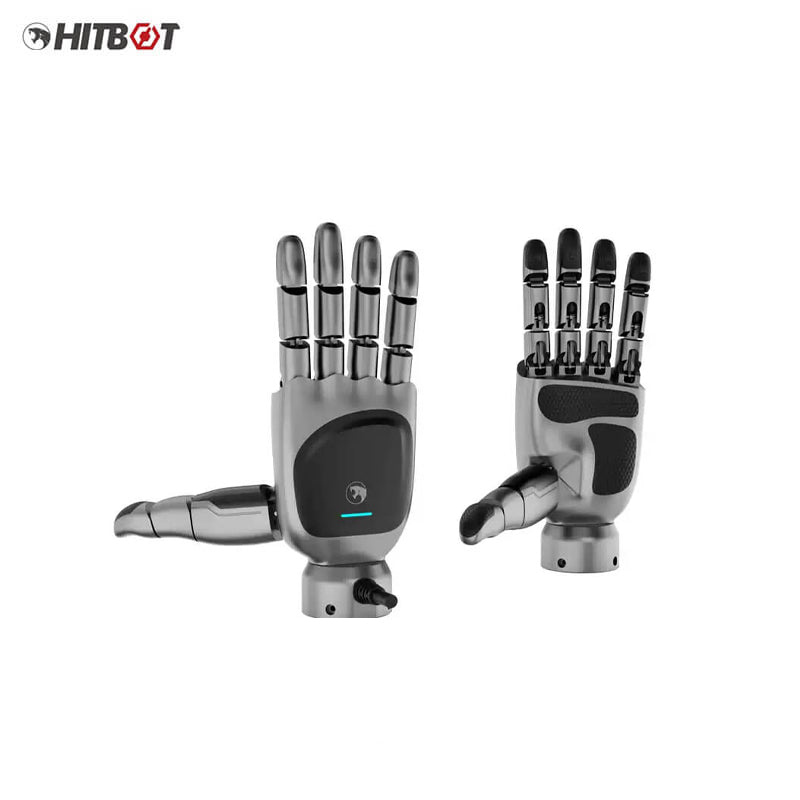

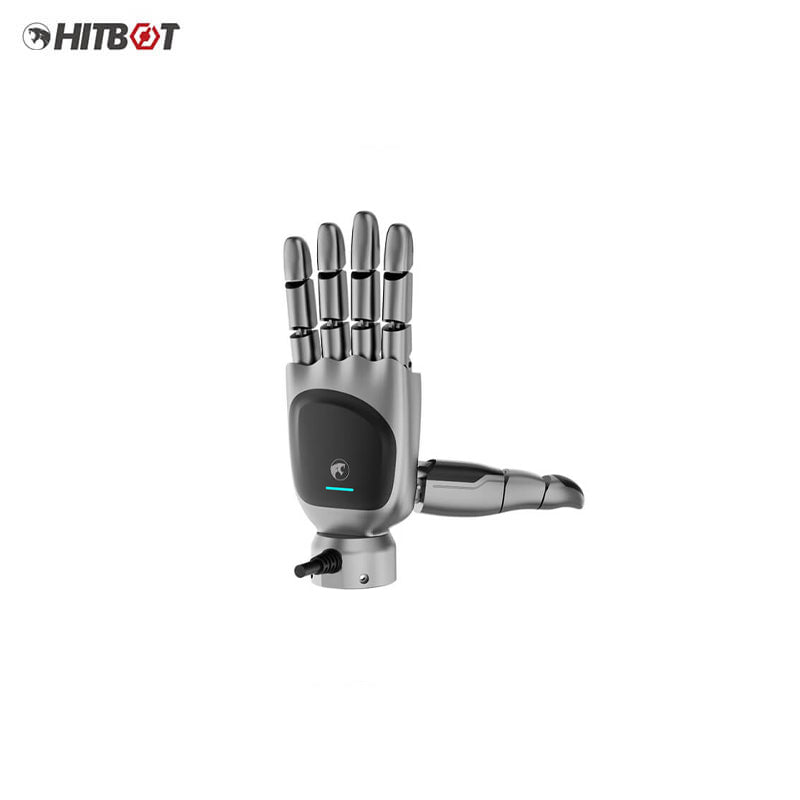

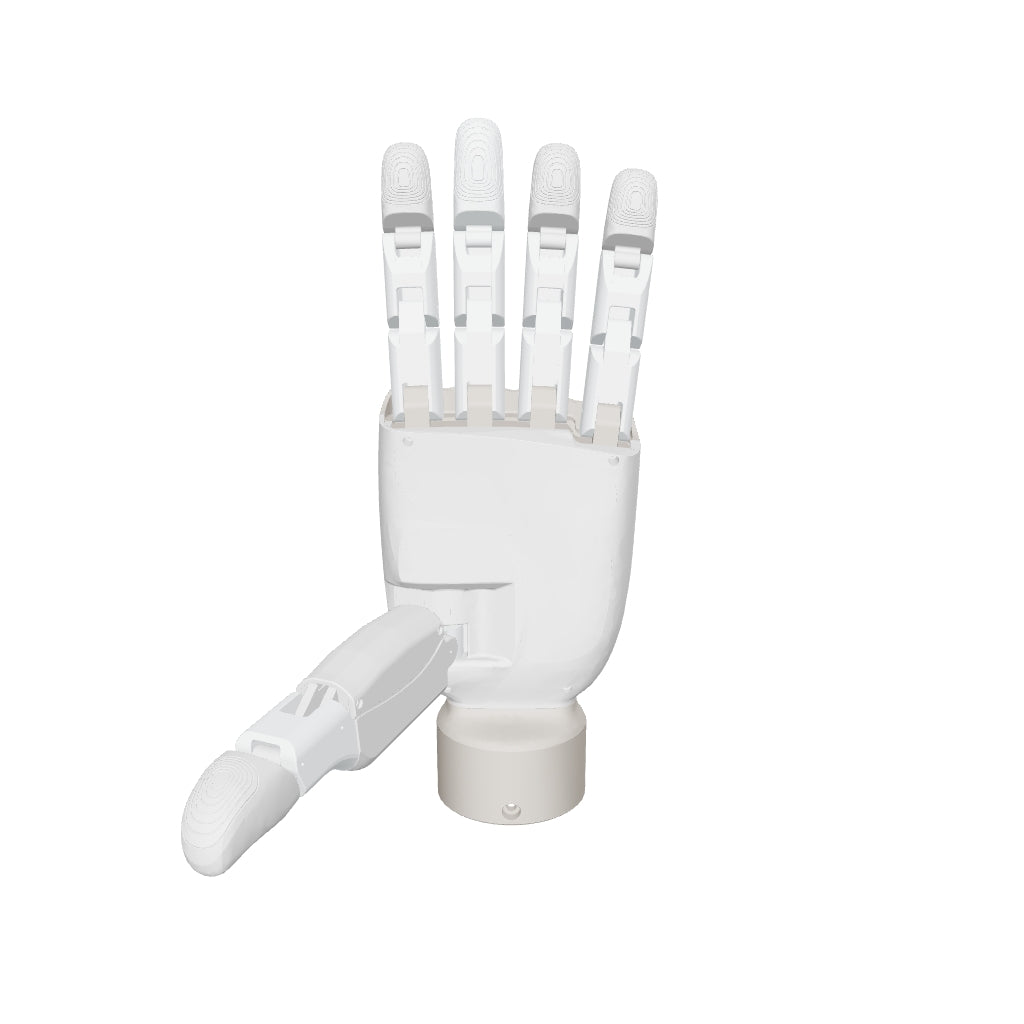

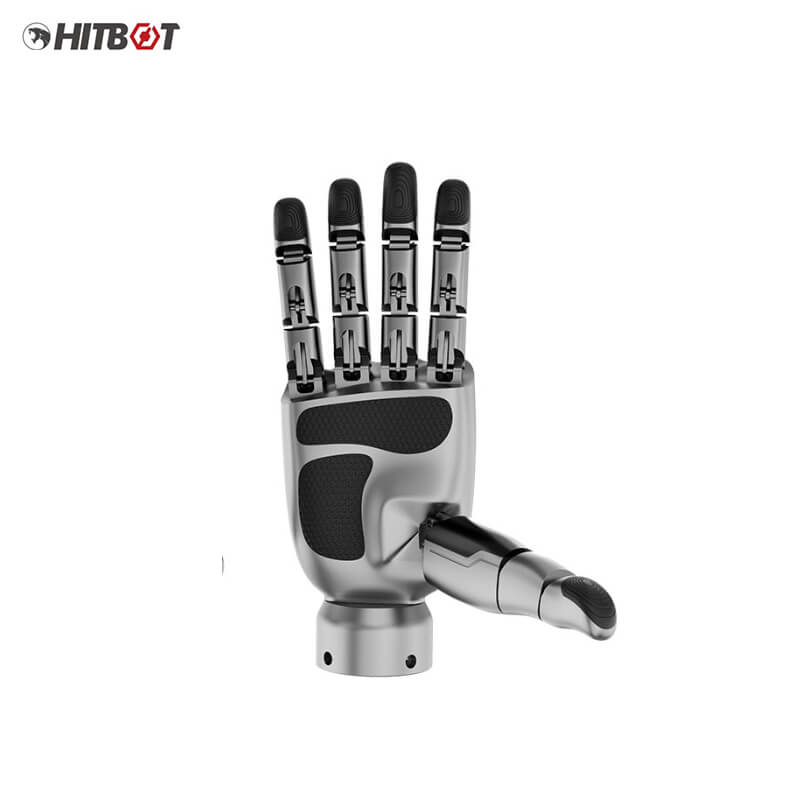

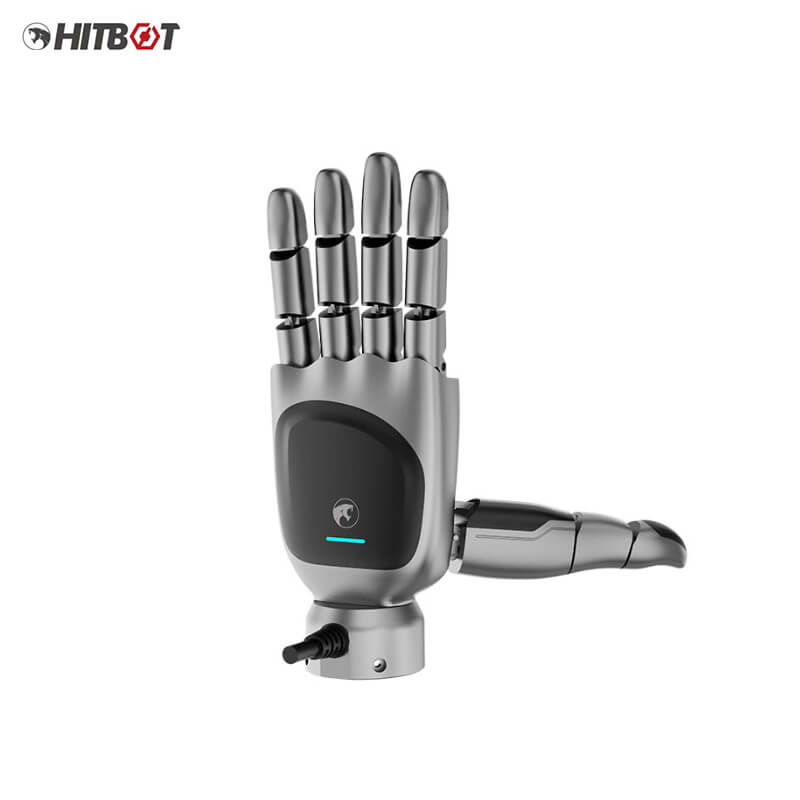

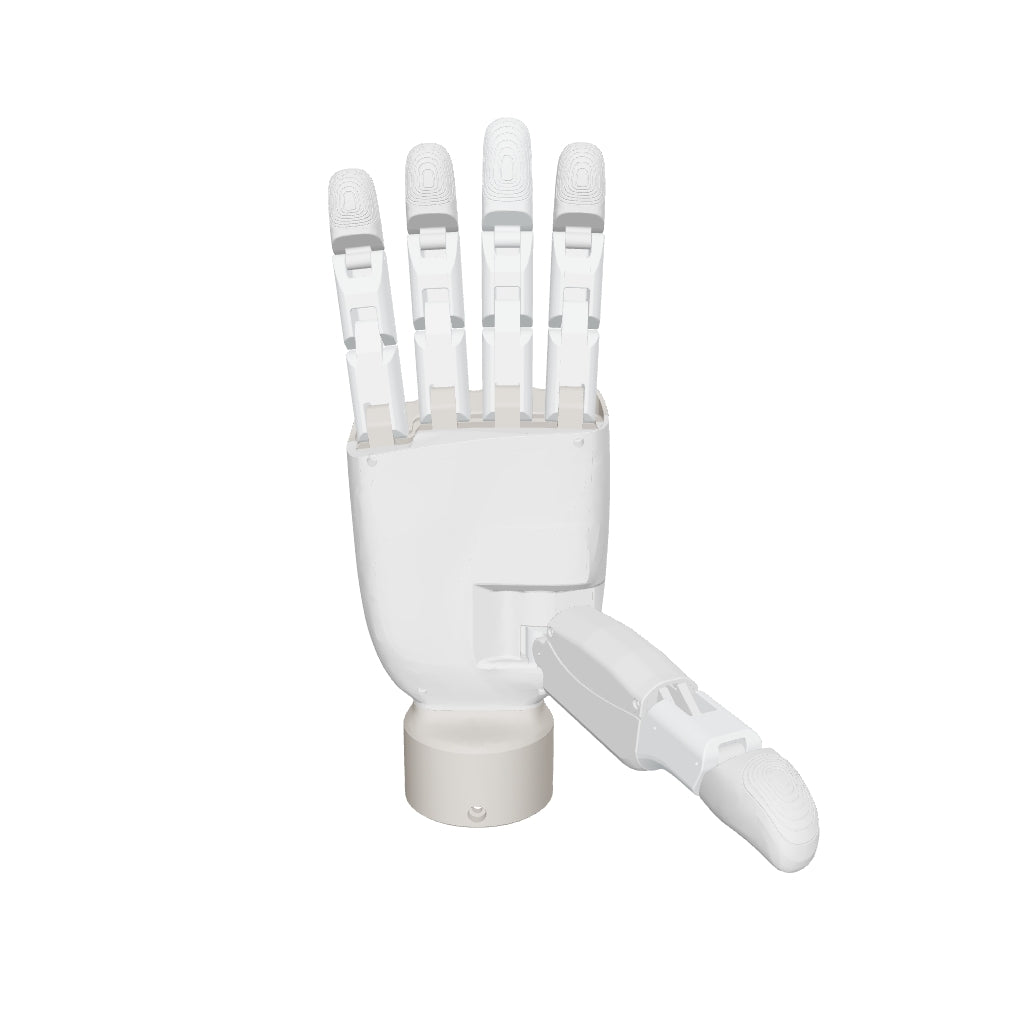

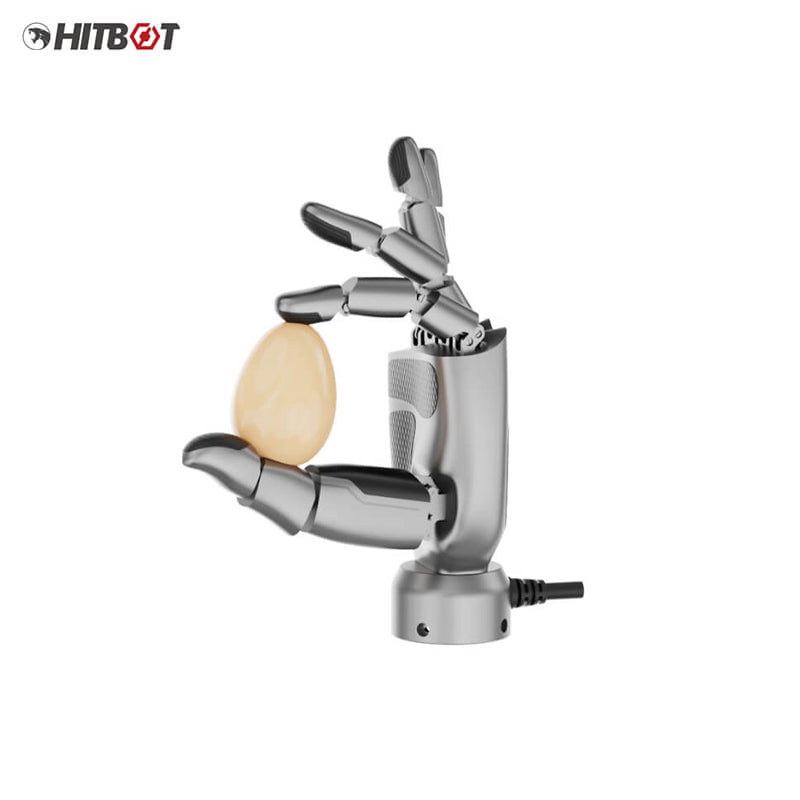

HITBOT eHand-6 Robotic Hand
Regular price
$1,650.00
Unit price
HITBOT eHand-6 Robotic Hand - eHand-6 / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HITBOT eHand-6 Robotic Hand
Regular price
$1,650.00
Unit price
HITBOT eHand-6 Robotic Hand - eHand-6 / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom | 6 |
| Cycle Time | 1.1s to complete a gesture |
| Four-Finger Bending Angles | 60° + 110° + 170° |
| Thumb Bending Angles | 32° + 44° + 44° |
| Thumb Lateral Swing Angle | 70° |
| Max. Gripping Force (Thumb) | 10N |
| Max. Gripping Force (Four Fingers) | 10N |
| Lifting Load Capacity | 5kg |
| Weight | <800g |
| Drive Mode | Coreless Motor + Planetary Gearbox + Lead Screw + Linkage |
| Dimensions | 226*88*52mm |
| Communication Protocols | CAN FD / EtherCAT |
| Operating Voltage | 24V DC ± 10% |
