MSCAPE

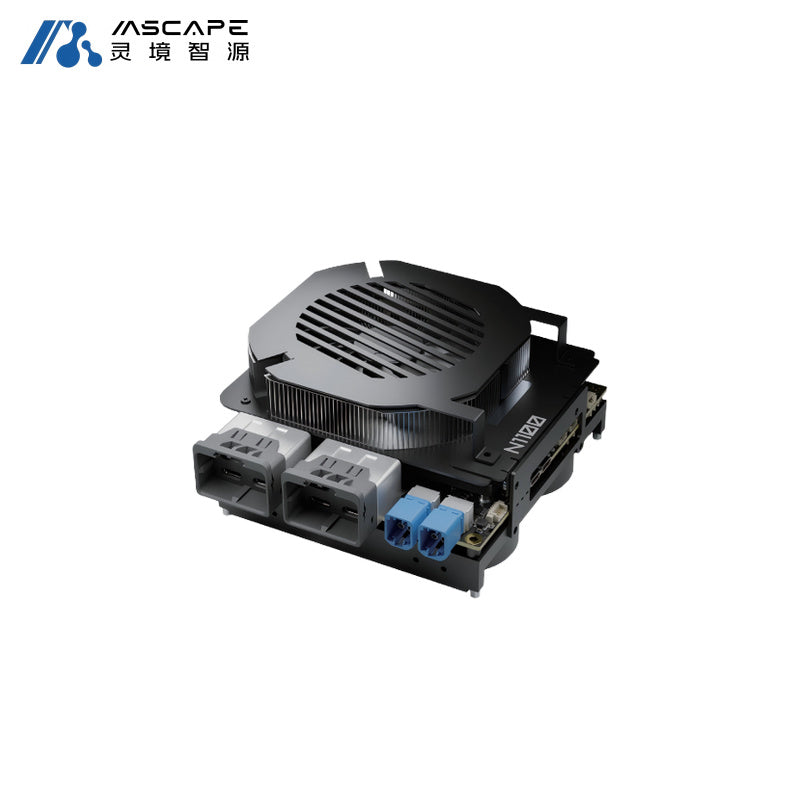

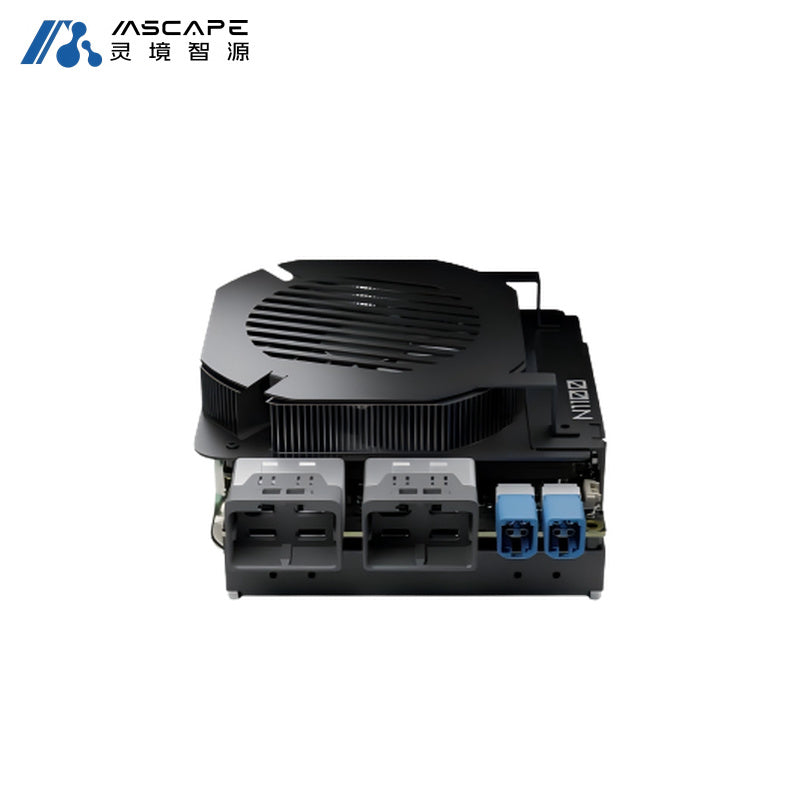

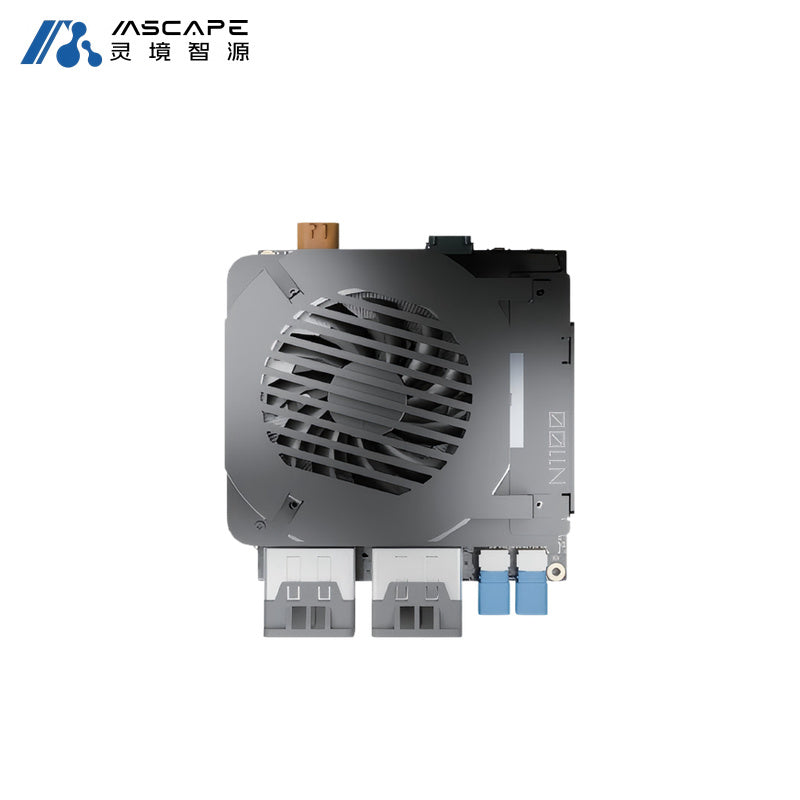

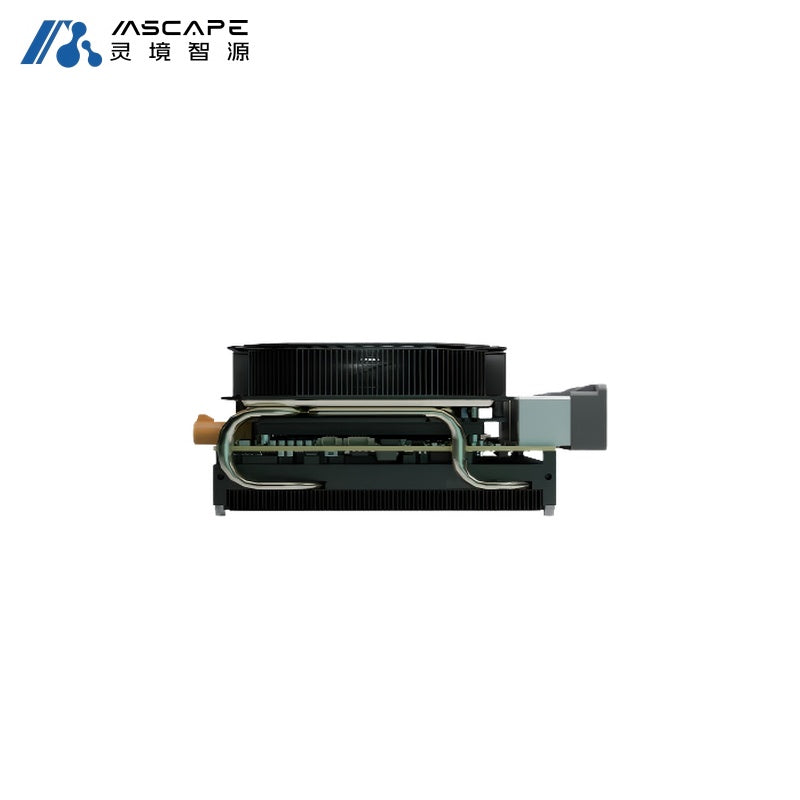

MSCAPE N1100 Brain

$37,600.00

Version

N1100

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Core Module	Jetson T5000 (T4000 optional)
Computing Power	2070TFLOPS (FP4-Sparse)
VRAM	128GB 256-bit LPDDR5X, 273 GB/s
Expandable Storage	M.2 2280 NVMe SSD Industrial-grade power-loss protection SSD
Output	1 × Micro HDMI OUT + 1 × Mini DP OUT (Max resolution: 4096×3024 @30Hz)
Automotive-Grade Expansion Harness	4 × Gigabit Ethernet (supports EtherCAT open/commercial master) \| 6 × Type-C (USB 3.0@5Gbps, 2A current capacity)
10-Gigabit Ethernet	1 × 10Gigabit Ethernet
USB Interfaces	2 × USB2.0 (Pin Header)
WIFI	M.2 E-Key 2230 WiFi module, supports 500Mbps Station+AP
5G	M.2 B-Key 3052 5G module
IO	8 × GPIO \| 2 × 232 / 485 \| I2C \| SPI
CAN FD	4 × CAN FD (T5000)
GMSL	8 × GMSL2
Audio	2 × SPK, 2 × AEC reference, 1 × MIC IN, Integrated with iFlytek Voice Interaction Software (optional)
Power Supply	1 × LCB30PW connector, operating voltage: DC 24V ~ 48V; max. withstand: 9 ~ 60V
Power-on Behavior	Auto power-on
Operating Temperature	-20~60℃ (industrial grade) relative humidity 95% @40℃ (non-condensing)
Storage Temperature	-40~85℃ (industrial grade)
Vibration	2 Grms@5~500 Hz, random, 1 hr/axis
Shock	15G, 11ms (operation) 30G, 11ms (non-operation)
Package Drop	80cm, 3 faces (With Packaging)
OS	Jetpack 7.0 / ROS2 DDS/ Linux RT/ Xenomai
Weight	1.16 kg
Dimensions	118mm × 126mm × 61mm (L×W×H)
