HITBOT | SKU:

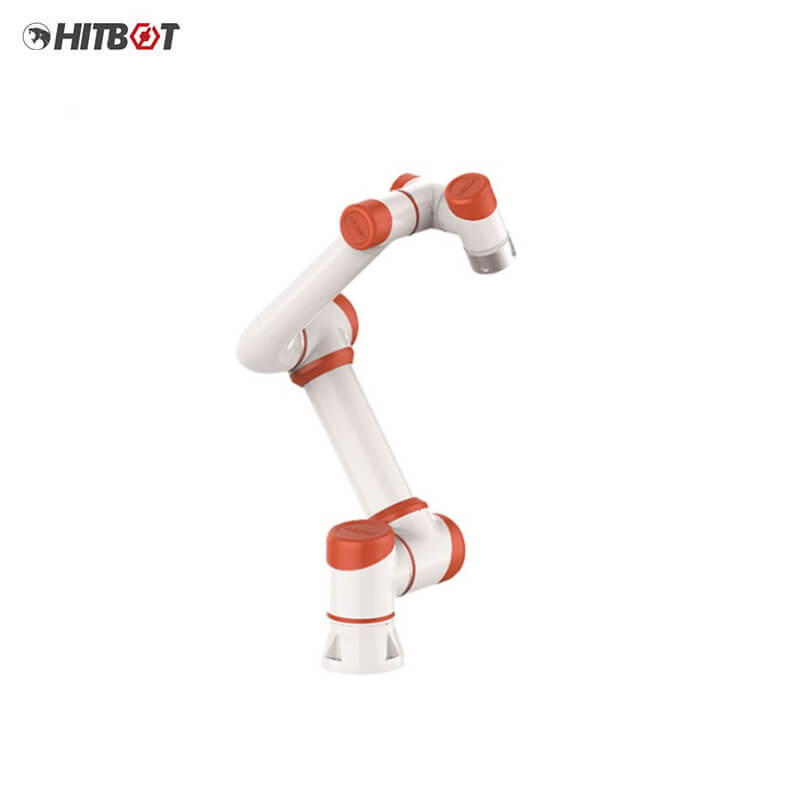

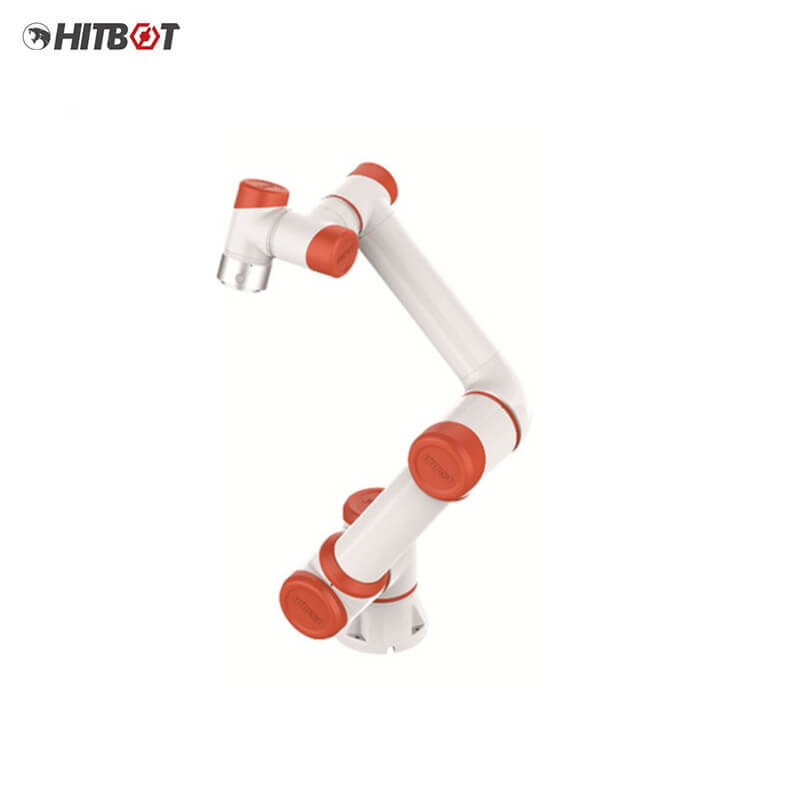

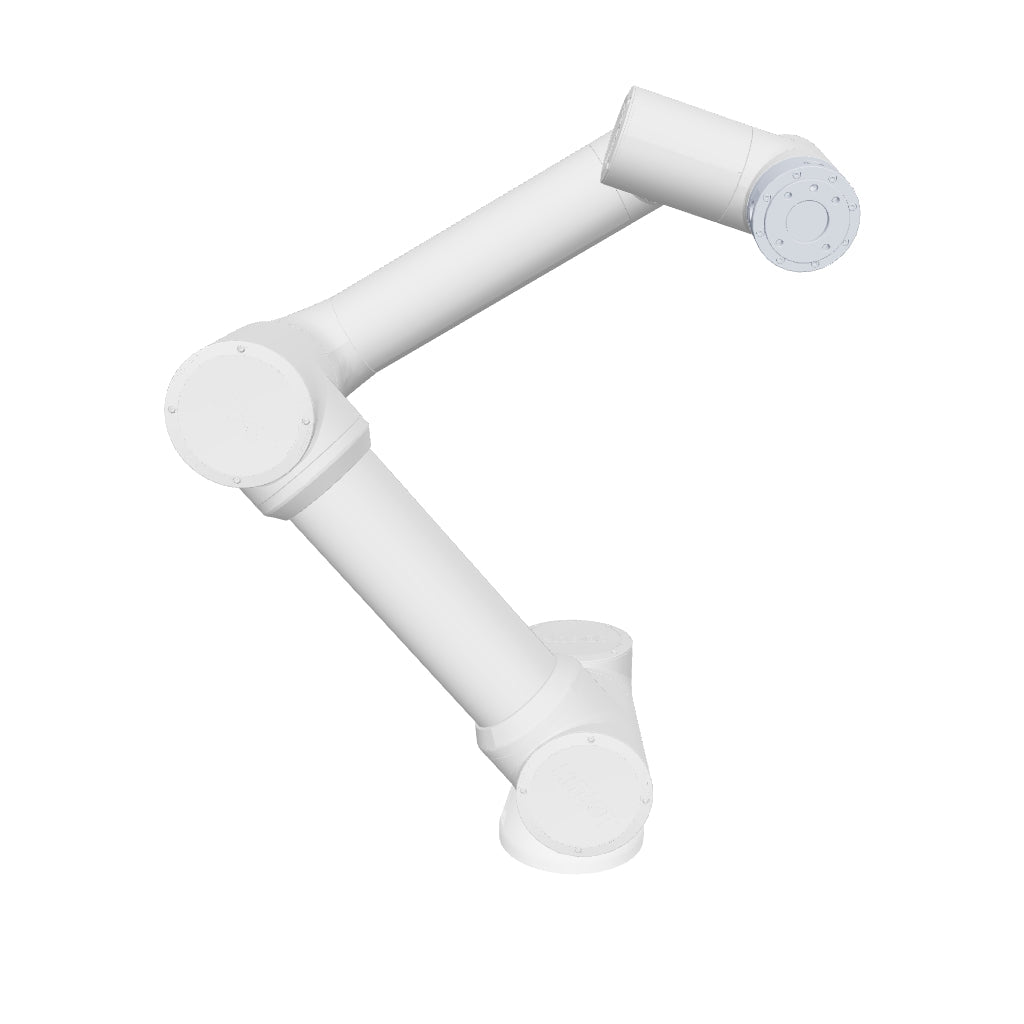

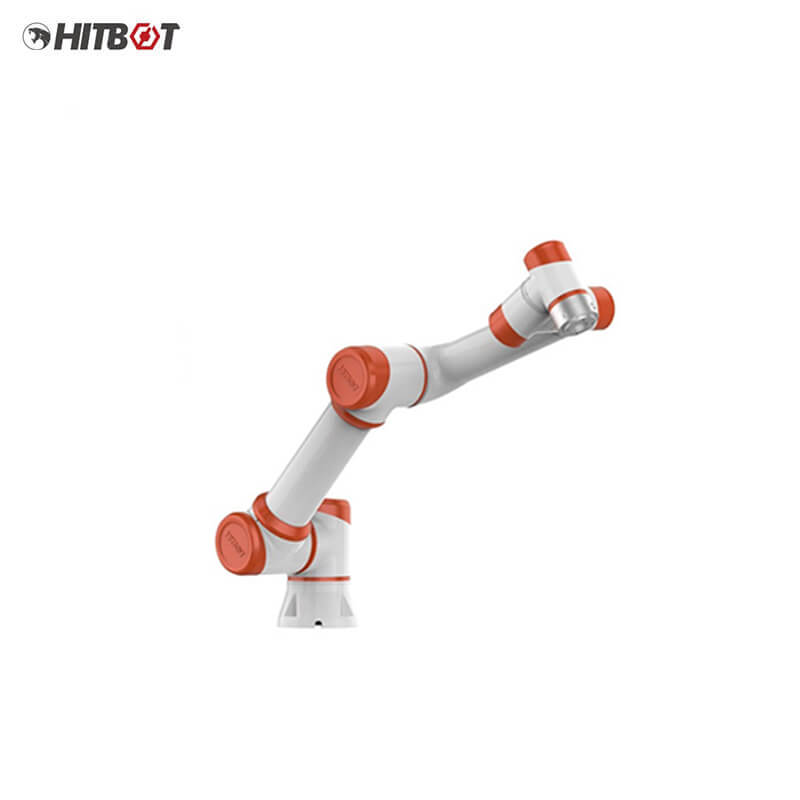

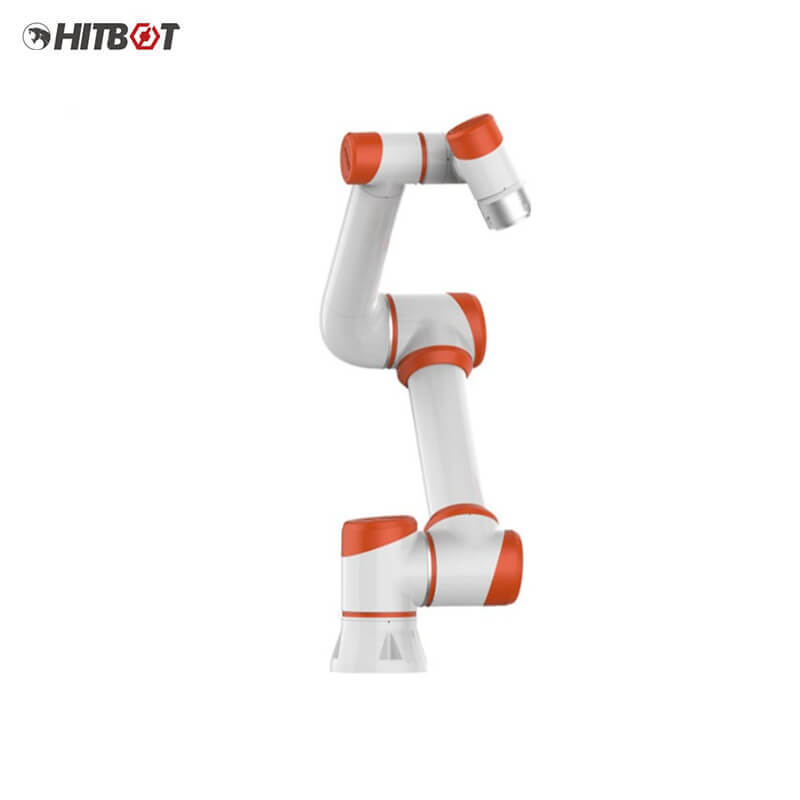

HITBOT Z-Arm S922 Robotic Arm
Regular price
$9,000.00
Unit price
HITBOT Z-Arm S922 Robotic Arm - Z-Arm S922 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HITBOT Z-Arm S922 Robotic Arm
Regular price
$9,000.00
Unit price
HITBOT Z-Arm S922 Robotic Arm - Z-Arm S922 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 22Kg |
| Payload | 5kg |
| Working Range | 922mm |
| Joint Range of Motion | Axis 1: ±175°; Axis 2: +85°, -265°; Axis 3: ±160° |
| Software Limit Limitation | Axis 4: +85°, -265°; Axis 5: ±175°; Axis 6: ±175° |
| Maximum Joint Speed | 180°/s |
| Repeatability | ±0.02mm |
| Installation Area | φ150mm |
| Control Box Size | 330*262*90mm (Without protrusion) |
| Degree of Freedom | 6 |
| End I/O Port | Digital input: 2; Digital output: 2; Analog input: 1; Analog output: 1 |
| Control Box I/O Port | Digital input: 16; Digital output: 16; Analog input: 2; Analog output: 2 |
| I/O Power Supply | 24V/1.5A |
| Communication | Ethernet, TCP/IP, 485 communication |
| Noise | <60DB |
| Protection Level | IP54 |
| Coordinated Operation | With collision detection function, allowing customize collision levels |
| Power Supply | 220V/50HZ |
| Use Environment | · Away from vibrations and the vibration intensity is not higher than 0.5G; · Away from corrosive gases, liquids and explosive gases; · Avoid dust, smoke and water; · Avoid equipment working under unstable current conditions |
| Humidity | 20-80RH No frost |
| Temperature | 0-45°C |
