HITBOT

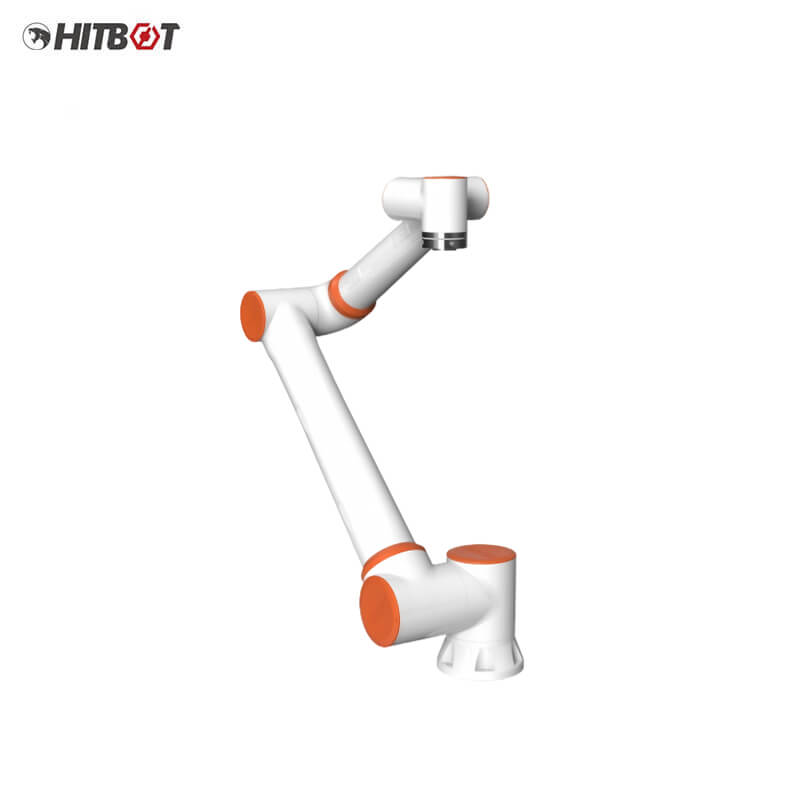

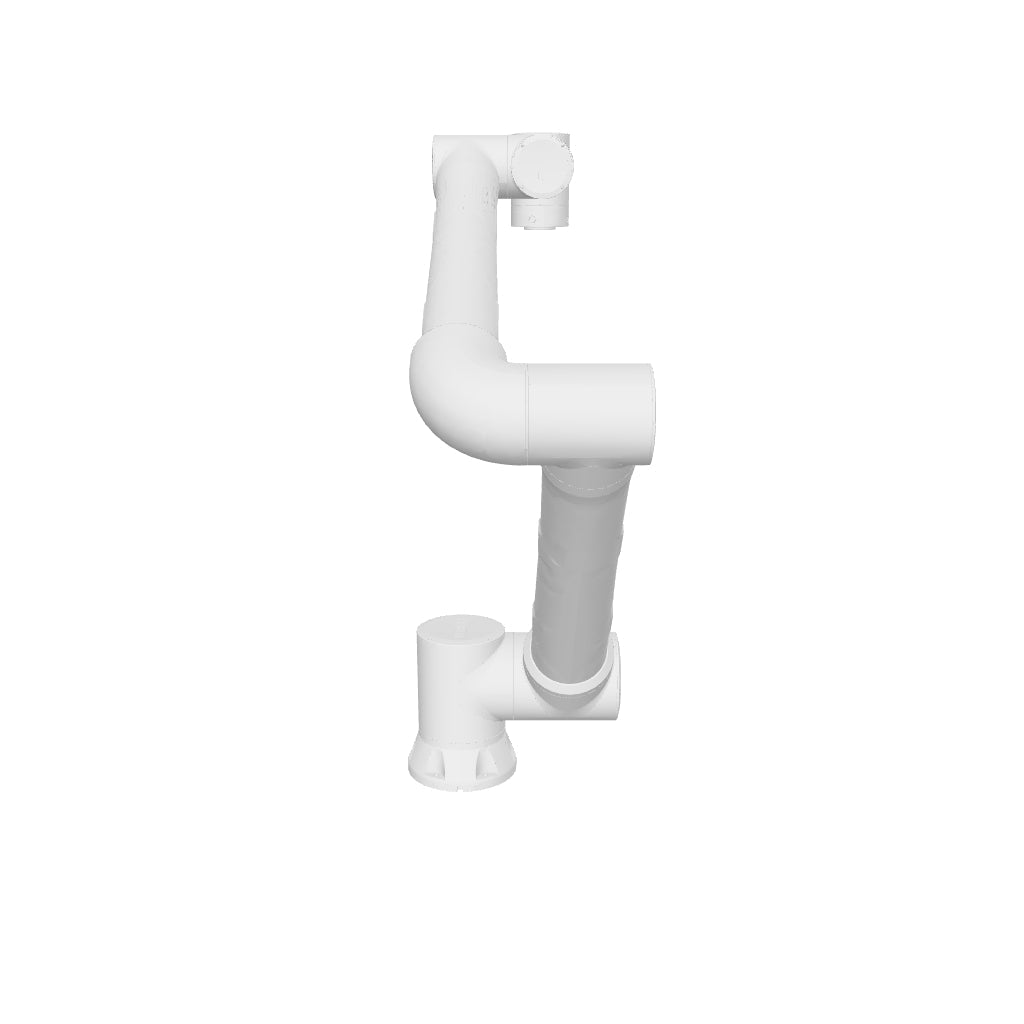

HITBOT Z-Arm S1854 Robotic Arm

$19,500.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Weight ≈85kg
Payload 20kg
Working Radius 1854mm
Joint Range of Motion / Software Limit Axis 1: ±175°
Axis 2: +85°, -265°
Axis 3: ±160°
Axis 4: +85°, -265°
Axis 5: ±175°
Axis 6: ±175°
Typical TCP Speed 2m/s
Repeatability ±0.1mm
Installation Area φ240mm
Installation Orientation Upright, vertical side mount, side mount
Control Box Size 245*180*44.5mm
Degree of Freedom 6
End I/O Ports Digital Input (DI): 2
Digital Output (DO): 2
Analog Input (AI): 1
Analog Output (AO): 1
Control Box I/O Ports Digital Input (DI): 16
Digital Output (DO): 16
Analog Input (AI): 2
Analog Output (AO): 2
I/O Power Supply 24V/1.5A
Communication I/O, TCP/IP, Modbus_TCP/RTU, Profinet
Development Environment C#/C++/Python/Java/ROS
Noise <70dB
Protection Grade IP54
Coordinated Operation With collision detection function, allowing customized collision levels
Power Supply 220V/50Hz
Working Environment - Away from corrosive gases, liquids and explosive gases
- Away from vibration, and vibration intensity should be no greater than 0.5G
- Avoid prolonged exposure to strong light
- Avoid dust, smoke and water
Operating Temperature Range 0~45℃
Operating Humidity Range 20~80%RH (No condensation)
Cable Specification Cable length 3.7m (not suitable for cable drag chain)
