HITBOT

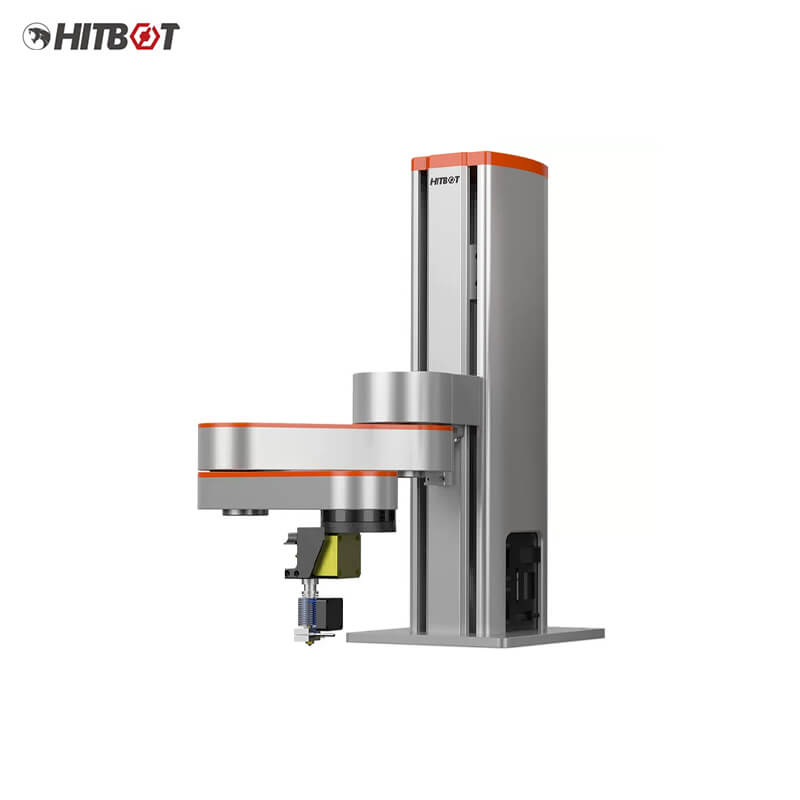

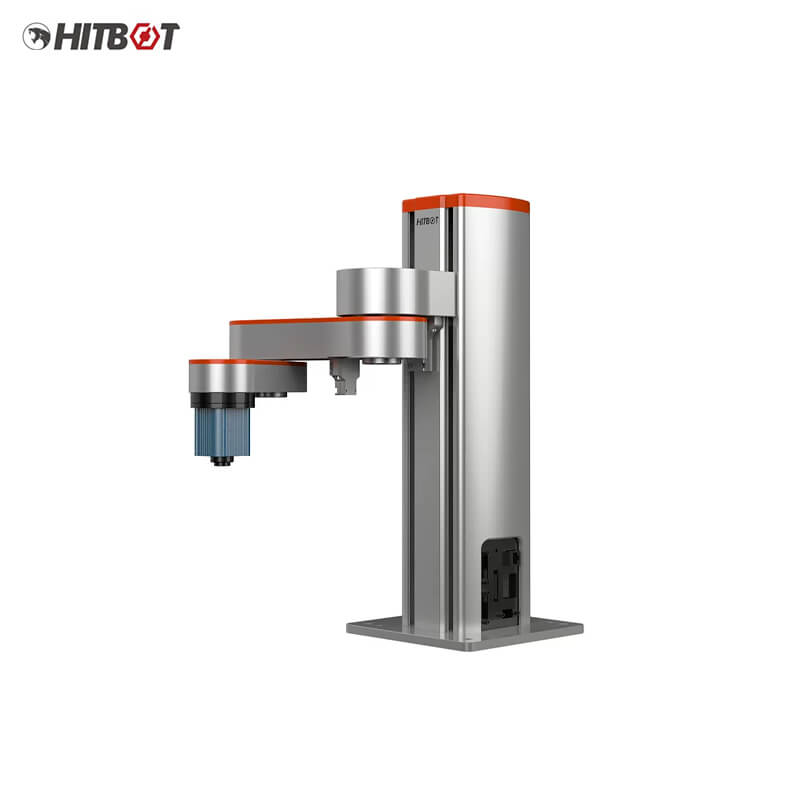

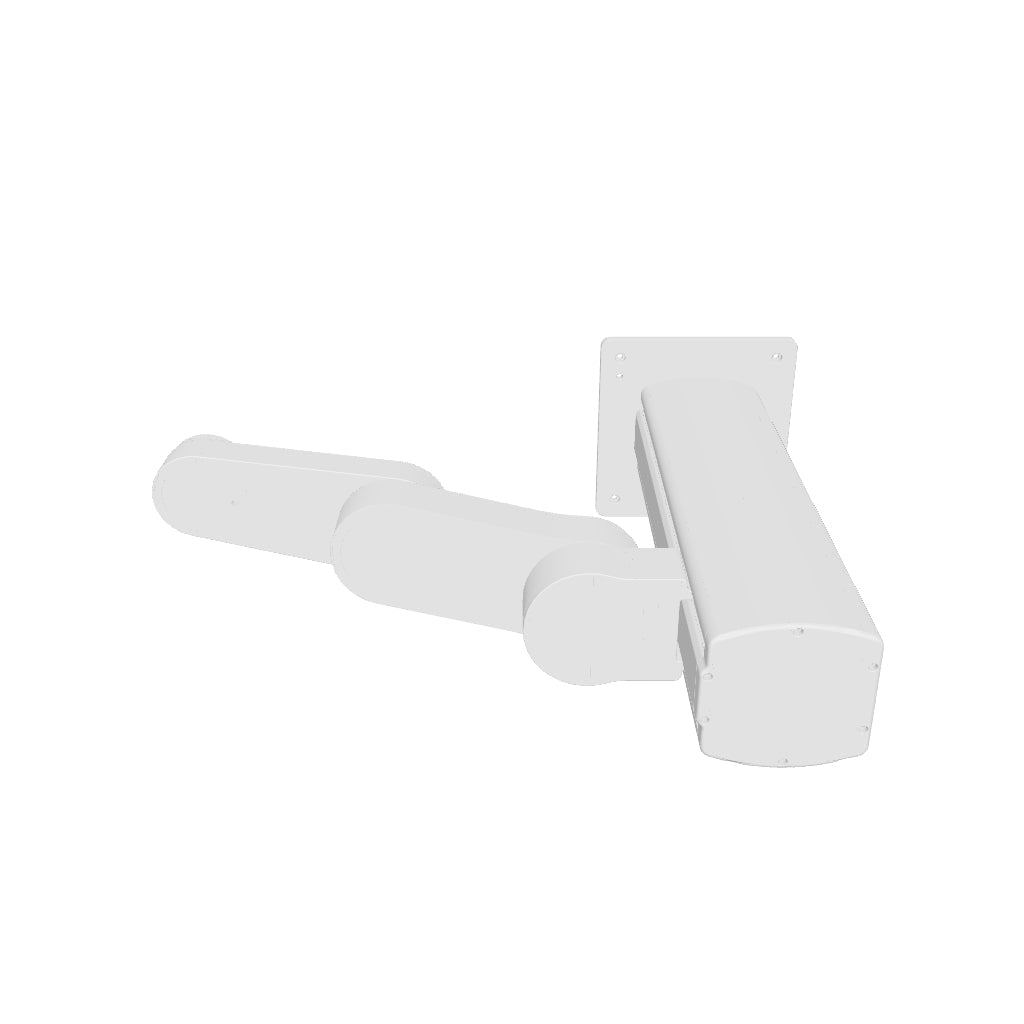

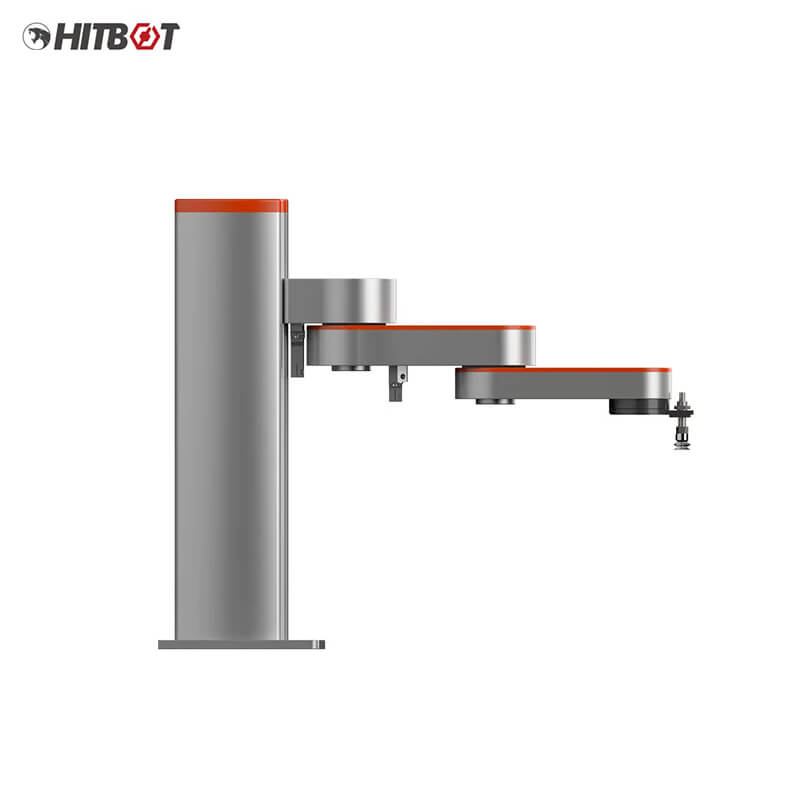

HITBOT Z-Arm 1832 Robotic Arm

$4,000.00

Version

Z-Arm 1832

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
1-axis arm length	160mm
1-axis rotation angle	±90°
2-axis arm length	160mm
2-axis rotation angle	±143°
Z-axis stroke	Height customizable
R-axis rotation range	±1080°
Linear speed	1017 mm/s (0.5kg load)
Repeatability	±0.03mm
Standard payload	0.5kg
Max payload	1kg
Degrees of freedom (DOF)	4
Power supply	220V/110V 50-60Hz adapted to 24VDC, peak power 320W
Communication	Ethernet
Customizable Z-axis height	0.1m - 0.5m
Z-axis motion indicator	/
Electrical interface (reserved)	/
Compatible HTBOT electric grippers	Z-BF8-SS / Z-BF6-12 / Z-BF20 / Z-BF8-20? (as listed)
Indicator light (breathing light)	/
Second arm body motion range	Standard: ±143°
Optional accessories	/
Operating environment	Temperature: 0~45°C, Relative humidity: 20~80% (non-condensing)
I/O, digital input (isolated)	9+3
I/O, digital output (isolated)	9+3
I/O, analog input (4-20mA)	/
I/O, analog output (4-20mA)	/
Overall height	500mm
Host weight	1800g; stroke module weight approx. 11kg
Base dimensions	200mm × 200mm × 10mm
Base mounting hole spacing	160mm × 160mm, with four M5×12 screws
Collision detection	/
Vibration indicator	/
Hard stop	/
