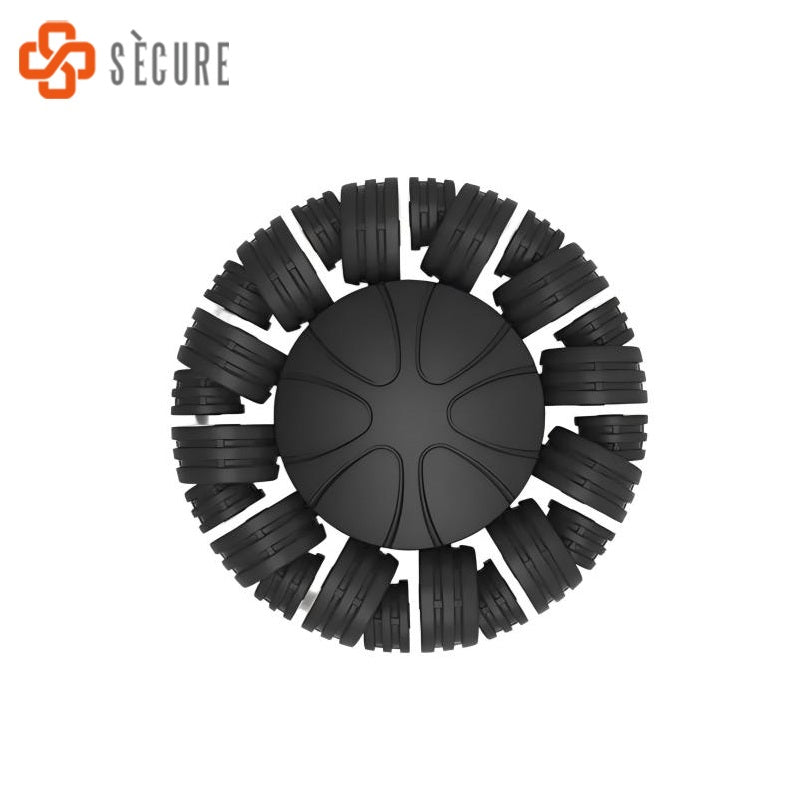

SECURE Omni Wheels

$115.00
Version
Size

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter 5-inch 6-inch 8-inch 10-inch 12-inch
Wheel Diameter 127 mm 160 mm 210 mm 260 mm 316 mm
Tread Width 38.5 mm 53 mm 57.5 mm 72.5 mm 74 mm
Self-Weight 0.6 kg 0.9 kg 1.7 kg 3.56 kg 5.75 kg
Dynamic Load 30 kg 45 kg 60 kg 80 kg 90 kg
Static Load 50 kg 70 kg 90 kg 100 kg 120 kg
Travel Distance 1000 km 1500 km 2000 km 3000 km 5000 km
Obstacle Climbing Height 3 mm 4 mm 6 mm 12 mm 12 mm
Tread material: TPU/rubber
Working environment: -30°C / +80°C
