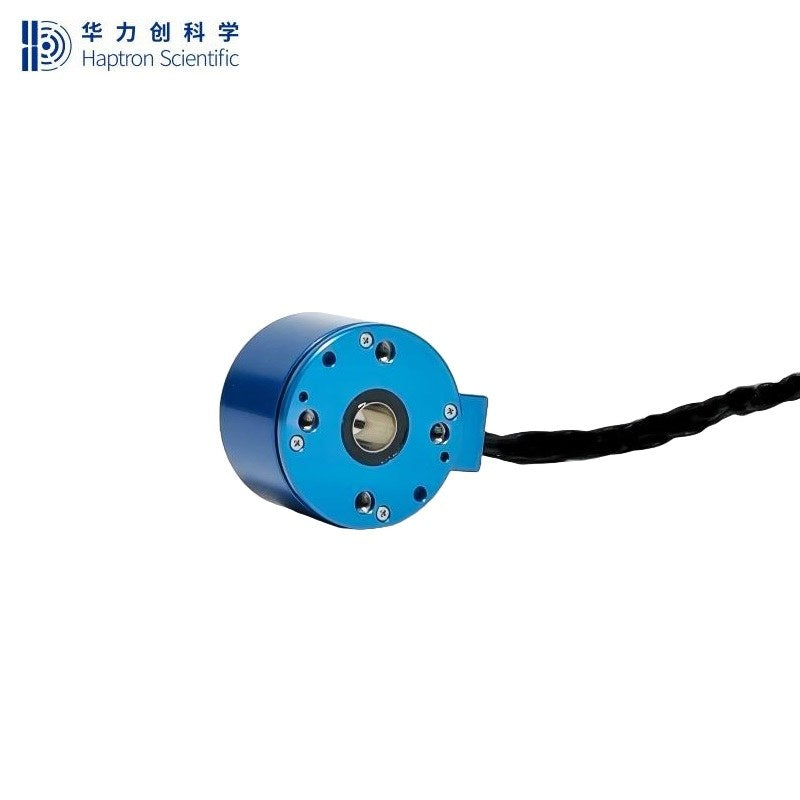

Haptron Scientific Photon R40 Sensor

$4,800.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Temperature Cycle Test Passed 14h temperature test (Low: -20℃ / High: 70℃)
Constant Damp Heat Test Passed 48h constant damp heat test (Temperature: 40℃ / Relative Humidity: 93%)
Electromagnetic Compatibility Test Passed comprehensive tests: Power Frequency Magnetic Field / RF Amplitude Modulated Electromagnetic Field / Electrostatic Discharge / RF Common Mode
Vibration Test Passed 75min vibration test (Vibration Frequency: 10Hz~150Hz / Amplitude: 0.15mm)
Drop Test Passed 100 impact tests (Method: Free fall / Drop height: 1m)


Range Fx=Fy=Fz: 500N; Mx=My=Mz: 10N.m
Overload
150%F.S.
Repeatability 1%F.S.
Resolution 1N
Ingress Protection Rating IP65
Temperature Compensation -10℃～ 40℃
Operating Temperature -10℃～ 70℃
Communication Interface RS485/EtherCAT
Sampling Frequency 1000Hz
