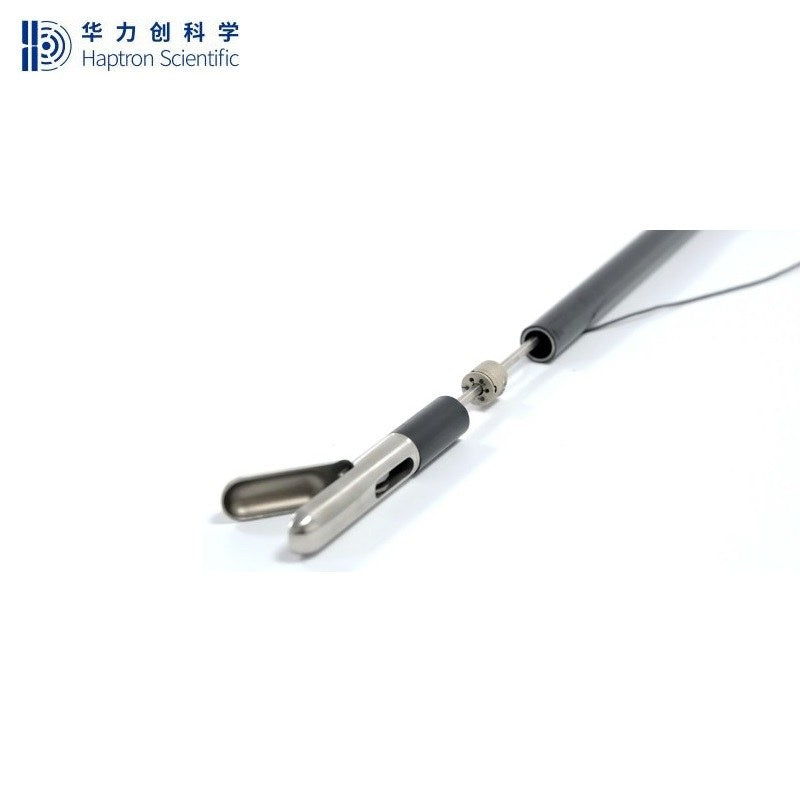

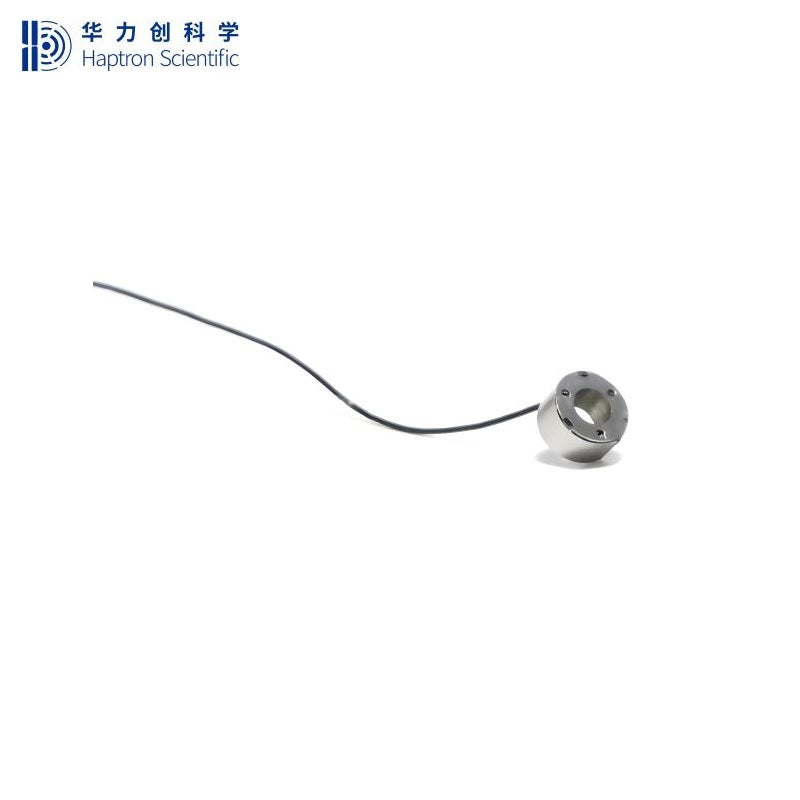

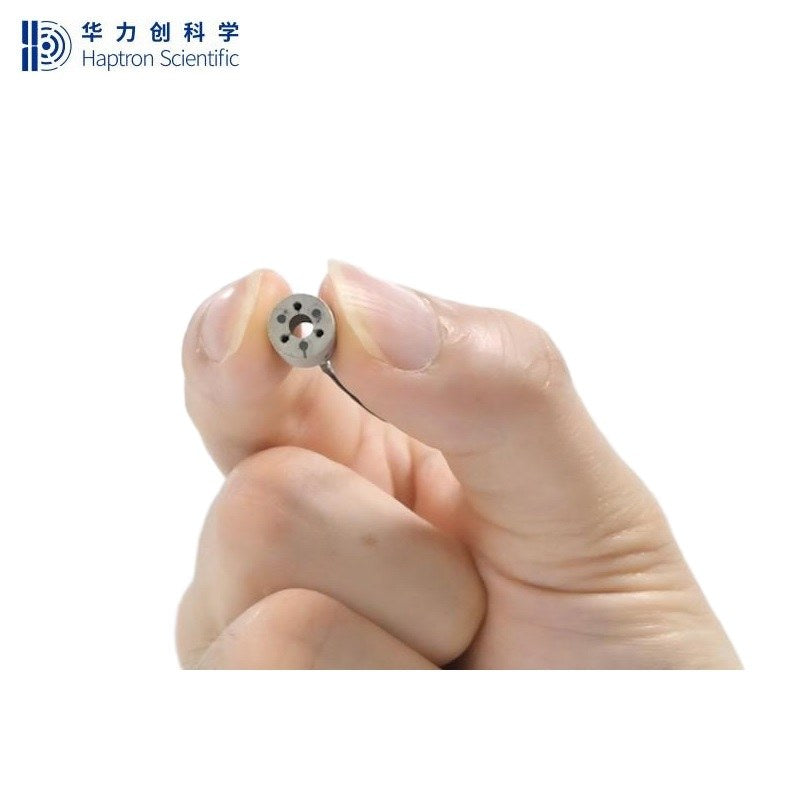

Haptron Scientific Photon micro 3X Sensor

$7,500.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

r



Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Biocompatibility Testing Passed Sensitization Test / Mucosal Irritation Test / Blood Compatibility Test / Pyrogen Test
Temperature Cycle Test Passed 2h temperature test (High temperature: 140℃)
Constant Damp Heat Test Passed 48h constant damp heat test (Temperature: 40℃ / Relative Humidity: 93%)
Electromagnetic Compatibility Test Passed comprehensive tests for Power Frequency Magnetic Field / RF Amplitude Modulated Electromagnetic Field / Electrostatic Discharge / RF Common Mode
Vibration Test Passed 75min vibration test (Vibration Frequency: 10Hz~150Hz/ Amplitude: 0.15mm)
Drop Test Passed 100 impact tests (Impact Method: Free Fall / Drop Height: 1m)


Diameter 8.5mm
Thickness 7.5mm
Central Through-Hole 3.1mm
Range Fz: 30N Fx=Fy: 20N Mx=My: 50N.mm
Overload
150%F.S.
Repeatability 1%F.S.
Resolution 0.05N
Ingress Protection Rating IP64
Temperature Compensation -10℃～ 40℃
Operating Temperature -10℃～ 50℃
Communication Interface USB (Other interfaces customizable)
Sampling Frequency 1000Hz
