Haptron Scientific

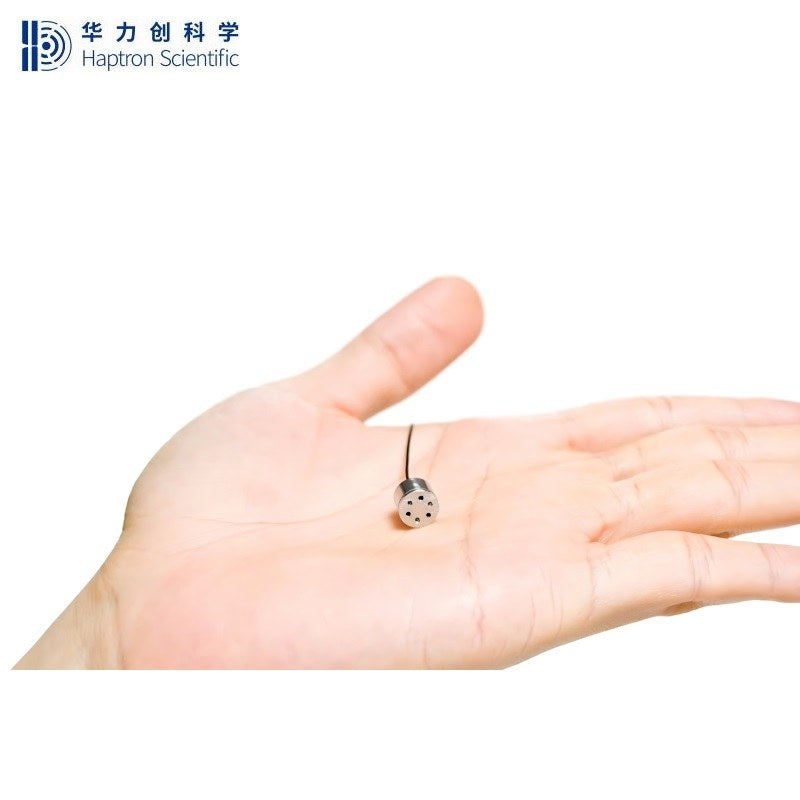

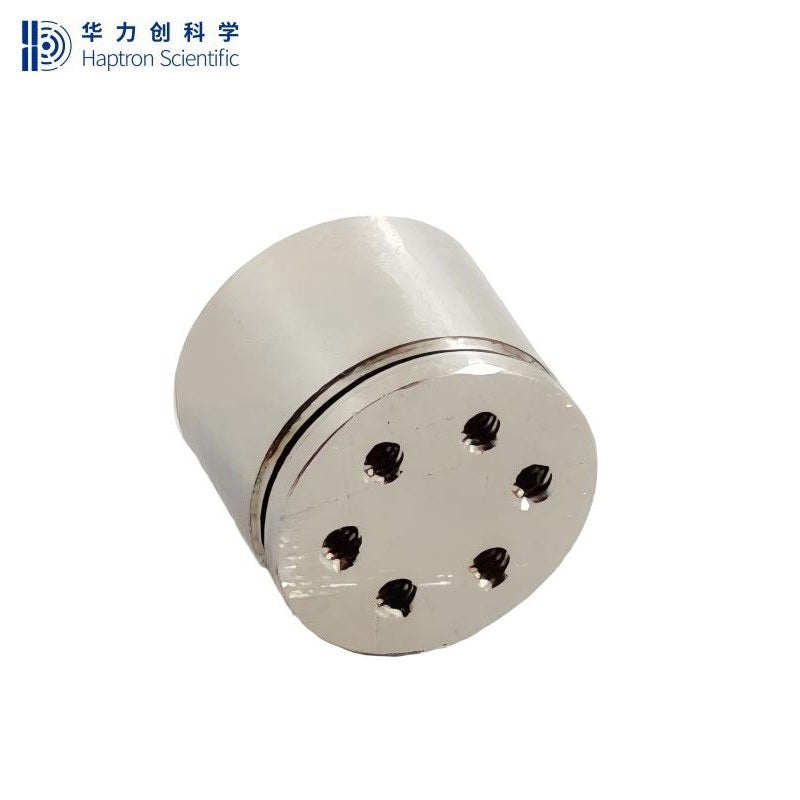

Haptron Scientific Photon Finger B Sensor

$2,000.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information





Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Temperature Cycle Test Passed 14h temperature test (Low: -10°C / High: 50°C).
Damp Heat Test Passed 48h constant damp heat test (Temperature: 40°C / Relative Humidity: 93%)
Electromagnetic Compatibility (EMC) Test Comprehensive pass in power frequency magnetic field, RF amplitude modulated electromagnetic field, electrostatic discharge, and RF common mode tests
Vibration Test Passed 75min vibration test (Frequency: 10Hz~150Hz / Amplitude: 0.15mm)
Drop Test Passed 100 impact tests (Method: Free fall / Drop height: 1m)


Range Fx=Fy:20N,Fz=30N; Mx=My:50N.mm
Overload 150%F.S.
Repeatability 1%F.S.
Resolution 0.05N
Ingress Protection (IP) Rating IP64
Power Supply Voltage USB Powered (DC 5V)
Temperature Compensation -10℃～ 40℃
Operating Temperature -10℃～ 50℃
Communication Interface USB (Other interfaces customizable)
Sampling Frequency 1000Hz
