Yunshis

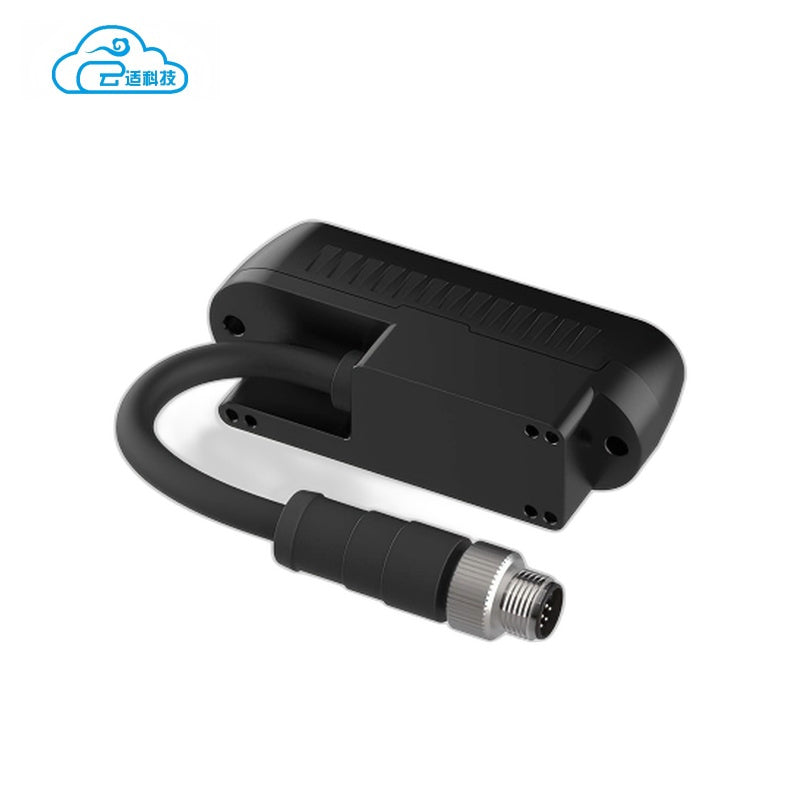

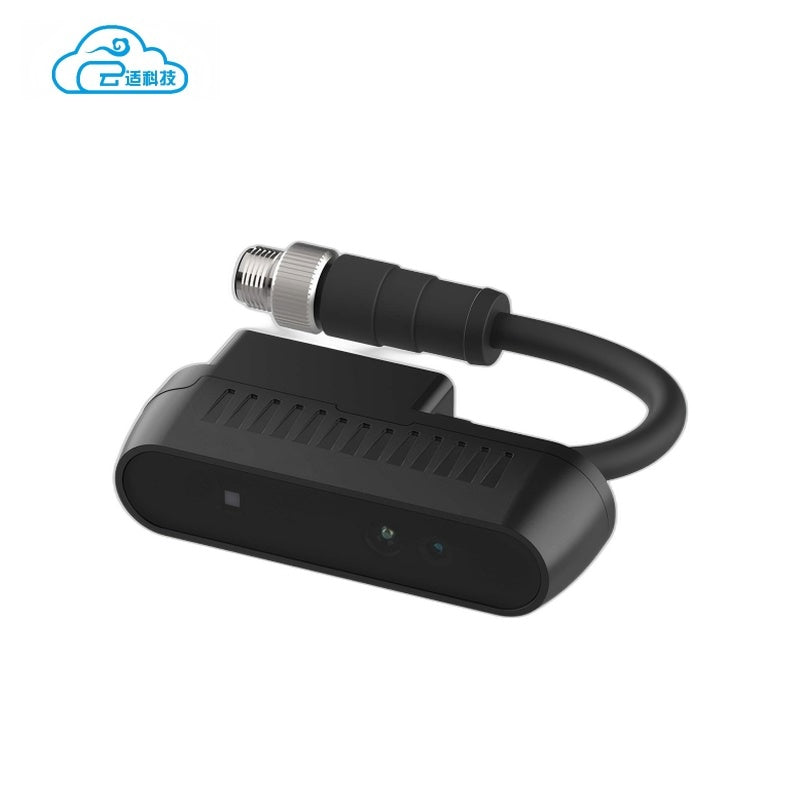

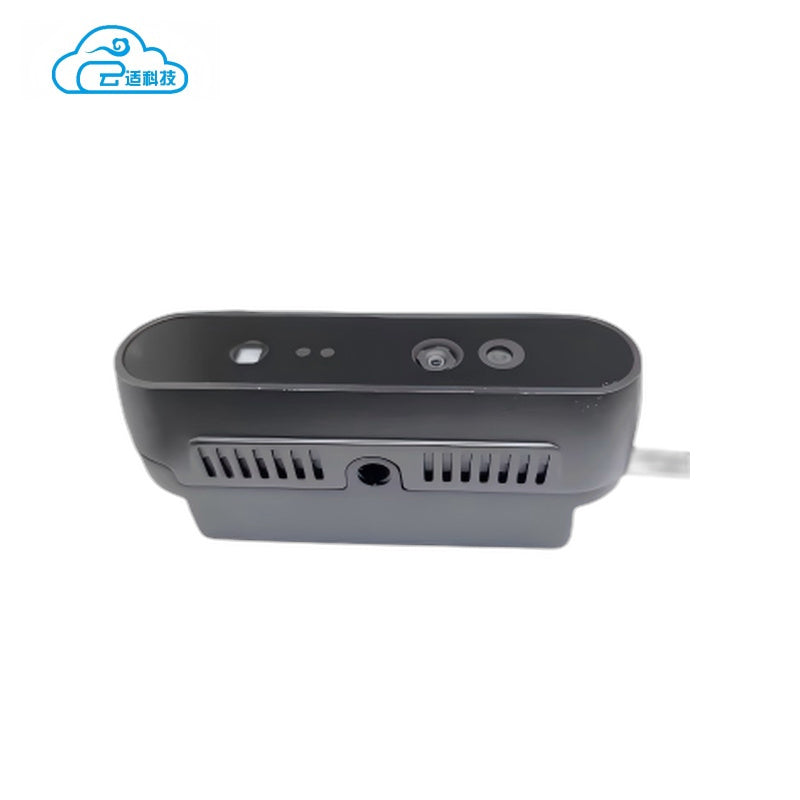

Yunshis iHawkP150E Camera

$600.00
Version
Working range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model iHawkP150E
Baseline 40 mm
Dimension 90 × 25 × 38.5 mm
Communication Interface Ethernet
Physical Interface M12 12-pin Aviation Connector
Power Supply DC 12 V ≥ 2 A
Average Power Consumption 2.5 W
Operating Temperature -10 ~ 50 °C
IP Rating IP55
Depth Working Range 0.3 - 8 m
Depth Accuracy ±1 mm @ 60 cm
Color Image Resolution / Frame Rate: 1280 × 800 @ 7 fps / 640 × 400 @ 25 fps
Image Encoding Format: MJPEG
Effective FOV: H72° (±3°) × V50.5° (±3°)
Depth Image Resolution / Frame Rate: 1280 × 800 @ 7 fps / 640 × 400 @ 25 fps
Image Format: Raw16bit
Effective FOV: H72° (±3°) × V50.5° (±3°)
Firmware Parameters Supports color image and depth image output, OTA firmware upgrade, auto-restart after upgrade
