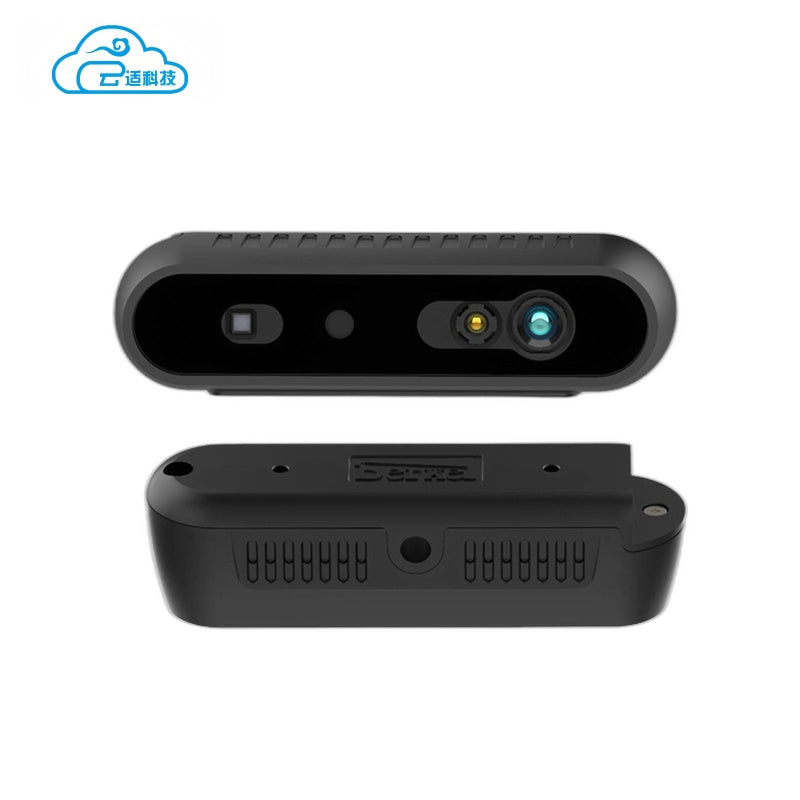

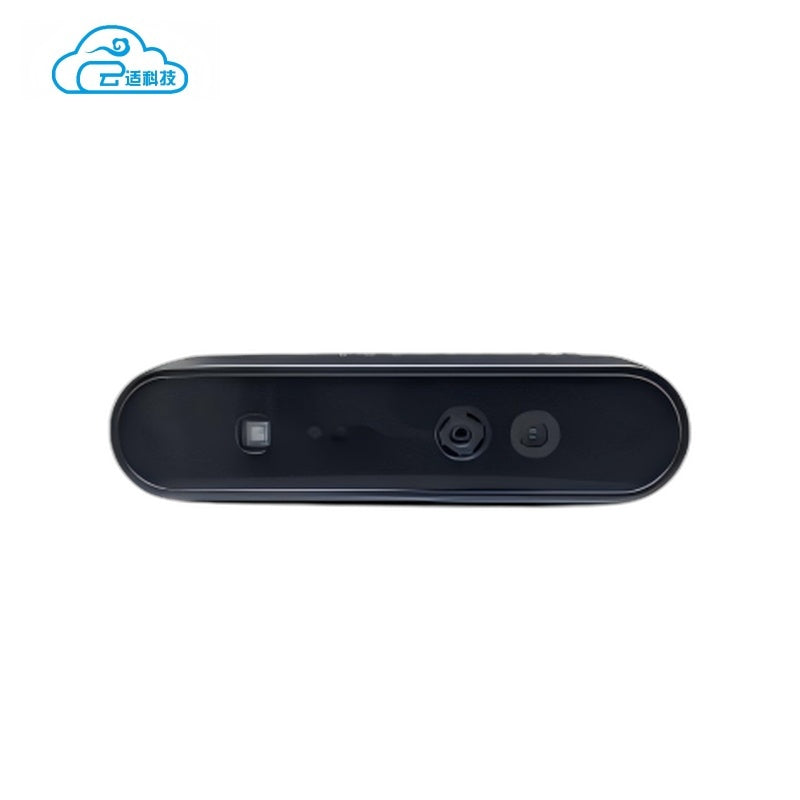

Yunshis iHawk150W Camera

$330.00
Version
Working range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model iHawk150W
Baseline 47 mm
Dimension 90 × 25 × 30 mm
Measurement Range 0.2 - 5.0 m
Depth Accuracy ≤2% (1280×800 @ 2 m)
Power Consumption 2.5 W
Interface Type-C
Power Supply USB 5 V
Laser Wavelength 940 nm
Operating Temperature -10 ~ 50 °C
Color Image Resolution / Frame Rate: 640 × 400 @ 30 fps
Image Encoding Format: MJPEG
Effective FOV: 88° (±3°) × 57° (±3°)
Depth Image Resolution / Frame Rate: 640 × 400 @ 30 fps
Effective FOV: 100° (±3°) × 65° (±3°)
Image Format: Raw16bit
Firmware Parameters Supports color image and depth image output, depth & color pixel alignment, OTA firmware upgrade, auto-restart after upgrade
