Yunshis | SKU:

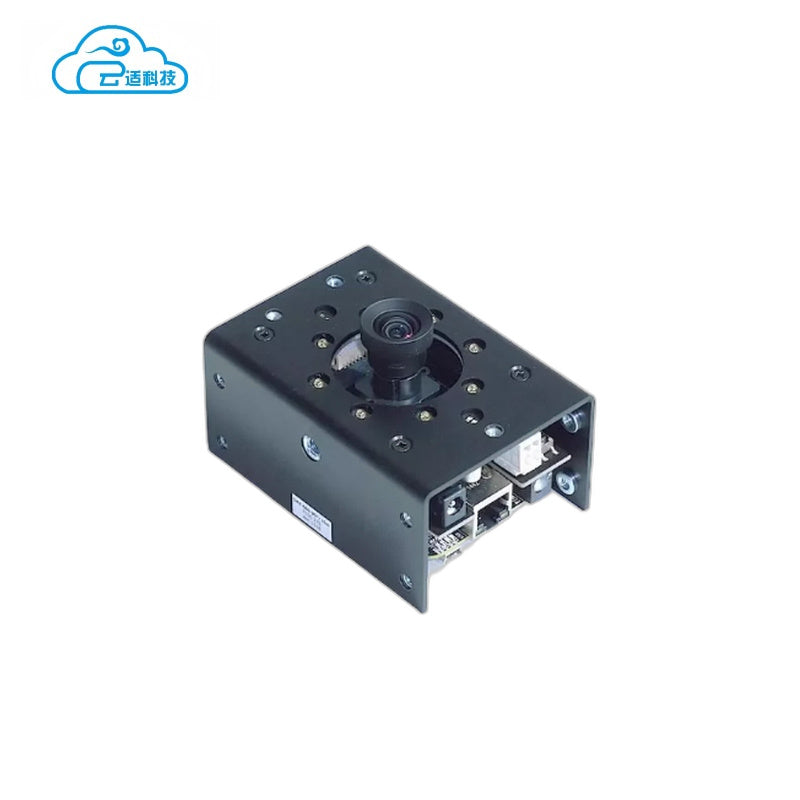

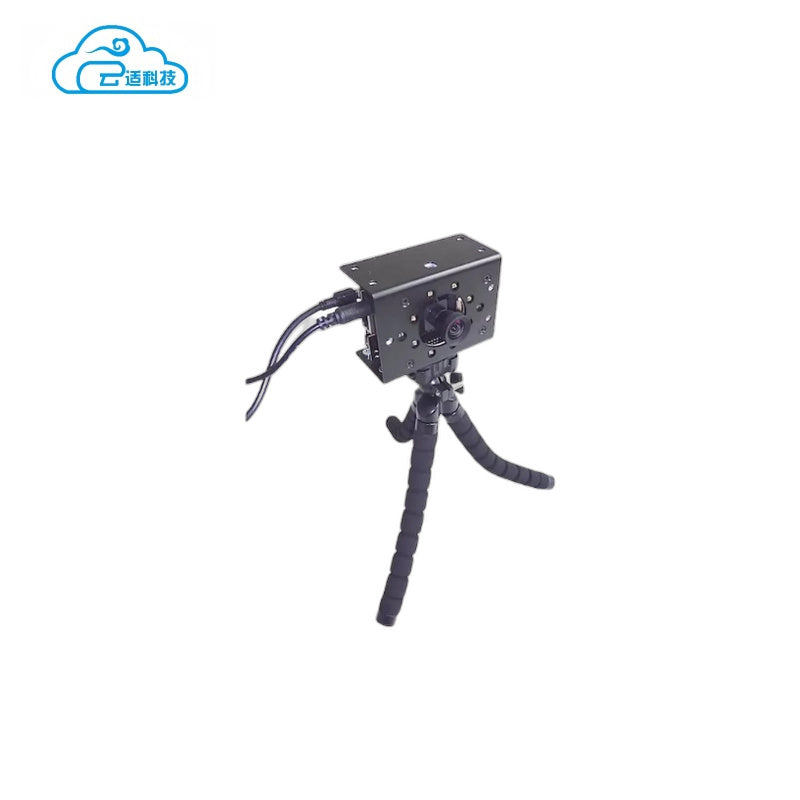

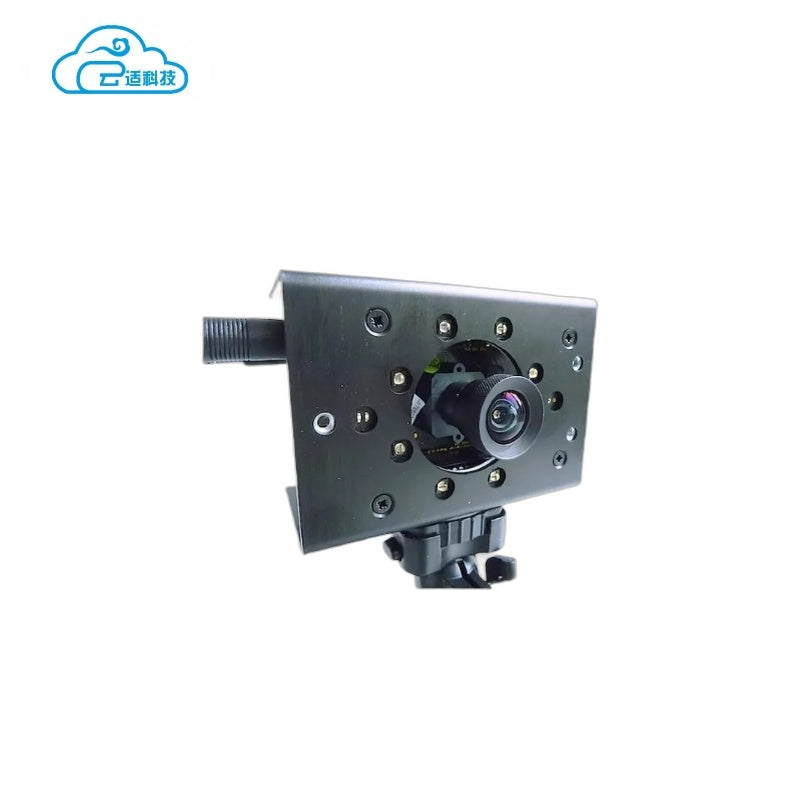

Yunshis DME660 Camera
Regular price
$3,150.00
Unit price
Yunshis DME660 Camera - DME660 (Hardware) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis DME660 Camera
Regular priceFrom
$3,150.00
Unit price
Yunshis DME660 Camera - DME660 (Hardware) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Description | Min. | Typ. | Max. | Units | Comments |
|---|---|---|---|---|---|---|
| VSUPPLY | Supply voltage | 21.6 | 24 | 26.4 | VDC | |
| VPP | Ripple on the supply voltage VSUPPLY | 0.25 | VPP | Peak value must not be below min. and not above max. supply voltage | ||
| ISUPPLY | Supply current - Idle | 0.10 | A | after power up | ||
| Supply current - Grayscale imaging | 0.10 | A | 100 fps | |||
| Supply current - 3D-TOF imaging | 0.25 | A | 25 fps, tINT = 1 ms | |||
| Image resolution | 320 x 240 | 320 x 240 | 320 x 240 | Pixel | ||
| FOV | Field of view | H108 x V77 | H108 x V77 | H108 x V77 | ° | with lens P/N 100 506 |
| λ | Operating wavelength | 850 | 850 | 850 | nm | |
| fLED_INT | Internal modulation frequency | 0.675, 1.25, 2.5, 5, 10, 20 | 0.675, 1.25, 2.5, 5, 10, 20 | 0.675, 1.25, 2.5, 5, 10, 20 | MHz | Software controllable |
| fLED_EXT | External modulation input | 1 | 80 | MHz | ||
| d | Operating range | 0.00 | 10.0 | m | Measured with an object that has a size at least the size of the pixel (dPIXEL). It is depending on the integration time tINT and the object reflectivity. | |
| Out | Distance output word | 12 | 12 | 12 | Bit | |
| Res | Resolution | 0.5 | cm/LSB | at 10 MHz modulation frequency | ||
| Measurement output | 0 | 2'000 | LSB | at 10 MHz modulation frequency, refers to 0.0 ... 10.0 m, measurement results depending on object reflectivity | ||
| dCAL | Calibration distance | 0.8 | m | Output @ 0.8m = 900 LSB | ||
| VAPM | Amplitude | 50 | 2'000 | LSB | useful amplitude range | |
| ΦL | Ambient light suppression | 0 | 130'000 | Lux | indirect, depending on integration time and object distance, ABS on | |
| Data interface | USB 2.0 full speed or Ethernet | USB 2.0 full speed or Ethernet | USB 2.0 full speed or Ethernet | |||
| TA | Ambient temperature range (operation) | 0 | 60 | °C |
