SENSING | SKU:

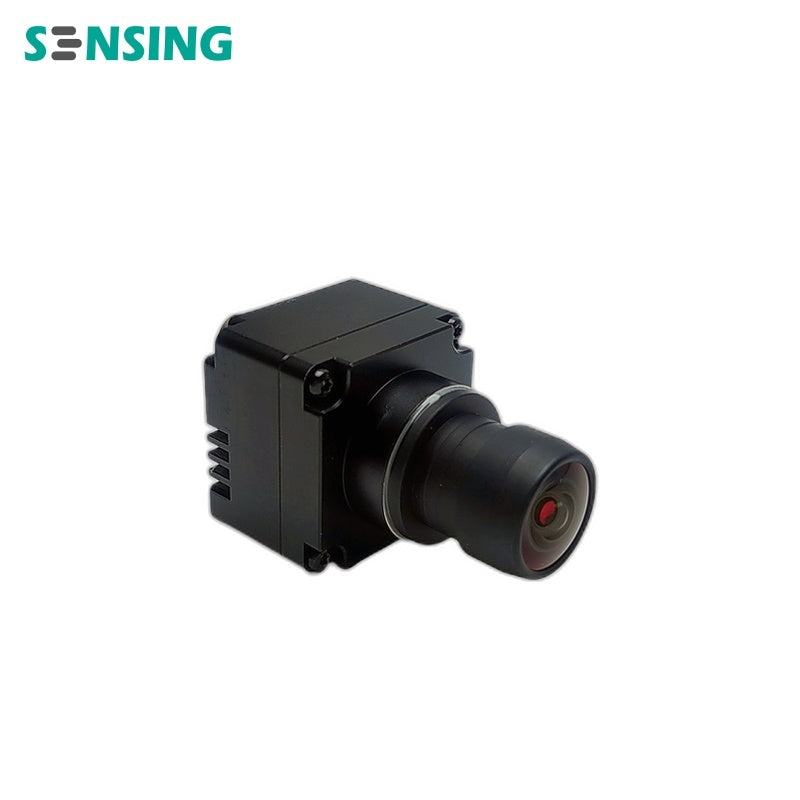

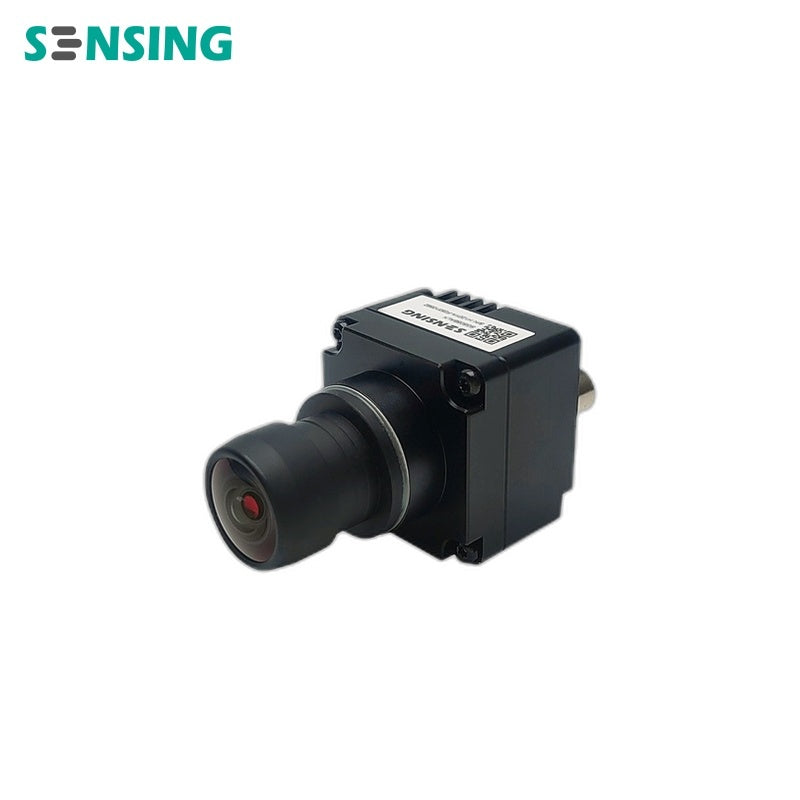

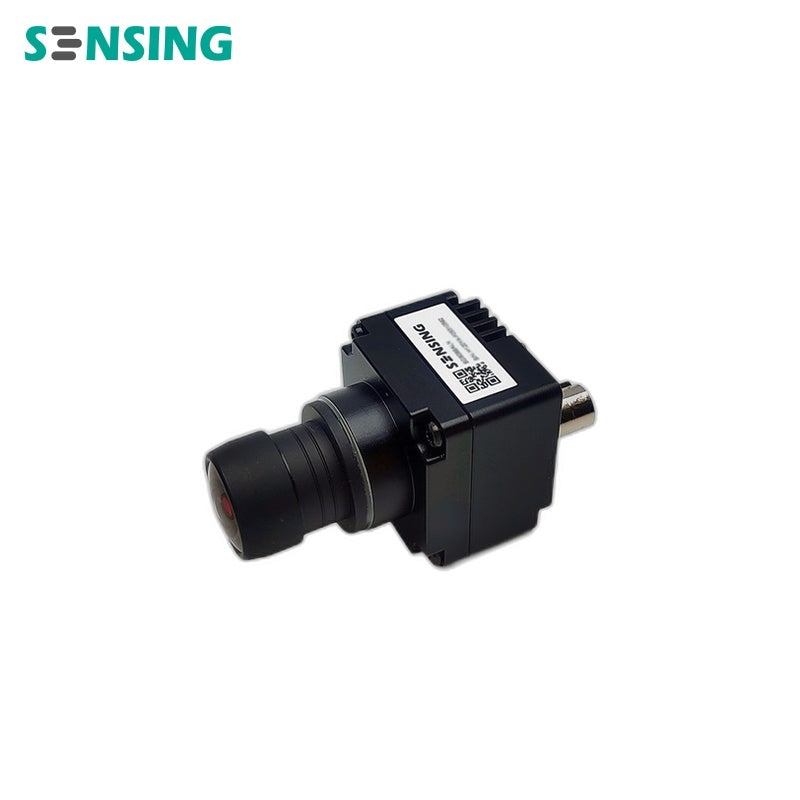

SENSING SG8-IMX728C-G2G Camera
Regular price
$599.00
Unit price
SENSING SG8-IMX728C-G2G Camera - SG8-IMX728C-G2G-H30YA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG8-IMX728C-G2G Camera
Regular price
$599.00
Unit price
SENSING SG8-IMX728C-G2G Camera - SG8-IMX728C-G2G-H30YA is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | SONY 8.39MP IMX728 RGGB |
| ISP | / |
| Image Size | 1/1.72 inch CMOS |
| Output Pixels | 3840H*2160V |
| Pixel Size | 2.1um*2.1um |
| Frame Rate | Max 30fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | MIPI / RAW 12 |
| Serializer | MAXIM MAX96717 |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <400mA@12VDC |
| Connector | Amphenol (Z Type Fakra) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 30mm, L: 30mm, H: 22.5mm |
| Weight | <100g |
SENSING-SG8-IMX728C-G2G-Drawing.pdf
SENSING-SG8-IMX728C-G2G-Datasheet.pdf
