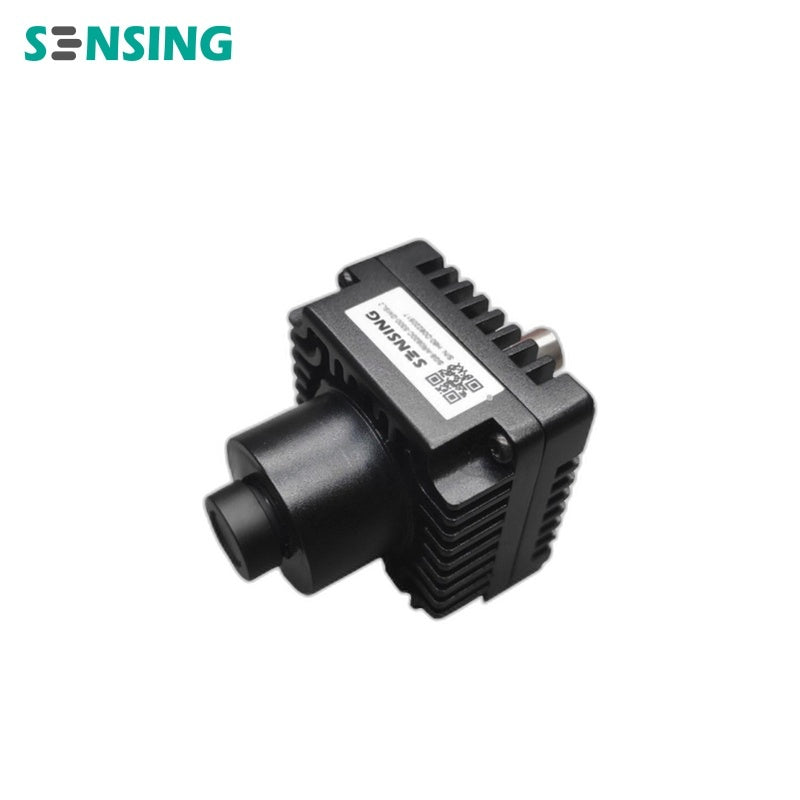

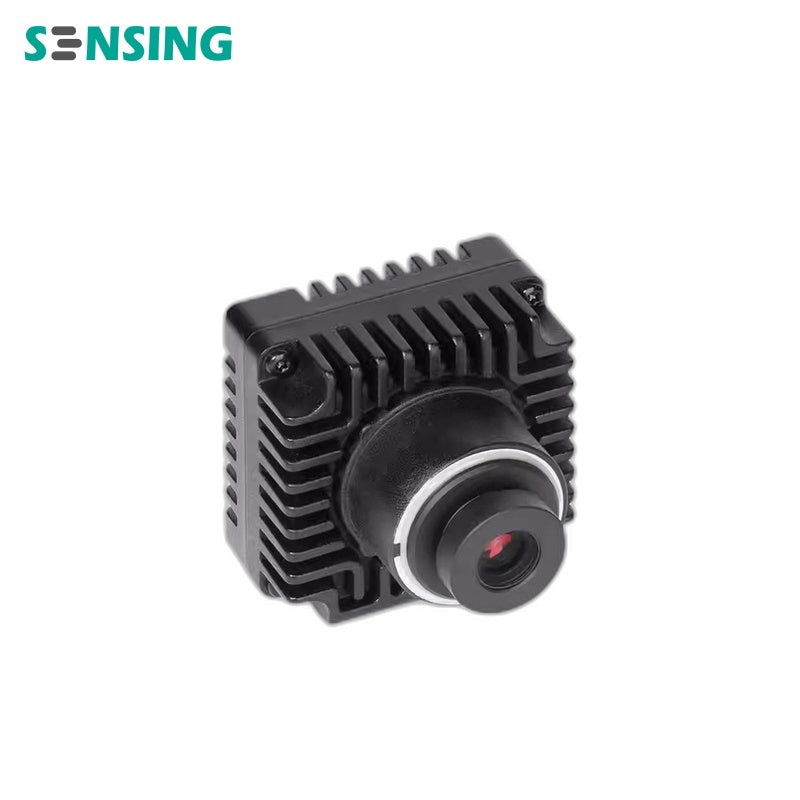

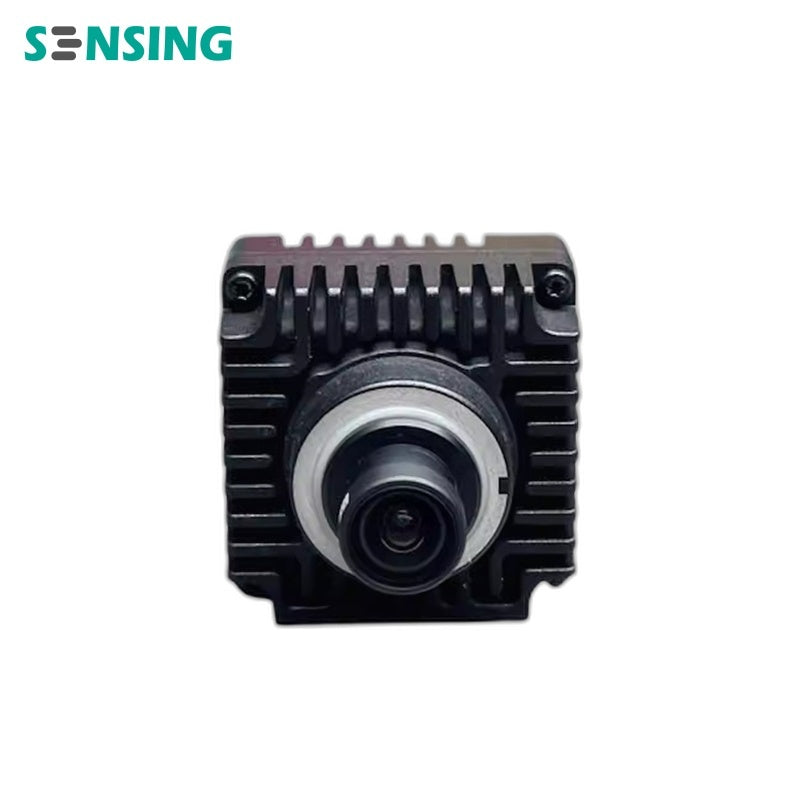

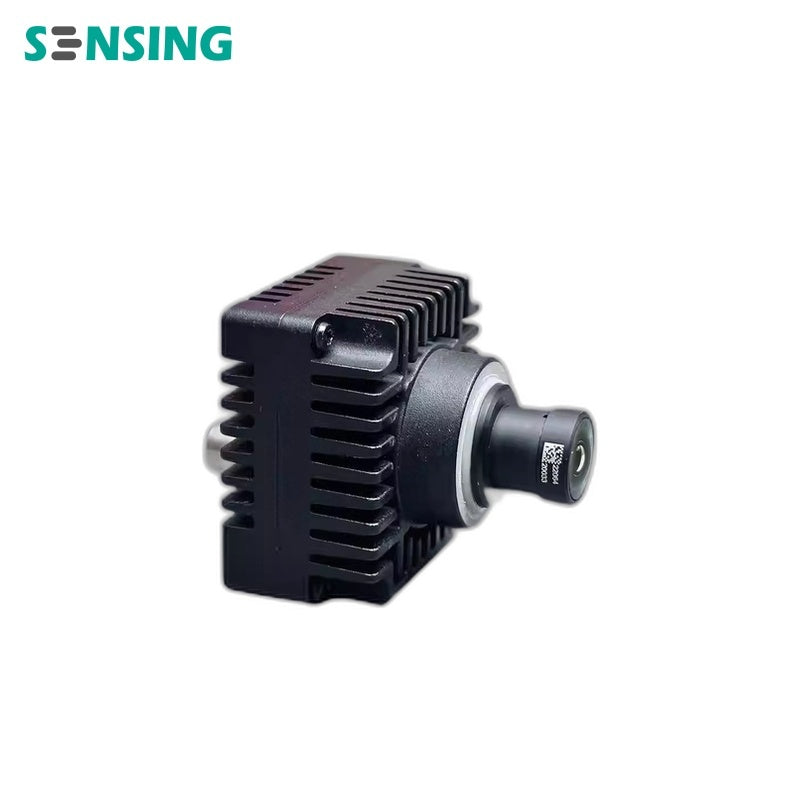

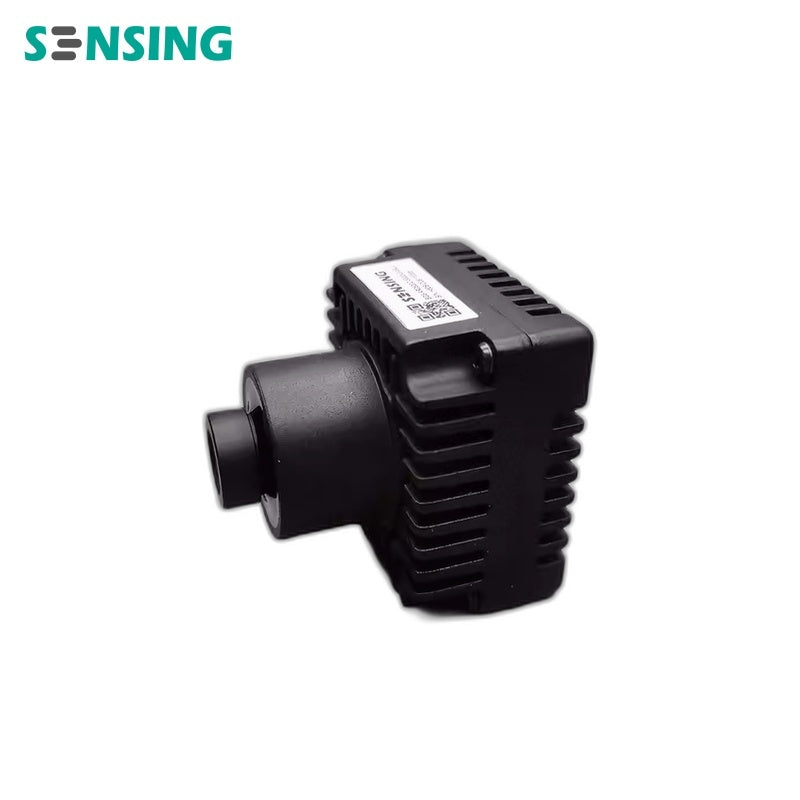

SENSING SG5-IMX490C-5300-GMSL2 Camera

$759.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Sensor SONY 5.44MP IMX490 RGGB
ISP GW5300
Image Size 1/1.55 inch CMOS
Output Pixels 2880H*1860V
Pixel Size 3um*3um
Frame Rate 2880*1860@30fps
HDR Support Yes
LFM Yes
Output data YUV422@8bit
Serializer MAXIM MAX9295A
Camera Interface GMSL2
Power Supply 9~16V POC
Current <300mA@12VDC
Connector Amphenol Fakra (Z Code)
Operating temp. range -40~+85°C
Dimensions W: 40mm, L: 40mm, H: 23mm
Weight <80g


SENSING-SG5-IMX490C-5300-GMSL2-Drawing.pdf

SENSING-SG5-IMX490C-5300-GMSL2-Datasheet.pdf

SENSING-Camera-Module-Installation-Guidance.pdf
