SENSING | SKU:

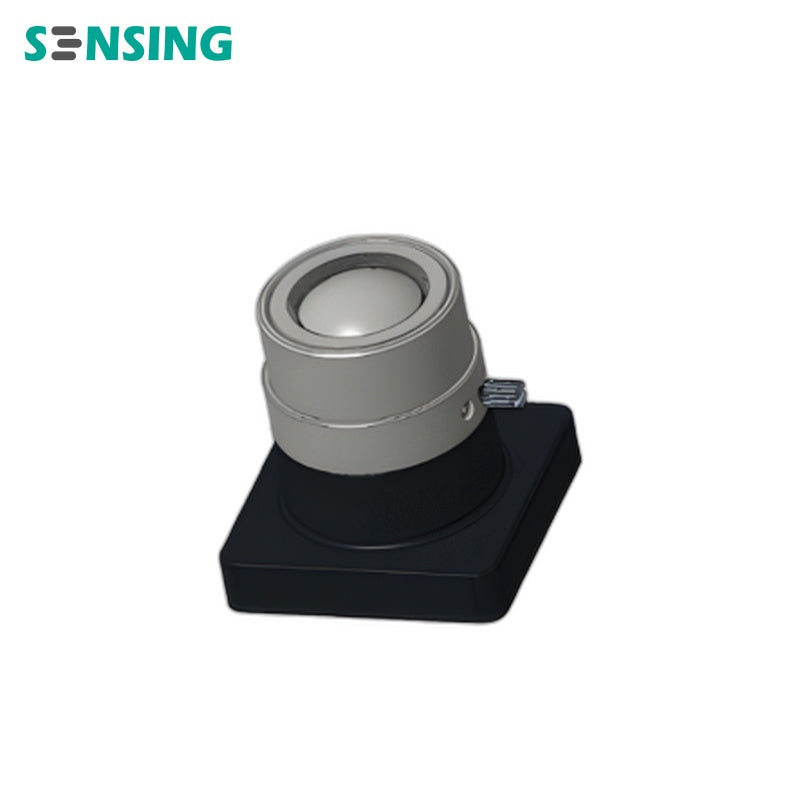

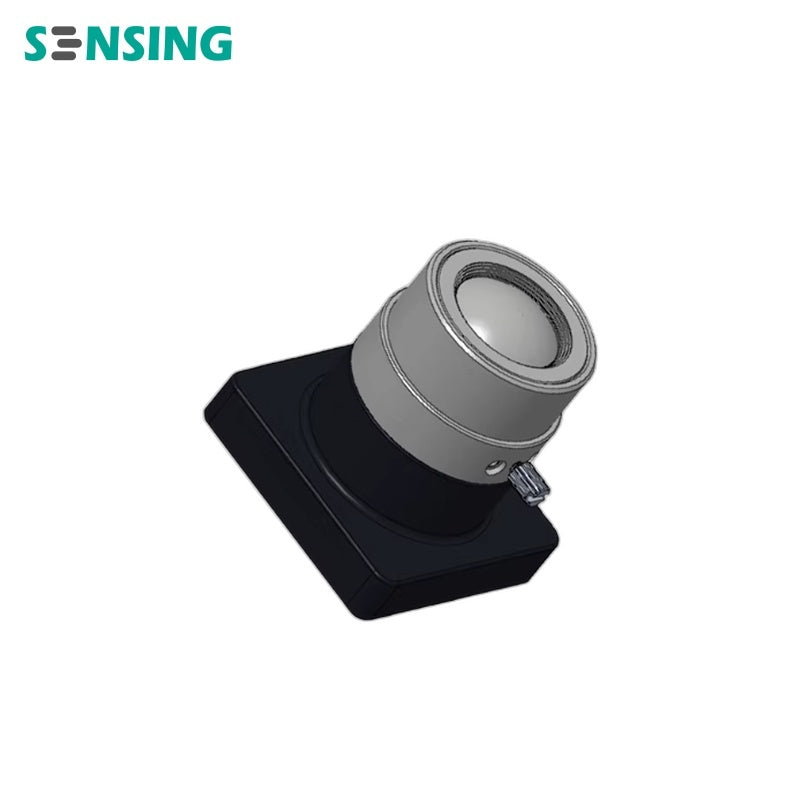

SENSING SG20-IMX283C-MIPI Camera
Regular price
$600.00
Unit price
SENSING SG20-IMX283C-MIPI Camera - SG20-IMX283C-MIPI-H15B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG20-IMX283C-MIPI Camera
Regular price
$600.00
Unit price
SENSING SG20-IMX283C-MIPI Camera - SG20-IMX283C-MIPI-H15B is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | Sony 20.3MP IMX283 RGGB |
| ISP | / |
| Chip size | 16.226 mm (H) × 12.654 mm (V) |
| Image Size | Diagonal 15.86mm (Type 1) |
| Resolution | 5472Hx3648V@20fps RAW12 5472Hx3648V@25fps RAW10 3840Hx2160V@60fps RAW10 2736Hx1824V@50fps RAW12 (2/2 binning) 1824Hx1216V@60fps RAW12 (3/3 binning) |
| Pixel Size | 2.40um*2.40um |
| HDR Support | / |
| Output Format | MIPI RAW10/RAW12 |
| Power Supply | 3.3V |
| Current | <500mA@3.3VDC |
| Camera interface | FPC |
| Connector | AFC07-S22ECA-00 |
| Operating temp. | -20 to +75℃ |
| Performance temp. | -20 to +60℃ |
| Dimensions | W: 40mm, L: 40mm, H: 101mm |
| Weight | <400g |
SENSING-SG20-IMX283C-MIPI-Drawing.pdf
