SENSING | SKU:

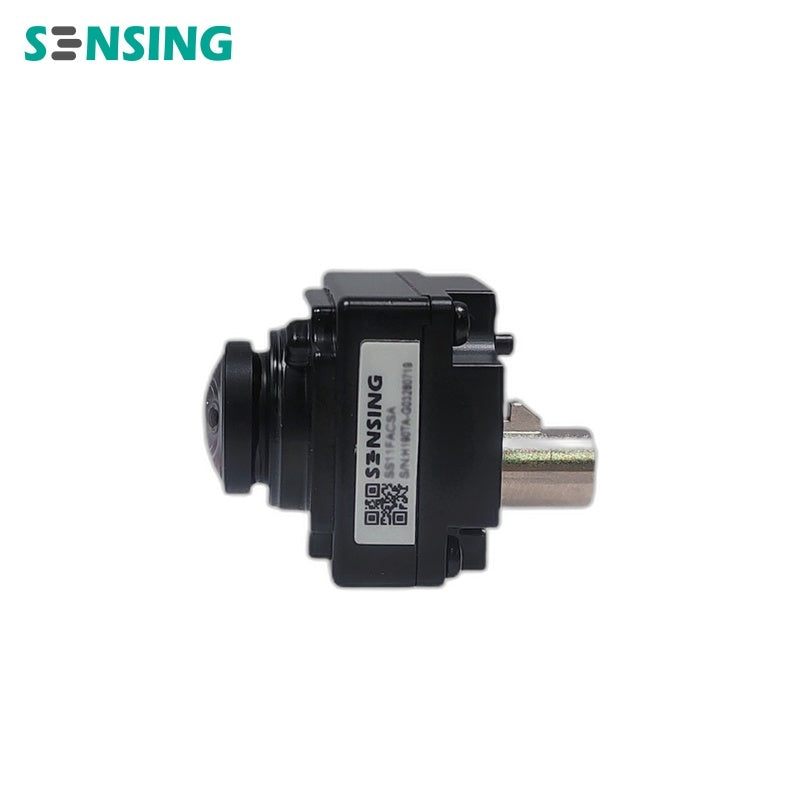

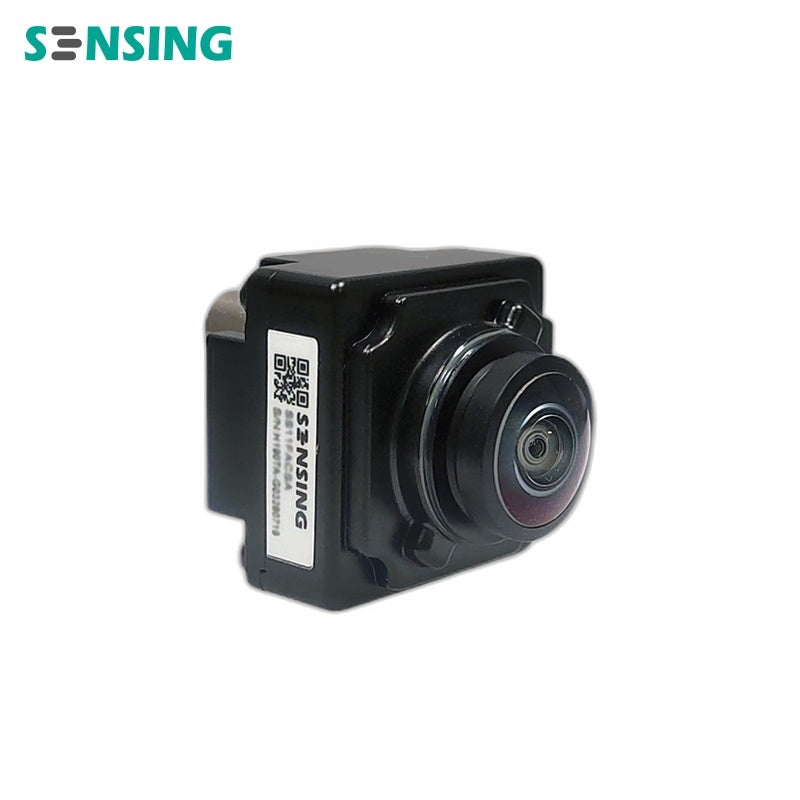

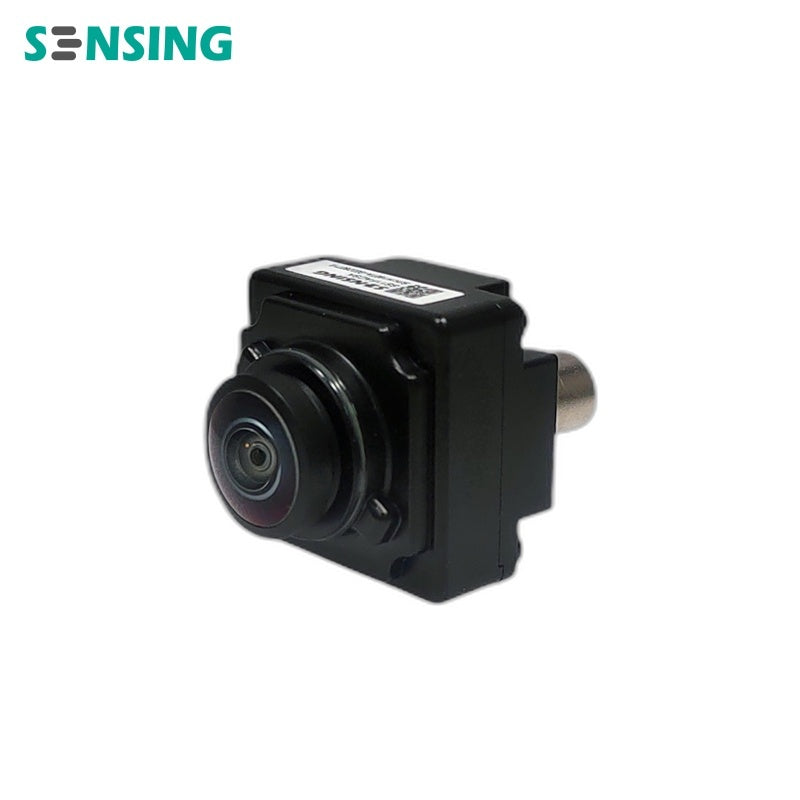

SENSING SG1S-OX01F10C-G1G Camera
Regular price
$219.00
Unit price
SENSING SG1S-OX01F10C-G1G Camera - SG1S-OX01F10C-G1G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG1S-OX01F10C-G1G Camera
Regular price
$219.00
Unit price
SENSING SG1S-OX01F10C-G1G Camera - SG1S-OX01F10C-G1G is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | OMNIVISION 1.3MP OX01F10 RGGB |
| ISP | Built-in |
| Image Size | 1/3.55 inch CMOS |
| Output Pixels | 1280H*960V |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | 1280*960@30fps |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX96701 |
| Camera Interface | GMSL |
| Power Supply | 9~16V |
| Current | <150mA@12V |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Storage temp range | -40~+85°C |
| Dimensions | W: 25mm, L: 25mm, H: 24.9mm |
| Weight | <50g |
SENSING-SG1S-OX01F10C-G1G-Drawing.pdf
SENSING-SG1S-OX01F10C-G1G-Hxxx_Camera-Datasheet.pdf
