OLEI | SKU:

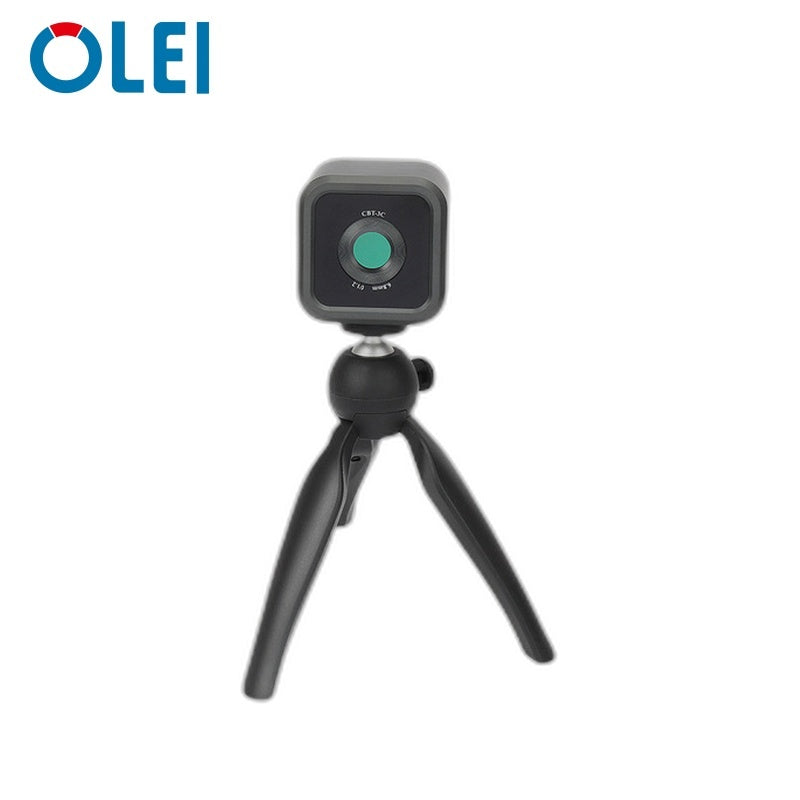

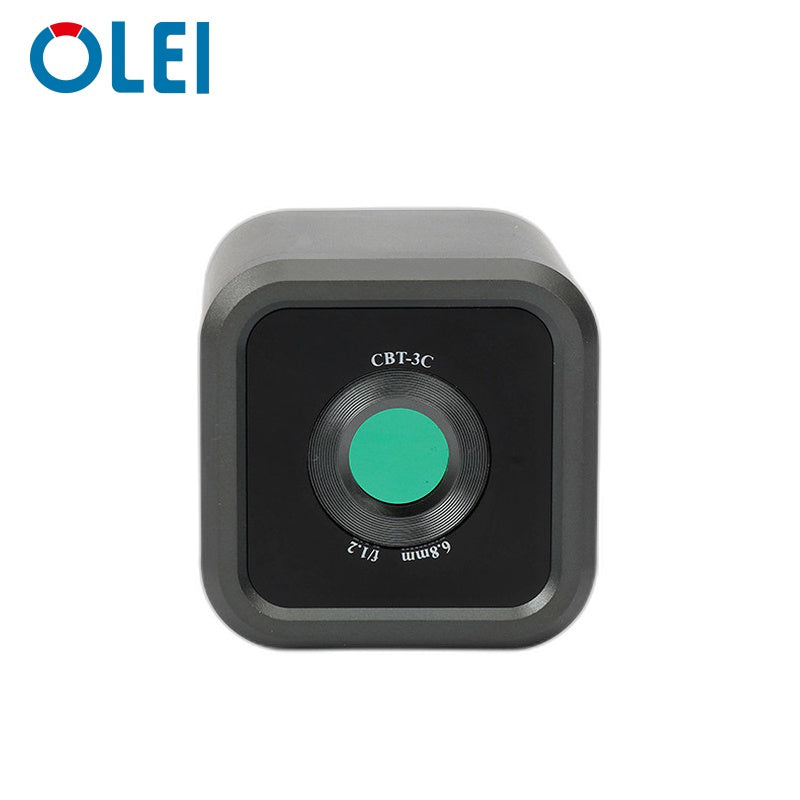

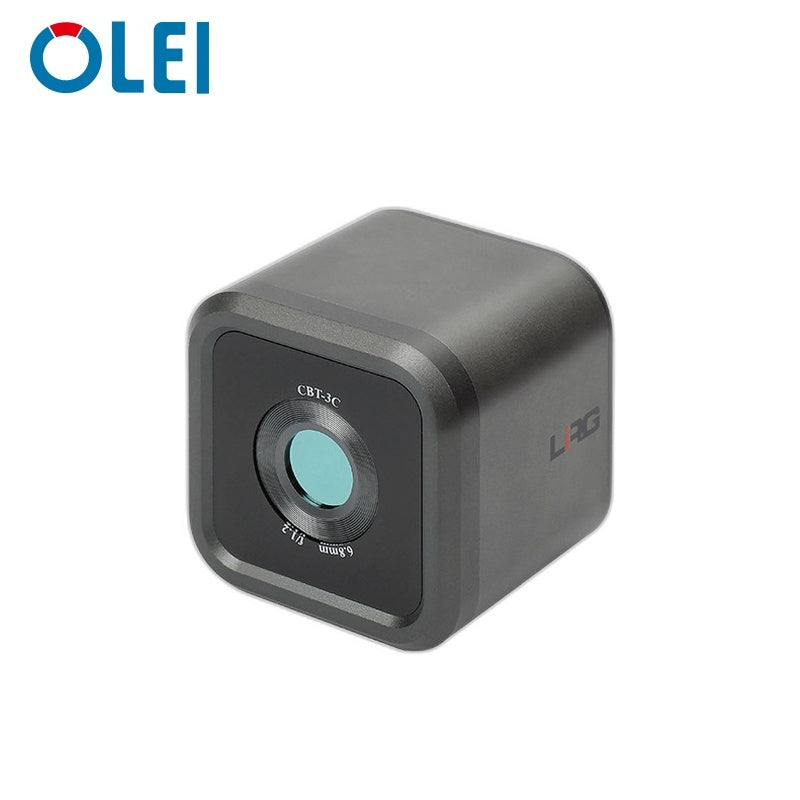

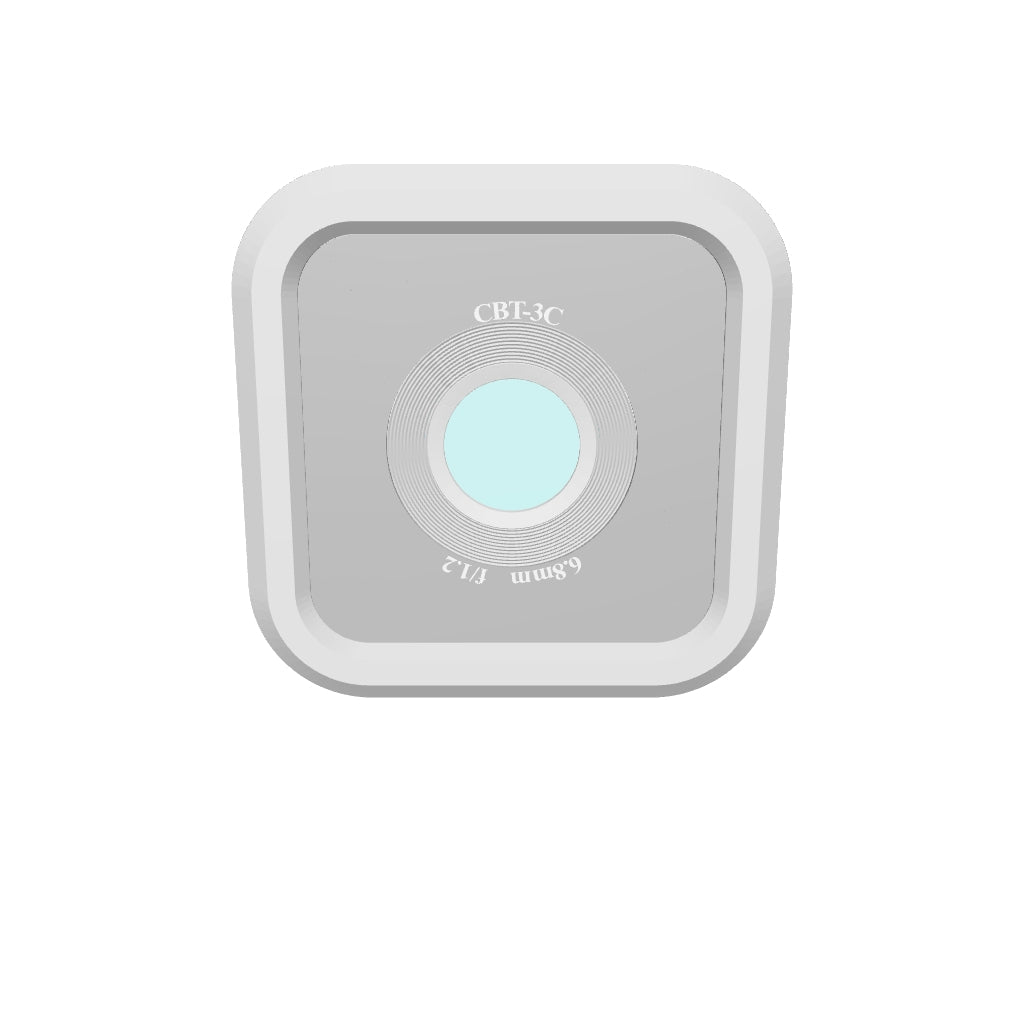

OLEI CBT-3C IR Image Sensor
Regular price
$1,050.00
Unit price
OLEI CBT-3C IR Image Sensor - CBT-3C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OLEI CBT-3C IR Image Sensor
Regular price
$1,050.00
Unit price
OLEI CBT-3C IR Image Sensor - CBT-3C is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 320×240 |
| Detector Pitch | 12μm |
| Image Frequency | 30Hz |
| FOV | H 32°×V 24° |
| Face recognition | Single Face Recognition Algorithm |
| Palette | WhiteHot, Iron, Rainbow |
| Temp Range | 30℃~45℃ |
| Min Resolution | 0.1℃ |
| Accuracy | ±0.5℃ |
| Test Environment | 16℃~32℃, Windless |
| Test Distance | 1.5m~2m |
| Temperature compensation | External ambient temperature sensor |
| Alarm | High temperature alarm, adjustable |
| Photograph | High temperature photo shoot |
| Communication | Type-C |
| Installation | Thread 1/4" |
| Size | 68×68×60mm |
| Weight | 350g |
| Store Temp | -20℃~50℃ |
| Humidity | 20%~80%Rh |
| Platform | Windows7 and above |
OLEI-CBT-3C-Drawing.pdf
OLEI-CBT-3C.STEP
