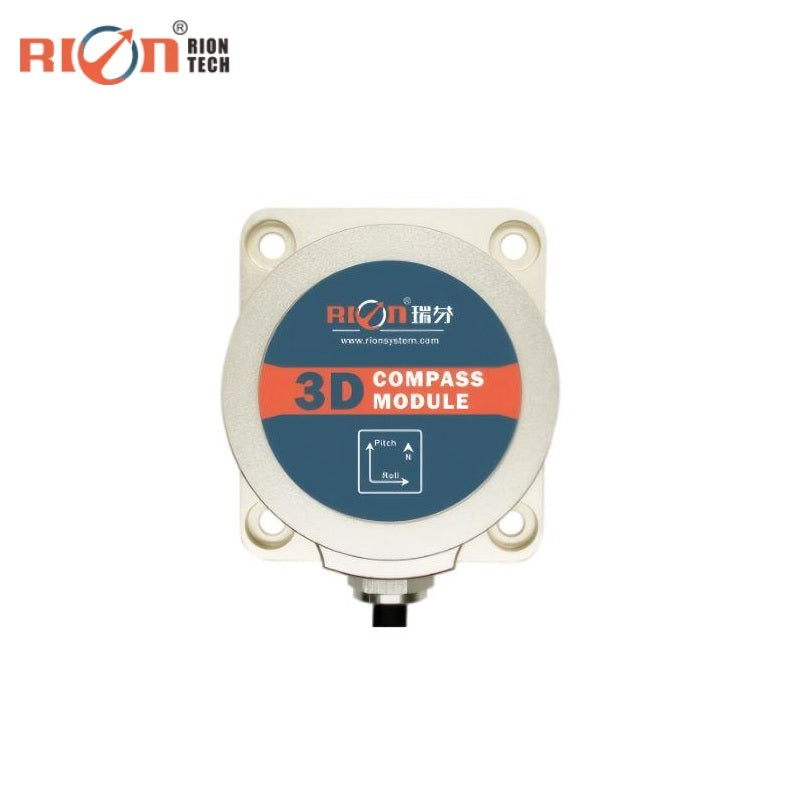

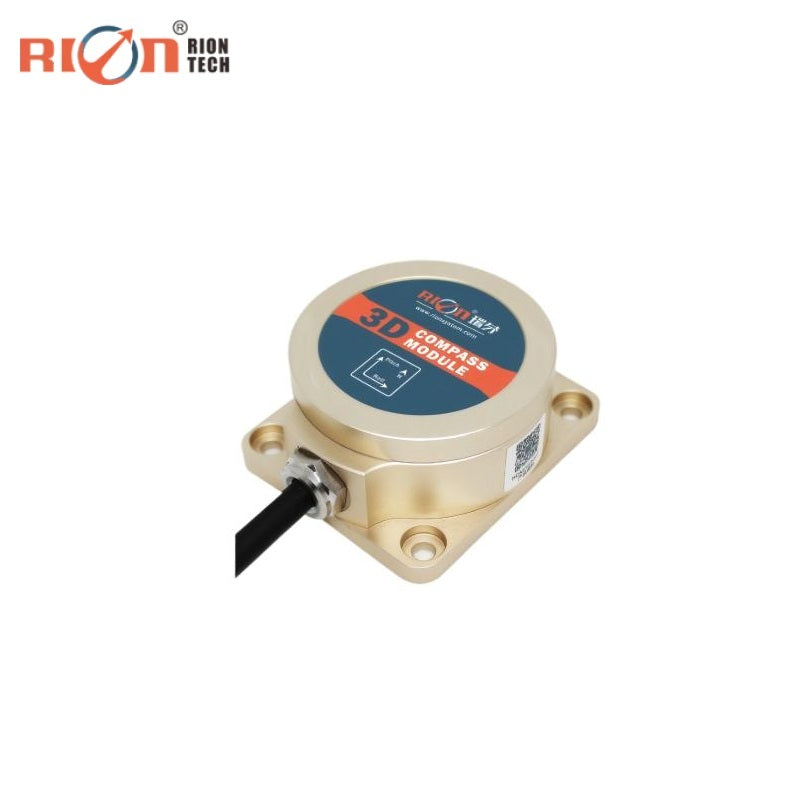

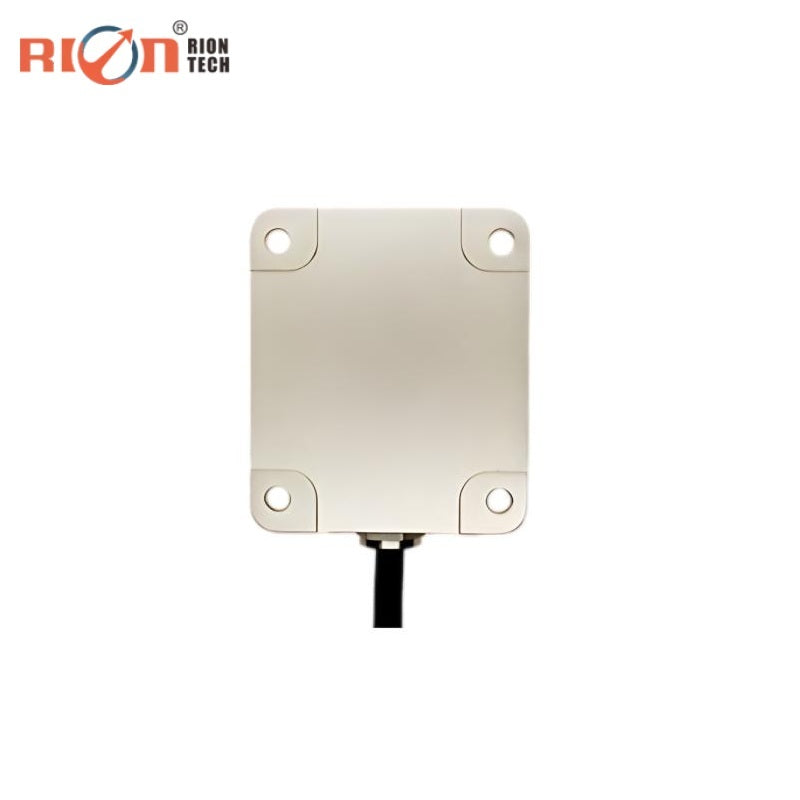

Rion Tech HCM385B-MP Sensor

$705.00
Version
Output Interface
Communication Protocol

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Compass Heading Parameters:
Best Heading Accuracy 0.5°
Resolution 0.1°
Compass Tilt Parameters:
Pitch Accuracy (≤15° measurement range) 0.1°
Pitch Accuracy (≤30° measurement range) 0.1°
Pitch Accuracy (≤60° measurement range) 0.1°
Pitch Accuracy (≤85° measurement range) 0.2°
Pitch Tilt Range ±85°
Roll Accuracy (≤15° measurement range) 0.1°
Roll Accuracy (≤30° measurement range) 0.1°
Roll Accuracy (≤60° measurement range) 0.1°
Roll Accuracy (≤180° measurement range) 0.2°
Roll Tilt Range ±180°
Resolution 0.1°
Calibration:
Hard Iron Calibration Yes
Soft Iron Calibration Yes
Magnetic Field Interference Calibration Method 24-point Calibration
Physical Characteristics:
Single Board Dimensions L33×W27×H9.5mm
Single Board Weight ≤20g
RS232/RS485/TTL Interface Connector 30cm Terminal Wire
Interface Characteristics:
Start-up Delay <50ms
Maximum Output Rate 20Hz/s
Communication Baud Rate 2400 to 115200 baud
Output Format Binary High-Performance Protocol
Power Supply:
Supply Voltage (Default) DC +5V
Maximum Current 30mA
Ideal Mode Current 26mA
Sleep Mode Current TBD
Environmental Characteristics:
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃
Vibration Resistance 100g
Protection Rating IP67
Electromagnetic Compatibility Compliant with EN61000 and GB/T 17626
Mean Time Between Failures (MTBF) ≥98000 hours
Insulation Resistance ≥100MΩ
Shock Resistance 100g @ 11ms, Triaxial (Half-Sine Wave)
Vibration Resistance 10grms, 10~1000Hz
