Rion Tech

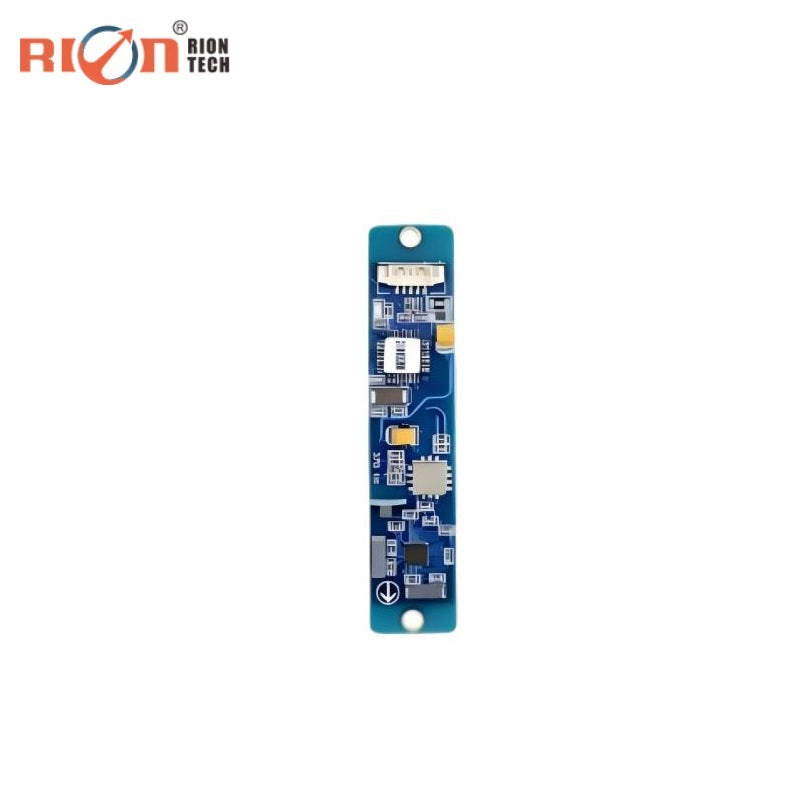

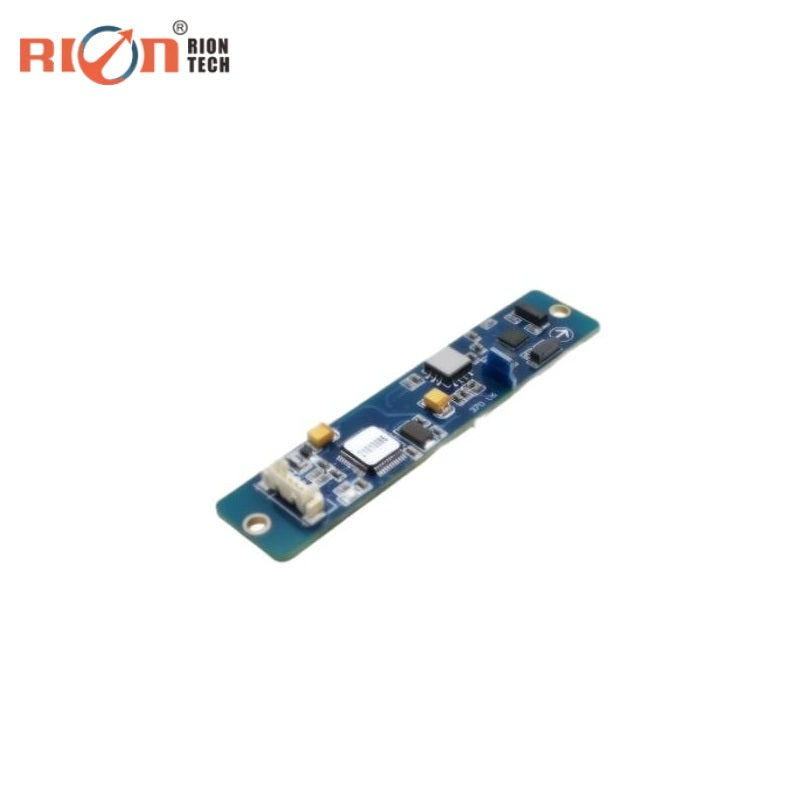

Rion Tech HCM370B-MP Electronic Compass

$630.00
Version
Output Interface
Output protocol

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Heading & Attitude Parameters:
Best Heading Accuracy 0.5°
Heading Resolution 0.1°
Pitch Accuracy (@ Range <15°) 0.1°
Pitch Accuracy (@ Range <30°) 0.1°
Pitch Accuracy (@ Range <60°) 0.1°
Pitch Accuracy (@ Range <85°) 0.2°
Pitch Tilt Range ±85°
Roll Accuracy (@ Range <15°) 0.1°
Roll Accuracy (@ Range <30°) 0.1°
Roll Accuracy (@ Range <60°) 0.1°
Roll Accuracy (@ Range <180°) 0.2°
Roll Tilt Range ±180°
Tilt Axis Resolution 0.1°
Calibration Features:
Hard Iron Calibration Supported
Soft Iron Calibration Supported
Magnetic Calibration Method 24-point Calibration
Physical Specifications:
Single Board Package Dimensions L76 × W16.5 × H9.3 mm
Single Board Package Weight ≤ 10 g (excluding terminal wires)
Terminal Wire Length 30 cm
Communication & Interface:
Output Interfaces RS232 / RS485 / TTL (optional)
Start-up Delay < 50 ms
Maximum Output Rate 20 Hz
Communication Baud Rate 2400 ~ 115200 baud (default: 9600)
Output Protocol Binary High-Performance Protocol
Electrical Specifications:
Default Supply Voltage DC +5 V
Maximum Operating Current 30 mA
Ideal Mode Current 26 mA
Sleep Mode Current TBD (To Be Determined)
Environmental & Reliability:
Operating Temperature Range -40 ℃ ~ +85 ℃
Storage Temperature Range -40 ℃ ~ +85 ℃
Environmental Vibration Resistance 100 g
IP Protection Rating IP67
Mean Time Between Failures (MTBF) ≥ 40000 hours
