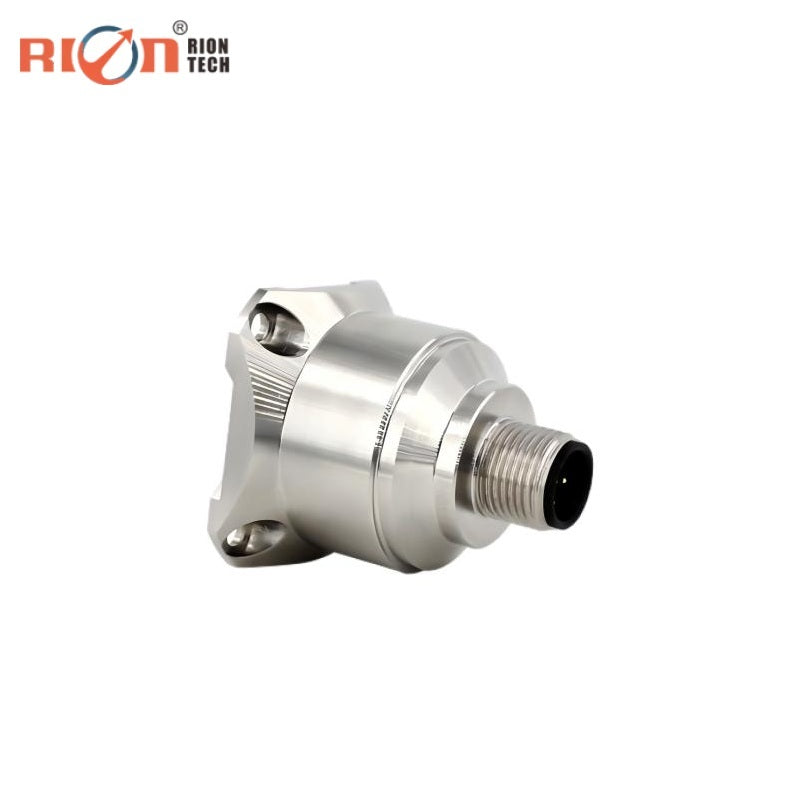

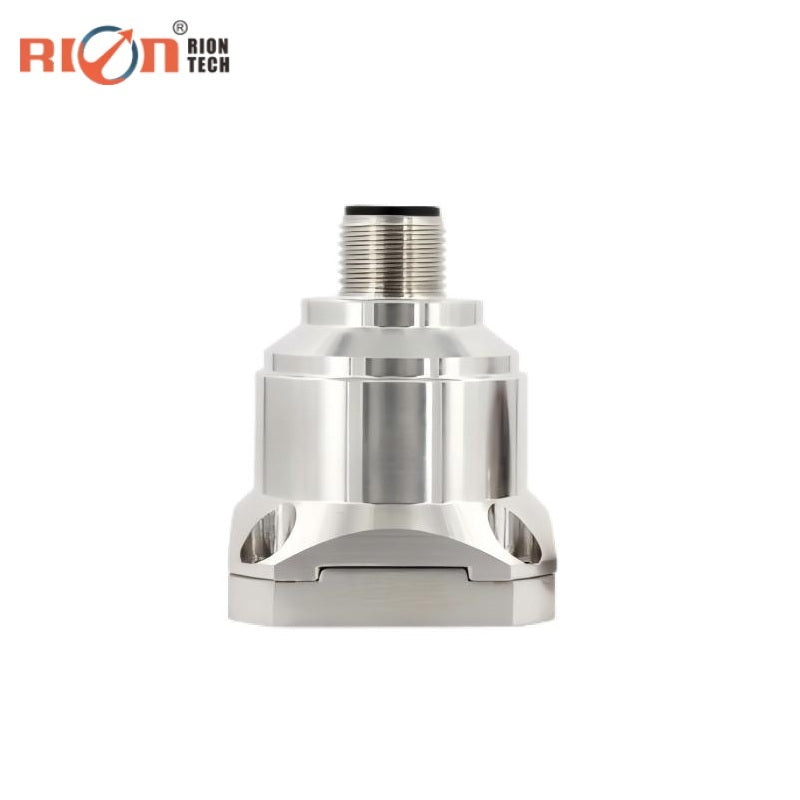

Rion Tech AKF398 MEMS Current Accelerometer

$380.00
Version
Installation method
Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Measurement Specifications:
Measurement Range ±2g, ±4g, ±8g, ±10g, ±20g, ±40g
Measurement Axes X, Y, Z
Bias Calibration <1 mg
Power On/Off Repeatability <2 mg (max)
Bias Temperature Coefficient 0.01 %/°C (±2/±4/±8g), 0.05 %/°C (±10/±20/±40g)
Sensitivity (±10%) 4 mA/g (±2g), 2 mA/g (±4g), 1 mA/g (±8g), 0.8 mA/g (±10g), 0.4 mA/g (±20g), 0.2 mA/g (±40g)
Resolution / Threshold (@ 1 Hz) <1 mg (max)
Non-linearity <1 %FS (max)
Performance & Dynamic Characteristics:
Response Frequency 500 Hz
Bandwidth (3dB) 1000 Hz
Cross-axis Sensitivity 1 % (±2/±4/±8g), 2 % (±10/±20/±40g)
Transverse Vibration Sensitivity Ratio 1 % (±2/±4g), 2 % (±8g), 5 % (±10/±20/±40g)
Resonance Frequency 2.4 kHz (±2/±4/±8g), 5.5 kHz (±10/±20/±40g)
Noise Density 21 µg/√Hz (±2/±4/±8g), 86.6 µg/√Hz (±10/±20/±40g)
Electrical & Output Specifications:
0g Output (@ 12mA) <0.005 mA (±2/±4/±8g), <0.003 mA (±10/±20/±40g)
Output Current 4~20 mA
Input Voltage (VDD_VSS) 9-36 VDC
Operating Current Consumption <60 mA @ 12 VDC
Physical & Connector Specifications:
Connector Industrial Standard M12 Connector

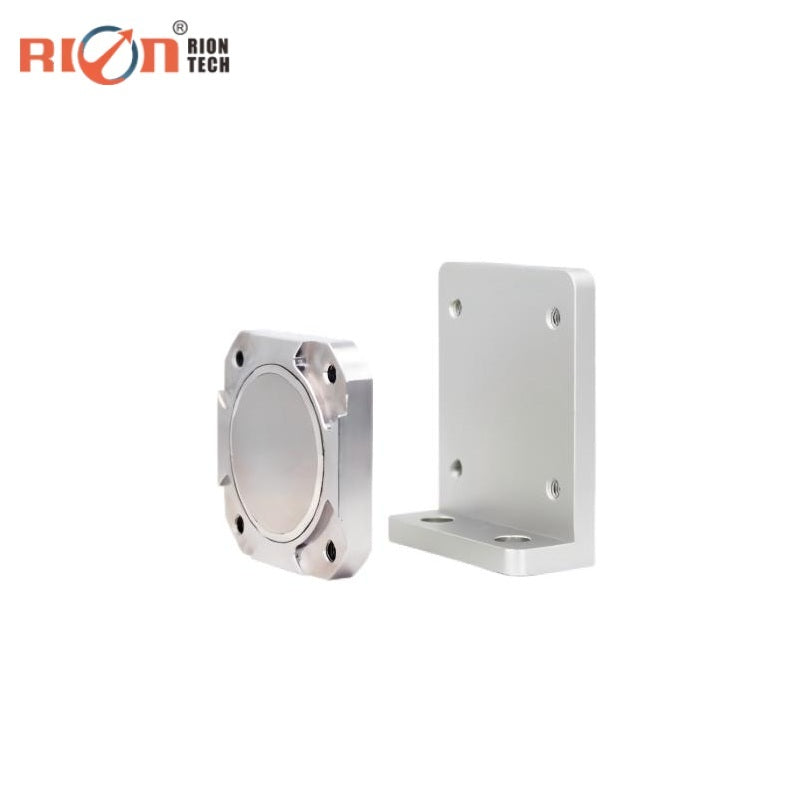

Weight Product Net Weight: 82g; Magnetic Base: 48g; L-shaped Bracket: 20g
Dimensions Product: 34.3×34.3×38.5 mm; Magnetic Base: 34.23×34.23×8.1 mm; L-shaped Bracket: 36×44×15 mm
