Qinchuan

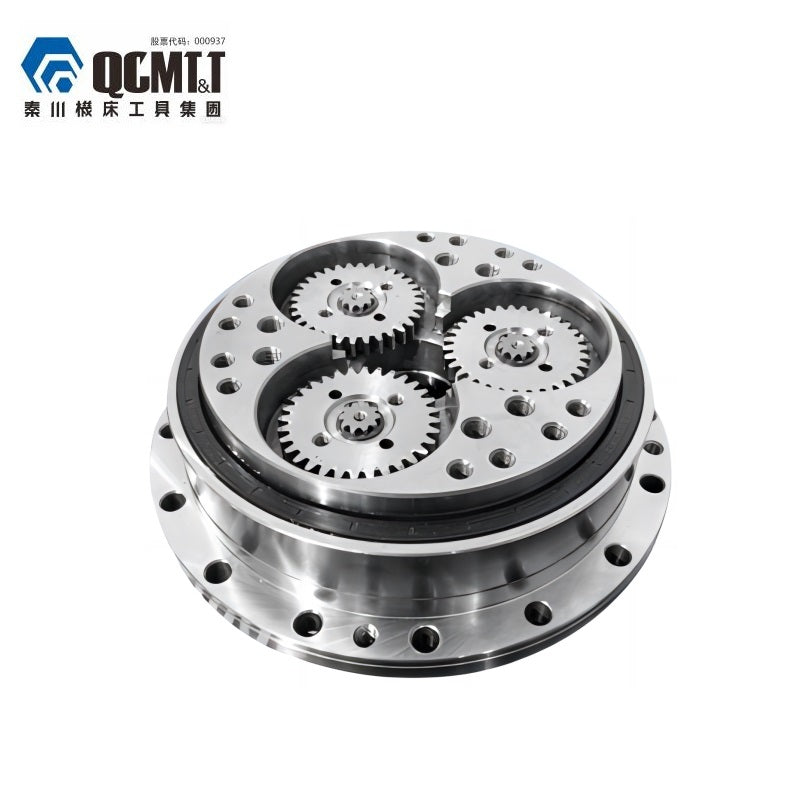

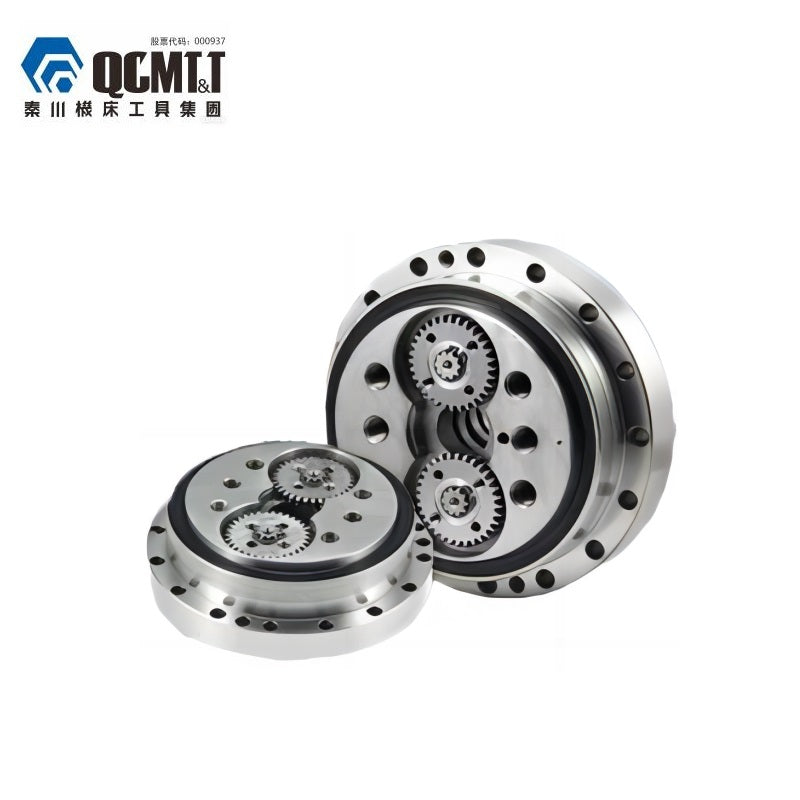

Qinchuan BX80E Reducer

$815.00
Version
Speed Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Bending Moment Stiffness 1176 (120) Nm/arc.min. (kgf-m/arc.min.)
Permissible Bending Moment 2156 (220) Nm (kgf-m)
Max. Momentary Permissible Bending Moment 4312 (440) Nm (kgf-m)
Permissible Max. Output Speed 70 r/min
Permissible Torque for Start/Stop 1960 (200) Nm (kgf-m)
Max. Momentary Permissible Torque 3920 (400) Nm (kgf-m)
Lost Motion (MAX) 1 Arc.min.
Torsional Stiffness 196 (20) Nm/arc.min. (kgf-m/arc.min.)
Weight 13.1 Kg

Output Speed Output Torque Input Power
5 r/min 1088 (111) Nm (kgf-m) 0.76 kW
10 r/min 885 (90.3) Nm (kgf-m) 1.24 kW
15 r/min 784 (80.0) Nm (kgf-m) 1.64 kW
20 r/min 719 (73.4) Nm (kgf-m) 2.01 kW
25 r/min 672 (68.6) Nm (kgf-m) 2.35 kW
30 r/min 637 (65) Nm (kgf-m) 2.67 kW
40 r/min 584 (59.6) Nm (kgf-m) 3.26 kW
50 r/min 546 (55.7) Nm (kgf-m) 3.81 kW
60 r/min 517 (52.8) Nm (kgf-m) 4.33 kW

Gear Ratio (Planetary Carrier / Pin Gear) Moment of Inertia I
57 / 56 8.16 × 10-5 Kg-m²
81 / 80 6.00 × 10-5 Kg-m²
101 / 100 4.82 × 10-5 Kg-m²
121 / 120 3.96 × 10-5 Kg-m²
153 / 152 2.98 × 10-5 Kg-m²
